Create a new layout

When an existing page layout does not meet your requirements, create a new page layout.

If the new page has a 3-columns-double-footer layout, create a custom page-layout XML file: app/design/frontend/<VendorName>/<ThemeName>/Magento_Theme/page_layout/3-columns-double-footer.xml.

Copy
<?xml version="1.0"?>
<layout xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:View/Layout/etc/page_layout.xsd">
    <update handle="3columns"/>
    <referenceContainer name="page.wrapper">
        <container name="footer-bottom" as="footer-bottom" after="footer" label="Footer Bottom" htmlTag="footer" htmlClass="page-footer-bottom">
            <container name="footer-bottom-content" as="footer-bottom-content" htmlTag="div" htmlClass="footer content" />
        </container>
    </referenceContainer>
</layout>
Copied to your clipboard
<?xml version="1.0"?>
<layout xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:View/Layout/etc/page_layout.xsd">
    <update handle="3columns"/>
    <referenceContainer name="page.wrapper">
        <container name="footer-bottom" as="footer-bottom" after="footer" label="Footer Bottom" htmlTag="footer" htmlClass="page-footer-bottom">
            <container name="footer-bottom-content" as="footer-bottom-content" htmlTag="div" htmlClass="footer content" />
        </container>
    </referenceContainer>
</layout>

To add a block to the container, create the layout:

app/design/frontend/<VendorName>/<ThemeName>/Magento_Theme/layout/default.xml

Copy
<?xml version="1.0"?>
<page xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:View/Layout/etc/page_configuration.xsd">
    <referenceContainer name="footer-bottom-content">
        <block class="Magento\Framework\View\Element\Template" name="report.bugs.bottom" template="Magento_Theme::html/bugreport.phtml"/>
    </referenceContainer>
</page>
Copied to your clipboard
<?xml version="1.0"?>
<page xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:View/Layout/etc/page_configuration.xsd">
    <referenceContainer name="footer-bottom-content">
        <block class="Magento\Framework\View\Element\Template" name="report.bugs.bottom" template="Magento_Theme::html/bugreport.phtml"/>
    </referenceContainer>
</page>

Add the layout to the layouts.xml file

Add the newly created page layout to the layouts.xml file of the theme directory: app/design/frontend/<VendorName>/<ThemeName>/Magento_Theme/layouts.xml.

Copy
<?xml version="1.0" encoding="UTF-8"?>
<page_layouts xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:View/PageLayout/etc/layouts.xsd">
    <layout id="3-columns-double-footer">
        <label translate="true">3 Columns Double Footer</label>
    </layout>
</page_layouts>
Copied to your clipboard
<?xml version="1.0" encoding="UTF-8"?>
<page_layouts xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:View/PageLayout/etc/layouts.xsd">
    <layout id="3-columns-double-footer">
        <label translate="true">3 Columns Double Footer</label>
    </layout>
</page_layouts>

Clean the cache by going to System > Cache Management > Flush Magento Cache or by entering the following command:

Copy
bin/magento cache:clean
Copied to your clipboard
bin/magento cache:clean

Result

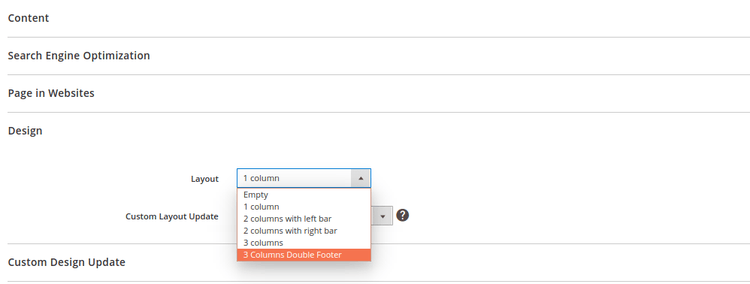

The new page layout displays in all Layout dropdowns.

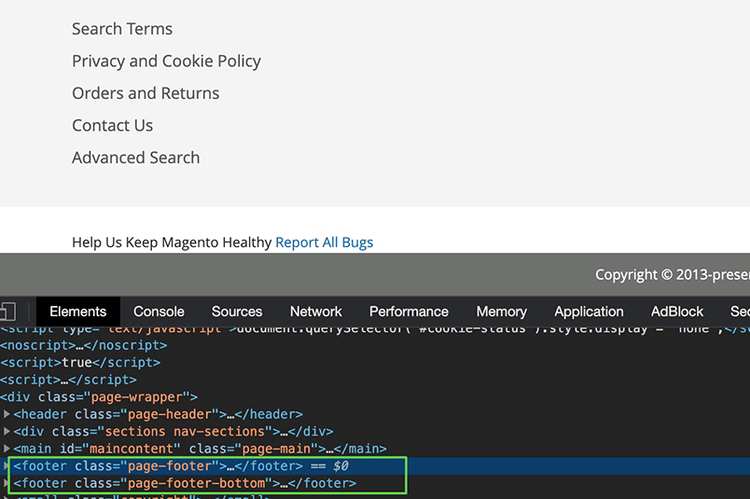

On the storefront, there is a new footer for those pages that use the 3 Columns Double Footer layout.

Last updated 9/11/2023
