Collapsible

Edit in GitHub Log an issue

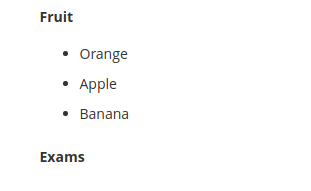

The collapsible widget converts a header/content pair into an accordion, where the content is collapsed or expanded on the header click.

Unlike the accordion widget which is initialized for a set of title/contents pairs, the collapsible widget is initialized for one title/content pair.

To "bind" several instances of a collapsible widget, the collateral option is used.

Once it is expanded, the content can be updated using Ajax. The collapsed/expanded state can be saved into local storage, or cookies if the browser does not support local storage.

The collapsible widget source is lib/web/mage/collapsible.js.

Initialize

Generally the collapsible widget is instantiated like following:

$("#element").collapsible();
Copied to your clipboard
$("#element").collapsible();

Where #element is the element's selector.

If you need to be able to save the expanded/collapsed state, the element must have the id attribute specified.

The element's id is also used in deep linking: if the id of the content or the id of the element that appends the content is specified as an anchor, the content for that element is automatically expanded.

Similar to the accordion widget, the header, title and content for collapsible can be defined by the child elements' attributes or passed as widget options. See Accordion widget initialization for details.

Header only

You can initialize the collapsible widget without having a container that consists of a header and a content. In this case the initialization is made on the header:

$("#header").collapsible();
Copied to your clipboard
$("#header").collapsible();

In a template

The collapsible widget can be initialized using the data-mage-init attribute or <script> tag, as described in JavaScript initialization.

Options

`active`

Specifies if the content should be expanded when the widget gets initialized.

Type: Boolean

Default value: false

Initialize the collapsible with the active option specified:

$("#element").collapsible({ active: true});
Copied to your clipboard
$("#element").collapsible({ active: true});

Get or set the active option, after initialization:

//getter
var active = $("#element").collapsible("option","active");

//setter
$("#element").collapsible("option","active",false);
Copied to your clipboard
//getter
var active = $("#element").collapsible("option","active");

//setter
$("#element").collapsible("option","active",false);

`ajaxUrlElement`

Selector applied on the header using .find(), for the element that contains the URL for Ajax request.

Type: String

Default value: [data-ajax=true]

`ajaxContent`

Specifies if the content is updated using Ajax request.

Type: Boolean

Default value: false

`animate`

Specifies if the collapse/expand actions are performed with animation.

Type: Multiple types are supported:

Boolean: the false value disables the animation
Number: duration in milliseconds
String: is parsed to an object as a json string

Object: For details about the object passed, see jQuery.animate().

    {
       duration: <Number>,
       easing: <String>,
       <propToAnimate>: <howToAnimate>
    }
Copied to your clipboard
    {
       duration: <Number>,
       easing: <String>,
       <propToAnimate>: <howToAnimate>
    }

Default value: false

Initialize the collapsible with the animate option specified:

$("#element").collapsible({ animate: 1000});
$("#element").collapsible({ animate: {duration:1000,easing:"easeOutCubic"}});
Copied to your clipboard
$("#element").collapsible({ animate: 1000});
$("#element").collapsible({ animate: {duration:1000,easing:"easeOutCubic"}});

Get or set the animate option, after initialization:

//getter
var animate = $("#element").collapsible("option","animate");

//setter
$("#element").collapsible("option","animate",false);
Copied to your clipboard
//getter
var animate = $("#element").collapsible("option","animate");

//setter
$("#element").collapsible("option","animate",false);

`collapsible`

If this option is set to false, the content is not collapsed when the panel is active.

Type: Boolean

Default value: true

Initialize the collapsible widget with the collapsible option specified:

$("#element").collapsible({ collapsible: true});
Copied to your clipboard
$("#element").collapsible({ collapsible: true});

Get or set the collapsible option after initialization:

//getter
var collapsible = $("#element").collapsible("option","collapsible");

//setter
$("#element").collapsible("option","collapsible",false);
Copied to your clipboard
//getter
var collapsible = $("#element").collapsible("option","collapsible");

//setter
$("#element").collapsible("option","collapsible",false);

`collateral`

Specifies the element, and the class which is assigned to this element, when the current element is opened; and is removed when the current element is closed.

An object that contains the following:

element: an element, can be a selector or jQuery object.
openedState: the class name which is assigned to the element when the current element is in opened; removed when the current element is closed.

Type: String

Default value:

{
    element: null,
    openedState: null
}
Copied to your clipboard
{
    element: null,
    openedState: null
}

`content`

Selector for the content element, searched for using .find() on the main collapsible element.

Type:

String
jQuery Object

Default value: [data-role=content]

Initialize the collapsible with the content option specified:

$("#element").collapsible({ content: ".content"});
Copied to your clipboard
$("#element").collapsible({ content: ".content"});

Get or set the content option, after initialization:

//getter
var content = $("#element").collapsible("option","content");

//setter
$("#element").collapsible("option","content",".content");
Copied to your clipboard
//getter
var content = $("#element").collapsible("option","content");

//setter
$("#element").collapsible("option","content",".content");

`closedState`

Specifies the class that is assigned to the main collapsible element, when the content gets collapsed.

Type: String

Default value: null

Initialize the collapsible widget with the closedState option specified:

$("#element").collapsible({ closedState: "collapsible-content"});
Copied to your clipboard
$("#element").collapsible({ closedState: "collapsible-content"});

Get or set the contentClass option after initialization:

//getter
var contentClass = $("#element").collapsible("option","contentClass");

//setter
$("#element").collapsible("option","contentClass","collapsible-content");
Copied to your clipboard
//getter
var contentClass = $("#element").collapsible("option","contentClass");

//setter
$("#element").collapsible("option","contentClass","collapsible-content");

`disabled`

Specifies if the content should be disabled, when the widget gets initialized.

Type: Boolean

Default value: false

Initialize the collapsible widget with the disabled option specified:

$("#element").collapsible({ disabled: true});
Copied to your clipboard
$("#element").collapsible({ disabled: true});

Get or set the disabled option after initialization:

//getter
var disabled = $("#element").collapsible("option","disabled");

//setter
$("#element").collapsible("option","disabled",false);
Copied to your clipboard
//getter
var disabled = $("#element").collapsible("option","disabled");

//setter
$("#element").collapsible("option","disabled",false);

`disabledState`

Specifies the class that is assigned to the main collapsible element when a panel gets disabled.

Type: String

Default value: null

Initialize the collapsible with the disabledState option specified:

$("#element").collapsible({ disabledState: "disabled"});
Copied to your clipboard
$("#element").collapsible({ disabledState: "disabled"});

Get or set the disabledState option after initialization:

//getter
var disabledState = $("#element").collapsible("option","disabledState");

//setter
$("#element").collapsible("option","disabledState","disabled");
Copied to your clipboard
//getter
var disabledState = $("#element").collapsible("option","disabledState");

//setter
$("#element").collapsible("option","disabledState","disabled");

`header`

Selector for the header element, searched for using .find() on the main collapsible element. If the element with the specified selector is not found on the main collapsible element, the main element becomes a header.

Type:

String
jQuery Object

Default value: [data-role=title]

Initialize the collapsible with the content option specified:

$("#element").collapsible({ header: ".header"});
Copied to your clipboard
$("#element").collapsible({ header: ".header"});

Get or set the header option, after initialization:

//getter
var header = $("#element").collapsible("option","header");

//setter
$("#element").collapsible("option","header",".header");
Copied to your clipboard
//getter
var header = $("#element").collapsible("option","header");

//setter
$("#element").collapsible("option","header",".header");

`icons`

The classes for icons to be used in headers. If no classes are specified, icons are not be created. A new span is created and prepended to the header, the classes for this span are automatically changed whenever the content gets expanded/collapsed.

Type: String

Default value: { activeHeader: null, header: null }

Initialize the collapsible with the icons option specified:

$("#element").collapsible({ icons: {"header": "plus", "activeHeader": "minus"}});
Copied to your clipboard
$("#element").collapsible({ icons: {"header": "plus", "activeHeader": "minus"}});

Get or set the icons option, after initialization:

//getter
var icons = $("#element").collapsible("option","icons");

//setter
$("#element").collapsible("option","icons",{"header": "plus", "activeHeader": "minus" });
Copied to your clipboard
//getter
var icons = $("#element").collapsible("option","icons");

//setter
$("#element").collapsible("option","icons",{"header": "plus", "activeHeader": "minus" });

`loadingClass`

Specifies the class that is assigned to the main collapsible element when requesting data using Ajax.

Type: String

Default value: null

Initialize the collapsible with the loadingClass option specified:

$("#element").collapsible({ loadingClass: "loading"});
Copied to your clipboard
$("#element").collapsible({ loadingClass: "loading"});

Get or set the loadingClass option after initialization:

//getter
var loadingClass = $("#element").collapsible("option","loadingClass");

//setter
$("#element").collapsible("option","loadingClass","loading");
Copied to your clipboard
//getter
var loadingClass = $("#element").collapsible("option","loadingClass");

//setter
$("#element").collapsible("option","loadingClass","loading");

Initialize the collapsible with the loadingClass option specified:

$("#element").collapsible({ loadingClass: ".ajax"});
Copied to your clipboard
$("#element").collapsible({ loadingClass: ".ajax"});

Get or set the loadingClass option, after initialization:

//getter
var content = $("#element").collapsible("option","loadingClass");

//setter
$("#element").collapsible("option","loadingClass","ajax");
Copied to your clipboard
//getter
var content = $("#element").collapsible("option","loadingClass");

//setter
$("#element").collapsible("option","loadingClass","ajax");

Initialize the collapsible with the ajaxContent option specified:

$("#element").collapsible({ ajaxContent: true});
Copied to your clipboard
$("#element").collapsible({ ajaxContent: true});

Get or set the ajaxContent option after initialization:

//getter
var active = $("#element").collapsible("option","ajaxContent");

//setter
$("#element").collapsible("option","ajaxContent",true);
Copied to your clipboard
//getter
var active = $("#element").collapsible("option","ajaxContent");

//setter
$("#element").collapsible("option","ajaxContent",true);

`openedState`

Specifies the class that is assigned to the main collapsible element when the content gets expanded.

Type: String

Default value: null

Initialize the collapsible with the openedState option specified:

$("#element").collapsible({ openedState: "opened"});
Copied to your clipboard
$("#element").collapsible({ openedState: "opened"});

Get or set the openedState option after initialization:

//getter
var openedState = $("#element").collapsible("option","openedState");

//setter
$("#element").collapsible("option","openedState","opened");
Copied to your clipboard
//getter
var openedState = $("#element").collapsible("option","openedState");

//setter
$("#element").collapsible("option","openedState","opened");

`saveState`

Specifies if the state is saved in the local storage if the browser supports it. Otherwise is saved into a cookie.

Type: Boolean

Default value: false

Initialize the collapsible widget with the saveState option specified:

$("#element").collapsible({ saveState: true});
Copied to your clipboard
$("#element").collapsible({ saveState: true});

Get or set the saveState option after initialization:

//getter
var active = $("#element").collapsible("option","saveState");

//setter
$("#element").collapsible("option","saveState",true);
Copied to your clipboard
//getter
var active = $("#element").collapsible("option","saveState");

//setter
$("#element").collapsible("option","saveState",true);

`trigger`

Selector for the trigger element, applied using .find() on the main collapsible element. If the trigger is not found, the header becomes a trigger.

Type:

String
jQuery Object

Default value: [data-role=trigger]

Initialize the collapsible with the trigger option specified:

$("#element").collapsible({ trigger: ".trigger"});
Copied to your clipboard
$("#element").collapsible({ trigger: ".trigger"});

Get or set the trigger option after initialization:

//getter
var trigger = $("#element").collapsible("option","trigger");

//setter
$("#element").collapsible("option","trigger",".trigger");
Copied to your clipboard
//getter
var trigger = $("#element").collapsible("option","trigger");

//setter
$("#element").collapsible("option","trigger",".trigger");

Methods

`activate()`

Expand the content when this method is called.

This method does not accept any arguments.

Invoke the activate method:

$("#element").collapsible("activate");
Copied to your clipboard
$("#element").collapsible("activate");

`deactivate()`

Collapse the content when this method is called.

This method does not accept any arguments.

Invoke the deactivate method:

$("#element").collapsible("deactivate");
Copied to your clipboard
$("#element").collapsible("deactivate");

`disable()`

Disable the panel. This method does not accept any arguments.

Invoke the disable method:

$("#element").collapsible("disable");
Copied to your clipboard
$("#element").collapsible("disable");

`enable()`

Enable the panel.

This method does not accept any arguments.

Invoke the enable method:

$("#element").collapsible("enable");
Copied to your clipboard
$("#element").collapsible("enable");

`forceActivate()`

Expand the content without animation when this method is called.

This method does not accept any arguments.

Invoke the forceActivate method:

$("#element").collapsible("forceActivate");
Copied to your clipboard
$("#element").collapsible("forceActivate");

`forceDeactivate()`

Collapse the content without animation when this method is called.

This method does not accept any arguments.

Invoke the forceDeactivate method:

$("#element").collapsible("forceDeactivate");
Copied to your clipboard
$("#element").collapsible("forceDeactivate");

Events

`beforeOpen` callback

Called before the content is opened.

Example of adding a callback to beforeOpen events:

$("#element").on("beforeOpen", function () {
    // do something before opening the content
});
Copied to your clipboard
$("#element").on("beforeOpen", function () {
    // do something before opening the content
});

`dimensionsChanged`

Called after content is opened or closed.

Example of adding a callback to dimensionsChanged events:

$("#element").on("dimensionsChanged", function (event, data) {
    var opened = data.opened;

    if (opened) {
        // do something when the content is opened
        return;
    }

    // do something when the content is closed
});
Copied to your clipboard
$("#element").on("dimensionsChanged", function (event, data) {
    var opened = data.opened;

    if (opened) {
        // do something when the content is opened
        return;
    }

    // do something when the content is closed
});

Code sample

The following example shows how to initialize the collapsible widget and pass options during the initialization.

<div data-mage-init='{
    "collapsible":{
        "collapsible": true,
        "openedState": "active",
        "active": true
    }}'>
    <div data-role="title">
        <h4>Fruit</h4>
    </div>
    <div data-role="content">
        <ul>
            <li>Orange</li>
            <li>Apple</li>
            <li>Banana</li>
        </ul>
    </div>
</div>
<div data-mage-init='{
    "collapsible":{
        "animate":{ "duration" :1000, "easing":"easeOutCubic"}
    }}'>
    <div data-role="title">
        <h4>Exams</h4>
    </div>
    <div data-role="content">
        <ul>
            <li>Maths</li>
            <li>English</li>
            <li>Science</li>
        </ul>
    </div>
</div>
Copied to your clipboard
<div data-mage-init='{
    "collapsible":{
        "collapsible": true,
        "openedState": "active",
        "active": true
    }}'>
    <div data-role="title">
        <h4>Fruit</h4>
    </div>
    <div data-role="content">
        <ul>
            <li>Orange</li>
            <li>Apple</li>
            <li>Banana</li>
        </ul>
    </div>
</div>
<div data-mage-init='{
    "collapsible":{
        "animate":{ "duration" :1000, "easing":"easeOutCubic"}
    }}'>
    <div data-role="title">
        <h4>Exams</h4>
    </div>
    <div data-role="content">
        <ul>
            <li>Maths</li>
            <li>English</li>
            <li>Science</li>
        </ul>
    </div>
</div>

Result

The result is two sections with separate collapsible content.

Calendar

Confirmation

Last updated 9/11/2023

Was this helpful?

Yes

Collapsible widget

Initialize.css-83mclq{margin-left:var(--spectrum-global-dimension-size-100);}

Header only.css-jmmyhj{margin-left:var(--spectrum-global-dimension-size-50);}

In a template

Options

active

ajaxUrlElement

ajaxContent

animate

collateral

content

closedState

disabled

disabledState

header

icons

loadingClass

openedState

saveState

trigger

Methods

activate()

deactivate()

disable()

enable()

forceActivate()

forceDeactivate()

Events

beforeOpen callback

dimensionsChanged

Code sample

Result

Initialize

Header only

`active`

`ajaxUrlElement`

`ajaxContent`

`animate`

`collapsible`

`collateral`

`content`

`closedState`

`disabled`

`disabledState`

`header`

`icons`

`loadingClass`

`openedState`

`saveState`

`trigger`

`activate()`

`deactivate()`

`disable()`

`enable()`

`forceActivate()`

`forceDeactivate()`

`beforeOpen` callback

`dimensionsChanged`
