FolderTree | Commerce Frontend Development

Thanks to Atwix for contributing this topic!

The FolderTree widget allows creating a dynamic hierarchical tree structure with folders.

The main purpose of this widget is to represent a folder structure from the server, database or another resource and to allow the users to browse that structure.

The dynamic hierarchical allows us to easily update the folders via Ajax URL and show different levels of folders, with subfolders that can be collapsed and expanded.

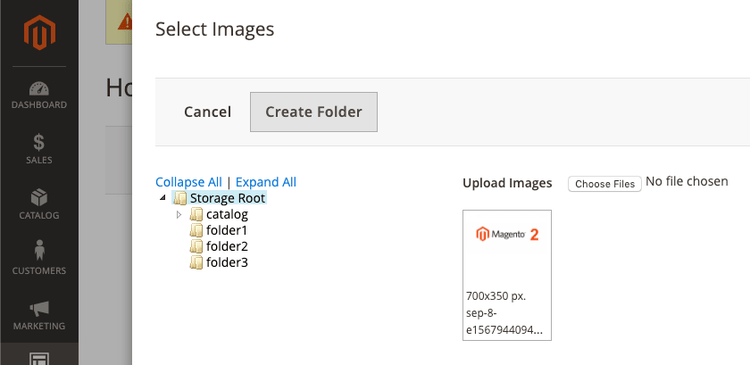

For example: in the Wysiwyg editor, the FolderTree widget is used to represents the structure of media folders on the server. After clicking on one of the folders, an admin is able to see media files within the folder.

The FolderTree widget can be used only in the adminhtml area.

The FolderTree widget source is <Magento_Cms_module_dir>/view/adminhtml/web/js/folder-tree.js.

Initialize

For information about how to initialize a widget in a JS component or .phtml template, see the Initialize JavaScript topic.

$("#folder-tree").folderTree({
    rootName: 'Root',
    url: 'some/url',
    currentPath: ['root']
});
Copied to your clipboard
$("#folder-tree").folderTree({
    rootName: 'Root',
    url: 'some/url',
    currentPath: ['root']
});

Where:

#folder-tree is the selector of the element which will display FolderTree.

The following example shows a PHTML file using the script:

<script>
    require([
        'jquery',
        'Magento_Cms/js/folder-tree'
    ], function ($) {
        'use strict';

        $("#folder-tree").folderTree({
            rootName: 'Root',
            url: 'some/url',
            currentPath: ['root']
        });
    });
</script>
Copied to your clipboard
<script>
    require([
        'jquery',
        'Magento_Cms/js/folder-tree'
    ], function ($) {
        'use strict';

        $("#folder-tree").folderTree({
            rootName: 'Root',
            url: 'some/url',
            currentPath: ['root']
        });
    });
</script>

Options

`currentPath`

This option pre-opens the specified folder path. It is an array of folders IDs which represents the path to the current opened folder.

Type: Array

Default value: ['root']

`root`

The id for the root folder HTML element.

Type: String

Default value: 'root'

`rootName`

The name of the root folder.

Type: String

Default value: 'Root'

`tree`

The configuration for jstree widget.

The FolderTree widget uses the jstree widget to build a hierarchical tree with folders.

Type: String

Default value:

{
    'plugins': ['themes', 'json_data', 'ui', 'hotkeys'],
    'themes': {
        'theme': 'default',
        'dots': false,
        'icons': true
    }
}
Copied to your clipboard
{
    'plugins': ['themes', 'json_data', 'ui', 'hotkeys'],
    'themes': {
        'theme': 'default',
        'dots': false,
        'icons': true
    }
}

`url`

The endpoint URL for getting the folders JSON data.

The example of the JSON response:

[
  {
    "text": "Folder #1",
    "id": "1",
    "path": "some/path/",
    "cls": "folder folder-1"
  },
  {
    "text": "Folder #2",
    "id": "2",
    "path": "some/path/2",
    "cls": "folder folder-2"
  }
]
Copied to your clipboard
[
  {
    "text": "Folder #1",
    "id": "1",
    "path": "some/path/",
    "cls": "folder folder-1"
  },
  {
    "text": "Folder #2",
    "id": "2",
    "path": "some/path/2",
    "cls": "folder folder-2"
  }
]

Type: String

Default value: undefined

Code sample

The following example shows the initialization of FolderTree widget.

<div data-role="tree" data-mage-init='{
    "folderTree": {
        "rootName": "Root",
        "url": "/some/path/jsontree",
        "currentPath": ["root"]
    }
}'>
Copied to your clipboard
<div data-role="tree" data-mage-init='{
    "folderTree": {
        "rootName": "Root",
        "url": "/some/path/jsontree",
        "currentPath": ["root"]
    }
}'>
