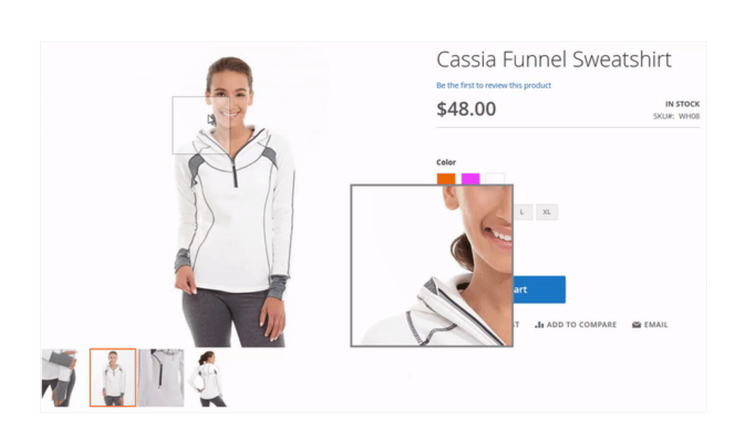

Magnifier is a widget that allows displaying images in 100% scaled size in a separate dedicated layer. It is used by the gallery widget for zooming the product images on product pages. It must be enabled in your local theme view.xml configuration file.

The Magnifier widget source is located in lib/web/magnifier/magnify.js.

Initialize

The magnifier widget is initialized as described in JavaScript initialization. The following is the example of gallery initialization with the magnifier enabled:

<script type="text/x-magento-init">
    {
        "<element_selector>": {
            "mage/gallery/gallery": {
                "data": [{
                    "thumb": "<small_image_url>",
                    "img": "<small_image_url>",
                    "full": "<small_image_url>",
                    "caption": "<message>",
                    "isMain": "<true/false>"
                }],
                "mixins": ["magnifier/magnify"],
                "magnifierOpts": {
                   "enabled": <true/false>,
                   "eventType": "<hover/click>",
                   "width": <number>,
                   "height": <number>,
                   "top": <number>,
                   "left": <number>,
                   "fullscreenzoom": <number>,
                   "mode": "<outside/inside>"
                }
            }
        }
    }
</script>
Copied to your clipboard
<script type="text/x-magento-init">
    {
        "<element_selector>": {
            "mage/gallery/gallery": {
                "data": [{
                    "thumb": "<small_image_url>",
                    "img": "<small_image_url>",
                    "full": "<small_image_url>",
                    "caption": "<message>",
                    "isMain": "<true/false>"
                }],
                "mixins": ["magnifier/magnify"],
                "magnifierOpts": {
                   "enabled": <true/false>,
                   "eventType": "<hover/click>",
                   "width": <number>,
                   "height": <number>,
                   "top": <number>,
                   "left": <number>,
                   "fullscreenzoom": <number>,
                   "mode": "<outside/inside>"
                }
            }
        }
    }
</script>

Options

`enabled`

Enables the magnifier.

Type: Boolean

`height`

Height of the magnifier block in pixels.

`eventType`

Action that activates zoom.

Possible values:

hover
click

`fullscreenzoom`

Zoom step in percents for the fullscreen view.

Type: Integer

`left`

The value for the CSS left property for the magnifier block positioning.

Type: Integer

`top`

The value for the CSS top property for the magnifier block positioning.

Type: Integer

`width`

Width of the magnifier block in pixels.

Type: Integer

`mode`

Specifies whether to display magnified image inside / outside lens.

Possible values:

outside
inside

Enable and configure

view.xml is a theme configuration file that enables the Magnifier widget. The file is conventionally located in the <theme_dir>/etc/ directory.

The enabling option is:

<var name="magnifier">
   <var name="enabled">true</var> <!-- Turn on/off magnifier (true/false) -->
</var>
...
Copied to your clipboard
<var name="magnifier">
   <var name="enabled">true</var> <!-- Turn on/off magnifier (true/false) -->
</var>
...

Several other Magnifier options are set in view.xml:

<var name="magnifier">
  <var name="fullscreenzoom">20</var> <!-- Zoom for fullscreen (integer) -->
  <var name="top"></var> <!-- Top position of magnifier -->
  <var name="left"></var> <!-- Left position of magnifier -->
  <var name="width"></var> <!-- Width of magnifier block -->
  <var name="height"></var> <!-- Height of magnifier block -->
  <var name="eventType">hover</var> <!-- Action that activates zoom (hover/click) -->
...
</var>
Copied to your clipboard
<var name="magnifier">
  <var name="fullscreenzoom">20</var> <!-- Zoom for fullscreen (integer) -->
  <var name="top"></var> <!-- Top position of magnifier -->
  <var name="left"></var> <!-- Left position of magnifier -->
  <var name="width"></var> <!-- Width of magnifier block -->
  <var name="height"></var> <!-- Height of magnifier block -->
  <var name="eventType">hover</var> <!-- Action that activates zoom (hover/click) -->
...
</var>
