Modal | Commerce Frontend Development

Edit in GitHub Log an issue

The modal widget implements a secondary window that opens on top of the main window. It contains the overlay and modal content. The modal widget configuration enables the following:

Configuring as popup or slide
Controlling stack of modal widgets
Setting buttons for action bar

The modal widget source is <Magento_Ui_module_dir>/view/base/web/js/modal/modal.js.

The widget uses the following templates:

<Magento_Ui_module_dir>/view/base/web/templates/modal/modal-popup.html popup type template.
<Magento_Ui_module_dir>/view/base/web/templates/modal/modal-slide.html slide type template.

The design patterns for the modal pop-up windows in the Admin are described in the Admin Pattern Library, the Slide-out Panels, Modal Windows, and Overlays topic.

Initialize

To initialize the widget in your script, use the following general notation:

$('#modal_content').modal({
    <option1>: <value1>,
    <option2>: <value2>,
    ...
});
Copied to your clipboard
$('#modal_content').modal({
    <option1>: <value1>,
    <option2>: <value2>,
    ...
});

For details about how to initialize the widget in a.phtml template, refer to the JavaScript initialization topic.

Options

`appendTo`

The element where the modal should be added.

Type: String

Default value: body

`autoOpen`

Automatically open the modal window when the widget is initialized.

Type: Boolean

Default value: false

`buttons`

Array of buttons for action pane.

Type: Array

Structure:

buttons: [{
    text: '',
    class: '',
    click: function () {} //handler on button click
}]
Copied to your clipboard
buttons: [{
    text: '',
    class: '',
    click: function () {} //handler on button click
}]

Default value:

buttons: [{
    text: $.mage.__('Ok'),
    class: '',
    click: function () {
        this.closeModal();
    }
}]
Copied to your clipboard
buttons: [{
    text: $.mage.__('Ok'),
    class: '',
    click: function () {
        this.closeModal();
    }
}]

`clickableOverlay`

Close the modal window when a user clicks on the overlay.

Type: Boolean

Default value: true

`closeText`

The close button text.

Type: String

Default value: $.mage.__('Close')

`customTpl`

The template file that is used as content for the custom modal type.

Type: String

Default value: ui/template/modal/modal-custom.html

`focus`

Selector to focusing when a modal window opens or 'none' if focusing is not necessary.

Type: String

Default value: [data-role="closeBtn"]

`innerScroll`

Modal scroll position.

Type: Boolean

Default value: false

`modalClass`

Custom classes for modal window.

Type: String

Default value: empty

`modalAction`

The selector for all the custom action buttons.

Type: String

Default value: [data-role="action"]

`modalCloseBtn`

The selector for all the elements that can close the modal.

Type: String

Default value: [data-role="closeBtn"]

`modalContent`

The selector for element that is used for the modal's content.

Type: String

Default value: [data-role="content"]

`modalLeftMargin`

Sets a margin between slide modal windows.

Type: Number

Default value: 45

`modalSubTitle`

The modal subtitle element selector.

Type: String

Default value: [data-role="subTitle"]

`modalTitle`

The modal title element selector.

Type: String

Default value: [data-role="title"]

`modalVisibleClass`

The class that is assigned to an opened modal.

Type: String

Default value: _show

`parentModalClass`

The class that is assigned to parent when the modal is opened.

Type: String

Default value: _has-modal

`outerClickHandler`

The function that handles a click outside the modal window. If the outerClickHandler option is not specified, the closeModal() method is used for handling a click outside the modal window.

Type: Function

Default value: undefined

`popupTpl`

The template file that is used as content for the popup modal type.

Type: String

Default value: ui/template/modal/modal-popup.html

`responsive`

Turn popup modal window to slide panel on small screens. Available if the type option is set to 'popup'.

Type: Boolean

Default value: false

`slideTpl`

The template file that is used as content for the slide modal type.

Type: String

Default value: ui/template/modal/modal-slide.html

`subTitle`

Translated subTitle for the popup window that will be appended to the title.

Type: String

Default value: empty

`title`

Translated title for popup window.

Type: String

Default value: empty

`trigger`

The element that triggers the modal.

Type: String

Default value: empty

`type`

The type of window: 'popup' or 'slide'.

Type: String

Default value: popup

Methods

`openModal()`

Open the modal window.

$('#css-selector').modal('openModal');
Copied to your clipboard
$('#css-selector').modal('openModal');

`closeModal()`

Close the modal window.

$('#css-selector').modal('closeModal');
Copied to your clipboard
$('#css-selector').modal('closeModal');

`keyEventSwitcher()`

Listens for key events and calls handler function if it exists.

`toggleModal()`

Toggles the modal window.

Events

The modal widget is subscribed to the following events:

You can listen to these events in two ways:

Use jQuery's on function:

var modal = $('#modal_content').modal({...});
modal.on('modalclosed', function () {
    // Do some action when modal closed
});
Copied to your clipboard
var modal = $('#modal_content').modal({...});
modal.on('modalclosed', function () {
    // Do some action when modal closed
});

Or assign a callback as a property when creating a modal instance:

$('#modal_content').modal({
    ...
    closed: function (){
       // Do some action when modal closed
    }
});
Copied to your clipboard
$('#modal_content').modal({
    ...
    closed: function (){
       // Do some action when modal closed
    }
});

`closed`

Called when the modal window is closed.

`opened`

Called when the modal window is opened.

the ESC key: close the current modal window
the TAB key: set focus to the next focusable element (looped inside the modal window)
the SHIFT+TAB keys combination: set focus to the previous focusable element (looped inside the modal window)

Code sample

The following example shows how to initialize the modal widget and pass options during the initialization.

<button type="button" class="action" data-trigger="trigger">
    <span data-bind="i18n: 'Click Here'"></span>
</button>
<div data-bind="mageInit: {
        'Magento_Ui/js/modal/modal':{
            'type': 'popup',
            'title': 'Popup title',
            'trigger': '[data-trigger=trigger]',
            'responsive': true,
            'buttons': [{
                text: jQuery.mage.__('Submit'),
                class: 'action'
            }]
        }}">
    <div class="content">
        Popup Content
    </div>
</div>
Copied to your clipboard
<button type="button" class="action" data-trigger="trigger">
    <span data-bind="i18n: 'Click Here'"></span>
</button>
<div data-bind="mageInit: {
        'Magento_Ui/js/modal/modal':{
            'type': 'popup',
            'title': 'Popup title',
            'trigger': '[data-trigger=trigger]',
            'responsive': true,
            'buttons': [{
                text: jQuery.mage.__('Submit'),
                class: 'action'
            }]
        }}">
    <div class="content">
        Popup Content
    </div>
</div>

The following example shows a PHTML file using the script:

<button id="button">
    <span><?= $block->escapeHtml(__('Click me')) ?></span>
</button>

<div id="modal">
    <div class="modal-body-content">
        <h2><?= $block->escapeHtml(__('Title')) ?></h2>
        <p><?= $block->escapeHtml(__('Content')) ?></p>
    </div>
</div>

<script type="text/javascript">
    require([
        "jquery",
        "Magento_Ui/js/modal/modal"
    ],function($, modal) {

        var options = {
            type: 'popup',
            responsive: true,
            title: 'Main title',
            buttons: [{
                text: $.mage.__('Ok'),
                class: '',
                click: function () {
                    this.closeModal();
                }
            }]
        };

        var popup = modal(options, $('#modal'));
        $("#button").click(function() {
            $('#modal').modal('openModal');
        });
    });
</script>
Copied to your clipboard
<button id="button">
    <span><?= $block->escapeHtml(__('Click me')) ?></span>
</button>

<div id="modal">
    <div class="modal-body-content">
        <h2><?= $block->escapeHtml(__('Title')) ?></h2>
        <p><?= $block->escapeHtml(__('Content')) ?></p>
    </div>
</div>

<script type="text/javascript">
    require([
        "jquery",
        "Magento_Ui/js/modal/modal"
    ],function($, modal) {

        var options = {
            type: 'popup',
            responsive: true,
            title: 'Main title',
            buttons: [{
                text: $.mage.__('Ok'),
                class: '',
                click: function () {
                    this.closeModal();
                }
            }]
        };

        var popup = modal(options, $('#modal'));
        $("#button").click(function() {
            $('#modal').modal('openModal');
        });
    });
</script>

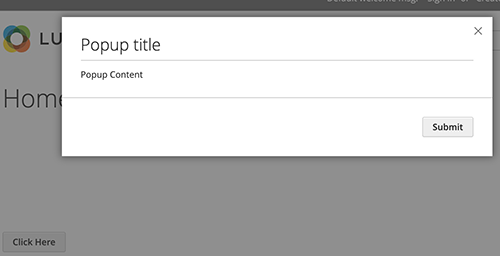

Result

The result is a modal and a button (Click Here) that opens the modal.

Multiselect

Last updated 9/11/2023
