PasswordStrengthIndicator widget

The password strength indicator widget provides immediate feedback on the validity and strength of a password while it is being typed. If the password is not strong enough, the application prompts the user to choose a new password.

The PasswordStrengthIndicator widget can be used only on the frontend area.

The password strength indicator widget source is <Magento_Customer_module_dir>/view/frontend/web/js/password-strength-indicator.js.

The widget is being used in the following templates:

• <Magento_Customer_module_dir>/view/frontend/templates/form/register.phtml customer register template.
• <Magento_Customer_module_dir>/view/frontend/templates/form/forgotpassword.phtml customer forgot password template.
• <Magento_Customer_module_dir>/view/frontend/templates/form/edit.phtml customer account edit template.

Initialize

To initialize the widget in your script, use the following general notation:

Copy
$('#password-input').passwordStrengthIndicator({
    <option1>: <value1>,
    <option2>: <value2>,
    ...
});
Copied to your clipboard
$('#password-input').passwordStrengthIndicator({
    <option1>: <value1>,
    <option2>: <value2>,
    ...
});

Where:

• #password-input is the selector of the element for which PasswordStrengthIndicator is initialized.

The following example shows a PHTML file using the script:

Copy
<script>
    require([
        'jquery',
        'passwordStrengthIndicator'
    ], function ($) {
        'use strict';

        $("#password-input").passwordStrengthIndicator({
              "passwordStrengthMeterSelector":"[data-role=strength-meter]",
              "passwordStrengthMeterLabelSelector":"[data-role=strength-meter-label]"
        });
    });
</script>
Copied to your clipboard
<script>
    require([
        'jquery',
        'passwordStrengthIndicator'
    ], function ($) {
        'use strict';

        $("#password-input").passwordStrengthIndicator({
              "passwordStrengthMeterSelector":"[data-role=strength-meter]",
              "passwordStrengthMeterLabelSelector":"[data-role=strength-meter-label]"
        });
    });
</script>

For details about how to initialize the widget in a.phtml template, refer to the JavaScript initialization topic.

Options

passwordSelector

Selector for the password input.

Type: String

Default value: [type=password]

passwordStrengthMeterSelector

Selector for the password strength visualization block.

Type: String

Default value: [data-role=password-strength-meter]

passwordStrengthMeterLabelSelector

Selector for the password strength visualization block label.

Type: String

Default value: [data-role=password-strength-meter-label]

formSelector

The selector for the form block.

Type: String

Default value: form

emailSelector

The selector for the email input.

Type: String

Default value: input[type="email"]

Events

The password strength indicator widget listens for change, keyup, and paste events on the password and the email inputs. Listening to the email input is optional.

Code sample

The following example shows how to initialize the password strength indicator widget and pass options during the initialization.

Copy
<form action="BACKEND_ACTION" method="post" data-mage-init='{"validation":{}}'>
    <fieldset class="fieldset">
        <div class="field password required" data-mage-init='{"passwordStrengthIndicator": {
            "passwordStrengthMeterSelector":"[data-role=strength-meter]",
            "passwordStrengthMeterLabelSelector":"[data-role=strength-meter-label]"
        }}'>
            <label class="label" for="password">Password</label>
            <div class="control">
                <input type="password" class="input-text" name="password" id="password">
                <div id="password-strength-meter-container" data-role="strength-meter" aria-live="polite">
                    <div id="password-strength-meter" class="password-strength-meter">
                        <span id="password-strength-meter-label" data-role="strength-meter-label">
                            No Password
                        </span>
                    </div>
                </div>
            </div>
        </div>
    </fieldset>
    <div class="actions-toolbar">
        <div class="primary">
            <button type="submit" class="action submit primary"><span>Set a New Password</span></button>
        </div>
    </div>
</form>
Copied to your clipboard
<form action="BACKEND_ACTION" method="post" data-mage-init='{"validation":{}}'>
    <fieldset class="fieldset">
        <div class="field password required" data-mage-init='{"passwordStrengthIndicator": {
            "passwordStrengthMeterSelector":"[data-role=strength-meter]",
            "passwordStrengthMeterLabelSelector":"[data-role=strength-meter-label]"
        }}'>
            <label class="label" for="password">Password</label>
            <div class="control">
                <input type="password" class="input-text" name="password" id="password">
                <div id="password-strength-meter-container" data-role="strength-meter" aria-live="polite">
                    <div id="password-strength-meter" class="password-strength-meter">
                        <span id="password-strength-meter-label" data-role="strength-meter-label">
                            No Password
                        </span>
                    </div>
                </div>
            </div>
        </div>
    </fieldset>
    <div class="actions-toolbar">
        <div class="primary">
            <button type="submit" class="action submit primary"><span>Set a New Password</span></button>
        </div>
    </div>
</form>

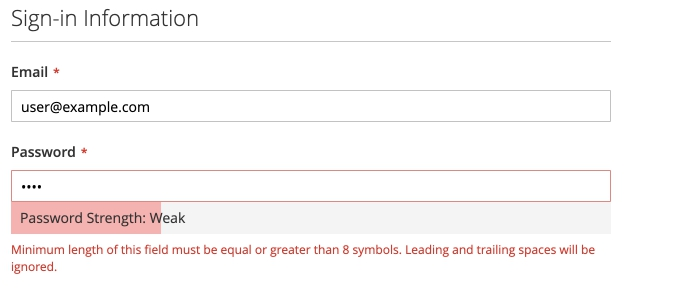

Result

The result is an indication of the strength of the user's password.

Last updated 9/11/2023
