Add a visual selector

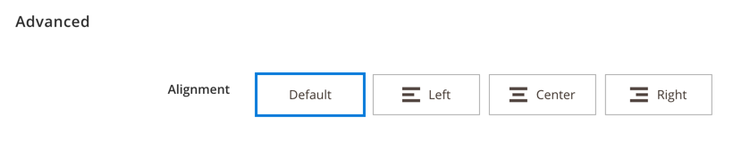

In Page Builder, we use a term called visual selector, which refers to a UI select control that makes its options visually clear to end users. You can see examples of these selectors in Page Builder's content type form fields for Background Type, Background Size, Alignment, and more. This topic describes how to add these visual selector controls to your own content types.
Visual selectors support all image formats, but we highly recommend using SVG images for sharpness and clarity.
Override the select component with an element template
We use the default select component in the /app/code/Magento/PageBuilder/view/adminhtml/ui-component/pagebuilder_base_form.xml
file. You can override the default template, by specifying an element template and component for this functionality to implement the Visual Select option.
In the provided template, specify <elementTmpl>
alongside updating the fields component to Magento_PageBuilder/js/form/element/visual-select
:
Copied to your clipboard<field name="text_align" sortOrder="10" formElement="select" component="Magento_PageBuilder/js/form/element/visual-select"><settings><dataType>text</dataType><label translate="true">Alignment</label><elementTmpl>Magento_PageBuilder/form/element/align</elementTmpl></settings>
Add Visual Select to the XML config
The available options for select, value
, title
, icon
and noticeMessage
, can be provided by the PHP class that implements the \Magento\Framework\Option\ArrayInterface
method.
Options should return an array with the following format:
Copied to your clipboard[value => "value", //key used in the component dataSourcetitle => "Title",icon => "path/to/picture/on/server",noticeMessage => "A message to be displayed when option is selected"]
These new configuration values are used in the align.html
template file stored in Page Builder's app/code/Magento/PageBuilder/view/adminhtml/web/template/form/element
directory.
Use a virtual type of Magento\PageBuilder\Model\Source\VisualSelect
in your module's di.xml
configuration file to define the options in a visual select field.
Copied to your clipboard<virtualType name="AlignmentSource" type="Magento\PageBuilder\Model\Source\VisualSelect"><arguments><argument name="optionsSize" xsi:type="string">small</argument><argument name="optionsData" xsi:type="array"><item name="0" xsi:type="array"><item name="value" xsi:type="string"/><item name="title" xsi:type="string" translate="true">Default</item></item><item name="1" xsi:type="array"><item name="value" xsi:type="string">left</item><item name="title" xsi:type="string" translate="true">Left</item><item name="icon" xsi:type="string">Magento_PageBuilder/css/images/form/element/visual-select/alignment/left.svg</item></item><item name="2" xsi:type="array"><item name="value" xsi:type="string">center</item><item name="title" xsi:type="string" translate="true">Center</item><item name="icon" xsi:type="string">Magento_PageBuilder/css/images/form/element/visual-select/alignment/center.svg</item></item><item name="3" xsi:type="array"><item name="value" xsi:type="string">right</item><item name="title" xsi:type="string" translate="true">Right</item><item name="icon" xsi:type="string">Magento_PageBuilder/css/images/form/element/visual-select/alignment/right.svg</item></item></argument></arguments></virtualType>
Display notice when option is selected
For some options you may wish to display an additional notice when the user selects the item. You can do this by providing a noticeMessage
within the items declaration.
Copied to your clipboard<item name="3" xsi:type="array"><item name="value" xsi:type="string">right</item><item name="title" xsi:type="string" translate="true">Right</item><item name="icon" xsi:type="string">Magento_PageBuilder/css/images/form/element/visual-select/alignment/right.svg</item><item name="noticeMessage" xsi:type="string" translate="true">Message to be displayed below field when selected.</item></item>
How to reuse vertical alignment between different content types
To apply vertical alignment to a content type using the Visual Select component, use the virtualType Magento\PageBuilder\Model\Source\VerticalAlignment
with options in your module's di.xml
configuration file.
Copied to your clipboard<virtualType name="Magento\PageBuilder\Model\Source\VerticalAlignment" type="Magento\PageBuilder\Model\Source\VisualSelect"><arguments><argument name="optionsSize" xsi:type="string">small</argument><argument name="optionsData" xsi:type="array"><item name="0" xsi:type="array"><item name="value" xsi:type="string">flex-start</item><item name="title" xsi:type="string" translate="true">Top</item><item name="icon" xsi:type="string">Magento_PageBuilder/css/images/form/element/visual-select/vertical-align/top.svg</item></item><item name="1" xsi:type="array"><item name="value" xsi:type="string">center</item><item name="title" xsi:type="string" translate="true">Center</item><item name="icon" xsi:type="string">Magento_PageBuilder/css/images/form/element/visual-select/vertical-align/center.svg</item></item><item name="2" xsi:type="array"><item name="value" xsi:type="string">flex-end</item><item name="title" xsi:type="string" translate="true">Bottom</item><item name="icon" xsi:type="string">Magento_PageBuilder/css/images/form/element/visual-select/vertical-align/bottom.svg</item></item></argument></arguments></virtualType>
Add the Visual Select option in your module's form configuration file
Copied to your clipboard<field name="justify_content" sortOrder="20" formElement="select" component="Magento_PageBuilder/js/form/element/visual-select"><argument name="data" xsi:type="array"><item name="config" xsi:type="array"><item name="default" xsi:type="string">flex-start</item></item></argument><settings><dataType>text</dataType><label translate="true">Vertical Alignment</label><notice translate="true">Vertical alignment controls how the child blocks of this container will be positioned. Set minimum height in order to use vertical alignment.</notice><elementTmpl>Magento_PageBuilder/form/element/visual-select</elementTmpl></settings><formElements><select><settings><options class="Magento\PageBuilder\Model\Source\VerticalAlignment"/></settings></select></formElements></field>
Configure the content type with the vertical alignment style properties. This example is from Row.
Copied to your clipboard<elements><element name="main" path="."><style name="background_color" source="background_color" converter="Magento_PageBuilder/js/converter/style/color"/><style name="background_image" source="background_image" converter="Magento_PageBuilder/js/converter/style/background-image" preview_converter="Magento_PageBuilder/js/converter/style/preview/background-image"/><style name="background_position" source="background_position"/><style name="background_size" source="background_size"/><style name="background_repeat" source="background_repeat"/><style name="background_attachment" source="background_attachment"/><style name="text_align" source="text_align"/><style name="border" source="border_style" converter="Magento_PageBuilder/js/converter/style/border-style"/><style name="border_color" source="border_color" converter="Magento_PageBuilder/js/converter/style/color"/><style name="border_width" source="border_width" converter="Magento_PageBuilder/js/converter/style/remove-px"/><style name="border_radius" source="border_radius" converter="Magento_PageBuilder/js/converter/style/remove-px"/><style name="justify_content" source="justify_content" persistence_mode="read"/><style name="min_height" source="min_height" converter="Magento_PageBuilder/js/converter/style/remove-px"/><style name="margins_and_padding" reader="Magento_PageBuilder/js/property/margins" converter="Magento_PageBuilder/js/converter/style/margins" preview_converter="Magento_PageBuilder/js/content-type/row/converter/style/margins"/><style name="margins_and_padding" reader="Magento_PageBuilder/js/property/paddings" converter="Magento_PageBuilder/js/converter/style/paddings" preview_converter="Magento_PageBuilder/js/content-type/row/converter/style/paddings"/><attribute name="name" source="data-content-type"/><attribute name="appearance" source="data-appearance"/><attribute name="enable_parallax" source="data-enable-parallax"/><attribute name="parallax_speed" source="data-parallax-speed"/><attribute name="background_color_format" source="data-background-color-format" persistence_mode="write"/><css name="css_classes"/></element><element name="container"><style name="justify_content" source="justify_content"/><static_style source="display" value="flex"/><static_style source="flex_direction" value="column"/></element></elements>
