Configure the panel

By default, the Page Builder panel has four menu sections (Layout, Elements, Media, Add Content) and 16 content types as shown here:

Panel menu

These menu sections are defined in the Page Builder menu_section.xml file and can be extended and customized from your content type by adding new menu sections with unique names and/or changing the label and sortOrder of the existing menu sections noted in the table below.

namelabelsortOrderpurpose
layout
Layout
1
Groups containers that control the structure of a page
elements
Elements
10
Groups common text and input elements
media
Media
20
Groups visual and interactive elements
add_content
Add Content
30
Groups dynamic storefront elements

This topic describes four ways to customize the Page Builder panel:

Rename panel menu sections

To rename the panel menu sections, you need to extend the defaults configured in the Page Builder menu_section.xml file as follows:

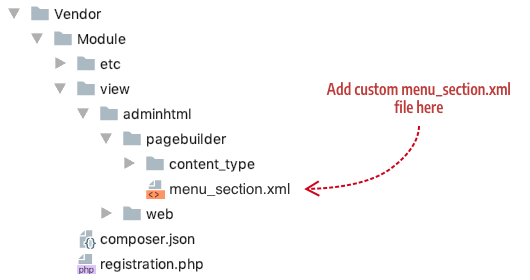

  1. Add an XML file named menu_section.xml to your module's view/adminhtml/pagebuilder/ directory:

    Custom menu section file

  2. Your menu_section.xml file should extend the Page Builder menu_section.xml (located here: app/code/Magento/PageBuilder/view/adminhtml/pagebuilder/menu_section.xml) as follows:

    Copied to your clipboard
    <?xml version="1.0"?>
    <config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_PageBuilder:etc/menu_section.xsd">
    <!--menu section definitions go here-->
    </config>
  3. Change one or more of the existing menu sections by overriding their label values. This example changes the layout menu section from "Layout" to "Structure":

    Copied to your clipboard
    <?xml version="1.0"?>
    <config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_PageBuilder:etc/menu_section.xsd">
    <menu_section name="layout" translate="label" sortOrder="1" label="Structure"/>
    </config>

Reorder panel menu sections

To reorder existing panel menu sections, you need to override the default sortOrders applied to existing panel menu sections. The sortOrder is defined as a byte value, so technically, it can be set any where from -128 to 127, but we don't recommend using negative values! Just keep the byte value in mind when you try to set the sortOrder above 127. The following example changes the order of the layout and elements menu sections to display as the last two menu sections.

Copied to your clipboard
<?xml version="1.0"?>
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_PageBuilder:etc/menu_sections.xsd">
<menu_section name="layout" sortOrder="100"/>
<menu_section name="elements" sortOrder="127"/>
</config>

The result looks like this:

Reorder panel menu sections

Add new panel menu sections

To add a new panel menu section, add a new <menu_section> element in your module's menu_section.xml file with a unique name as shown here:

Copied to your clipboard
<?xml version="1.0"?>
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_PageBuilder:etc/menu_sections.xsd">
<menu_section name="my_controls" translate="label" sortOrder="100" label="My Controls"/>
</config>

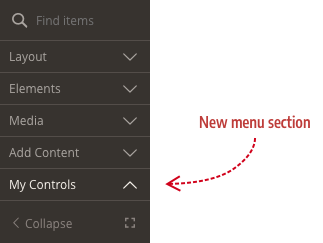

The result shows the new menu section (My Controls) positioned at the bottom of the panel because the sortOrder is set to 100, after the default sortOrder of add_content menu section, which is set at 30.

New panel menu section

Add content types to different panel menu sections

To add your content type to a new menu section or one of the existing menu sections, set your content types configuration menu_section attribute to the name of the menu section. This example configuration example adds my-content-type to the the layout menu section:

Copied to your clipboard
<?xml version="1.0"?>
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_PageBuilder:etc/content_type.xsd">
<type name="my-content-type "
label="My Content Type"
menu_section="layout"
sortOrder="100"
...
>

The result looks like this:

Menu section with content type
