Thanks to Atwix for contributing this topic!

DynamicRowsRecord component

The DynamicRowsRecord component is a container of record fields. The DynamicRowsRecord should be used as a child of the DynamicRows component.

Options

Option	Description	Type	Default
`disabled`	The initial state of the component. When set to `true`, users cannot take action on the element.	Boolean	`true`
`headerLabel`	The label of the record. It is used as a record `label` when the `label` option is not initialized.	String	`''`
`label`	The label of the record.	String	`''`
`visible`	Initial component's visibility. When set to `false`, the `"display: none"` CSS style is added to the component's DOM block.	Boolean	`true`

Sources files

Extends UiCollection:

app/code/Magento/Ui/view/base/web/js/dynamic-rows/record.js

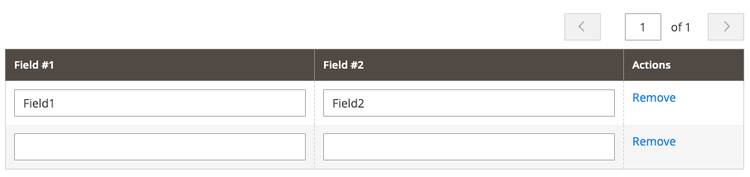

Examples

<form>
...
    <dynamicRows name="dynamic_rows">
        <settings>
            ...
        </settings>
        <container name="record" component="Magento_Ui/js/dynamic-rows/record">
            <argument name="data" xsi:type="array">
                <item name="config" xsi:type="array">
                    <item name="label" xsi:type="string" translate="true">Record Example</item>
                    <item name="disabled" xsi:type="boolean">false</item>
                    <item name="visible" xsi:type="boolean">true</item>
                    <item name="componentType" xsi:type="string">container</item>
                </item>
            </argument>
            <field name="field_1" formElement="input">
                <argument name="data" xsi:type="array">
                    <item name="config" xsi:type="array">
                        <item name="fit" xsi:type="boolean">false</item>
                    </item>
                </argument>
                <settings>
                    <validation>
                        <rule name="required-entry" xsi:type="boolean">true</rule>
                    </validation>
                    <dataType>text</dataType>
                    <label>Field #1</label>
                </settings>
            </field>
            <field name="field_2" formElement="input">
                <argument name="data" xsi:type="array">
                    <item name="config" xsi:type="array">
                        <item name="fit" xsi:type="boolean">false</item>
                    </item>
                </argument>
                <settings>
                    <validation>
                        <rule name="required-entry" xsi:type="boolean">true</rule>
                    </validation>
                    <dataType>text</dataType>
                    <label>Field #2</label>
                </settings>
            </field>
            <actionDelete template="Magento_Backend/dynamic-rows/cells/action-delete">
                <argument name="data" xsi:type="array">
                    <item name="config" xsi:type="array">
                        <item name="fit" xsi:type="boolean">false</item>
                    </item>
                </argument>
                <settings>
                    <additionalClasses>
                        <class name="some-class">true</class>
                    </additionalClasses>
                    <dataType>text</dataType>
                    <label>Actions</label>
                    <componentType>actionDelete</componentType>
                </settings>
            </actionDelete>
        </container>
    </dynamicRows>
...
</form>
Copied to your clipboard
<form>
...
    <dynamicRows name="dynamic_rows">
        <settings>
            ...
        </settings>
        <container name="record" component="Magento_Ui/js/dynamic-rows/record">
            <argument name="data" xsi:type="array">
                <item name="config" xsi:type="array">
                    <item name="label" xsi:type="string" translate="true">Record Example</item>
                    <item name="disabled" xsi:type="boolean">false</item>
                    <item name="visible" xsi:type="boolean">true</item>
                    <item name="componentType" xsi:type="string">container</item>
                </item>
            </argument>
            <field name="field_1" formElement="input">
                <argument name="data" xsi:type="array">
                    <item name="config" xsi:type="array">
                        <item name="fit" xsi:type="boolean">false</item>
                    </item>
                </argument>
                <settings>
                    <validation>
                        <rule name="required-entry" xsi:type="boolean">true</rule>
                    </validation>
                    <dataType>text</dataType>
                    <label>Field #1</label>
                </settings>
            </field>
            <field name="field_2" formElement="input">
                <argument name="data" xsi:type="array">
                    <item name="config" xsi:type="array">
                        <item name="fit" xsi:type="boolean">false</item>
                    </item>
                </argument>
                <settings>
                    <validation>
                        <rule name="required-entry" xsi:type="boolean">true</rule>
                    </validation>
                    <dataType>text</dataType>
                    <label>Field #2</label>
                </settings>
            </field>
            <actionDelete template="Magento_Backend/dynamic-rows/cells/action-delete">
                <argument name="data" xsi:type="array">
                    <item name="config" xsi:type="array">
                        <item name="fit" xsi:type="boolean">false</item>
                    </item>
                </argument>
                <settings>
                    <additionalClasses>
                        <class name="some-class">true</class>
                    </additionalClasses>
                    <dataType>text</dataType>
                    <label>Actions</label>
                    <componentType>actionDelete</componentType>
                </settings>
            </actionDelete>
        </container>
    </dynamicRows>
...
</form>
