InsertForm component

The InsertForm component inserts the Form component into other components.

Options

OptionDescriptionTypeDefault
autoRender
When set to true, the Form component is automatically rendered during InsertForm initialization. Otherwise, insertForm's render method should be called to render the Form.
Boolean
false
class
Path to the PHP class responsible for the backend implementation of the component.
String
Magento\Ui\Component\Container
component
The path to the component’s JS constructor file in terms of RequireJS.
String
Magento_Ui/js/form/components/insert-form
dataLinks.exports
Enable export from the insertForm's externalValue to the inserted Form aggregated value.
Boolean
false
dataLinks.imports
Enable import from the inserted Form value to the insertForm's externalValue.
Boolean
false
externalProvider
DataSource of the inserted Form.
String
''
formSubmitType
Expect that Form will save data using AJAX. Links responseData and responseStatus with form. Export to form submit type.
Boolean
false
ns
Namespace of the inserted form.
String
''
realTimeLink
Enables a link between the externalValue and value of insertForms. Here 'link' means the two-way links property of UI components, which allows immediate update.
Boolean
false
render_url
With default render_url(mui/index/render) form will be without form buttons. To get Form with buttons, url must be changed to mui/index/render_handle and next GET parameters:
buttons=1 (flag to get buttons)
handle=%layout namespace%/ (buttons scope)
String
mui/index/render
showSpinner
Show spinner while the Form is rendered.
Boolean
true
toolbarContainer
Path to component that has toolbarSection property with reference to HTML element. Component will insert Form buttons to this section.
String
''

Source files

Extends Insert:

Examples

Integration (form)

Here is an example of how the InsertForm component integrates with the Form component:

Copied to your clipboard
<form>
    ...
    <fieldset>
        <settings>
            <level>1</level>
            <collapsible>true</collapsible>
            <label translate="true">Fieldset with form</label>
        </settings>
        <insertForm name="insert_form_example_loader">
            <settings>
                <formSubmitType>ajax</formSubmitType>
                <renderUrl path="mui/index/render">
                    <param name="handle">insert_form_example</param>
                    <param name="buttons">1</param>
                </renderUrl>
                <loading>true</loading>
                <autoRender>true</autoRender>
                <toolbarContainer>${ $.parentName }</toolbarContainer>
                <ns>insert_form_example</ns>
            </settings>
        </insertForm>
    </fieldset>
</form>

The form example insert_form_example.xml:

Copied to your clipboard
<?xml version="1.0" encoding="UTF-8"?>


<form xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_Ui:etc/ui_configuration.xsd">
    <argument name="data" xsi:type="array">
        <item name="js_config" xsi:type="array">
            <item name="provider" xsi:type="string">insert_form_example.insert_form_example_data_source</item>
        </item>
        <item name="label" xsi:type="string" translate="true">Insert </item>
        <item name="template" xsi:type="string">templates/form/collapsible</item>
    </argument>
    <settings>
        <namespace>insert_form_example</namespace>
        <dataScope>data</dataScope>
        <deps>
            <dep>insert_form_example.insert_form_example_data_source</dep>
        </deps>
    </settings>
    <dataSource name="insert_form_example_data_source">
        <argument name="data" xsi:type="array">
            <item name="js_config" xsi:type="array">
                <item name="component" xsi:type="string">Magento_Ui/js/form/provider</item>
            </item>
        </argument>
        <dataProvider class="Vendor\Module\Ui\Config\CustomDataProvider" name="insert_form_example_data_source">
            <settings>
                <requestFieldName>scope</requestFieldName>
                <primaryFieldName>scope</primaryFieldName>
            </settings>
        </dataProvider>
    </dataSource>
    <fieldset name="fields" sortOrder="30">
        <settings>
            <label translate="true">Insert Form Example Fieldset</label>
        </settings>
        <field name="name" formElement="input">
            <settings>
                <dataType>text</dataType>
                <label translate="true">Name</label>
            </settings>
        </field>
    </fieldset>
</form>

Data provider:

Copied to your clipboard
<?php


declare(strict_types=1);


namespace Vendor\Module\Ui\Config;


use Magento\Ui\DataProvider\AbstractDataProvider;
use Vendor\Module\Model\ResourceModel\Entity\Collection;
use Vendor\Module\Model\ResourceModel\Entity\CollectionFactory;


/**
 * Class CustomDataProvider
 */
class CustomDataProvider extends AbstractDataProvider
{
    /**
     * CustomDataProvider constructor.
     *
     * @param $name
     * @param $primaryFieldName
     * @param $requestFieldName
     * @param CollectionFactory $collectionFactory
     * @param array $meta
     * @param array $data
     */
    public function __construct(
        $name,
        $primaryFieldName,
        $requestFieldName,
        CollectionFactory $collectionFactory,
        array $meta = [],
        array $data = []
    ) {
        $this->collection = $collectionFactory->create();


        parent::__construct(
            $name,
            $primaryFieldName,
            $requestFieldName,
            $meta,
            $data
        );
    }


    /**
     * Get data
     *
     * @return array
     */
    public function getData()
    {
        return [
            // return the form data here
        ];
    }
}

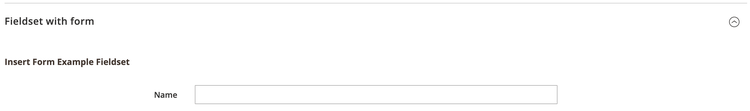

Result

InsertForm Component example

Integration (modal)

Here is an example of how the InsertForm component integrates with the Modal component:

Copied to your clipboard
<form>
    ...
    <fieldset>
        ...
        <button name="insert_form_example_modal_button" component="Magento_Ui/js/form/components/button">
            <argument name="data" xsi:type="array">
                <item name="config" xsi:type="array">
                    <item name="buttonClasses" xsi:type="string">open-insert-form-example-modal-button</item>
                    <item name="actions" xsi:type="array">
                        <item name="0" xsi:type="array">
                            <item name="targetName" xsi:type="string">${ $.parentName}.insert_form_example_modal.insert_form_example_loader</item>
                            <item name="actionName" xsi:type="string">destroyInserted</item>
                        </item>
                        <item name="1" xsi:type="array">
                            <item name="targetName" xsi:type="string">${ $.parentName}.insert_form_example_modal</item>
                            <item name="actionName" xsi:type="string">openModal</item>
                        </item>
                        <item name="2" xsi:type="array">
                            <item name="targetName" xsi:type="string">${ $.parentName}.insert_form_example_modal.insert_form_example_loader</item>
                            <item name="actionName" xsi:type="string">render</item>
                        </item>
                    </item>
                </item>
            </argument>
            <settings>
                <title translate="true">Open Insert Form Example</title>
            </settings>
        </button>
        <modal name="insert_form_example_modal">
            <settings>
                <options>
                    <option name="title" xsi:type="string">Insert Form Example Modal</option>
                </options>
            </settings>
            <insertForm name="insert_form_example_loader">
                <settings>
                    <formSubmitType>ajax</formSubmitType>
                    <renderUrl path="mui/index/render">
                        <param name="handle">insert_form_example</param>
                        <param name="buttons">1</param>
                    </renderUrl>
                    <loading>false</loading>
                    <toolbarContainer>${ $.parentName }</toolbarContainer>
                    <ns>insert_form_example</ns>
                </settings>
            </insertForm>
        </modal>
    </fieldset>
</form>

Result

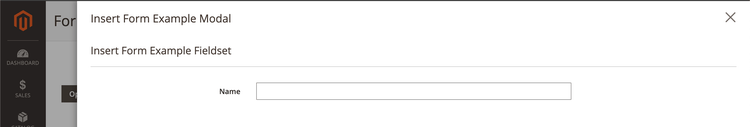

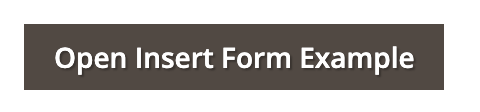

As a result, we see the button which opens the modal pop-up with the form:

Button that opens the modal pop-up with InsertForm Component InsertForm Component in the Modal Component example
