InsertListing component

The InsertListing component inserts Listing into other components.

Options

Option	Description	Type	Default
`autoRender`	When set to true, the Listing component is automatically rendered during insertListing initialization. Otherwise, insertListing's `render` method should be called to render the Listing.	Boolean	`false`
`behaviourType`	Can be `simple` or `edit`. Where `edit` means that insertListing also includes changes from Listing's inlineEdit into value. In this case, Listing must be configured with enabled inline editing.	String (`simple` \| `edit`)	`'simple'`
`class`	Path to the PHP class responsible for the backend implementation of the component.	String	`Magento\Ui\Component\Container`
`component`	The path to the component’s `.js` file in terms of RequireJS.	String	`'Magento_Ui/js/form/components/insert-listing'`
`dataLinks`.`exports`	Enable exporting from the insertListing's externalValue to the inserted Listing aggregated value.	Boolean	`false`
`dataLinks`.`imports`	Enable importing from the inserted Listing value to the insertListing's externalValue.	Boolean	`true`
`realTimeLink`	Enable the link between insertListing's externalValue and value. Here `link` means the two-way links property of UI components, which allows immediate update.	Boolean	`true`
`render_url`	With default `render_url(mui/index/render)` listing will be without buttons. For get a list with buttons url must be changed to `mui/index/render_handle` and the following GET parameters: buttons=1 (flag to get buttons) handle= (buttons scope)	String	`'mui/index/render'`
`update_url`	Where the AJAX request will go to retrieve, foster component update data. It will be in json format by default and will be automatically set into `externalProvider.data`	String	`'mui/index/render'`
`selectionsProvider`	The source selector for Ajax request of the main form through the identifier of the 'selectionColumns'	String	null

Source files

Extends Insert:

Examples

Integration (form)

The following example shows how the InsertListing component integrates with the Form component:

<form>
    ...
    <fieldset>
        <settings>
            <level>1</level>
            <collapsible>true</collapsible>
            <label translate="true">Fieldset with listing</label>
        </settings>
        ...
        <insertListing name="insert_listing_example" >
            <settings>
                <dataLinks>
                    <exports>false</exports>
                    <imports>true</imports>
                </dataLinks>
                <autoRender>true</autoRender>
                <selectionsProvider>insert_listing_example.insert_listing_example.columns.ids</selectionsProvider>
                <dataScope>insert_listing_example</dataScope>
                <ns>insert_listing_example</ns>
            </settings>
        </insertListing>
    </fieldset>
</form>
Copied to your clipboard
<form>
    ...
    <fieldset>
        <settings>
            <level>1</level>
            <collapsible>true</collapsible>
            <label translate="true">Fieldset with listing</label>
        </settings>
        ...
        <insertListing name="insert_listing_example" >
            <settings>
                <dataLinks>
                    <exports>false</exports>
                    <imports>true</imports>
                </dataLinks>
                <autoRender>true</autoRender>
                <selectionsProvider>insert_listing_example.insert_listing_example.columns.ids</selectionsProvider>
                <dataScope>insert_listing_example</dataScope>
                <ns>insert_listing_example</ns>
            </settings>
        </insertListing>
    </fieldset>
</form>

The listing example insert_listing_example.xml:

<?xml version="1.0" encoding="UTF-8"?>

<listing xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_Ui:etc/ui_configuration.xsd">
    <argument name="data" xsi:type="array">
        <item name="js_config" xsi:type="array">
            <item name="provider" xsi:type="string">insert_listing_example.insert_listing_example_data_source</item>
        </item>
    </argument>
    <settings>
        <spinner>columns</spinner>
        <deps>
            <dep>insert_listing_example.insert_listing_example_data_source</dep>
        </deps>
    </settings>
    <dataSource name="insert_listing_example_data_source" component="Magento_Ui/js/grid/provider">
        <settings>
            <updateUrl path="mui/index/render"/>
        </settings>
        <dataProvider class="Vendor\Module\Ui\Component\Listing\CustomDataProvider" name="insert_listing_example_data_source">
            <settings>
                <requestFieldName>id</requestFieldName>
                <primaryFieldName>entity_id</primaryFieldName>
            </settings>
        </dataProvider>
    </dataSource>
    <listingToolbar name="listing_top">
        <columnsControls name="columns_controls"/>
        <filterSearch name="fulltext"/>
        <filters name="listing_filters"/>
    </listingToolbar>
    <columns name="columns">
        <selectionsColumn name="ids" sortOrder="10">
            <settings>
                <indexField>entity_id</indexField>
            </settings>
        </selectionsColumn>
        <column name="id" sortOrder="20">
            <settings>
                <filter>textRange</filter>
                <label translate="true">ID</label>
                <sorting>asc</sorting>
            </settings>
        </column>
        <column name="name" sortOrder="30">
            <settings>
                <filter>text</filter>
                <label translate="true">Name</label>
            </settings>
        </column>
    </columns>
</listing>
Copied to your clipboard
<?xml version="1.0" encoding="UTF-8"?>

<listing xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_Ui:etc/ui_configuration.xsd">
    <argument name="data" xsi:type="array">
        <item name="js_config" xsi:type="array">
            <item name="provider" xsi:type="string">insert_listing_example.insert_listing_example_data_source</item>
        </item>
    </argument>
    <settings>
        <spinner>columns</spinner>
        <deps>
            <dep>insert_listing_example.insert_listing_example_data_source</dep>
        </deps>
    </settings>
    <dataSource name="insert_listing_example_data_source" component="Magento_Ui/js/grid/provider">
        <settings>
            <updateUrl path="mui/index/render"/>
        </settings>
        <dataProvider class="Vendor\Module\Ui\Component\Listing\CustomDataProvider" name="insert_listing_example_data_source">
            <settings>
                <requestFieldName>id</requestFieldName>
                <primaryFieldName>entity_id</primaryFieldName>
            </settings>
        </dataProvider>
    </dataSource>
    <listingToolbar name="listing_top">
        <columnsControls name="columns_controls"/>
        <filterSearch name="fulltext"/>
        <filters name="listing_filters"/>
    </listingToolbar>
    <columns name="columns">
        <selectionsColumn name="ids" sortOrder="10">
            <settings>
                <indexField>entity_id</indexField>
            </settings>
        </selectionsColumn>
        <column name="id" sortOrder="20">
            <settings>
                <filter>textRange</filter>
                <label translate="true">ID</label>
                <sorting>asc</sorting>
            </settings>
        </column>
        <column name="name" sortOrder="30">
            <settings>
                <filter>text</filter>
                <label translate="true">Name</label>
            </settings>
        </column>
    </columns>
</listing>

Data provider:

<?php

declare(strict_types=1);

namespace Vendor\Module\Ui\Component\Listing;

use Magento\Framework\View\Element\UiComponent\DataProvider\DataProvider;

/**
 * Class CustomDataProvider
 */
class CustomDataProvider extends DataProvider
{
    /**
     * Get data
     *
     * @return array
     */
    public function getData()
    {
        return [
            'items' => [
                [
                    'id' => 1,
                    'name' => 'First Item'
                ],
                [
                    'id' => 2,
                    'name' => 'Second Item'
                ],
                [
                    'id' => 3,
                    'name' => 'Third Item'
                ]
            ],
            'totalRecords' => 3
        ];
    }
}
Copied to your clipboard
<?php

declare(strict_types=1);

namespace Vendor\Module\Ui\Component\Listing;

use Magento\Framework\View\Element\UiComponent\DataProvider\DataProvider;

/**
 * Class CustomDataProvider
 */
class CustomDataProvider extends DataProvider
{
    /**
     * Get data
     *
     * @return array
     */
    public function getData()
    {
        return [
            'items' => [
                [
                    'id' => 1,
                    'name' => 'First Item'
                ],
                [
                    'id' => 2,
                    'name' => 'Second Item'
                ],
                [
                    'id' => 3,
                    'name' => 'Third Item'
                ]
            ],
            'totalRecords' => 3
        ];
    }
}

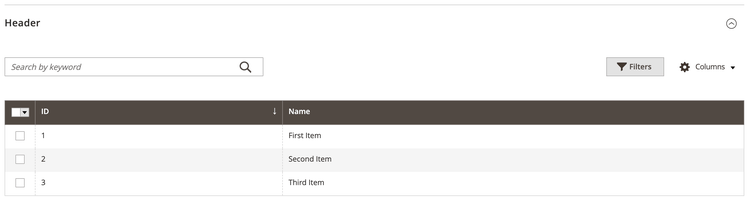

Result

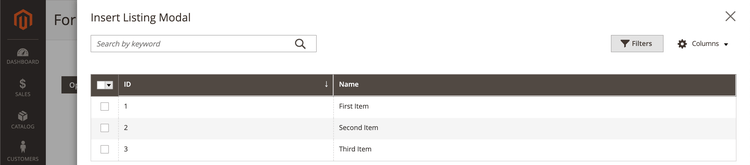

InsertListing Component example

Here is an example of how the InsertListing component integrates with the Modal component:

<form>
    <fieldset>
        <button name="insert_listing_example_modal_button" component="Magento_Ui/js/form/components/button">
            <argument name="data" xsi:type="array">
                <item name="config" xsi:type="array">
                    <item name="buttonClasses" xsi:type="string">open-insert-listing-example-modal-button</item>
                    <item name="actions" xsi:type="array">
                        <item name="0" xsi:type="array">
                            <item name="targetName" xsi:type="string">${ $.parentName}.insert_listing_example_modal.insert_listing_example_loader</item>
                            <item name="actionName" xsi:type="string">destroyInserted</item>
                        </item>
                        <item name="1" xsi:type="array">
                            <item name="targetName" xsi:type="string">${ $.parentName}.insert_listing_example_modal</item>
                            <item name="actionName" xsi:type="string">openModal</item>
                        </item>
                        <item name="2" xsi:type="array">
                            <item name="targetName" xsi:type="string">${ $.parentName}.insert_listing_example_modal.insert_listing_example_loader</item>
                            <item name="actionName" xsi:type="string">render</item>
                        </item>
                    </item>
                </item>
            </argument>
            <settings>
                <title translate="true">Open Insert Listing Example</title>
            </settings>
        </button>
        <modal name="insert_listing_example_modal">
            <settings>
                <options>
                    <option name="title" xsi:type="string">Insert Listing Modal</option>
                </options>
            </settings>
            <insertForm name="insert_listing_example_loader">
                <settings>
                    <formSubmitType>ajax</formSubmitType>
                    <renderUrl path="mui/index/render">
                        <param name="handle">insert_listing_example</param>
                        <param name="buttons">1</param>
                    </renderUrl>
                    <loading>false</loading>
                    <toolbarContainer>${ $.parentName }</toolbarContainer>
                    <ns>insert_listing_example</ns>
                </settings>
            </insertForm>
        </modal>
    </fieldset>
</form>
Copied to your clipboard
<form>
    <fieldset>
        <button name="insert_listing_example_modal_button" component="Magento_Ui/js/form/components/button">
            <argument name="data" xsi:type="array">
                <item name="config" xsi:type="array">
                    <item name="buttonClasses" xsi:type="string">open-insert-listing-example-modal-button</item>
                    <item name="actions" xsi:type="array">
                        <item name="0" xsi:type="array">
                            <item name="targetName" xsi:type="string">${ $.parentName}.insert_listing_example_modal.insert_listing_example_loader</item>
                            <item name="actionName" xsi:type="string">destroyInserted</item>
                        </item>
                        <item name="1" xsi:type="array">
                            <item name="targetName" xsi:type="string">${ $.parentName}.insert_listing_example_modal</item>
                            <item name="actionName" xsi:type="string">openModal</item>
                        </item>
                        <item name="2" xsi:type="array">
                            <item name="targetName" xsi:type="string">${ $.parentName}.insert_listing_example_modal.insert_listing_example_loader</item>
                            <item name="actionName" xsi:type="string">render</item>
                        </item>
                    </item>
                </item>
            </argument>
            <settings>
                <title translate="true">Open Insert Listing Example</title>
            </settings>
        </button>
        <modal name="insert_listing_example_modal">
            <settings>
                <options>
                    <option name="title" xsi:type="string">Insert Listing Modal</option>
                </options>
            </settings>
            <insertForm name="insert_listing_example_loader">
                <settings>
                    <formSubmitType>ajax</formSubmitType>
                    <renderUrl path="mui/index/render">
                        <param name="handle">insert_listing_example</param>
                        <param name="buttons">1</param>
                    </renderUrl>
                    <loading>false</loading>
                    <toolbarContainer>${ $.parentName }</toolbarContainer>
                    <ns>insert_listing_example</ns>
                </settings>
            </insertForm>
        </modal>
    </fieldset>
</form>
