UI-select component

The UI-select component is a single select/multiple select component that enables the selection of a collection of items. It extends all abstract configuration and can be configured in two modes:

Single - checkbox isn't displayed
Multiple - checkboxes are displayed

Options

You must create a controller for searchUrl. If you'd like to use other data for the request, you can override the processRequest method in your component.

Option	Description	Default	Required
`imports`	Defines from where the component receives its data.	`imports: {` `options: '${ $.optionsConfig.anme }:options'` `}`	Yes
`actions`	Modifies the default actions by renaming their storefront labels	`actions: [` `{` `value: 'selectAll',` `label: $t('Select all')` `},` `{` `value: 'deselectAll',` `label: $t('Deselect all')` `},` `{` `value: 'selectPage',` `label: $t('Select all on this page')` `},` `{` `value: 'deselectPage',` `label: $t('Deselect all on this page')` `},`	Yes

Optional configuration

Option	Description	Type	Default	Required
`chipsEnabled`	Selected options are shown in UI-select's header as deletable chips.	Boolean	True	Optional
`closeBtn`	Shows the button that closes the dropdown	Boolean	True	Optional
`closeBtnLabel`	Close Buttons Label	String	`$t('Done')`	Optional
`deviation`	Handles scroll download behavior	Number	30	Optional
`emptyOptionsHtml`	Specifies the HTML to display content if there are no options to display	String	Empty string	Optional
`filterPlaceholder`	Specifies captions for the filter placeholder	String	Empty string	Optional
`isDisplayMissingValuePlaceholder`	Specifies whether the display is missing the value placeholder	Boolean	False	Optional
`isRemoveSelectedIcon`	Specifies whether the "x" is present to enable removal of chosen entity	Boolean	False	Optional
`levelsVisibility`	If true, all levels are visible; if it is a number, the number of levels are visible.	Boolean/number	True	Optional
`loading`	Displays a loader to find options if a request is sent to the backend	Boolean	False	Optional
`missingValuePlaceholder`	Specifies the text to display if the entity that was chosen no longer exists	String	`'Entity with ID: %s doesn\'t exist'`	Optional
`options.< option name >.label`	Options label	String	Undefined	Optional
`options.< option name >.value`	Options value	String	Undefined	Optional
`options.< option name >.optgroup`	Nested level of options	Object	Undefined	Optional
`openLevelsAction`	Expands a tree to the child level	Boolean	True	Optional
`pageLimit`	Page limit for search	Number	50	Optional
`searchOptions`	Include search options	Boolean	False	Optional
`searchUrl`	Sends a request to load options	Boolean	False	Optional
`separator`	Group options in select	String	`optgroup`	Optional
`showCheckbox`	Shows the checkbox just before the option label; select options by checking	Boolean	True	Optional
`showOpenLevelsActionIcon`	---	Boolean	True	Optional
`showTree`	---	Boolean	False	Optional
`validationLoading`	Displays a loading icon to show that the chosen option is loading; icon will show if the display is set to true	Boolean	False	Optional

The following configuration can be passed in as arguments:

Link to any of the UI component templates
Link to the constructor
Label to ui-select
Default caption
Caption if more than one element is selected

Modes

`simple` mode

simple mode sets the following values to false:

showCheckbox
chipsEnabled
closeBtn

`optgroup` mode

optgroup mode sets the following values to false:

showCheckbox
openLevelsAction

optgroup sets the following values to true:

lastSelectable
optgroupLabels
labelsDecoration

Examples

Use `cms_page_listing.xml`

<Magento_Cms>/view/adminhtml/ui_component/cms_page_listing.xml

<listing xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_Ui:etc/ui_configuration.xsd">
    <filterSelect name="uiSelect">
        <argument name="optionsProvider" xsi:type="configurableObject">
            <argument name="class" xsi:type="string">Magento\Cms\Model\Page\Source\PageLayout</argument>
        </argument>
        <argument name="data" xsi:type="array">
            <item name="config" xsi:type="array">
                <item name="component" xsi:type="string">Magento_Ui/js/form/element/ui-select</item>
                <item name="template" xsi:type="string">ui/grid/filters/elements/ui-select</item>
                <item name="dataScope" xsi:type="string">uiSelect</item>
                <item name="label" xsi:type="string" translate="true">uiSelect</item>
            </item>
        </argument>
    </filterSelect>
</listing>
Copied to your clipboard
<listing xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_Ui:etc/ui_configuration.xsd">
    <filterSelect name="uiSelect">
        <argument name="optionsProvider" xsi:type="configurableObject">
            <argument name="class" xsi:type="string">Magento\Cms\Model\Page\Source\PageLayout</argument>
        </argument>
        <argument name="data" xsi:type="array">
            <item name="config" xsi:type="array">
                <item name="component" xsi:type="string">Magento_Ui/js/form/element/ui-select</item>
                <item name="template" xsi:type="string">ui/grid/filters/elements/ui-select</item>
                <item name="dataScope" xsi:type="string">uiSelect</item>
                <item name="label" xsi:type="string" translate="true">uiSelect</item>
            </item>
        </argument>
    </filterSelect>
</listing>

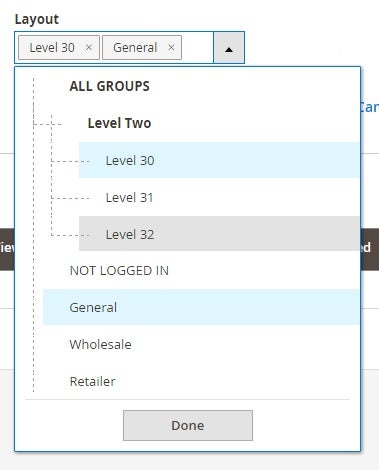

Configured select component view

The following is an example of the configuration of a select component. It is used as a column filter with three levels of options, with no selectable label for every level, without checkboxes:

view the configuration

The UI-select component supports keyboard navigation.

Navigation keys:

Enter: if focus is on the caption a list of options opens; if focus is on the same option it will select or deselect the current option
Space: copies the Enter key functionality
Escape: closes the list of options
PageUp: sets focus to the previous option
PageDown: sets focus to the next option
