Add a show/hide password checkbox

This topic describes how you can implement the "show or hide" password checkbox functionality in custom forms.

Step 1: Add the HTML code

Add the HTML code snippet which renders the "show or hide" password checkbox to the PHTML template file. It uses the scope custom knockout binding.

Below is the HTML code snippet:

Copy
<div class="field choice" data-bind="scope: 'showPassword'">
    <!-- ko template: getTemplate() --><!-- /ko -->
</div>
Copied to your clipboard
<div class="field choice" data-bind="scope: 'showPassword'">
    <!-- ko template: getTemplate() --><!-- /ko -->
</div>

For more information about Scope binding, refer to Scope Binding

Step 2: Add the x-magento-init script

Initialize the "show or hide" password checkbox using the text/x-magento-init script. It uses the scope binding name showPassword to initialize the component. Pass both the component javascript file path, and the password field id prefixed with #.

Copy
<script type="text/x-magento-init">
    {
        "*": {
            "Magento_Ui/js/core/app": {
                "components": {
                    "showPassword": {
                        "component": "Magento_Customer/js/show-password",
                        "passwordSelector": "#pass"
                    }
                }
            }
        }
    }
</script>
Copied to your clipboard
<script type="text/x-magento-init">
    {
        "*": {
            "Magento_Ui/js/core/app": {
                "components": {
                    "showPassword": {
                        "component": "Magento_Customer/js/show-password",
                        "passwordSelector": "#pass"
                    }
                }
            }
        }
    }
</script>

The RequireJS file path for the "show or hide" password checkbox is Magento_Customer/js/show-password. It is defined in app/code/Magento/Customer/view/frontend/web/js/show-password.js.

Example

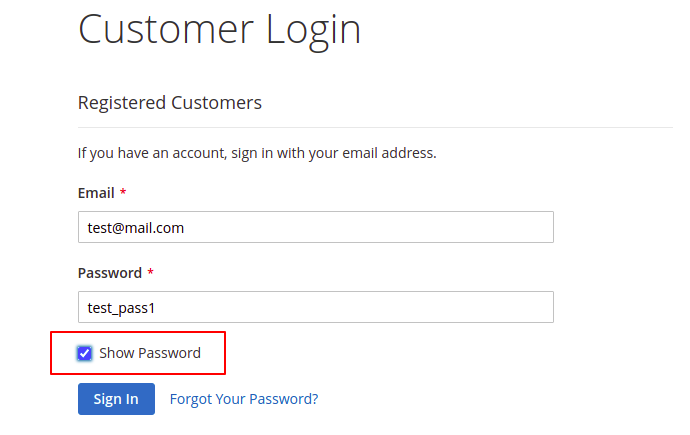

This example shows the custom implemented company login form template (PHTML file) with the "show or hide" password checkbox.

Copy
<div class="block-content" aria-labelledby="block-company-login-heading">
    <form class="form form-company-login" action="<?= $escaper->escapeUrl($block->getPostActionUrl()) ?>" method="post" id="company-login-form">
        <?= $block->getBlockHtml('formkey') ?>
        <fieldset class="fieldset login" data-hasrequired="<?= $escaper->escapeHtml(__('* Required Fields')) ?>">
            <div class="field email required">
                <label class="label" for="email"><span><?= $escaper->escapeHtml(__('Company Email')) ?></span></label>
                <div class="control">
                    <input name="login[username]" id="email" type="email" class="input-text" data-validate="{required:true, 'validate-email':true}">
                </div>
            </div>
            <div class="field password required">
                <label for="pass" class="label"><span><?= $escaper->escapeHtml(__('Password')) ?></span></label>
                <div class="control">
                    <input name="login[password]" type="password" class="input-text" id="pass" data-validate="{required:true}">
                </div>
            </div>
            <div class="field choice" data-bind="scope: 'showPassword'">
                <!-- ko template: getTemplate() --><!-- /ko -->
            </div>
            <div class="actions-toolbar">
                <div class="primary">
                    <button type="submit" class="action login primary" id="company-submit"><span><?= $escaper->escapeHtml(__('Company Sign In')) ?></span></button>
                </div>
            </div>
        </fieldset>
    </form>
</div>
<script type="text/x-magento-init">
    {
        "*": {
            "Magento_Ui/js/core/app": {
                "components": {
                    "showPassword": {
                        "component": "Magento_Customer/js/show-password",
                        "passwordSelector": "#pass"
                    }
                }
            }
        }
    }
</script>
Copied to your clipboard
<div class="block-content" aria-labelledby="block-company-login-heading">
    <form class="form form-company-login" action="<?= $escaper->escapeUrl($block->getPostActionUrl()) ?>" method="post" id="company-login-form">
        <?= $block->getBlockHtml('formkey') ?>
        <fieldset class="fieldset login" data-hasrequired="<?= $escaper->escapeHtml(__('* Required Fields')) ?>">
            <div class="field email required">
                <label class="label" for="email"><span><?= $escaper->escapeHtml(__('Company Email')) ?></span></label>
                <div class="control">
                    <input name="login[username]" id="email" type="email" class="input-text" data-validate="{required:true, 'validate-email':true}">
                </div>
            </div>
            <div class="field password required">
                <label for="pass" class="label"><span><?= $escaper->escapeHtml(__('Password')) ?></span></label>
                <div class="control">
                    <input name="login[password]" type="password" class="input-text" id="pass" data-validate="{required:true}">
                </div>
            </div>
            <div class="field choice" data-bind="scope: 'showPassword'">
                <!-- ko template: getTemplate() --><!-- /ko -->
            </div>
            <div class="actions-toolbar">
                <div class="primary">
                    <button type="submit" class="action login primary" id="company-submit"><span><?= $escaper->escapeHtml(__('Company Sign In')) ?></span></button>
                </div>
            </div>
        </fieldset>
    </form>
</div>
<script type="text/x-magento-init">
    {
        "*": {
            "Magento_Ui/js/core/app": {
                "components": {
                    "showPassword": {
                        "component": "Magento_Customer/js/show-password",
                        "passwordSelector": "#pass"
                    }
                }
            }
        }
    }
</script>

Last updated 9/11/2023
