Add Custom Dropdown Attribute | Commerce PHP Extensions

This tutorial describes how you create a custom dropdown (select) attribute for the Customer entity using code. The attribute appears in both the Customer Grid and the Customer Form in the Admin.

Use a select attribute when you want administrators (and optionally customers) to choose a value from a controlled set of options. Examples include a customer tier (Silver, Gold, Platinum) or an internal segmentation flag. You create the attribute as an EAV attribute in a data patch. This tutorial also implements PatchRevertableInterface, so you can remove the attribute by running bin/magento setup:rollback.

Data patch implementation

The following sections show the PHP you add to your module.

Create the data patch class

Create a data patch class called AddCustomerAttributeOptions under the \ExampleCorp\Customer\Setup\Patch\Data namespace. Magento runs this data patch automatically when you run bin/magento setup:upgrade. Unlike the text field and boolean attribute tutorials, this class implements both \Magento\Framework\Setup\Patch\DataPatchInterface and \Magento\Framework\Setup\Patch\PatchRevertableInterface. Adding the revertable interface requires implementing a revert() method that removes the attribute when the patch is rolled back.

<?php
declare(strict_types=1);

namespace ExampleCorp\Customer\Setup\Patch\Data;

use \Magento\Framework\Setup\Patch\DataPatchInterface;
use \Magento\Framework\Setup\Patch\PatchRevertableInterface;

class AddCustomerAttributeOptions implements DataPatchInterface, PatchRevertableInterface
{
    public function apply(): void
    {
        // will be implemented in the next steps.
    }

    public function revert(): void
    {
        // will be implemented in the next steps.
    }

    public function getAliases(): array
    {
        // will be implemented in the next steps.
    }

    public static function getDependencies(): array
    {
        // will be implemented in the next steps.
    }
}

Inject the dependencies

The dependencies to the data patch are injected using constructor DI and are listed below:

\Magento\Framework\Setup\ModuleDataSetupInterface for initializing and ending the setup.
\Magento\Customer\Setup\CustomerSetupFactory for creating a model of \Magento\Customer\Setup\CustomerSetup which is required to add and remove the custom attribute.
\Magento\Customer\Model\ResourceModel\Attribute aliased as AttributeResource for saving the attribute after adding custom data to it.
\Psr\Log\LoggerInterface for logging exceptions thrown during the execution.

Unlike the earlier tutorials, the dropdown patch stores $customerSetupFactory directly rather than instantiating $customerSetup in the constructor. The revert() method also needs a CustomerSetup instance, so the factory is reused across both methods.

/**
 * Constructor
 *
 * @param ModuleDataSetupInterface $moduleDataSetup
 * @param CustomerSetupFactory $customerSetupFactory
 * @param AttributeResource $attributeResource
 * @param LoggerInterface $logger
 */
public function __construct(
    ModuleDataSetupInterface $moduleDataSetup,
    CustomerSetupFactory $customerSetupFactory,
    AttributeResource $attributeResource,
    LoggerInterface $logger
) {
    $this->moduleDataSetup = $moduleDataSetup;
    $this->customerSetupFactory = $customerSetupFactory;
    $this->attributeResource = $attributeResource;
    $this->logger = $logger;
}

Implement the apply method

There are five steps in developing a data patch. All the steps below are written inside the apply method.

Start and end the setup execution.

This turns off foreign key checks and sets the SQL mode.

$this->moduleDataSetup->getConnection()->startSetup();

/*
  Attribute creation code must be run between these two lines
  to ensure that the attribute is created smoothly.
 */

$this->moduleDataSetup->getConnection()->endSetup();

Add the dropdown customer attribute with the required settings.

Dropdown attributes store the selected option's ID as an integer. Set input to select and assign a source model that provides the option list. The built-in Table source model reads options from the eav_attribute_option and eav_attribute_option_value tables, which can be managed through the Admin or populated programmatically. To provide a fixed, code-defined set of options, replace Table::class with a custom source model that implements toOptionArray().

/** @var CustomerSetup $customerSetup */
$customerSetup = $this->customerSetupFactory->create(['setup' => $this->moduleDataSetup]);

$customerSetup->addAttribute(
    CustomerMetadataInterface::ENTITY_TYPE_CUSTOMER, // entity type code
    'custom_options', // unique attribute code
    [
        'label' => 'Customer Custom Attribute Options',
        'type' => 'int',
        'input' => 'select',
        'source' => \Magento\Eav\Model\Entity\Attribute\Source\Table::class,
        'required' => false,
        'position' => 444,
        'system' => false,
        'user_defined' => true,
        'is_used_in_grid' => true,
        'is_visible_in_grid' => true,
        'is_filterable_in_grid' => true,
        'is_searchable_in_grid' => false,
    ]
);

Table
Setting Key	Description
`label`	`Customer Custom Attribute Options` - Label for displaying the attribute value
`type`	`int` - Stores the selected option ID as an integer
`input`	`select` - Renders as a dropdown menu in the customer form
`source`	Provides the list of selectable options
`required`	`false` - Attribute will be an optional field in the customer form
`position`	`444` - Sort order in the customer form
`system`	`false` - Not a system-defined attribute
`user_defined`	`true` - A user-defined attribute
`is_used_in_grid`	`true` - Ready for use in the customer grid
`is_visible_in_grid`	`true` - Visible in the customer grid
`is_filterable_in_grid`	`true` - Filterable in the customer grid
`is_searchable_in_grid`	`false` - Not searchable in the customer grid (dropdown fields are filtered by option, not free-text searched)

Add the attribute to an attribute set and group.

There is only one attribute set and group for the customer entity. The default attribute set ID is a constant defined in the CustomerMetadataInterface interface and setting the attribute group ID to null makes the application use the default attribute group ID for the customer entity.
```
$customerSetup->addAttributeToSet(
    CustomerMetadataInterface::ENTITY_TYPE_CUSTOMER, // entity type code
    CustomerMetadataInterface::ATTRIBUTE_SET_ID_CUSTOMER, // attribute set ID
    null, // attribute group ID
    'custom_options' // unique attribute code
);
```

Make the attribute visible in the customer form.

// Get the newly created attribute's model
$attribute = $customerSetup->getEavConfig()
    ->getAttribute(CustomerMetadataInterface::ENTITY_TYPE_CUSTOMER, 'custom_options');

// Make attribute visible in Admin customer form and storefront forms
$attribute->setData('used_in_forms', [
    'adminhtml_customer',
    'customer_account_create',
    'customer_account_edit',
]);

// Save modified attribute model using its resource model
$this->attributeResource->save($attribute);

Handle exceptions in a try/catch block.

try {
    // All the code inside the apply method goes into the try block.
} catch (Exception $exception) {
    $this->logger->error($exception->getMessage());
}

Implement the revert method

Because this class implements PatchRevertableInterface, it must also define a revert() method. This method is called when bin/magento setup:rollback targets this patch and removes the attribute from the system.

public function revert(): void
{
    $this->moduleDataSetup->getConnection()->startSetup();

    /** @var CustomerSetup $customerSetup */
    $customerSetup = $this->customerSetupFactory->create(['setup' => $this->moduleDataSetup]);

    try {
        $customerSetup->removeAttribute(
            CustomerMetadataInterface::ENTITY_TYPE_CUSTOMER,
            'custom_options'
        );
    } catch (Exception $e) {
        $this->logger->error($e->getMessage());
    }

    $this->moduleDataSetup->getConnection()->endSetup();
}

Implement the rest of the interface

This data patch does not have any other patch as a dependency, and this data patch was not renamed earlier, so both getDependencies and getAliases can return an empty array.

public static function getDependencies(): array
{
    return [];
}

public function getAliases(): array
{
    return [];
}

Execute the data patch

Run bin/magento setup:upgrade from the project root to execute the newly added data patch.

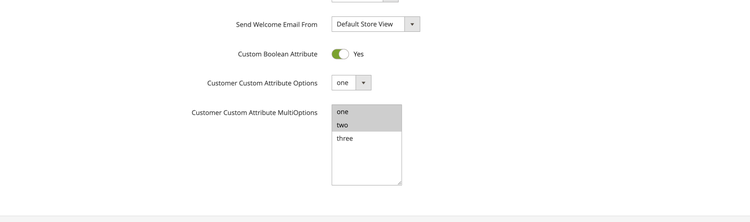

The attribute is created in the customer form under the Account Information section.

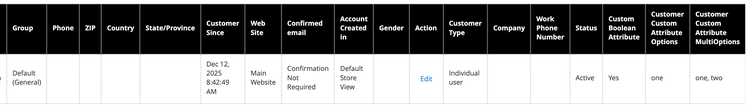

The attribute is displayed in the customer grid and can be filtered using a dropdown menu of available options.

To remove the attribute, run bin/magento setup:rollback and target this patch. The revert() method will execute and delete the attribute from the system.

Code reference

<?php
declare(strict_types=1);

namespace ExampleCorp\Customer\Setup\Patch\Data;

use Exception;
use Psr\Log\LoggerInterface;
use Magento\Customer\Api\CustomerMetadataInterface;
use Magento\Customer\Model\ResourceModel\Attribute as AttributeResource;
use Magento\Customer\Setup\CustomerSetup;
use Magento\Customer\Setup\CustomerSetupFactory;
use Magento\Eav\Model\Entity\Attribute\Source\Table;
use Magento\Framework\Setup\ModuleDataSetupInterface;
use Magento\Framework\Setup\Patch\DataPatchInterface;
use Magento\Framework\Setup\Patch\PatchRevertableInterface;

/**
 * Creates a Customer select attribute backed by a source model.
 */
class AddCustomerAttributeOptions implements DataPatchInterface, PatchRevertableInterface
{
    /**
     * @var ModuleDataSetupInterface
     */
    private $moduleDataSetup;

    /**
     * @var CustomerSetupFactory
     */
    private $customerSetupFactory;

    /**
     * @var AttributeResource
     */
    private $attributeResource;

    /**
     * @var LoggerInterface
     */
    private $logger;

    /**
     * Constructor
     *
     * @param ModuleDataSetupInterface $moduleDataSetup
     * @param CustomerSetupFactory $customerSetupFactory
     * @param AttributeResource $attributeResource
     * @param LoggerInterface $logger
     */
    public function __construct(
        ModuleDataSetupInterface $moduleDataSetup,
        CustomerSetupFactory $customerSetupFactory,
        AttributeResource $attributeResource,
        LoggerInterface $logger
    ) {
        $this->moduleDataSetup = $moduleDataSetup;
        $this->customerSetupFactory = $customerSetupFactory;
        $this->attributeResource = $attributeResource;
        $this->logger = $logger;
    }

    /**
     * Get array of patches that have to be executed prior to this.
     *
     * @return string[]
     */
    public static function getDependencies(): array
    {
        return [];
    }

    /**
     * Get aliases (previous names) for the patch.
     *
     * @return string[]
     */
    public function getAliases(): array
    {
        return [];
    }

    /**
     * Run code inside patch
     */
    public function apply(): void
    {
        // Start setup
        $this->moduleDataSetup->getConnection()->startSetup();

        /** @var CustomerSetup $customerSetup */
        $customerSetup = $this->customerSetupFactory->create(['setup' => $this->moduleDataSetup]);

        try {
            // Add customer attribute with settings
            $customerSetup->addAttribute(
                CustomerMetadataInterface::ENTITY_TYPE_CUSTOMER,
                'custom_options',
                [
                    'label' => 'Customer Custom Attribute Options',
                    'type' => 'int',
                    'input' => 'select',
                    'source' => Table::class,
                    'required' => false,
                    'position' => 444,
                    'system' => false,
                    'user_defined' => true,
                    'is_used_in_grid' => true,
                    'is_visible_in_grid' => true,
                    'is_filterable_in_grid' => true,
                    'is_searchable_in_grid' => false,
                ]
            );

            // Add attribute to default attribute set and group
            $customerSetup->addAttributeToSet(
                CustomerMetadataInterface::ENTITY_TYPE_CUSTOMER,
                CustomerMetadataInterface::ATTRIBUTE_SET_ID_CUSTOMER,
                null,
                'custom_options'
            );

            // Get the newly created attribute's model
            $attribute = $customerSetup->getEavConfig()
                ->getAttribute(CustomerMetadataInterface::ENTITY_TYPE_CUSTOMER, 'custom_options');

            // Make attribute visible in Admin customer form and storefront forms
            $attribute->setData('used_in_forms', [
                'adminhtml_customer',
                'customer_account_create',
                'customer_account_edit',
            ]);

            // Save attribute using its resource model
            $this->attributeResource->save($attribute);
        } catch (Exception $e) {
            $this->logger->error($e->getMessage());
        }

        // End setup
        $this->moduleDataSetup->getConnection()->endSetup();
    }

    /**
     * Rollback all changes, done by this patch
     */
    public function revert(): void
    {
        // Start setup
        $this->moduleDataSetup->getConnection()->startSetup();

        /** @var CustomerSetup $customerSetup */
        $customerSetup = $this->customerSetupFactory->create(['setup' => $this->moduleDataSetup]);

        try {
            $customerSetup->removeAttribute(
                CustomerMetadataInterface::ENTITY_TYPE_CUSTOMER,
                'custom_options'
            );
        } catch (Exception $e) {
            $this->logger->error($e->getMessage());
        }

        // End setup
        $this->moduleDataSetup->getConnection()->endSetup();
    }
}

Add a custom dropdown attribute
