PDF Electronic Seal API

API Parameters

Signature Format (signatureFormat)

Specifies a supported digital signature format:

Document Level Permission (documentLevelPermission)

Specifies the DocMDP (i.e. Document Modification Detection and Prevention) permissions. These permissions are applied to the output electronically sealed document.

data-slots=text
Long Term Validation (LTV) information of Timestamp Certificates (if using Trusted Timestamping) is embedded in the PDF document only if Document Level Permission is set as FORM_FILLING or FORM_FILLING_AND_ANNOTATIONS.

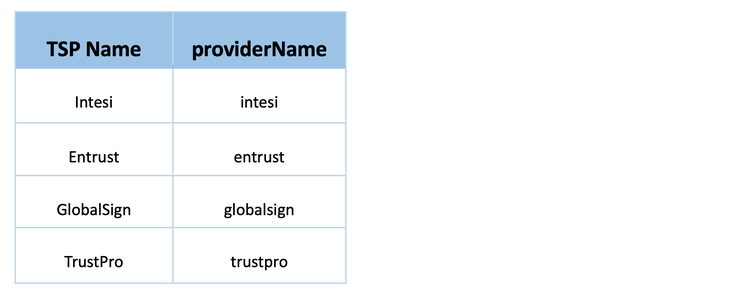

TSP Credential Information (cscCredentialOptions) : Required

TSP parameters encapsulate the sealer's certificate credential as well as the associated authentication and authorization data.

TSA Information (tsaOptions) :

TSA parameters encapsulate the timestamping URL and credentials.

Seal Field Parameters (sealFieldOptions) : Required

The seal field parameters are required to create a new signature field or use an existing signature field.

To add the signature field explicitly, see how to place a signature field in a PDF.

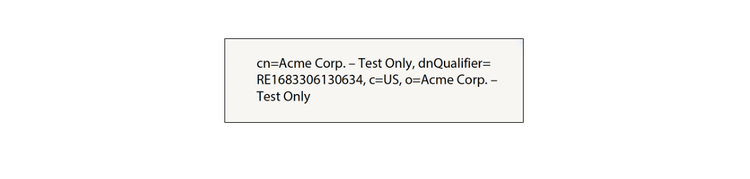

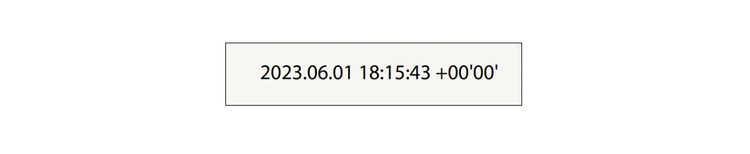

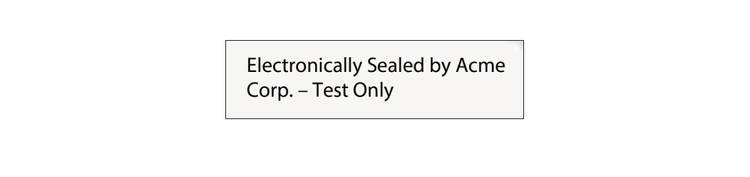

Seal Appearance Parameters (sealAppearanceOptions)

Specifies seal field appearance parameters. These are an enumerated set of display items: NAME, DATE, DISTINGUISHED_NAME, LABELS and SEAL_IMAGE.

Example JSON

{
  "signatureFormat": "PADES",
  "documentLevelPermission": "FORM_FILLING",
  "cscCredentialOptions": {
    "authorizationContext": {
      "accessToken": "<ACCESS_TOKEN>",
      "tokenType": "Bearer"
    },
    "credentialAuthParameters": {
      "pin": "<PIN>"
    },
    "providerName": "<PROVIDER_NAME>",
    "credentialId": "<CREDENTIAL_ID>"
  },
  "tsaOptions": {
    "url": "<TIMESTAMP_URL>",
    "credentialAuthParameters": {
      "username": "<USERNAME>",
      "password": "<PASSWORD>"
    }
  },
  "sealFieldOptions": {
    "pageNumber": 1,
    "fieldName": "Signature1",
    "visible": true,
    "location": {
      "left" : 150,
      "top": 250,
      "bottom": 350,
      "right": 200
    }
  },
  "sealAppearanceOptions": {
    "displayOptions": [
      "NAME",
      "DATE",
      "LABELS",
      "DISTINGUISHED_NAME",
      "SEAL_IMAGE"
    ]
  }
}

data-slots=text
Support of Trusted Timestamping and Document Level Permissions is only available through REST APIs and Java SDK. Other SDKs will support these features in future versions.

API limitations

<br/>

REST API

See our public API Reference for PDF Electronic Seal API.

Apply Electronic Seal with default appearance on PDF

The sample below performs electronic seal operation with default appearance on a given PDF.

Please refer to the API usage guide to understand how to use our APIs.

data-slots=heading, code

data-repeat=4

data-languages=Java, .NET, Node JS, Rest API

Java

// Get the samples from https://www.adobe.com/go/pdftoolsapi_java_samples
// Run the sample:
// mvn -f pom.xml exec:java -Dexec.mainClass=com.adobe.pdfservices.operation.samples.electronicseal.ElectronicSeal

package com.adobe.pdfservices.operation.samples.electronicseal;

public class ElectronicSeal {

    // Initialize the logger.
    private static final Logger LOGGER = LoggerFactory.getLogger(ElectronicSeal.class);

    public static void main(String[] args) {
        try {

            // Initial setup, create credentials instance.
            Credentials credentials = Credentials.servicePrincipalCredentialsBuilder()
                .withClientId("PDF_SERVICES_CLIENT_ID")
                .withClientSecret("PDF_SERVICES_CLIENT_SECRET")
                .build();

            // Create an ExecutionContext using credentials.
            ExecutionContext executionContext = ExecutionContext.create(credentials);

            //Get the input document to perform the sealing operation
            FileRef sourceFile = FileRef.createFromLocalFile("src/main/resources/sampleInvoice.pdf");

            //Get the background seal image for signature , if required.
            FileRef sealImageFile = FileRef.createFromLocalFile("src/main/resources/sampleSealImage.png");

            // Set the document level permission to be applied for output document
            DocumentLevelPermission documentLevelPermission = DocumentLevelPermission.FORM_FILLING;

            //Set the Seal Field Name to be created in input PDF document.
            String sealFieldName = "Signature1";

            //Set the page number in input document for applying seal.
            Integer sealPageNumber = 1;

            //Set if seal should be visible or invisible.
            Boolean sealVisible = true;

            //Create FieldLocation instance and set the coordinates for applying signature
            FieldLocation fieldLocation = new FieldLocation(150, 250, 350, 200);

            //Create FieldOptions instance with required details.
            FieldOptions fieldOptions = new FieldOptions.Builder(sealFieldName)
                .setFieldLocation(fieldLocation)
                .setPageNumber(sealPageNumber)
                .setVisible(sealVisible)
                .build();

            //Set the name of TSP Provider being used.
            String providerName = "<PROVIDER_NAME>";

            //Set the access token to be used to access TSP provider hosted APIs.
            String accessToken = "<ACCESS_TOKEN>";

            //Set the credential ID.
            String credentialID = "<CREDENTIAL_ID>";

            //Set the PIN generated while creating credentials.
            String pin = "<PIN>";

            //Create CSCAuthContext instance using access token and token type.
            CSCAuthContext cscAuthContext = new CSCAuthContext(accessToken, "Bearer");

            //Create CertificateCredentials instance with required certificate details.
            CertificateCredentials certificateCredentials = CertificateCredentials.cscCredentialBuilder()
                .withProviderName(providerName)
                .withCredentialID(credentialID)
                .withPin(pin)
                .withCSCAuthContext(cscAuthContext)
                .build();

            //Create SealOptions instance with sealing parameters.
            SealOptions sealOptions = new SealOptions.Builder(certificateCredentials, fieldOptions).
                        withDocumentLevelPermission(documentLevelPermission).build();

            //Create the PDFElectronicSealOperation instance using the SealOptions instance
            PDFElectronicSealOperation pdfElectronicSealOperation = PDFElectronicSealOperation.createNew(sealOptions);

            //Set the input source file for PDFElectronicSealOperation instance
            pdfElectronicSealOperation.setInput(sourceFile);

            //Set the optional input seal image for PDFElectronicSealOperation instance
            pdfElectronicSealOperation.setSealImage(sealImageFile);

            //Execute the operation
            FileRef result = pdfElectronicSealOperation.execute(executionContext);

            //Save the output at specified location
            result.saveAs("output/sealedOutput.pdf");


        } catch (ServiceApiException | IOException | SdkException | ServiceUsageException ex) {
            LOGGER.error("Exception encountered while executing operation", ex);
        }
    }
}

.NET

// Get the samples from https://www.adobe.com/go/pdftoolsapi_net_samples
// Run the sample:
// cd ElectronicSeal/
// dotnet run ElectronicSeal.csproj

namespace ElectronicSeal
{
    class Program
    {
        // Initialize the logger.
        private static readonly ILog log = LogManager.GetLogger(typeof(Program));
        static void Main()
        {
            //Configure the logging
            ConfigureLogging();

            try
            {
                // Initial setup, create credentials instance.
                Credentials credentials = Credentials.ServicePrincipalCredentialsBuilder()
                    .WithClientId("PDF_SERVICES_CLIENT_ID")
                    .WithClientSecret("PDF_SERVICES_CLIENT_SECRET")
                    .Build();

                // Create an ExecutionContext using credentials.
                ExecutionContext executionContext = ExecutionContext.Create(credentials);

                //Set the input document to perform the sealing operation
                FileRef sourceFile = FileRef.CreateFromLocalFile(@"SampleInvoice.pdf");

                //Set the background seal image for signature , if required.
                FileRef sealImageFile = FileRef.CreateFromLocalFile(@"sampleSealImage.png");

                //Set the Seal Field Name to be created in input PDF document.
                string sealFieldName = "Signature1";

                //Set the page number in input document for applying seal.
                int sealPageNumber = 1;

                //Set if seal should be visible or invisible.
                bool sealVisible = true;

                //Create FieldLocation instance and set the coordinates for applying signature
                FieldLocation fieldLocation = new FieldLocation(150, 250, 350, 200);

                //Create FieldOptions instance with required details.
                FieldOptions sealFieldOptions = new FieldOptions.Builder(sealFieldName)
                .SetVisible(sealVisible)
                .SetFieldLocation(fieldLocation)
                .SetPageNumber(sealPageNumber)
                .Build();

                //Set the name of TSP Provider being used.
                string providerName = "<PROVIDER_NAME>";

                //Set the access token to be used to access TSP provider hosted APIs.
                string accessToken = "<ACCESS_TOKEN>";

                //Set the credential ID.
                string credentialID = "<CREDENTIAL_ID>";

                //Set the PIN generated while creating credentials.
                string pin = "<PIN>";

                CSCAuthContext cscAuthContext = new CSCAuthContext(accessToken, "Bearer");

                //Create CertificateCredentials instance with required certificate details.
                CertificateCredentials certificateCredentials = CertificateCredentials.CSCCredentialBuilder()
                .WithProviderName(providerName)
                .WithCredentialID(credentialID)
                .WithPin(pin)
                .WithCSCAuthContext(cscAuthContext)
                .Build();

                //Create SealingOptions instance with all the sealing parameters.
                SealOptions sealOptions = new SealOptions.Builder(certificateCredentials, fieldOptions).build();

                //Create the PDFElectronicSealOperation instance using the PDFElectronicSealOptions instance
                PDFElectronicSealOperation pdfElectronicSealOperation = PDFElectronicSealOperation.CreateNew(sealOptions);

                //Set the input source file for PDFElectronicSealOperation instance
                pdfElectronicSealOperation.SetInput(sourceFile);

                //Set the optional input seal image for PDFElectronicSealOperation instance
                pdfElectronicSealOperation.SetSealImage(sealImageFile);

                //Execute the operation
                FileRef result = pdfElectronicSealOperation.Execute(executionContext);

                // Save the output at specified location.
                result.SaveAs(output/sealedOutput.pdf);
            }
            catch (ServiceUsageException ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
            catch (ServiceApiException ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
            catch (SDKException ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
            catch (IOException ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
            catch (Exception ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }

        }
        static void ConfigureLogging()
        {
            ILoggerRepository logRepository = LogManager.GetRepository(Assembly.GetEntryAssembly());
            XmlConfigurator.Configure(logRepository, new FileInfo("log4net.config"));
        }
    }
}

Node JS

// Get the samples from http://www.adobe.com/go/pdftoolsapi_node_sample
// Run the sample:
// node src/electronicseal/electronic-seal.js

const PDFServicesSdk = require('@adobe/pdfservices-node-sdk');

try {
        // Initial setup, create credentials instance.
        const credentials =  PDFServicesSdk.Credentials
            .servicePrincipalCredentialsBuilder()
            .withClientId("PDF_SERVICES_CLIENT_ID")
            .withClientSecret("PDF_SERVICES_CLIENT_SECRET")
            .build();

        // Create an ExecutionContext using credentials
        const executionContext = PDFServicesSdk.ExecutionContext.create(credentials);

        const pdfElectronicSeal = PDFServicesSdk.PDFElectronicSeal,
            options = pdfElectronicSeal.options;

        //Get the input document to perform the sealing operation
        const sourceFile = PDFServicesSdk.FileRef.createFromLocalFile('resources/sampleInvoice.pdf'),

        //Get the background seal image for signature , if required.
        sealImageFile = PDFServicesSdk.FileRef.createFromLocalFile('resources/sampleSealImage.png');

        // Set the Seal Field Name to be created in input PDF document.
        sealFieldName = "Signature1";

        // Set the page number in input document for applying seal.
        sealPageNumber = 1;

        // Set if seal should be visible or invisible.
        sealVisible = true;

        //Create FieldLocation instance and set the coordinates for applying signature
        fieldLocation = new options.FieldLocation(150,250,350,200);

        //Create FieldOptions instance with required details.
        fieldOptions = new options.FieldOptions.Builder(sealFieldName)
            .setFieldLocation(fieldLocation)
            .setPageNumber(sealPageNumber)
            .setVisible(sealVisible)
            .build();

        //Set the name of TSP Provider being used.
        providerName = "<PROVIDER_NAME>";

        //Set the access token to be used to access TSP provider hosted APIs.
        accessToken = "<ACCESS_TOKEN>";

        //Set the credential ID.
        credentialID = "<CREDENTIAL_ID>";

        //Set the PIN generated while creating credentials.
        pin = "<PIN>";

        //Create CSCAuthContext instance using access token and token type.
        cscAuthContext = new options.CSCAuthContext(accessToken, "Bearer");

        //Create CertificateCredentials instance with required certificate details.
        certificateCredentials = options.CertificateCredentials.cscCredentialBuilder()
            .withProviderName(providerName)
            .withCredentialID(credentialID)
            .withPin(pin)
            .withCSCAuthContext(cscAuthContext)
            .build();

        //Create SealOptions instance with sealing parameters.
        sealOptions = new options.SealOptions.Builder(certificateCredentials, fieldOptions)
            .build()

        //Create the PDFElectronicSealOperation instance using the SealOptions instance
        const pdfElectronicSealOperation = pdfElectronicSeal.Operation.createNew(sealOptions);

        //Set the input source file for PDFElectronicSealOperation instance
        pdfElectronicSealOperation.setInput(sourceFile);

        //Set the optional input seal image for PDFElectronicSealOperation instance
        pdfElectronicSealOperation.setSealImage(sealImageFile);

        // Execute the operation and Save the result to the specified location.
        pdfElectronicSealOperation.execute(executionContext)
            .then(result => result.saveAsFile("output/sealedOutput.pdf"))
            .catch(err => {
                if(err instanceof PDFServicesSdk.Error.ServiceApiError
                    || err instanceof PDFServicesSdk.Error.ServiceUsageError) {
                    console.log('Exception encountered while executing operation', err);
                } else {
                    console.log('Exception encountered while executing operation', err);
                }
            });

    } catch (err) {
    console.log('Exception encountered while executing operation', err);
}

REST API

curl --location --request POST 'https://pdf-services.adobe.io/operation/electronicseal' \
--header 'x-api-key: {{Placeholder for client_id}}' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer {{Placeholder for token}}' \
--data-raw '{
    "inputDocumentAssetID": "urn:aaid:AS:UE1:23c30ee0-2c4d-xxxx-xxxx-087832fca718",
    "sealImageAssetID": "urn:aaid:AS:UE1:23c30ee0-2e4d-xxxx-xxxx-087832fca718",
    "sealOptions": {
        "signatureFormat": "PKCS7",
        "documentLevelPermission": "FORM_FILLING",
        "cscCredentialOptions": {
            "credentialId": "<CREDENTIAL_ID>",
            "providerName": "<PROVIDER_NAME>",
            "authorizationContext": {
                "tokenType": "Bearer",
                "accessToken": "<ACCESS_TOKEN>"
            },
            "credentialAuthParameters": {
                "pin": "<PIN>"
            }
        },
        "sealFieldOptions": {
            "location": {
                "left": 150,
                "top": 250,
                "right": 350,
                "bottom": 200
            },
            "fieldName": "Signature1",
            "pageNumber": 1
        }
    }
}'

Apply Electronic Seal with customized appearance on PDF

The sample below performs electronic seal operation with customized appearance on a given PDF.

Please refer to the API usage guide to understand how to use our APIs.

data-slots=heading, code

data-repeat=4

data-languages=Java, .NET, Node JS, Rest API

Java

// Get the samples from https://github.com/adobe/pdfservices-java-sdk-samples/tree/beta
// Run the sample:
// mvn -f pom.xml exec:java -Dexec.mainClass=com.adobe.pdfservices.operation.samples.electronicseal.ElectronicSealWithAppearanceOptions

package com.adobe.pdfservices.operation.samples.electronicseal;

public class ElectronicSealWithAppearanceOptions {

    // Initialize the logger.
    private static final Logger LOGGER = LoggerFactory.getLogger(ElectronicSealWithAppearanceOptions.class);

    public static void main(String[] args) {
        try {

            // Initial setup, create credentials instance.
            Credentials credentials = Credentials.servicePrincipalCredentialsBuilder()
                .withClientId("PDF_SERVICES_CLIENT_ID")
                .withClientSecret("PDF_SERVICES_CLIENT_SECRET")
                .build();

            // Create an ExecutionContext using credentials.
            ExecutionContext executionContext = ExecutionContext.create(credentials);

            //Get the input document to perform the sealing operation
            FileRef sourceFile = FileRef.createFromLocalFile("src/main/resources/sampleInvoice.pdf");

            //Get the background seal image for signature , if required.
            FileRef sealImageFile = FileRef.createFromLocalFile("src/main/resources/sampleSealImage.png");

            // Set the document level permission to be applied for output document
            DocumentLevelPermission documentLevelPermission = DocumentLevelPermission.FORM_FILLING;

            //Create AppearanceOptions and add the required signature display items to it
            AppearanceOptions appearanceOptions = new AppearanceOptions();
            appearanceOptions.addItem(AppearanceItem.NAME);
            appearanceOptions.addItem(AppearanceItem.LABELS);
            appearanceOptions.addItem(AppearanceItem.DATE);
            appearanceOptions.addItem(AppearanceItem.SEAL_IMAGE);
            appearanceOptions.addItem(AppearanceItem.DISTINGUISHED_NAME);

            //Set the Seal Field Name to be created in input PDF document.
            String sealFieldName = "Signature1";

            //Set the page number in input document for applying seal.
            Integer sealPageNumber = 1;

            //Set if seal should be visible or invisible.
            Boolean sealVisible = true;

            //Create FieldLocation instance and set the coordinates for applying signature
            FieldLocation fieldLocation = new FieldLocation(150, 250, 350, 200);

            //Create FieldOptions instance with required details.
            FieldOptions fieldOptions = new FieldOptions.Builder(sealFieldName)
                .setFieldLocation(fieldLocation)
                .setPageNumber(sealPageNumber)
                .setVisible(sealVisible)
                .build();

            //Set the name of TSP Provider being used.
            String providerName = "<PROVIDER_NAME>";

            //Set the access token to be used to access TSP provider hosted APIs.
            String accessToken = "<ACCESS_TOKEN>";

            //Set the credential ID.
            String credentialID = "<CREDENTIAL_ID>";

            //Set the PIN generated while creating credentials.
            String pin = "<PIN>";

            //Create CSCAuthContext instance using access token and token type.
            CSCAuthContext cscAuthContext = new CSCAuthContext(accessToken, "Bearer");

            //Create CertificateCredentials instance with required certificate details.
            CertificateCredentials certificateCredentials = CertificateCredentials.cscCredentialBuilder()
                .withProviderName(providerName)
                .withCredentialID(credentialID)
                .withPin(pin)
                .withCSCAuthContext(cscAuthContext)
                .build();

            //Create SealOptions instance with all the sealing parameters.
            SealOptions sealOptions = new SealOptions.Builder(certificateCredentials, fieldOptions)
                    .withDocumentLevelPermission(documentLevelPermission)
                    .withAppearanceOptions(appearanceOptions).build();

            //Create the PDFElectronicSealOperation instance using the SealOptions instance
            PDFElectronicSealOperation pdfElectronicSealOperation = PDFElectronicSealOperation.createNew(sealOptions);

            //Set the input source file for PDFElectronicSealOperation instance
            pdfElectronicSealOperation.setInput(sourceFile);

            //Set the optional input seal image for PDFElectronicSealOperation instance
            pdfElectronicSealOperation.setSealImage(sealImageFile);

            //Execute the operation
            FileRef result = pdfElectronicSealOperation.execute(executionContext);

            //Save the output at specified location
            result.saveAs("output/sealedOutput.pdf");


        } catch (ServiceApiException | IOException | SdkException | ServiceUsageException ex) {
            LOGGER.error("Exception encountered while executing operation", ex);
        }
    }
}

.NET

// Get the samples from https://www.adobe.com/go/pdftoolsapi_net_samples
// Run the sample:
// cd ElectronicSealWithAppearanceOptions/
// dotnet run ElectronicSealWithAppearanceOptions.csproj

namespace ElectronicSealWithAppearanceOptions
{
    class Program
    {
        // Initialize the logger.
        private static readonly ILog log = LogManager.GetLogger(typeof(Program));
        static void Main()
        {
            //Configure the logging
            ConfigureLogging();

            try
            {
                // Initial setup, create credentials instance.
                Credentials credentials = Credentials.ServicePrincipalCredentialsBuilder()
                    .WithClientId("PDF_SERVICES_CLIENT_ID")
                    .WithClientSecret("PDF_SERVICES_CLIENT_SECRET")
                    .Build();


                // Create an ExecutionContext using credentials.
                ExecutionContext executionContext = ExecutionContext.Create(credentials);

                //Set the input document to perform the sealing operation
                FileRef sourceFile = FileRef.CreateFromLocalFile(@"SampleInvoice.pdf");

                //Set the background seal image for signature , if required.
                FileRef sealImageFile = FileRef.CreateFromLocalFile(@"sampleSealImage.png");

                //Create AppearanceOptions and add the required signature appearance items
                AppearanceOptions appearanceOptions = new AppearanceOptions();
                appearanceOptions.AddItem(AppearanceItem.NAME);
                appearanceOptions.AddItem(AppearanceItem.LABELS);
                appearanceOptions.AddItem(AppearanceItem.DATE);
                appearanceOptions.AddItem(AppearanceItem.SEAL_IMAGE);
                appearanceOptions.AddItem(AppearanceItem.DISTINGUISHED_NAME);

                //Set the Seal Field Name to be created in input PDF document.
                string sealFieldName = "Signature1";

                //Set the page number in input document for applying seal.
                int sealPageNumber = 1;

                //Set if seal should be visible or invisible.
                bool sealVisible = true;

                //Create FieldLocation instance and set the coordinates for applying signature
                FieldLocation fieldLocation = new FieldLocation(150, 250, 350, 200);

                //Create FieldOptions instance with required details.
                FieldOptions fieldOptions = new FieldOptions.Builder(sealFieldName)
                    .SetVisible(sealVisible)
                    .SetFieldLocation(fieldLocation)
                    .SetPageNumber(sealPageNumber)
                    .Build();

                //Set the name of TSP Provider being used.
                string providerName = "<PROVIDER_NAME>";

                //Set the access token to be used to access TSP provider hosted APIs.
                string accessToken = "<ACCESS_TOKEN>";

                //Set the credential ID.
                string credentialID = "<CREDENTIAL_ID>";

                //Set the PIN generated while creating credentials.
                string pin = "<PIN>";

                CSCAuthContext cscAuthContext = new CSCAuthContext(accessToken, "Bearer");

                //Create CertificateCredentials instance with required certificate details.
                CertificateCredentials certificateCredentials = CertificateCredentials.CSCCredentialBuilder()
                    .WithProviderName(providerName)
                    .WithCredentialID(credentialID)
                    .WithPin(pin)
                    .WithCSCAuthContext(cscAuthContext)
                    .Build();


                //Create SealingOptions instance with all the sealing parameters.
                SealOptions sealOptions = new SealOptions.Builder(certificateCredentials, fieldOptions)
                    .WithAppearanceOptions(appearanceOptions).Build();

                //Create the PDFElectronicSealOperation instance using the SealOptions instance
                PDFElectronicSealOperation pdfElectronicSealOperation = PDFElectronicSealOperation.CreateNew(sealOptions);

                //Set the input source file for PDFElectronicSealOperation instance
                pdfElectronicSealOperation.SetInput(sourceFile);

                //Set the optional input seal image for PDFElectronicSealOperation instance
                pdfElectronicSealOperation.SetSealImage(sealImageFile);

                //Execute the operation
                FileRef result = pdfElectronicSealOperation.Execute(executionContext);

                // Save the output at specified location.
                result.SaveAs(output/sealedOutput.pdf);
            }
            catch (ServiceUsageException ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
            catch (ServiceApiException ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
            catch (SDKException ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
            catch (IOException ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
            catch (Exception ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }

        }
        static void ConfigureLogging()
        {
            ILoggerRepository logRepository = LogManager.GetRepository(Assembly.GetEntryAssembly());
            XmlConfigurator.Configure(logRepository, new FileInfo("log4net.config"));
        }
    }
}

Node JS

// Get the samples from http://www.adobe.com/go/pdftoolsapi_node_sample
// Run the sample:
// node src/electronicseal/electronic-seal.js

const PDFServicesSdk = require('@adobe/pdfservices-node-sdk');

try {
        // Initial setup, create credentials instance.
        const credentials =  PDFServicesSdk.Credentials
            .servicePrincipalCredentialsBuilder()
            .withClientId("PDF_SERVICES_CLIENT_ID")
            .withClientSecret("PDF_SERVICES_CLIENT_SECRET")
            .build();

        // Create an ExecutionContext using credentials
        const executionContext = PDFServicesSdk.ExecutionContext.create(credentials);

        const pdfElectronicSeal = PDFServicesSdk.PDFElectronicSeal,
            options = pdfElectronicSeal.options;

        //Get the input document to perform the sealing operation
        const sourceFile = PDFServicesSdk.FileRef.createFromLocalFile('resources/sampleInvoice.pdf'),

            //Get the background seal image for signature , if required.
            sealImageFile = PDFServicesSdk.FileRef.createFromLocalFile('resources/sampleSealImage.png');

        //Create AppearanceOptions and add the required signature appearance items
        appearanceOptions = new options.AppearanceOptions();
        appearanceOptions.addItem(options.AppearanceOptions.AppearanceItem.DATE);
        appearanceOptions.addItem(options.AppearanceOptions.AppearanceItem.SEAL_IMAGE);
        appearanceOptions.addItem(options.AppearanceOptions.AppearanceItem.NAME);
        appearanceOptions.addItem(options.AppearanceOptions.AppearanceItem.LABELS);
        appearanceOptions.addItem(options.AppearanceOptions.AppearanceItem.DISTINGUISHED_NAME);

        // Set the Seal Field Name to be created in input PDF document.
        sealFieldName = "Signature1";

        // Set the page number in input document for applying seal.
        sealPageNumber = 1;

        // Set if seal should be visible or invisible.
        sealVisible = true;

        //Create FieldLocation instance and set the coordinates for applying signature
        fieldLocation = new options.FieldLocation(150,250,350,200);

        //Create FieldOptions instance with required details.
        fieldOptions = new options.FieldOptions.Builder(sealFieldName)
            .setFieldLocation(fieldLocation)
            .setPageNumber(sealPageNumber)
            .setVisible(sealVisible)
            .build();

        //Set the name of TSP Provider being used.
        providerName = "<PROVIDER_NAME>";

        //Set the access token to be used to access TSP provider hosted APIs.
        accessToken = "<ACCESS_TOKEN>";

        //Set the credential ID.
        credentialID = "<CREDENTIAL_ID>";

        //Set the PIN generated while creating credentials.
        pin = "<PIN>";

        //Create CSCAuthContext instance using access token and token type.
        cscAuthContext = new options.CSCAuthContext(accessToken, "Bearer");

        //Create CertificateCredentials instance with required certificate details.
        certificateCredentials = options.CertificateCredentials.cscCredentialBuilder()
            .withProviderName(providerName)
            .withCredentialID(credentialID)
            .withPin(pin)
            .withCSCAuthContext(cscAuthContext)
            .build();

        //Create SealOptions instance with sealing parameters.
        sealOptions = new options.SealOptions.Builder(certificateCredentials, fieldOptions)
            .withAppearanceOptions(appearanceOptions)
            .build()

        //Create the PDFElectronicSealOperation instance using the SealOptions instance
        const pdfElectronicSealOperation = pdfElectronicSeal.Operation.createNew(sealOptions);

        //Set the input source file for PDFElectronicSealOperation instance
        pdfElectronicSealOperation.setInput(sourceFile);

        //Set the optional input seal image for PDFElectronicSealOperation instance
        pdfElectronicSealOperation.setSealImage(sealImageFile);

        // Execute the operation and Save the result to the specified location.
        pdfElectronicSealOperation.execute(executionContext)
            .then(result => result.saveAsFile("output/sealedOutput.pdf"))
            .catch(err => {
                if(err instanceof PDFServicesSdk.Error.ServiceApiError
                    || err instanceof PDFServicesSdk.Error.ServiceUsageError) {
                    console.log('Exception encountered while executing operation', err);
                } else {
                    console.log('Exception encountered while executing operation', err);
                }
            });

    } catch (err) {
    console.log('Exception encountered while executing operation', err);
}

REST API

curl --location --request POST 'https://pdf-services.adobe.io/operation/electronicseal' \
--header 'x-api-key: {{Placeholder for client_id}}' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer {{Placeholder for token}}' \
--data-raw '{
    "inputDocumentAssetID": "urn:aaid:AS:UE1:23c30ee0-2c4d-xxxx-xxxx-087832fca718",
    "sealImageAssetID": "urn:aaid:AS:UE1:23c30ee0-2e4d-xxxx-xxxx-087832fca718",
    "sealOptions": {
        "signatureFormat": "PKCS7",
        "documentLevelPermission": "FORM_FILLING",
        "cscCredentialOptions": {
            "credentialId": "<CREDENTIAL_ID>",
            "providerName": "<PROVIDER_NAME>",
            "authorizationContext": {
                "tokenType": "Bearer",
                "accessToken": "<ACCESS_TOKEN>"
            },
            "credentialAuthParameters": {
                "pin": "<PIN>"
            }
        },
        "sealFieldOptions": {
            "location": {
                "left": 150,
                "top": 250,
                "right": 350,
                "bottom": 200
            },
            "fieldName": "Signature1",
            "pageNumber": 1
        },
        "sealAppearanceOptions": {
            "displayOptions": [
                "NAME",
                "DATE",
                "DISTINGUISHED_NAME",
                "LABELS",
                "SEAL_IMAGE"
            ]
        }
    }
}'

Apply Electronic Seal with trusted timestamp on PDF

The sample below performs electronic seal operation with a trusted timestamp on given PDF.

Please refer to the API usage guide to understand how to use our APIs.

data-slots=heading, code

data-repeat=2

data-languages=Java, Rest API

Java

// Get the samples from https://github.com/adobe/pdfservices-java-sdk-samples/tree/beta
// Run the sample:
// mvn -f pom.xml exec:java -Dexec.mainClass=com.adobe.pdfservices.operation.samples.electronicseal.ElectronicSealWithAppearanceOptions

package com.adobe.pdfservices.operation.samples.electronicseal;

public class ElectronicSealWithTimeStampAuthority {

    // Initialize the logger.
    private static final Logger LOGGER = LoggerFactory.getLogger(ElectronicSealWithTimeStampAuthority.class);

    public static void main(String[] args) {
        try {

            // Initial setup, create credentials instance.
            Credentials credentials = Credentials.servicePrincipalCredentialsBuilder()
                .withClientId("PDF_SERVICES_CLIENT_ID")
                .withClientSecret("PDF_SERVICES_CLIENT_SECRET")
                .build();

            // Create an ExecutionContext using credentials.
            ExecutionContext executionContext = ExecutionContext.create(credentials);

            //Get the input document to perform the sealing operation
            FileRef sourceFile = FileRef.createFromLocalFile("src/main/resources/sampleInvoice.pdf");

            //Get the background seal image for signature , if required.
            FileRef sealImageFile = FileRef.createFromLocalFile("src/main/resources/sampleSealImage.png");

            // Set the document level permission to be applied for output document
            DocumentLevelPermission documentLevelPermission = DocumentLevelPermission.FORM_FILLING;

            //Set the Seal Field Name to be created in input PDF document.
            String sealFieldName = "Signature1";

            //Set the page number in input document for applying seal.
            Integer sealPageNumber = 1;

            //Set if seal should be visible or invisible.
            Boolean sealVisible = true;

            //Create FieldLocation instance and set the coordinates for applying signature
            FieldLocation fieldLocation = new FieldLocation(150, 250, 350, 200);

            //Create FieldOptions instance with required details.
            FieldOptions fieldOptions = new FieldOptions.Builder(sealFieldName)
                .setFieldLocation(fieldLocation)
                .setPageNumber(sealPageNumber)
                .setVisible(sealVisible)
                .build();

            //Set the name of TSP Provider being used.
            String providerName = "<PROVIDER_NAME>";

            //Set the access token to be used to access TSP provider hosted APIs.
            String accessToken = "<ACCESS_TOKEN>";

            //Set the credential ID.
            String credentialID = "<CREDENTIAL_ID>";

            //Set the PIN generated while creating credentials.
            String pin = "<PIN>";

            //Create CSCAuthContext instance using access token and token type.
            CSCAuthContext cscAuthContext = new CSCAuthContext(accessToken, "Bearer");

            //Create CertificateCredentials instance with required certificate details.
            CertificateCredentials certificateCredentials = CertificateCredentials.cscCredentialBuilder()
                .withProviderName(providerName)
                .withCredentialID(credentialID)
                .withPin(pin)
                .withCSCAuthContext(cscAuthContext)
                .build();

            //Create TSABasicAuthCredentials using username and password
            TSABasicAuthCredentials tsaBasicAuthCredentials = new TSABasicAuthCredentials("<USERNAME>", "<PASSWORD>");

            //Set the Time Stamp Authority Options using url and TSA Auth credentials
            TSAOptions tsaOptions = new RFC3161TSAOptions("<TIMESTAMP_URL>", tsaBasicAuthCredentials);

            //Create SealOptions instance with all the sealing parameters.
            SealOptions sealOptions = new SealOptions.Builder(certificateCredentials, fieldOptions)
                .withDocumentLevelPermission(documentLevelPermission)
                .withTSAOptions(tsaOptions).build();

            //Create the PDFElectronicSealOperation instance using the SealOptions instance
            PDFElectronicSealOperation pdfElectronicSealOperation = PDFElectronicSealOperation.createNew(sealOptions);

            //Set the input source file for PDFElectronicSealOperation instance
            pdfElectronicSealOperation.setInput(sourceFile);

            //Set the optional input seal image for PDFElectronicSealOperation instance
            pdfElectronicSealOperation.setSealImage(sealImageFile);

            //Execute the operation
            FileRef result = pdfElectronicSealOperation.execute(executionContext);

            //Save the output at specified location
            result.saveAs("output/sealedOutput.pdf");


        } catch (ServiceApiException | IOException | SdkException | ServiceUsageException ex) {
            LOGGER.error("Exception encountered while executing operation", ex);
        }
    }
}

Rest API

curl --location --request POST 'https://pdf-services.adobe.io/operation/electronicseal' \
--header 'x-api-key: {{Placeholder for client_id}}' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer {{Placeholder for token}}' \
--data-raw '{
    "inputDocumentAssetID": "urn:aaid:AS:UE1:23c30ee0-2c4d-xxxx-xxxx-087832fca718",
    "sealImageAssetID": "urn:aaid:AS:UE1:23c30ee0-2e4d-xxxx-xxxx-087832fca718",
    "sealOptions": {
        "signatureFormat": "PKCS7",
        "documentLevelPermission": "FORM_FILLING",
        "cscCredentialOptions": {
            "credentialId": "<CREDENTIAL_ID>",
            "providerName": "<PROVIDER_NAME>",
            "authorizationContext": {
                "tokenType": "Bearer",
                "accessToken": "<ACCESS_TOKEN>"
            },
            "credentialAuthParameters": {
                "pin": "<PIN>"
            }
        },
        "tsaOptions": {
            "url" : "<TIMESTAMP_URL>",
            "credentialAuthParameters": {
                "username" : "<USERNAME>",
                "password" : "<PASSWORD>"
        },
        "sealFieldOptions": {
            "location": {
                "left": 150,
                "top": 250,
                "right": 350,
                "bottom": 200
            },
            "fieldName": "Signature1",
            "pageNumber": 1
        },
        "sealAppearanceOptions": {
            "displayOptions": [
                "NAME",
                "DATE",
                "DISTINGUISHED_NAME",
                "LABELS",
                "SEAL_IMAGE"
            ]
        }
    }
}'
