Edit text

The Edit Text endpoint allows you to modify text layers within Photoshop files (PSD files).

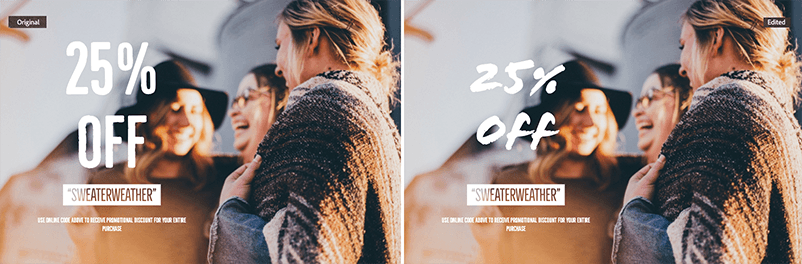

In these example images, we've altered the font on the original image (on the left) using the Text API:

The Edit Text endpoint supports editing one or more text layers within a PSD. Users can:

data-slots=text1, text2

data-repeat=5

data-iconColor=#2ac3a2

data-icon=checkmark

data-variant=fullWidth

Known limitations

• The API can't automatically detect missing fonts in the layers. To prevent potentially missing fonts from being replaced, provide an href to the font in options.fonts. For more details on specifying custom fonts, see the Font handling section.
• Ensure that the input file is a PSD and that it contains one or more text layers.
• Some text attributes (for example, tracking, leading, and kerning) don't retain their original values.

Font handling

To correctly operate on text layers, the fonts needed for those layers need to be available when processing the PSD.

Reference fonts in the API request using the correct Postscript name for that font. Using any other name causes the API to treat this as a missing font.

To use a custom font you must include an href to the font in the API request inputs, in this format: <font_postscript_name>.<ext>.

Example

{
  "storage": "external",
  "href": "<STORAGE_URL_TO_OPEN_SANS_CONDENSED_LIGHT_TTF>"
}

Handling missing fonts

Use the manageMissingFonts field in the options of the request to specify how to handle missing fonts. There are two accepted values:

• fail to force the request/job to fail.
• useDefault to use the system designated default font: ArialMT.

Or specify a global font in the globalFont field in the options section of the request, which would act as a default font for the current request.

data-variant=info

data-slots=heading, text1

Supported fonts

The supported Postscript fonts are:

Implementation examples

Making a text layer edit

This code sample makes a text layer edit:

curl -X POST \
  https://image.adobe.io/pie/psdService/text \
  -H "Authorization: Bearer $token"  \
  -H "x-api-key: $apiKey" \
  -H "Content-Type: application/json" \
  -d '{
  "inputs":[
    {
      "href":"<SIGNED_GET_URL>",
      "storage":"<storage>"
    }
  ],
  "options":{
    "layers":[
      {
        "name": "My Text Layer",
        "text": {
            "content": "CHANGED TO NEW TEXT",
            "orientation": "horizontal",
            "characterStyles": [{
                "size": 15,
                "orientation": "horizontal",
                "color": {
                    "red":255,
                    "green":0,
                    "blue":0
                }
            }],
            "paragraphStyles": [{
              "alignment": "right"
            }]
        }
      }
    ]
  },
  "outputs":[
    {
      "href":"<SIGNED_POST_URL>",
      "storage":"<storage>",
      "type":"vnd.adobe.photoshop"
    }
  ]
}'

Editing two text layers

This example applies edits to two text layers:

curl -X POST \
  https://image.adobe.io/pie/psdService/text \
  -H "Authorization: Bearer $token"  \
  -H "x-api-key: $apiKey" \
  -H "Content-Type: application/json" \
  -d '{
  "inputs": [
    {
      "href": "<SIGNED_GET_URL>",
      "storage": "<storage>"
    }
  ],
  "options": {
    "fonts": [
      {
        "storage": "<storage>",
        "href": "<SIGNED_GET_URL>"
      }
    ],
    "layers": [
      {
        "name": "<name_of_text_layer_1_to_edit>",
        "text": {
            "orientation": "horizontal",
            "contents": "New text Contents 1",
            "antiAlias": "antiAliasSharp",
            "characterStyles": [{
              "autoKern": "metricsKern",
              "fontPostScriptName": "<font_postscript_name>",
              "fontCaps": "allCaps",
              "size": 25,
              "leading": 20,
              "tracking": 20,
              "syntheticBold": true,
              "ligature": true,
              "syntheticItalic": true,
              "color": {
                "blue": 100,
                "green": 200,
                "red": 163
              }
            }],
            "paragraphStyles": [{
              "align": "right"
            }]
        }
      },
      {
        "name": "<name_of_text_layer_2_to_edit>",
        "text": {
          "contents": "New text Contents 2",
          "characterStyles": [{
              "size": 45,
              "stylisticAlternates": true,
              "leading": 100,
              "tracking": 100,
              "baseline": "subScript",
              "strikethrough": true,
              "underline": true,
              "verticalScale": 150,
              "horizontalScale": 200,
              "color": {
                "blue": 300,
                "green": 100,
                "red": 63
              }
            }]
        }
      }
    ]
  },
  "outputs": [
    {
      "href": "<SIGNED_POST_URL>",
      "type": "vnd.adobe.photoshop",
      "storage": "<storage>"
    }
  ]
}'

Changing the font in a text layer

This example changes the font in a text layer named My Text Layer to a custom font VeganStylePersonalUse. The value for the fontName field in the text.characterStyles section is the full Postscript name of the custom font:

curl -X POST \
  https://image.adobe.io/pie/psdService/text \
  -H "Authorization: Bearer $token"  \
  -H "x-api-key: $apiKey" \
  -H "Content-Type: application/json" \
  -d '{
  "inputs":[
    {
      "href":"<SIGNED_GET_URL>",
      "storage":"<storage>"
    }
  ],
  "options":{
    "fonts": [
      {
        "storage": "<storage>",
        "href": "<SIGNED_GET_URL_TO_VeganStylePersonalUse.ttf>"
      }
    ],
    "layers":[
      {
        "name": "My Text Layer",
        "text": {
            "content": "CHANGED TO NEW TEXT",
            "orientation": "horizontal",
            "characterStyles": [{
                "size": 15,
                "orientation": "horizontal",
                "color": {
                    "red":255,
                    "green":0,
                    "blue":0
                }
            }],
            "paragraphStyles": [{
              "alignment": "right"
            }]
        }
      }
    ]
  },
  "outputs":[
    {
      "href":"<SIGNED_POST_URL>",
      "storage":"<storage>",
      "type":"vnd.adobe.photoshop"
    }
  ]
}'
