Render 3D Object

Overview

This guide shows you how to use the Substance 3D API to render 3D objects. You'll learn how to upload assets, configure rendering parameters, and customize the output with different camera angles and materials.

Prerequisites

• If you don't already have a Substance 3D API Client ID and Access Token, learn how to retrieve them in the Authentication Guide before reading further. Securely store these credentials and never expose them in client-side or public code.
• A command line tool to transfer data, such as cURL.

Step 1 - Upload source assets

1. Download the sample assets prepared for this guide:

• 3D Model (DamagedHelmet.glb)
• Substance Material (cross_brushed_copper.sbsar)

2. To use these assets, create a new digital storage Space with the /spaces endpoint and define each asset as a --form parameter in the request.

Run this command to create the new Space:

curl --url https://s3d.adobe.io/v1/spaces \
--header 'Authorization: Bearer $S3D_FF_SERVICES_ACCESS_TOKEN' \
--form '.=@DamagedHelmet.glb' \
--form '.=@cross_brushed_copper.sbsar'

The JSON response contains an "id", which identifies the new Space. This ID will be the assets' source in the job definition.

Example response

{
  "id": "<GENERATED_SPACE_ID>",
  "files": [...],
  ...
}

Step 2 - Define assets sources

Create a payload.json file and define the Space with its ID (your {GENERATED_SPACE_ID}) in the sources array.

data-slots=heading, code

data-languages=JSON

{
  "sources": [
    {
      "space": {
        "id": "<GENERATED_SPACE_ID>"
      }
    }
  ]
}

Step 3 - Set the rendering parameters

To perform a rendering job, define the model file of the scene with the file located in the Space. To use the DamagedHelmet.glb file, set its path in the scene.modelFile property.

data-slots=heading, code

data-languages=JSON

{
  "sources": [
    {
      "space": {
        "id": "<GENERATED_SPACE_ID>"
      }
    }
  ],
  "scene": {
    "modelFile": "DamagedHelmet.glb"
  }
}

Step 4 - Execute the API request

It's time to execute the rendering API request, using the job definition from your payload.json file.

Send a request to the v1/scenes/render-basic endpoint:

curl -X POST https://s3d.adobe.io/v1/scenes/render-basic \
-d @payload.json \
--header "Content-Type: application/json" \
--header 'Authorization: Bearer $S3D_FF_SERVICES_ACCESS_TOKEN'

The response will be similar to this example, with a unique id:

{
  "$schema": "https://s3d.adobe.io/schemas/RenderModelResponse.json",
  "url": "https://s3d.adobe.io/v1/jobs/1727790895129-0",
  // unique job ID
  "id": "1727790895129-0",
  "status": "running"
}

Step 5 - Download the rendered image

After sending the API request, you'll receive a response with a url property. Since jobs are asynchronous, their result isn't available immediately.

1. The job URL must be polled to see the status.

curl --url https://s3d.adobe.io/v1/jobs/1727790895129-0 \
--header 'Accept: application/json' \
--header 'Authorization: Bearer $S3D_FF_SERVICES_ACCESS_TOKEN'

If the job succeeds, the response will contain a result property with information about the generated resources:

data-slots=heading, code

data-repeat=2

data-languages=JSON, JSON

{
  "$schema": "https://s3d.adobe.io/schemas/RenderModelResponse.json",
  "url": "https://s3d.adobe.io/v1/jobs/1727790895129-0",
  "id": "1727790895129-0",
  "status": "succeeded",
  "result": {
    // pre-signed URL, used to download the rendered image
    "renderUrl": "https://s3d.adobe.io/v1/spaces/s-b93fa62b-6ba8-4ca6-842d-898057bf5dbc/files/render0000.png?x-s3d-presigned-token=<auto_generated_token>",
    // output Space, containing the list of generated resource files
    "outputSpace": {
      "url": "https://s3d.adobe.io/v1/spaces/s-b93fa62b-6ba8-4ca6-842d-898057bf5dbc",
      "id": "s-b93fa62b-6ba8-4ca6-842d-898057bf5dbc",
      "archiveUrl": "https://s3d.adobe.io/v1/presigned-spaces/s-b93fa62b-6ba8-4ca6-842d-898057bf5dbc/zip?x-s3d-presigned-token=<auto_generated_token>",
      "files": [
        {
          "name": "render0000.png",
          "size": 235441,
          "url": "https://s3d.adobe.io/v1/spaces/s-b93fa62b-6ba8-4ca6-842d-898057bf5dbc/files/render0000.png?x-s3d-presigned-token=<auto_generated_token>"
        },
        ...
      ]
    }
  }
}

{
  "$schema": "https://s3d.adobe.io/schemas/RenderModelResponse.json",
  "url": "https://s3d.adobe.io/v1/jobs/1727790895129-0",
  "id": "1727790895129-0",
  "status": "failed",
  "error": "error message"
}

2. To download the rendered image, use the pre-signed URL included in the response (result.renderUrl), or find the rendered image URL from the list of files in the response (result.outputSpace.files[].url).

curl -O --url https://s3d.adobe.io/v1/spaces/s-b93fa62b-6ba8-4ca6-842d-898057bf5dbc/files/render0000.png?x-s3d-presigned-token=<auto_generated_token>

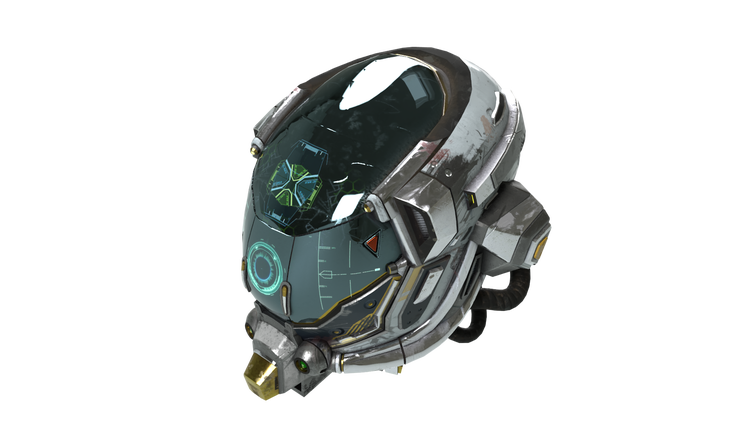

Step 6 - Going further with optional settings

It's possible to render images by specifying only the source 3D model location, but this API also exposes optional settings to customize different aspects of the rendered image such as the model transforms, the camera parameters, overriding the default material, and more.

Let's make few changes to these optional settings below to explore the results. See the full list of settings available in the API Reference.

Render different camera angles

Modify the camera angle by setting the scene.camera field in the payload.

1. To set the camera azimuth angle to 0, replace the payload.json content with the following lines:

data-slots=heading, code

data-languages=JSON

{
  "sources": [
    {
      "space": {
        "id": "{GENERATED_SPACE_ID}"
      }
    }
  ],
  "scene": {
    "modelFile": "DamagedHelmet.glb",
      "autoFraming": {
    // zoom out
    "zoomFactor": 0.7
  },
    "camera": {
      "focal": 50,
      "transform": {
        "azimuthAltitude": {
          // custom camera azimuth
          "azimuth": 0,
          // the following values are identical to the default ones
          "altitude": 30,
          "lookAt": [0, 0, 0],
          "radius": 1
        }
      }
    }
  }
}

2. Re-execute the API request and download the rendered image.

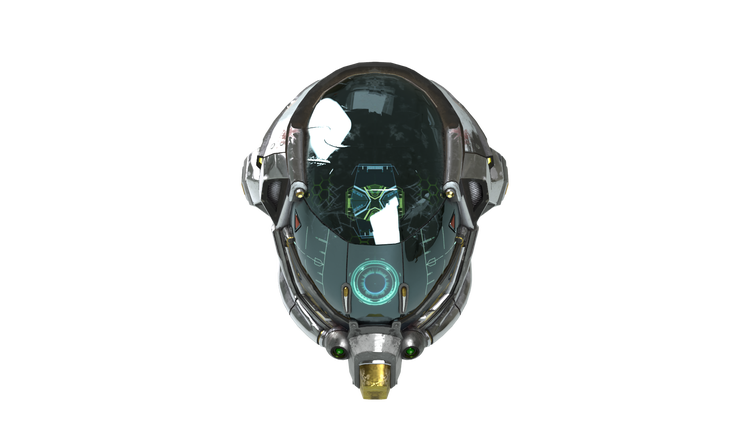

Sample result

Override materials

Render variations of the same object in different materials by using scene.materialOverrides.

Let's override the existing model's material with one from the sample assets: cross_brushed_copper.sbsar.

1. Replace the payload.json content with the following lines:

data-slots=heading, code

data-languages=JSON

{
  "sources": [
    {
      "space": {
        "id": "{GENERATED_SPACE_ID}"
      }
    }
  ],
  "scene": {
    "modelFile": "DamagedHelmet.glb",
    "materialOverrides": [
      {
        // the name of the existing material assigned to the 3D model
        "materialName": "Material_MR",
        "pbrMaterial": {
          // increased texture resolution
          "resolution": 2048,
          "sbsar": "cross_brushed_copper.sbsar"
        }
      }
    ]
  }
}

2. Re-execute the API request and download the rendered image.

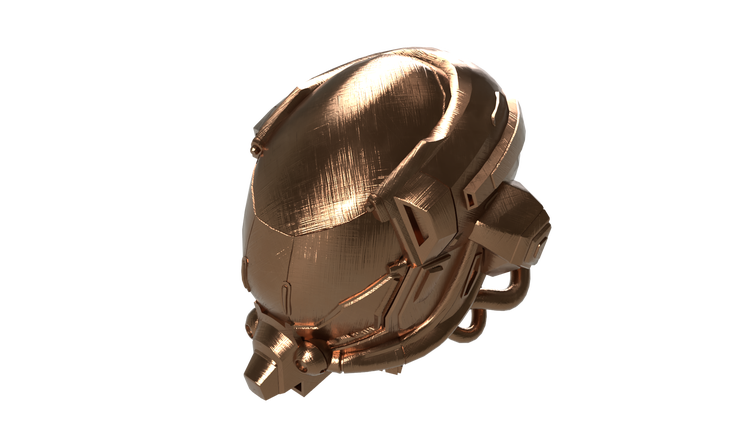

Cross Brushed Copper

Going further with substance materials

The cross_brushed_copper.sbsar file is a Substance 3D Material which includes pre-built variations (a.k.a. preset):

• Default (selected by default if none is specified)
• Rust Picked Copper Cross Brushed
• Shiny Copper Cross Brushed
• Oxidized Copper Cross Brushed

By slightly modifying the previous job definition, you can apply these presets on the material:

data-slots=heading, code

data-languages=JSON

{
  "sources": [...],
  "scene": {
    "modelFile": "DamagedHelmet.glb",
    "materialOverrides": [
      {
        "materialName": "Material_MR",
        "pbrMaterial": {
          // select the material preset
          "preset": "Rust Picked Copper Cross Brushed",
          "resolution": 2048,
          "sbsar": "cross_brushed_copper.sbsar"
        }
      }
    ]
  }
}

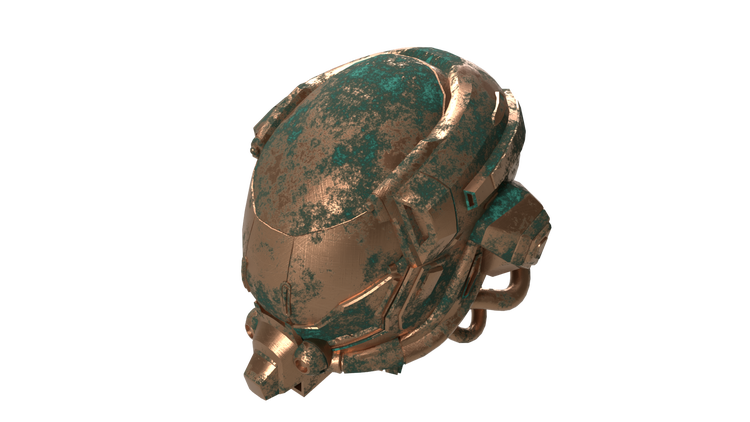

Oxidized Copper Cross Brushed

Deepen your understanding

Now that you completed this tutorial, visit its API Reference to explore more advanced use cases of 3D object rendering.
