Custom element rendering for properties rail by data-type

This feature allows third-party developer to build custom input UI for specific data types in the Universal Editor. The custom UI is rendered in an iframe and replaces the standard UI for the field in the properties rail.

Define data types

An UIX extension can be used to introduce new data types or replace the standard data type renderer shipped with the Universal Editor. The newly created data type will be rendered in an iframe using the custom UI provided by the extension.

Check this document to learn about available data types for Universal Editor.

function ExtensionRegistration() {
  const init = async () => {
    const guestConnection = await register({
      id: extensionId,
      methods: {
        canvas: {
          getRenderers() {
            return [
              {
                dataType: "text",
                url: '/#/renderer/1'
              },
              {
                dataType: "custom-type",
                url: '/#/renderer/2',
              },
            ];
          },
        },
      },
    });
  };
  init().catch(console.error);

  return <Text>IFrame for integration with Host (AEM)...</Text>;
}

Implement custom rendering logic

1. Define the router in the extension application to handle the custom rendering of the field.

function App() {
  return (
    <Router>
      <ErrorBoundary onError={onError} FallbackComponent={fallbackComponent}>
        <Routes>
            <Route index element={<ExtensionRegistration />} />
            <Route
                exact
                path="index.html"
                element={<ExtensionRegistration />}
            />
            <Route
                exact path="renderer/:rendererId"
                element={<TypeRenderer />}
            />
        </Routes>
      </ErrorBoundary>
    </Router>
  )

  // Methods

  // error handler on UI rendering failure
  function onError(e, componentStack) {}

  // component to show if UI fails rendering
  function fallbackComponent({ componentStack, error }) {
    ...
}

export default App

2. Implement custom data type

export default () => {
    const [isLoading, setIsLoading] = useState(true);
    const [connection, setConnection] = useState();
    const [model, setModel] = useState();
    const [value, setValue] = useState();
    const [error, setError] = useState();
    const [validationState, setValidationState] = useState();

    const { rendererId } = useParams();
    if (!rendererId) {
        console.error('Renderer id parameter is missed');
        return;
    }

    useEffect(() => {
        const init = async () => {
            // connect to the host
            const connection = await attach({ id: extensionId });
            setConnection(connection);
            // get model
            setModel(await connection.host.field.getModel());
            // get field value
            setValue(await connection.host.field.getValue());
            // get field error
            setError(await connection.host.field.getError());
            // get field validation state
            setValidationState(await connection.host.field.getValidationState());
            setIsLoading(false);
        };
        init().catch((e) =>
            console.log("Extension got the error during initialization:", e)
        );
    }, []);

    const onChangeHandler = (v) => {
        console.log("onChange on extension side", v);
        connection.host.field.onChange(v);
    };

    return (
        <Provider theme={lightTheme} colorScheme="light">
            {!isLoading ? (
                <>

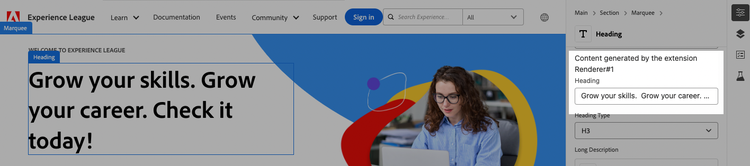

                    Content generated by the extension Renderer#{rendererId}
                    <Flex direction="column" gap="size-65" marginBottom="size-100">
                        <TextField
                            validationState={error ? "invalid" : validationState}
                            label={model.multi ? null : model.label}
                            aria-label={model.label || model.name}
                            defaultValue={value}
                            maxLength={model.validation.maxLength}
                            isReadOnly={model.readOnly}
                            isDisabled={model.readOnly}
                            isRequired={model.required}
                            errorMessage={error}
                            onChange={onChangeHandler}
                            width="100%"
                        />
                    </Flex>
                </>
                ) : (
                <View width="97%" height="100%">
                    <Spinner />
                </View>
                )}
        </Provider>
    );
};

Extension Registration Reference

Field Reference

{
    await connection.host.field
}
