Panels and Commands

Learn the fundamental differences between the two types of UXP plugin components and when to use each.

Overview

A UXP plugin is a self-contained application hosted inside a UXP-enabled application, such as Photoshop, InDesign, Premiere, or Media Encoder. Every plugin is built using one or both of two component types: Panels and Commands. Understanding the differences between these components is essential for designing plugins that fit naturally into users' workflows.

Think of it this way: Commands are actions, while Panels are workspaces.

Commands

Commands are menu items that execute code when clicked, designed for discrete tasks that don't require a persistent interface.

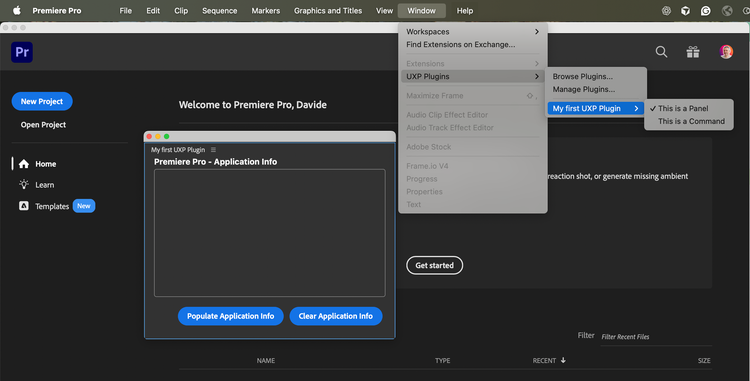

Premiere: nested under Window > UXP Plugins. Other hosts surface Commands in their own plugins menu.

UXP Plugins menu

Characteristics of Commands

Execute and exit: commands run their code and finish. There's no persistent UI.
Optional modal dialogs: commands can display a modal dialog to gather input or show results, but the dialog blocks user interaction with the host application until dismissed.
Lightweight: ideal for simple, focused tasks that don't need ongoing user interaction.
No lifecycle persistence: commands don't stay "running" in the background. They execute when invoked and complete when done.

When to Use Commands

Choose Commands when you need to:

Automate a specific task: apply a preset, export a file, or perform a calculation.
Execute a one-time action: convert clip metadata, rename sequences, or generate a report.
Provide quick utilities: show plugin information (About dialog), open documentation, or perform system checks.
Simplify the UI: when a task doesn't need ongoing interaction, a Command keeps the host workspace uncluttered.

Panels

Panels are persistent user interfaces that users can dock into the host application's workspace alongside its built-in panels. They remain open and interactive throughout the work session.

For example: Premiere's Timeline and Effect Controls, or Photoshop's Layers panel.

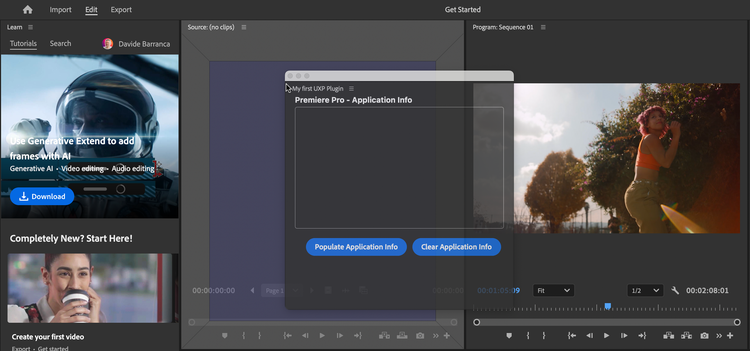

To dock a panel, drag it from the title bar (not the window frame bar) until the docking overlay appears:

Panel docking

Characteristics of Panels

Persistent UI: panels stay open and accessible, maintaining their state between uses.
Non-blocking: users can interact with both the panel and the host application simultaneously.
Dockable and flexible: panels can be docked, floated, resized, and arranged like any native panel in the host application.
Lifecycle hooks: panels have create(), show(), hide(), and destroy() hooks for managing their state.
Optional modal dialogs: like Commands, Panels can also launch modal dialogs for focused input or confirmation.

When to Use Panels

Choose Panels when you need to:

Provide continuous interaction: display controls, settings, or visualizations that users reference throughout their session.
Offer complex workflows: present multi-step processes or rich interfaces with tabs, lists, or forms.
Integrate with workspace: give users a tool they can position and resize to fit their preferred layout.

Both Commands and Panels can display modal dialogs: temporary windows that block interaction with the host application until dismissed. Modal dialogs are perfect for:

Gathering input: Ask for file paths, dimensions, or configuration options.
Confirming actions: "Are you sure you want to delete?"
Displaying results: Show completion messages, errors, or summary information.
Focused workflows: Guide users through multi-step processes that require attention.

data-variant=info

data-slots=heading, text

Modal Dialogs

Modal dialogs are blocking by design: users cannot interact with the host application until the dialog is closed. This makes them ideal for critical decisions or required input, but use them sparingly to avoid disrupting workflows.

Commands often use modal dialogs as their primary interface. Since Commands don't have a persistent UI, a modal dialog provides the necessary input mechanism. For example:

An "Export Project Summary" Command might show a dialog to select output format and destination.
An "About" Command displays plugin information in a modal dialog.

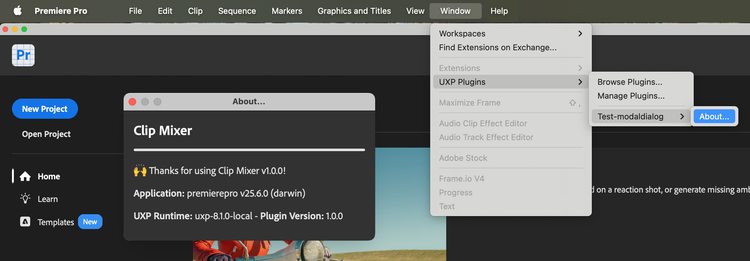

Commands with Modal Dialogs

Panels use modal dialogs for secondary interactions that require focused attention. The panel provides the main interface, while modal dialogs handle specific tasks. For example:

A "Settings" button in a panel opens a modal dialog to configure preferences.
A "Confirm Delete" dialog appears when users click a destructive action in the panel.

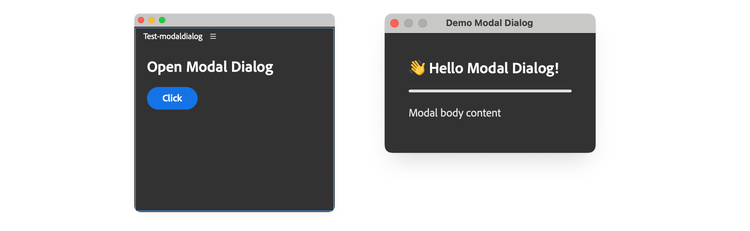

Panels with Modal Dialogs

Key Differences

Here's a quick comparison to help you choose:

Aspect

Commands

Panels

UI Presence

No persistent UI (optional modal only)

Persistent, dockable UI

User Interaction

Blocking (if modal dialog is shown)

Non-blocking

Lifecycle

Execute and complete

Remain open with lifecycle hooks

Best For

One-time actions, automation

Ongoing interaction, complex workflows

Complexity

Lightweight, focused tasks

Rich interfaces with multiple controls

Combining Commands and Panels

A single plugin can include multiple Commands, multiple Panels, or both. This flexibility lets you design plugins that match user needs:

Panel + Commands: A main panel for ongoing work, plus Commands for quick utilities or batch operations.
Multiple Panels: Separate panels for different features (e.g., a control panel and a preview panel).
Multiple Commands: A suite of related automation tasks grouped under one plugin.

All Commands and Panels from the same plugin appear grouped under that plugin's own entry in the host's plugins menu (in Premiere, under Window > UXP Plugins).

Implementation

For the practical details of declaring and wiring up Panels and Commands in your manifest.json and code, see the Entrypoints Guide.
