Introduction to UI components

UI components are used to represent distinct UI elements, such as tables, buttons, dialogs, and others.

They are designed for simple and flexible user interface (UI) rendering. Components are responsible for rendering result page fragments and providing/supporting further interactions of JavaScript components and server.

UI components are implemented as a standard module named Magento_UI.

To use UI components in your custom module, you need to add a dependency for the Magento_UI module in your component's composer.json file.

The following XSD file contains rules and limitations shared between all components (both definitions and instance configurations):

<your module root dir>/Magento/Ui/etc/ui_definition.xsd

Extension developers cannot extend this XSD scheme and introduce new components, but can customize existing ones.

General structure

There are basic and secondary UI components.

Basic components are:

All other UI components are secondary.

Basic components are declared in the page layout files; secondary components are declared in the top-level components' instances configuration files.

All components can be configured both for Admin and storefront.

You need to configure styles manually for components on the storefront.

When to use UI components

With Magento, you may apply different approaches to implementing a UI element, and use:

PHTML template with inline JavaScript
PHTML template with declaration of related JavaScript file via XML layout
jQuery widget
UI component

We recommend using UI components as much as possible.

UI components work well together: they communicate with each other via the uiRegistry service that tracks their asynchronous initialization. Therefore, if we need to extend something that has already been implemented as a hierarchy of UI components or add a new feature that should interact with other UI components, it's easier and more effective to use a UI component.

A UI component is a combination of:

XML declaration that specifies the component's configuration settings and inner structure.
JavaScript class inherited from one of the JavaScript framework UI components base classes (such as UIElement, UIClass or UICollection).
Related template(s)

XML Declaration

XML is widely used in which allows developers to easily reuse existing functionalities and add customizations.

Compared to XML layouts, UI components use a more semantical approach to declare and configure the user interface.

An instance of a UI component is usually based on the hierarchy of child UI components.

For example:

the Form component has Fieldsets, Tabs, and inner fields
the Listing component has Filters, Columns, Bookmark component, and others

JavaScript class

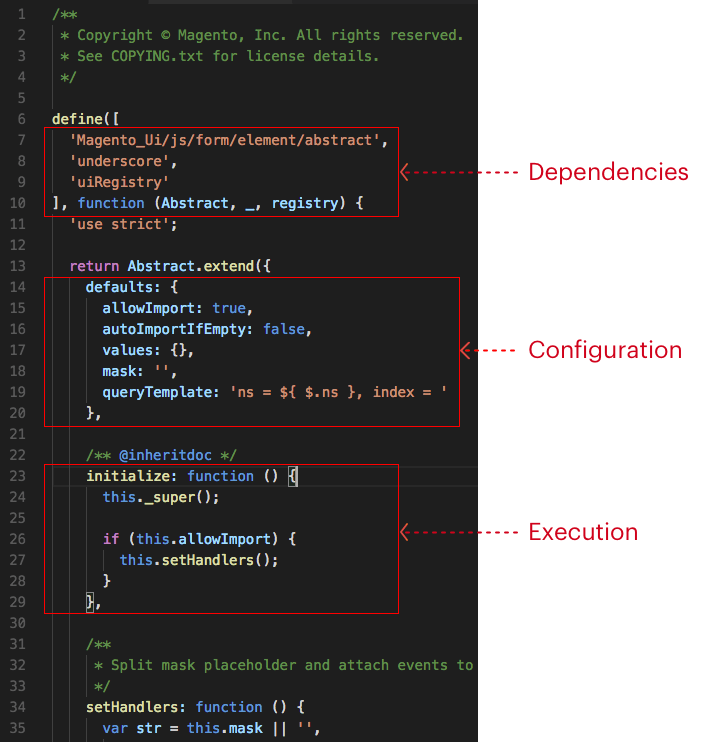

The picture below shows how the JavaScript class of a UI component is implemented.

JavaScript class implementation of a UI component

Templates

A UI component can be bound to one or more HTML templates using the KnockoutJS bindings.

Configuring a UI component

A particular instance of a UI component is defined primarily by the following:

<Magento_Ui_module_dir>/view/base/ui_component/etc/definition.xml: default component configuration. Can be extended in custom modules.
UI component's XML declaration.
Backend/PHP modifiers.
Configuration inside the JavaScript classes.

Frontend design area

Configured through layout XML.
The jsLayout argument is used to specify information.

<block name="block-name" template="Magento_Module::path_to_template.phtml">
  <arguments>
    <argument name="jsLayout" xsi:type="array">
      <item name="components" xsi:type="array">
        ...
      </item>
    </argument>
  </arguments>
</block>
Copied to your clipboard
<block name="block-name" template="Magento_Module::path_to_template.phtml">
  <arguments>
    <argument name="jsLayout" xsi:type="array">
      <item name="components" xsi:type="array">
        ...
      </item>
    </argument>
  </arguments>
</block>

Adminhtml area

Configured through dedicated XML file (view/adminhtml/ui_component/[ui_component_name.xml]). For example, the Customer grid UI component defined in <Magento_Customer_module_dir>/view/adminhtml/ui_component/customer_listing.xml.

Included in layout XML with uiComponent tag. For example, the customer_listing UI component is included in <Magento_Customer_module_dir>/view/adminhtml/layout/customer_index_index.xml.

<page xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:View/Layout/etc/page_configuration.xsd">
    <update handle="formkey"/>
    <body>
        <referenceContainer name="content">
            <uiComponent name="customer_listing"/>
        </referenceContainer>
    </body>
</page>
Copied to your clipboard
<page xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:View/Layout/etc/page_configuration.xsd">
    <update handle="formkey"/>
    <body>
        <referenceContainer name="content">
            <uiComponent name="customer_listing"/>
        </referenceContainer>
    </body>
</page>

Things to remember

UI components have different settings:

Configuration settings (their list and names) are different among UI components; these settings contain constants, optional and required settings. Developers need to treat every UI component separately.

Beware of mistakes in XML config:

Surprisingly, most issues occur because of the typos and other mistakes in the UI component's XML configuration. Naming is critical because UI components are heavily cross-referenced.
