Layout file types

For a particular page, its layout is defined by two major layout components: page layout file and page configuration file.

A page layout file defines the page wireframe, for example, one-column layout. Technically page layout is an .xml file defining the structure inside the <body> section of the HTML page markup. Page layouts feature only containers. All page layouts used for page rendering should be declared in the page layout declaration file.

Page configuration is also an .xml file. It defines the detailed structure (page header, footer, etc.), contents and page meta information, including the page layout used. Page configuration features both main elements, blocks and containers.

We also distinguish the third type of layout files, generic layouts. They are .xml files which define the contents and detailed structure inside the <body> section of the HTML page markup. These files are used for pages returned by AJAX requests, emails, HTML snippets and so on.

This article gives a comprehensive description of each layout file type.

Page layout

Page layout declares the wireframe of a page inside the <body> section. For example, one-column layout or two-column layout.

Allowed layout instructions:

Sample page layout:

<Magento_Theme_module_dir>/view/frontend/page_layout/2columns-left.xml

<layout xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:View/Layout/etc/page_layout.xsd">
    <update handle="1column"/>
    <referenceContainer name="columns">
        <container name="div.sidebar.main" htmlTag="div" htmlClass="sidebar sidebar-main" after="main">
            <container name="sidebar.main" as="sidebar_main" label="Sidebar Main"/>
        </container>
        <container name="div.sidebar.additional" htmlTag="div" htmlClass="sidebar sidebar-additional" after="div.sidebar.main">
            <container name="sidebar.additional" as="sidebar_additional" label="Sidebar Additional"/>
        </container>
    </referenceContainer>
</layout>
Copied to your clipboard
<layout xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:View/Layout/etc/page_layout.xsd">
    <update handle="1column"/>
    <referenceContainer name="columns">
        <container name="div.sidebar.main" htmlTag="div" htmlClass="sidebar sidebar-main" after="main">
            <container name="sidebar.main" as="sidebar_main" label="Sidebar Main"/>
        </container>
        <container name="div.sidebar.additional" htmlTag="div" htmlClass="sidebar sidebar-additional" after="div.sidebar.main">
            <container name="sidebar.additional" as="sidebar_additional" label="Sidebar Additional"/>
        </container>
    </referenceContainer>
</layout>

Conventional file location

Conventionally page layouts must be located as follows:

Module page layouts: <module_dir>/view/frontend/page_layout
Theme page layouts: <theme_dir>/<Namespace>_<Module>/page_layout

Page layouts declaration

To be able to use a layout for actual page rendering, you need to declare it in layouts.xml.

Conventionally layout declaration file can be located in one of the following locations:

Module layout declarations: <module_dir>/view/frontend/layouts.xml
Theme layout declaration: <theme_dir>/<Namespace>_<Module>/layouts.xml

Declare a layout file using the <layout></layout> instruction, for which specify the following:

<layout id="layout_file_name">. For example, the 2columns-left.xml page layout is declared like following: <layout id="2columns-left"/>
<label translate="true|false">{Label_used_in_admin}</label>

Sample page layout declaration file: <Magento_Theme_module_dir>/view/frontend/layouts.xml

<page_layouts xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:View/PageLayout/etc/layouts.xsd">
    <layout id="1column">
        <label translate="true">1 column</label>
    </layout>
    <layout id="2columns-left">
        <label translate="true">2 columns with left bar</label>
    </layout>
    <layout id="2columns-right">
        <label translate="true">2 columns with right bar</label>
    </layout>
    <layout id="3columns">
        <label translate="true">3 columns</label>
    </layout>
</page_layouts>
Copied to your clipboard
<page_layouts xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:View/PageLayout/etc/layouts.xsd">
    <layout id="1column">
        <label translate="true">1 column</label>
    </layout>
    <layout id="2columns-left">
        <label translate="true">2 columns with left bar</label>
    </layout>
    <layout id="2columns-right">
        <label translate="true">2 columns with right bar</label>
    </layout>
    <layout id="3columns">
        <label translate="true">3 columns</label>
    </layout>
</page_layouts>

Use the layout attribute in the page node of a page configuration file to define a layout type for the page. The following example shows how to use the 3 columns page layout type for the Wish List Sharing page:

Override the default wishlist_index_share.xml in any one of the following paths and add the layout="3columns" in the page node.

Override the layout in a custom theme (in the case where a custom-built theme is applied on the storefront): <custom_theme_dir>/Magento_Wishlist/layout/wishlist_index_share.xml
Override the layout in custom module (in case the when building third-party extensions and you need to make changes to the existing layout): <custom_module_dir>/view/frontend/layout/wishlist_index_share.xml

<?xml version="1.0"?>
<!--
/**
 * Copyright &copy; Magento, Inc. All rights reserved.
 * See COPYING.txt for license details.
 */
-->
<page xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" layout="3columns" xsi:noNamespaceSchemaLocation="urn:magento:framework:View/Layout/etc/page_configuration.xsd">
    <update handle="customer_account"/>
    <body>
        <referenceContainer name="content">
            <block class="Magento\Wishlist\Block\Customer\Sharing" name="wishlist.sharing" template="Magento_Wishlist::sharing.phtml" cacheable="false"/>
        </referenceContainer>
    </body>
</page>
Copied to your clipboard
<?xml version="1.0"?>
<!--
/**
 * Copyright &copy; Magento, Inc. All rights reserved.
 * See COPYING.txt for license details.
 */
-->
<page xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" layout="3columns" xsi:noNamespaceSchemaLocation="urn:magento:framework:View/Layout/etc/page_configuration.xsd">
    <update handle="customer_account"/>
    <body>
        <referenceContainer name="content">
            <block class="Magento\Wishlist\Block\Customer\Sharing" name="wishlist.sharing" template="Magento_Wishlist::sharing.phtml" cacheable="false"/>
        </referenceContainer>
    </body>
</page>

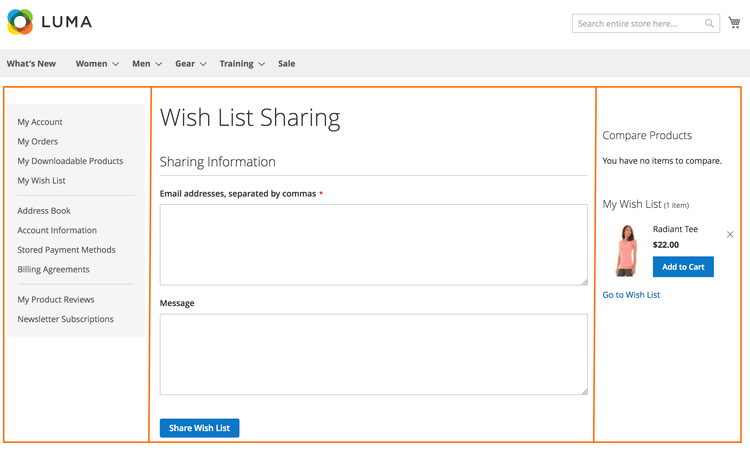

Wish List Sharing. 3 columns layout page type

By default, the application provides five page layout types for the frontend (empty, 1column, 2columns-left, 2columns-right, and 3columns) and 3 page layout types for the backend (admin-empty, admin-1column, and admin-2columns-left).

Page configuration

The page configuration adds content to the wireframe defined in a page layout file. A page configuration also contains page meta-information, and contents of the <head> section.

Conventional file location

Conventionally page configuration files must be located as follows:

Module page configurations: <module_dir>/view/frontend/layout
Theme page configurations: <theme_dir>/<Namespace>_<Module>/layout

Structure and allowed layout instructions

The following table describes the instructions specific for page configuration files. For the descriptions of common layout instructions see Layout instructions.

Element	Attributes	Parent of	Description
`<page>`	`layout = {layout}` `xsi:noNamespaceSchemaLocation = path_to_schema"`	`<html>` `<head>` `<body>` `<update>`	Mandatory root element.
`<html>`	none	`<attribute>`
`<head>`	none	`<title>` `<meta>` `<link>` `<css>` `<font>` `<script>` `<remove>` `<attribute>`
`<body>`	none	`<block>` `<container>` `<move>` `<attribute>` `<referenceBlock>` `<referenceContainer>` `<action>`
`<attribute>`	`name = {arbitrary_name}` `value = {arbitrary_value}`		Specified for `<html>`, rendered as: `<html name="value"`>
`<title>`	none	none	Page title
`<meta>`	`<content>` `<charset>` `<http-equiv>` `<name>` `<scheme>`	none
`<link>`	`<defer>` `<ie_condition>` `<charset>` `<hreflang>` `<media>` `<rel>` `<rev>` `<sizes>` `<src_type>` `<target>` `<type>`	none
`<css>`	`<defer>` `<ie_condition>` `<charset>` `<hreflang>` `<media>` `<rel>` `<rev>` `<sizes>` `<src>` `<src_type>` `<target>` `<type>`	none
`<script>`	`<defer>` `<ie_condition>` `<async>` `<charset>` `<src>` `<src_type>` `<type>`	none

Generic layout

Generic layouts define the contents and detailed structure inside the <body> section of the HTML page markup.

Conventional file location

Conventionally generic layout files must be located as follows:

Module generic layouts: <module_dir>/view/frontend/layout
Theme generic layouts: <theme_dir>/<Namespace>_<Module>/layout

Structure and allowed layout instructions

The following table describes the instructions specific for generic layout files. For the descriptions of common layout instructions see Layout instructions.

Element	Attributes	Parent of	Description
`<layout>`	`xsi:noNamespaceSchemaLocation="{path_to_schema}"`	`<container>` `<update>`	Mandatory root element.
`<update>`	`handle="{name_of_handle_to_include}"`	none
`<container>`	`name="root"` For a complete list of attributes, see Layout instructions	`<block>` `<container>` `<referenceBlock>` `<referenceContainer>`	Mandatory element.

Sample generic layout:

<layout xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:View/Layout/etc/layout_generic.xsd">
    <update handle="formkey"/>
    <update handle="adminhtml_googleshopping_types_block"/>
    <container name="root">
        <block class="Magento\Backend\Block\Widget\Grid\Container" name="googleshopping.types.container" template="Magento_Backend::widget/grid/container/empty.phtml"/>
    </container>
</layout>
Copied to your clipboard
<layout xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:View/Layout/etc/layout_generic.xsd">
    <update handle="formkey"/>
    <update handle="adminhtml_googleshopping_types_block"/>
    <container name="root">
        <block class="Magento\Backend\Block\Widget\Grid\Container" name="googleshopping.types.container" template="Magento_Backend::widget/grid/container/empty.phtml"/>
    </container>
</layout>
