Create an Admin page

This tutorial gives instructions for the creation of a module that displays a simple page in the Admin.

For the purposes of this tutorial 'MyCompany' is the name of the company associated with a module named ExampleAdminNewPage.

Working directory

Start by creating the working directory for all the module files.

In your development environment under the app/code directory, run the following command:

Copied to your clipboard
mkdir -p MyCompany/ExampleAdminNewPage

This command creates the MyCompany company directory and the ExampleAdminNewPage module directory. The latter will be the root directory for the module we will create.

Initial boilerplate files

These initial boilerplate files are the bare essential files needed for any module.

composer.json file

In the module's root directory, create the file composer.json. This file gives composer the ability to install this module and its dependencies. For more information see: composer.json.

Copied to your clipboard
{
"name": "mycompany/sample-module-minimal",
"description": "A module that creates a page in the Admin area",
"type": "magento2-module",
"version": "1.0.0",
"license": [
"OSL-3.0",
"AFL-3.0"
],
"require": {
"php": "~7.2.0||~7.3.0"
},
"autoload": {
"files": [ "registration.php" ],
"psr-4": {
"MyCompany\\ExampleAdminNewPage\\": ""
}
}
}

registration.php file

In the module's root directory, create the file registration.php. This file registers the module MyCompany_ExampleAdminNewPage with the application.

For more information see: registering your component.

Copied to your clipboard
<?php
/**
* Copyright &copy; Magento, Inc. All rights reserved.
* See COPYING.txt for license details.
*/
use Magento\Framework\Component\ComponentRegistrar;
ComponentRegistrar::register(
ComponentRegistrar::MODULE,
'MyCompany_ExampleAdminNewPage',
__DIR__
);

etc/module.xml file

In the module's root directory, create a new directory called etc. Under that directory, create the file module.xml. This file specifies the name and setup version of this module.

For more information see: naming your component.

Copied to your clipboard
<?xml version="1.0"?>
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:Module/etc/module.xsd">
<module name="MyCompany_ExampleAdminNewPage">
</module>
</config>

If your module does not implement Declarative Schema, define the setup_version attribute in the module element.

Copied to your clipboard
<module name="MyCompany_ExampleAdminNewPage" setup_version="1.0.0">

If your module has a dependency with other modules, you can change the loading order sequence of the module by using the sequence node. In the example below, MyCompany_ExampleAdminNewPage will be loaded after the Magento_Checkout module.

Copied to your clipboard
<module name="MyCompany_ExampleAdminNewPage">
<sequence>
<module name="Magento_Checkout"/>
</sequence>
</module>

Routing and navigation

Before we can view the module's page, we need a way to navigate to it. These files create a link to the page in the left navigation and indicates how to resolve requests for that page.

For more information on this topic, see: routing.

etc/adminhtml/menu.xml file

Under the created etc directory, create a new directory called adminhtml. Under that directory, create the file menu.xml. This XML file adds new menu items to the Admin.

The menu.xml file provided below adds two items in the Content section of the left navigation:

  1. A new separate section with the title Greetings under Content.

  2. A link with the label Hello World that leads to a page request for exampleadminnewpage/helloworld/index underneath that new section.

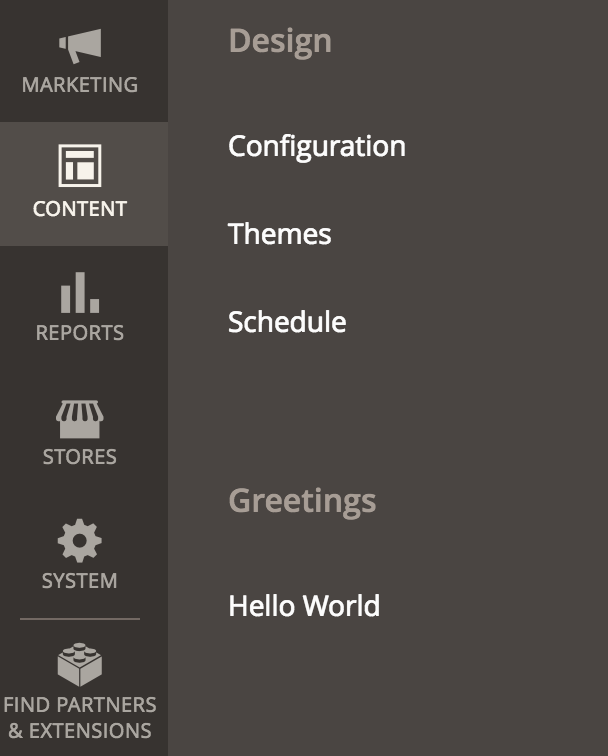

    Hello World menu item

The following parts make up the generated page request link to the Hello World page:

  • exampleadminnewpage - This is the frontName. Because its purpose is to help route requests to the correct module, we give it the same name as the module, but this is not required.
  • helloworld - This specifies the name of the controller to use.
  • index - In the XML file, since the action for the controller is not specified, the application uses the default value index.
Copied to your clipboard
<?xml version="1.0"?>
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_Backend:etc/menu.xsd">
<menu>
<add id="MyCompany_ExampleAdminNewPage::greetings" title="Greetings" translate="title" module="MyCompany_ExampleAdminNewPage" parent="Magento_Backend::content" sortOrder="50" dependsOnModule="MyCompany_ExampleAdminNewPage" resource="MyCompany_ExampleAdminNewPage::greetings"/>
<add id="MyCompany_ExampleAdminNewPage::greetings_helloworld" title="Hello World" translate="title" module="MyCompany_ExampleAdminNewPage" parent="MyCompany_ExampleAdminNewPage::greetings" sortOrder="10" dependsOnModule="MyCompany_ExampleAdminNewPage" action="exampleadminnewpage/helloworld" resource="MyCompany_ExampleAdminNewPage::greetings"/>
</menu>
</config>

etc/adminhtml/routes.xml file

Under etc/adminhtml create the file routes.xml. The contents of this XML file tells the application to route requests that use the frontName exampleadminnewpage to this module.

Copied to your clipboard
<?xml version="1.0"?>
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:App/etc/routes.xsd">
<router id="admin">
<route id="exampleadminnewpage" frontName="exampleadminnewpage">
<module name="MyCompany_ExampleAdminNewPage"/>
</route>
</router>
</config>

Page controller

Now that we have a link to the Hello World page, we need to create the file needed to handle that request.

Controller/Adminhtml/HelloWorld/Index.php file

In the module's root directory, run the following command:

Copied to your clipboard
mkdir -p Controller/Adminhtml/HelloWorld

Inside Controller/Adminhtml/HelloWorld directory, create the file Index.php. This file is the class assigned to the default Index action for the HelloWorld controller. Since the admin area serves this page, the file belongs in the Adminhtml directory, and the class itself extends \Magento\Backend\App\Action.

Copied to your clipboard
<?php
/**
* Copyright &copy; Magento, Inc. All rights reserved.
* See COPYING.txt for license details.
*/
namespace MyCompany\ExampleAdminNewPage\Controller\Adminhtml\HelloWorld;
use Magento\Backend\App\Action;
use Magento\Backend\App\Action\Context;
use Magento\Framework\App\Action\HttpGetActionInterface;
use Magento\Framework\View\Result\Page;
use Magento\Framework\View\Result\PageFactory;
/**
* Class Index
*/
class Index extends Action implements HttpGetActionInterface
{
const MENU_ID = 'MyCompany_ExampleAdminNewPage::greetings_helloworld';
/**
* @var PageFactory
*/
protected $resultPageFactory;
/**
* Index constructor.
*
* @param Context $context
* @param PageFactory $resultPageFactory
*/
public function __construct(
Context $context,
PageFactory $resultPageFactory
) {
parent::__construct($context);
$this->resultPageFactory = $resultPageFactory;
}
/**
* Load the page defined in view/adminhtml/layout/exampleadminnewpage_helloworld_index.xml
*
* @return Page
*/
public function execute()
{
$resultPage = $this->resultPageFactory->create();
$resultPage->setActiveMenu(static::MENU_ID);
$resultPage->getConfig()->getTitle()->prepend(__('Hello World'));
return $resultPage;
}
}

Page view

Now that the application knows how to handle requests for the Hello World page, we need view files that define the look of the page.

Create the necessary directories for the files by running the following commands from the module's root directory:

Copied to your clipboard
mkdir -p view/adminhtml/layout
mkdir -p view/adminhtml/templates

These files belong in the view/adminhtml directory because the Admin area use these files during page generation.

view/adminhtml/layout/exampleadminnewpage_helloworld_index.xml file

This file defines the layout and structure of the index page for the HelloWorld controller. It sets the title to "Greetings" and assigns the helloworld.phtml template as the content in a Magento\Backend\Block\Template block class.

The name of this file uses the following pattern: routeId_controller_action.xml

Copied to your clipboard
<?xml version="1.0"?>
<page xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:View/Layout/etc/page_configuration.xsd">
<referenceBlock name="page.title">
<action method="setPageTitle">
<argument name="title" xsi:type="string">Greetings</argument>
</action>
</referenceBlock>
<body>
<referenceContainer name="content">
<block class="Magento\Backend\Block\Template" template="MyCompany_ExampleAdminNewPage::helloworld.phtml"/>
</referenceContainer>
</body>
</page>

view/adminhtml/templates/helloworld.phtml file

This template file contains the actual page content for the Hello World page.

Copied to your clipboard
<p>Hello World!</p>

Full module directory structure

The module is now complete. Your module's directory structure under app/code should look like the following:

Copied to your clipboard
MyCompany
|-- ExampleAdminNewPage
|
|-- Controller
| |-- Adminhtml
| |-- HelloWorld
| |-- Index.php
|-- etc
| |-- adminhtml
| | |-- menu.xml
| | |-- routes.xml
| |-- module.xml
|-- view
| |-- adminhtml
| |-- layout
| | |-- exampleadminnewpage_helloworld_index.xml
| |-- templates
| |-- helloworld.phtml
|-- composer.json
|-- registration.php

Installing the module

Now that the module is code-complete, run the following commands to install it:

  1. bin/magento module:status - This command shows a list of enabled/disabled modules.
  2. bin/magento module:enable MyCompany_ExampleAdminNewPage - If necessary, run this to enable the disabled module.
  3. bin/magento setup:upgrade - This command will properly register the module.
  4. bin/magento setup:di:compile - This command compiles classes used in dependency injections.
  5. bin/magento setup:static-content:deploy - (Production mode only) This command deploys static view files. If you are in developer mode, refer to Clean static files cache to refresh the static view files.
  6. bin/magento cache:clean - This command cleans the cache.

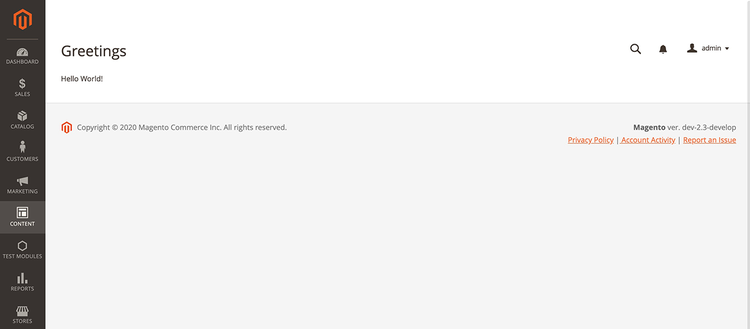

Once the module installation has completed, the link to the Hello World page should appear in the Greetings section under Content in the left navigation in the admin area. Clicking this link will take you to a page that looks like the one pictured below.

Hello World Page
