Enterprise Web App credential implementation guide

The following guide goes over finer implementation details for the Enterprise Web App credential. Before you proceed, we recommend you become familiar with admin authentication and the Enterprise Web App credential overview.

Table of contents

• Prerequisites and set up instructions

• Implementing the consent workflow

  • Step 1: Building the consent URL
  • Step 2: Verifying the redirect
  • Step 3: Generating access tokens after the admin consents

• Rotating client secrets

• Understanding key concepts of the Enterprise Web App Credential

  • Default redirect URI and redirect URI pattern
  • Implementing security features during the redirect
  • Refreshing access tokens
  • What happens when admin revokes consent
  • Testing the app before publishing
  • Restrictions after you publish the app

Prerequisites and set up instructions

data-slots=text

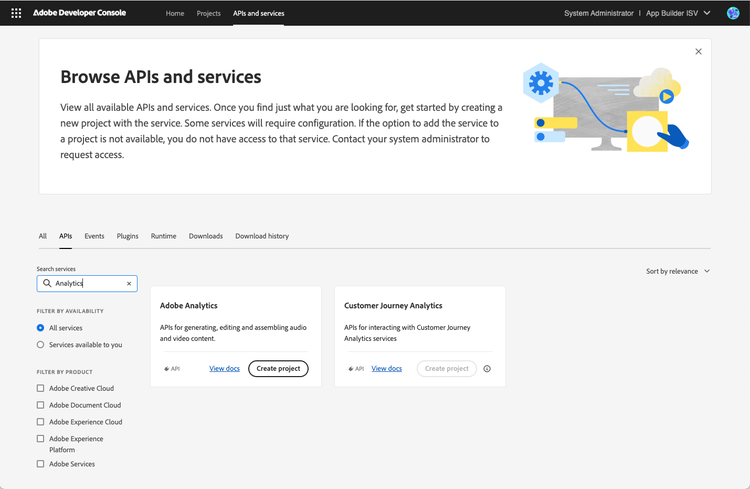

1. If you're a developer or system admin on an Adobe Technology Partner program partner org, you can log in to the Adobe Developer Console and visit the APIs and Services page.

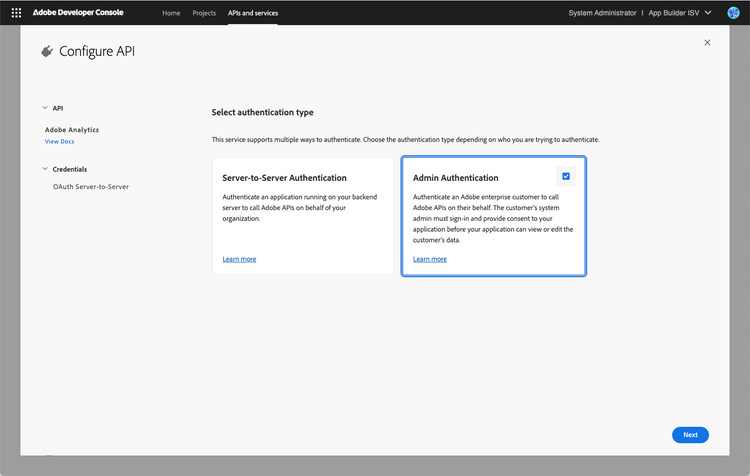

2. Find the API or service with which you wish to integrate and click on Create Project. If Admin authentication is available for the API you selected, it will appear as an option. If not, contact your Adobe representative to log an enhancement request.

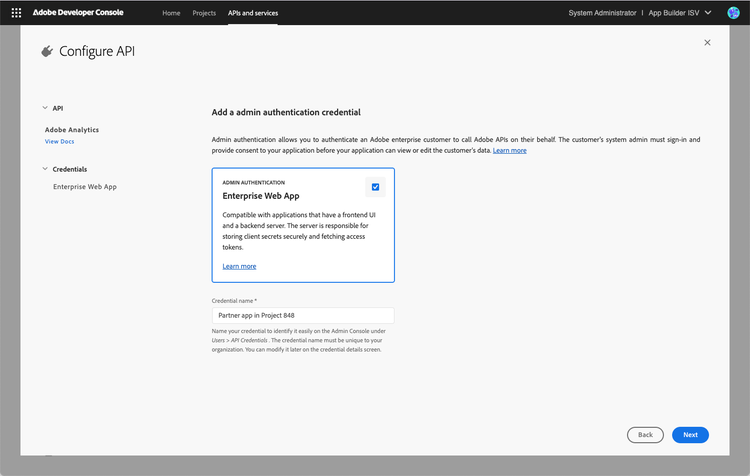

3. Once you select Admin authentication, the Enterprise Web App credential will be automatically selected on the next screen. Here you can supply the name of your app as it will appear on the Consent screen during testing. You can change your app name later and also at the time of app submission.

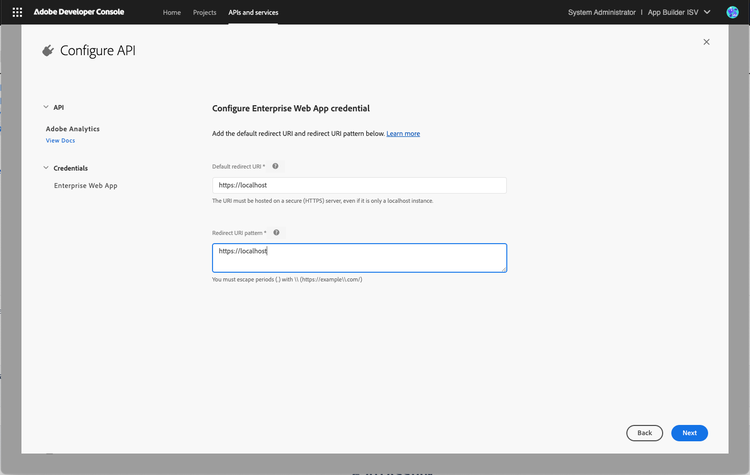

4. On the next screen supply the default redirect URI and redirect URL patterns your app supports for the consent workflow. You can supply https://localhost or https://localhost:<port> for local development. You can change the redirect URLs later too.

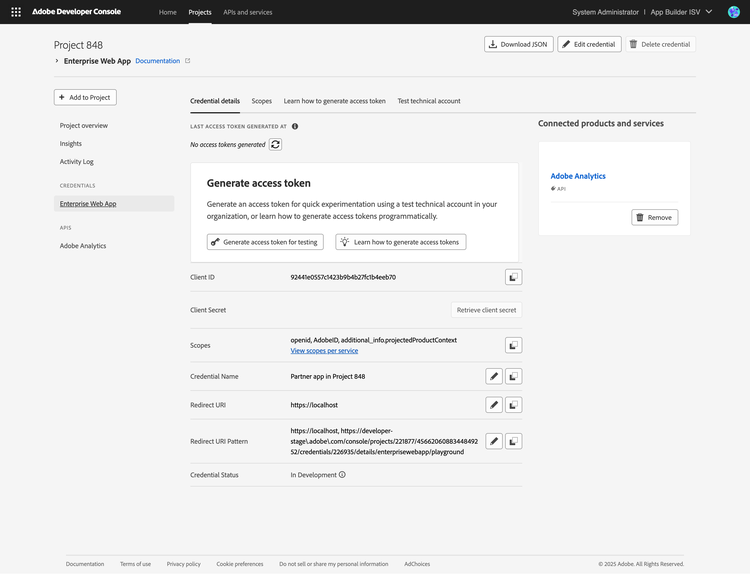

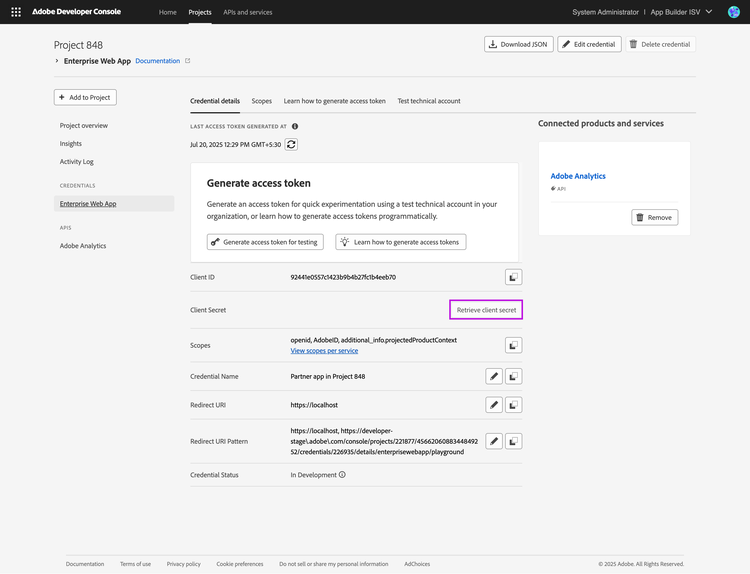

5. On the next screen you'll be shown the scopes available to your app. Once you hit save, a project will be created for you with an Enterprise Web App credential and the selected API. You can now begin implementing the consent workflow and access token generation.

Implementing the consent workflow

Step 1: Building the consent URL

The consent workflow starts when the customer admin visits the partner app and clicks on the 'Connect with Adobe' button. You must construct the consent URL and embed it into the 'Connect with Adobe' button. To construct the consent URL, follow these steps:

1. The Adobe IMS consent endpoint for the Enterprise Web App credential is https://id.adobe.com/consent.

2. Append these query parameters to the consent URL: client_id, scope, state, nonce, and optionally redirect_uri.

   1. Copy the value of client_id and scope from the Enterprise Web App credential overview page.
   2. Generate cryptographically secure random values for the state and nonce parameters. Store these securely in the user’s session on your backend. Furthermore, to retrieve the user's session later, store the session identifier in the user's browser (such as a secure cookie or encrypted local storage).
   3. Optionally specify a redirect_uri in the consent URL to redirect the admin to a URL different from your default redirect URI. The supplied URL must match one of the redirect URL patterns configured in the credential.

3. Embed the consent URL in the 'Connect with Adobe' button for the admin to click.

Step 2: Verifying the redirect

Once the admin provides consent and is redirected back to your app, a few query parameters will be appended to the redirect URL containing information on whether the admin consented to your app or not. The query parameters will also contain information critical to verifying the authenticity of the redirect.

1. The admin_consent parameter is set to true if the admin provided consent to your application, and false if the admin cancelled the workflow.

   The admin_consent parameter will not be present in the redirect in cases of error. Instead the error parameter will be present and the error code will be supplied as the value. Look at the API reference to view all error codes and what they mean.

2. The state parameter is set to the value you supplied in the consent URL. The parameter is used to prevent Cross-site Request Forgery (CSRF) attacks. To validate it:

   1. Send the state parameter and the user's session ID (stored in browser cookies or local storage) to your backend server.
   2. On your backend server, compare the state value in the redirect to the version saved in the user’s session on your server.
   3. If the values do not match, you must terminate the consent workflow and reject the redirect.

3. The id_token parameter is only present if the admin provided consent to your application. To validate it:

   1. Send the id_token parameter and the user's session ID (stored in browser cookies or local storage) to your backend server.
   2. On your backend server, inspect the id_token and validate its signature (view sample code).
   3. On your backend server, extract the value of the nonce claim from the id_token (view sample code). Compare the value of the nonce claim to the version saved in the user’s session on your server.
   4. If the signature of the id_token is not valid or the value of the nonce claim does not match, you must terminate the consent workflow and reject the redirect.

data-slots=text

Step 3: Generating access tokens after the admin consents

Once you have verified the redirect, you are ready to generate access tokens. At this stage, your backend system can persist the mapping between the customer account and the Adobe org id.

data-slots=text

The customer org id can be extracted from the org_id claim in the id_token. The value of the org_id, along with your client_id, client_secret, and scopes are then used to generate access tokens on behalf of the customer.

The following cURL command generates access tokens for the technical account set up in the customer org. The HTTP response for the cURL request contains

1. The access_token you can use to call Adobe APIs on the customer's behalf.
2. The expires_in value in seconds that determines how soon the access token will expire.

curl -X POST 'https://ims-na1.adobelogin.com/ims/token/v3'
     -H 'Content-Type: application/x-www-form-urlencoded'
     -d 'grant_type=client_credentials'
     -d 'client_id=<YOUR_CLIENT_ID>'
     -d 'client_secret=<YOUR_CLIENT_SECRET>'
     -d 'scope=<COMMA_SEPARATED_SCOPES>'
     -d 'org_id=<ORG_ID_EXTRACTED_FROM_A_VERIFIED_ID_TOKEN>'

Sample response

{
    "access_token": "ey.....",
    "expires_in": 3599
}

Rotating client secrets

Rotating client secrets periodically is recommended because your application will deal with Adobe customer data. Furthermore, you must rotate your client secret immediately if you believe it has been compromised.

Client secret for the Enterprise Web App credential can be rotated through the Dev Console UI. To rotate client secrets through the UI, follow the steps below on the Enterprise Web App credential overview screen:

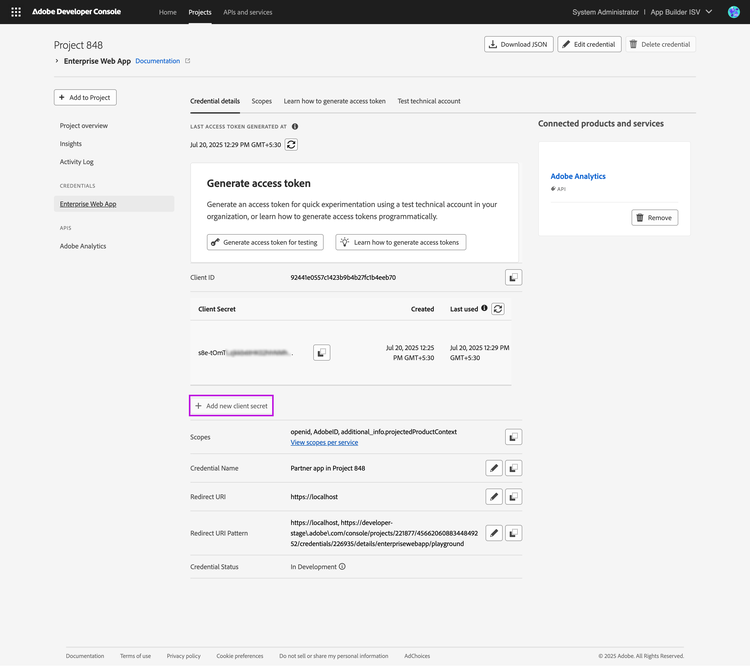

1. Add a new client secret to your credential.

2. Update your application to replace your old client secret with the new one you added.
3. Check the client secret last used timestamp to make sure your application is no longer using the old client secret.

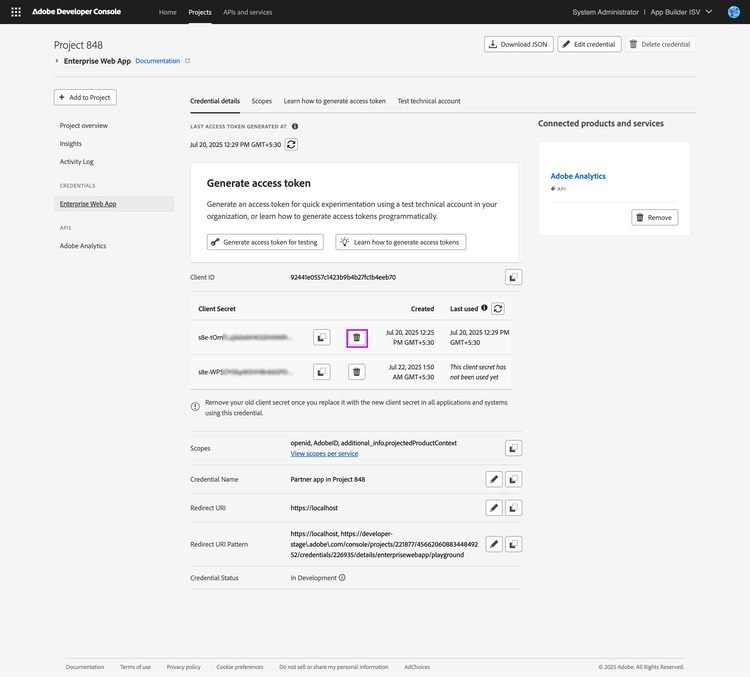

4. Once you've confirmed your application is using the new secret, you can safely delete the old one.

data-slots=text

Rotating client secrets programmatically

Programmatic rotation of Enterprise Web App client secrets is not currently supported.

Understanding key concepts of the Enterprise Web App Credential

Default redirect URI and redirect URI pattern

Once the consent screen loads the admin can provide consent to your app or cancel the workflow. In either case and even in cases of error, the admin will be redirected back to your application.

The default redirect URI is used if no specific redirect_uri is passed in the consent URL. It is also used in case an error occurs during the consent workflow. The default redirect URI must be an absolute HTTPS URL without wildcards, up to 256 characters. For example: https://localhost, https://localhost:8000, https://example.com/redirect.

However, if a redirect_uri was specified in the consent URL and matches one of the redirect URL patterns configured in your credential, Adobe will redirect the admin to the specified redirect URL.

The redirect URL pattern is a comma-separated list of URIs with wildcards used to validate any redirect_uri specified in the consent URL. The redirect URL pattern can be up to 512 characters. It must contain https URLs and supports wildcards to combine multiple redirect URLs together.

As each redirect URI pattern is treated as a regex, any Periods . in the pattern must be escaped as \\.. For security reasons, wildcards are not allowed in subdomains or HTTP port, they're only allowed in the HTTP path. For example: https://data\\.myapp\\.com/redirect/*.

Implementing security features during the redirect

Once the admin provides consent and is redirected back to your app, you must verify that the redirect is legitimate and triggered by Adobe.

1. Read the section on Implementing the consent workflow, especially Step 2: Verifying the redirect to understand verification steps in detail.
2. View the sample code available in NodeJS, Python, and Java to implement the verification logic in your application.
3. Ensure the verification logic is implemented in the backend server.

Refreshing access tokens

The Enterprise Web App credential enables partner apps to generate access tokens, however, no refresh tokens are generated. This is because the partner app can use its client_id, client_secret, scope, and the customer org_id at any time to generate another access token. Refresh tokens are simply not required.

What happens when admin revokes consent

As soon as a customer admin revokes consent, the partner app can no longer generate access tokens on behalf of that customer. Any existing access tokens may continue to work for up to an hour.

Furthermore, when the consent is revoked, the technical account created in the customer org during the consent is also deleted.

Lastly, since the partner app is not notified when the consent is revoked, we recommend that your app handles token errors gracefully and prompt for reauthorization if needed.

data-slots=text

Testing the app before publishing

After you have created a Project on the Developer Console and set up an Enterprise Web App credential, you can add a Test technical account to the credential.

Usually when a customer installs a partner built app, the partner owns the credential and the customer owns the technical account. However, for testing, the partner can "install" the app in their own organization and a test technical account will be created.

You can create a test technical account in several ways:

1. Click on the 'Generate access token for testing' button on the Enterprise Web App Credential overview page.
2. Use the credential playground - 'Learn how to generate access token' tab on the Enterprise Web App Credential overview page.
3. Provide consent to your own application by manually visiting the consent URL as an admin in your own organization.

Once a test technical account is set up, you can assign product profiles to it by visiting the Test technical account tab on the Enterprise Web App Credential overview page.

Your organization's admin can view and manage the product profiles assigned to the test technical account on the Adobe Admin Console > Users > API credentials tab.

Note:

1. Adding or removing product profiles to the test technical account has no effect on the product profiles customer admins assign to the technical accounts in their orgs.
2. Furthermore, removing the test technical account from the Enterprise Web App credential does not affect any technical accounts on customer orgs that were created when customer admins provided consent to your app.

Restrictions after you publish the app

To safeguard Adobe customer data, Adobe only allows customers to consent to your app after your app has been reviewed by Adobe. Each app starts out 'In Development' and is promoted to 'In Production' only after it passes the Adobe review.

So, once you finish developing your app and are ready to publish, you must fill out listing details and submit the app for Adobe review. See our submission guide for instructions.

After you submit your app for review or once the app is published, the following restrictions apply to the Enterprise Web app credential in your Project.

1. You cannot add or remove APIs connected to the Enterprise Web App credential.
2. You cannot remove the Adobe Exchange redirect URL pattern added to the list of redirect URL patterns.
