Generate and Edit a Variant (Server-to-Server)

This guide walks through a complete end-to-end workflow using OAuth Server-to-Server authentication, covering a catalog of company-owned templates, variation generation, and final editing in Adobe Express using the Embed SDK.

Overview

In this workflow, we present a Server-to-Server scenario where:

  1. The organization owns a small catalog of tagged Express templates that are shared with the technical account of the Server-to-Server credential.
  2. End users browse that shared catalog inside your app—no per-user OAuth sign-in.
  3. Your backend generates a variation server-side using the technical account's access token.
  4. The variation lands in an org-owned Express Storage project shared with the end user, so they can open it natively in the embedded Adobe Express experience and keep editing.

This pairs naturally with the OAuth Web App workflow: use OAuth when each user works on their own templates and the variation should land in their personal folder in Adobe Express; use Server-to-Server when the company curates the templates and you want a single backend integration to drive variation creation and sharing.

Prerequisites

Steps 1–5 below (token, list templates, inspect tags, generate, poll) work without any Admin Console setup—they rely only on the technical account's own capabilities and the templates you've directly shared with it. Only step 6 (the end user opening the variation via Embed SDK) requires the shared-project setup described under Admin Console setup.

Developer and template authoring setup

You can complete all of this yourself, no Admin Console rights required:

Admin Console setup

data-variant=info

data-slots=text
One-time setup, requires an Adobe org admin, needed only for the final hand-off to the end user.

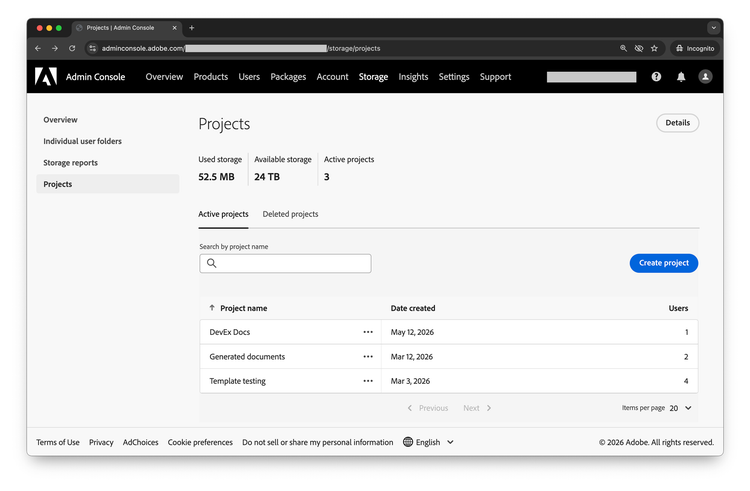

Storage project

https://adminconsole.adobe.com/<ORG_ID>/storage/projects/<PROJECT_URN>

1. Get a Server-to-Server access token

Unlike the OAuth Web App flow, there is no user redirect. Your backend asks Adobe IMS directly for an access token using the client_credentials grant. This call must be server-side because it includes your client_secret.

data-slots=heading, code

data-repeat=3

data-languages=bash, javascript, python

cURL

curl -s -X POST 'https://ims-na1.adobelogin.com/ims/token/v3' \
  -H 'Content-Type: application/x-www-form-urlencoded' \
  --data-urlencode 'grant_type=client_credentials' \
  --data-urlencode "client_id=$CLIENT_ID" \
  --data-urlencode "client_secret=$CLIENT_SECRET" \
  --data-urlencode 'scope=openid,AdobeID,ee.express_api'

JavaScript (Node 18+)

const body = new URLSearchParams({
  grant_type: 'client_credentials',
  client_id: process.env.CLIENT_ID,
  client_secret: process.env.CLIENT_SECRET,
  scope: 'openid,AdobeID,ee.express_api',
});

const resp = await fetch('https://ims-na1.adobelogin.com/ims/token/v3', {
  method: 'POST',
  headers: { 'Content-Type': 'application/x-www-form-urlencoded' },
  body,
});
const tokens = await resp.json();
// tokens: { access_token, expires_in, token_type, ... }

Python

import os, requests

resp = requests.post(
    "https://ims-na1.adobelogin.com/ims/token/v3",
    data={
        "grant_type": "client_credentials",
        "client_id": os.environ["CLIENT_ID"],
        "client_secret": os.environ["CLIENT_SECRET"],
        "scope": "openid,AdobeID,ee.express_api",
    },
)
tokens = resp.json()

Cache access_token in memory (or your secret store) until Date.now() + (expires_in - 60) * 1000. The token is org-scoped—every request below runs as the technical account, not as an end user. Keep both client_secret and the access token on the server.

2. List available templates

With the access token, list the templates available to the technical account. Send Authorization: Bearer <ACCESS_TOKEN> and X-API-KEY: <CLIENT_ID> (the same client ID from your credential). The response includes any document the technical account owns or has been shared on—i.e. your company-curated catalog, since you control which templates get shared with that account.

data-variant=warning

data-slots=text
In a real app you should never call https://express-api.adobe.io directly from the browser; keep the access token and client_secret on the server and expose your own thin proxy routes (e.g. /api/templates, /api/generate) that forward to Adobe. The companion sample app shows this pattern end to end.
data-slots=heading, code

data-repeat=3

data-languages=bash, javascript, python

cURL

curl -s 'https://express-api.adobe.io/beta/tagged-documents?start=0&limit=25&sortBy=-modifiedDate' \
  -H "Authorization: Bearer $ACCESS_TOKEN" \
  -H "X-API-KEY: $CLIENT_ID"

JavaScript (fetch)

const resp = await fetch(
  'https://express-api.adobe.io/beta/tagged-documents?start=0&limit=25&sortBy=-modifiedDate',
  {
    headers: {
      Authorization: `Bearer ${accessToken}`,
      'X-API-KEY': clientId,
    },
  }
);
const { documents, paging } = await resp.json();

Python

resp = requests.get(
    "https://express-api.adobe.io/beta/tagged-documents",
    params={"start": 0, "limit": 25, "sortBy": "-modifiedDate"},
    headers={
        "Authorization": f"Bearer {access_token}",
        "X-API-KEY": client_id,
    },
)
data = resp.json()

Response shape:

{
  "documents": [
    {
      "id": "urn:aaid:sc:EU:e6723...",
      "name": "Demo Template.express",
      "thumbnailUrl": "https://aep-cs-blobstore-prod-irl1-data..."
    }
  ],
  "paging": {
    "totalRecords": 1,
    "nextUrl": ""
  }
}

The API does not currently support filtering by tag name or category server-side, so the "share with the technical account" convention is your catalog filter. If you need finer control (for example, a single tech account with templates for several teams), use a name prefix and filter client-side.

Render each document's thumbnailUrl and name as a card and let the user click one. Keep the id—you need it for steps 3 and 4.

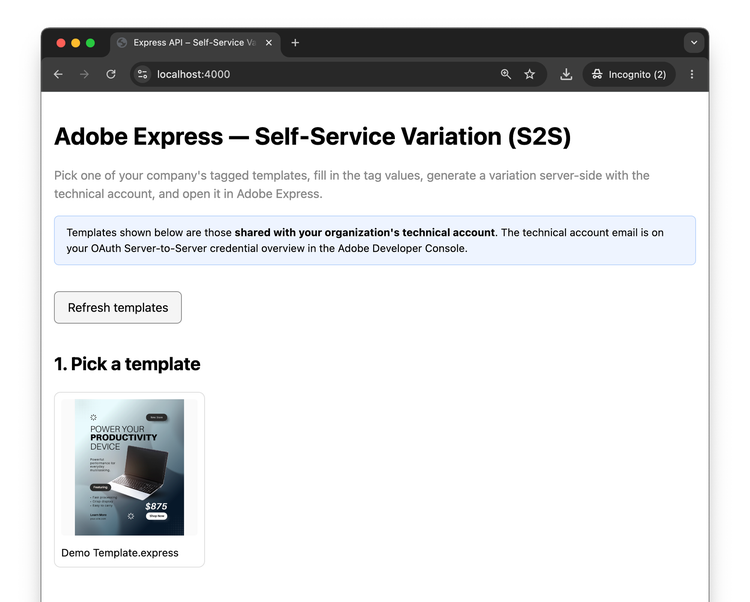

List the company's tagged templates

3. Inspect the template's tagged elements

Before the user can fill in tag values, your UI needs to know what tags the template actually has. Call GET /beta/tagged-documents/{id} for the selected document.

data-slots=heading, code

data-repeat=3

data-languages=bash, javascript, python

cURL

curl -s "https://express-api.adobe.io/beta/tagged-documents/$DOCUMENT_ID" \
  -H "Authorization: Bearer $ACCESS_TOKEN" \
  -H "X-API-KEY: $CLIENT_ID"

JavaScript (fetch)

const resp = await fetch(
  `https://express-api.adobe.io/beta/tagged-documents/${encodeURIComponent(documentId)}`,
  {
    headers: {
      Authorization: `Bearer ${accessToken}`,
      'X-API-KEY': clientId,
    },
  }
);
const detail = await resp.json();

Python

import urllib.parse
url = f"https://express-api.adobe.io/beta/tagged-documents/{urllib.parse.quote(document_id, safe='')}"
detail = requests.get(url, headers={
    "Authorization": f"Bearer {access_token}",
    "X-API-KEY": client_id,
}).json()

The response lists each page and its taggedElements. The type of each tag tells you what input to render: text accepts a plain string; image and video accept a pre-signed URL on an allowed domain (AWS, Dropbox, Azure).

This endpoint is paginated by page: append ?start=<n> to fetch tagged elements starting at page n if the template has more pages than the default page size returns.

{
  "id": "urn:aaid:sc:EU:e6723...",
  "name": "Demo Template.express",
  "documentPages": [
    {
      "pageNumber": 1,
      "pageTitle": "",
      "size": { "width": 1080, "height": 1350 },
      "taggedElements": [
				{
					"name": "use-case", "type": "text",
					"position": { "x": 151, "y": 407 },
					"size": { "width": 662, "height": 93 },
					"value": "PRODUCTIVITY"
				},
				{
					"name": "price", "type": "text",
					"position": { "x": 611, "y": 1016 },
					"size": { "width": 301, "height": 93 },
					"value": "$875"
				}
        {
          "name": "product-image", "type": "image",
          "position": { "x":  257, "y":  358 },
          "size": { "width": 648, "height": 546 }
        }
      ],
      "thumbnailUrl": "https://aep-cs-blobstore-prod-irl1-data..."
    }
  ]
}

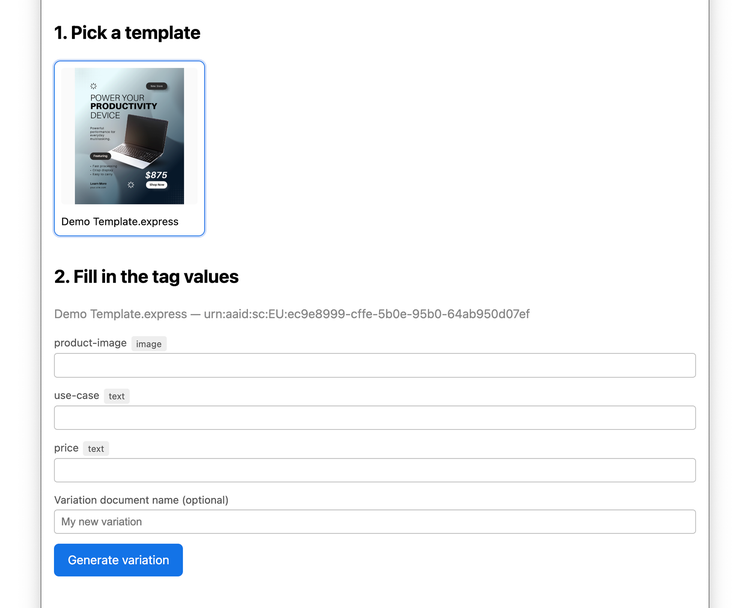

Inspect the template's tagged elements

4. Generate the variation

Submit the user's values as tagMappings. The keys are the tag names from step 3; the values are strings (text) or pre-signed URLs (images, videos). The request shape is identical to the OAuth flow—only the bearer token and projectId differ.

Set variationDetails.projectId to the URN of the shared project from the Admin Console setup. This is what makes the variation visible to the end users you've shared that project with; omit it and the variation lands in the technical account's own Express API Documents folder, where end users have no access. projectId is optional in the OpenAPI spec but effectively required for this workflow.

data-slots=heading, code

data-repeat=3

data-languages=bash, javascript, python

cURL

curl -s -X POST 'https://express-api.adobe.io/beta/generate-variation' \
  -H "Authorization: Bearer $ACCESS_TOKEN" \
  -H "X-API-KEY: $CLIENT_ID" \
  -H 'Content-Type: application/json' \
  -d '{
    "id": "'"$DOCUMENT_ID"'",
    "variationDetails": {
      "preferredDocumentName": "Macbook Neo",
      "projectId": "'"$SHARED_PROJECT_ID"'",
      "tagMappings": {
        "use-case": "EVERYDAY",
        "price": "$520",
        "product-image": "https://uc4fcd1dc97e1127dcb839ff192c.dl..."
      }
    }
  }'

JavaScript (fetch)

const resp = await fetch('https://express-api.adobe.io/beta/generate-variation', {
  method: 'POST',
  headers: {
    Authorization: `Bearer ${accessToken}`,
    'X-API-KEY': clientId,
    'Content-Type': 'application/json',
  },
  body: JSON.stringify({
    id: documentId,
    variationDetails: {
      preferredDocumentName: 'Macbook Neo',
      projectId: sharedProjectId,
      tagMappings: {
        'use-case': "EVERYDAY",
        'price': "$520",
        'product-image': 'https://uc4fcd1dc97e1127dcb839ff192c.dl...',
      },
    },
  }),
});
const { jobId, statusUrl } = await resp.json();

Python

resp = requests.post(
    "https://express-api.adobe.io/beta/generate-variation",
    headers={
        "Authorization": f"Bearer {access_token}",
        "X-API-KEY": client_id,
        "Content-Type": "application/json",
    },
    json={
        "id": document_id,
        "variationDetails": {
            "preferredDocumentName": "Macbook Neo",
            "projectId": shared_project_id,
            "tagMappings": {
                "use-case": "EVERYDAY",
                "price": "$520",
                "product-image": "https://uc4fcd1dc97e1127dcb839ff192c.dl..."
            },
        },
    },
)
job = resp.json()

Response (HTTP 202):

{
  "jobId": "af121560-218e-4dd9-918d-add12b3b6d98",
  "statusUrl": "https://express-api.adobe.io/status/af121560-218e-4dd9-918d-add12b3b6d98"
}

The variation is created by the technical account. With a valid projectId and the Admin Console setup from Prerequisites in place, it lands in the shared project and is visible to the end users you've shared that project with. Omit projectId and it lives in the technical account's own Express API Documents folder instead—fine for validating steps 1–5, but the end user won't be able to open it in step 6.

Hold on to jobId for the next step.

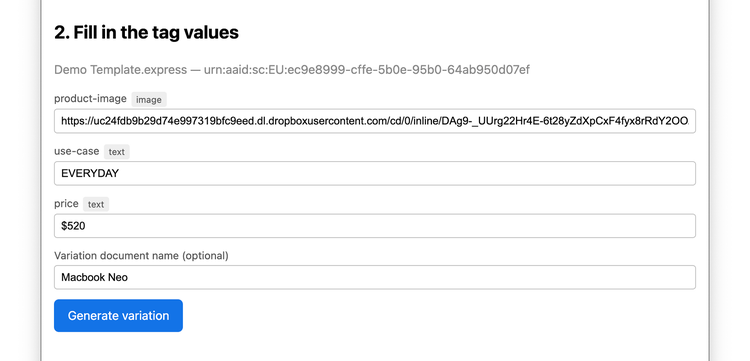

Filled out tag mappings

5. Poll the job

GET /status/{jobId} returns running until the variation is ready, then succeeded (or failed/partially_succeeded). Poll every few seconds.

data-slots=heading, code

data-repeat=3

data-languages=bash, javascript, python

cURL

curl -s "https://express-api.adobe.io/status/$JOB_ID" \
  -H "Authorization: Bearer $ACCESS_TOKEN" \
  -H "X-API-KEY: $CLIENT_ID"

JavaScript (fetch)

async function pollJob(jobId, accessToken, clientId) {
  while (true) {
    const r = await fetch(`https://express-api.adobe.io/status/${encodeURIComponent(jobId)}`, {
      headers: {
        Authorization: `Bearer ${accessToken}`,
        'X-API-KEY': clientId,
      },
    }).then((r) => r.json());
    if (['succeeded', 'failed', 'partially_succeeded'].includes(r.status)) return r;
    await new Promise((res) => setTimeout(res, 3000));
  }
}

Python

import time

def poll_job(job_id, access_token, client_id):
    while True:
        r = requests.get(
            f"https://express-api.adobe.io/status/{job_id}",
            headers={
                "Authorization": f"Bearer {access_token}",
                "X-API-KEY": client_id,
            },
        ).json()
        if r["status"] in ("succeeded", "failed", "partially_succeeded"):
            return r
        time.sleep(3)

When the job succeeds, you get the new document back:

{
  "jobId": "af121560-218e-4dd9-918d-add12b3b6d98",
  "status": "succeeded",
  "document": {
    "id": "urn:aaid:sc:EU:3da...",
    "name": "Macbook Neo",
    "thumbnailUrl": "https://...signed-url..."
  }
}

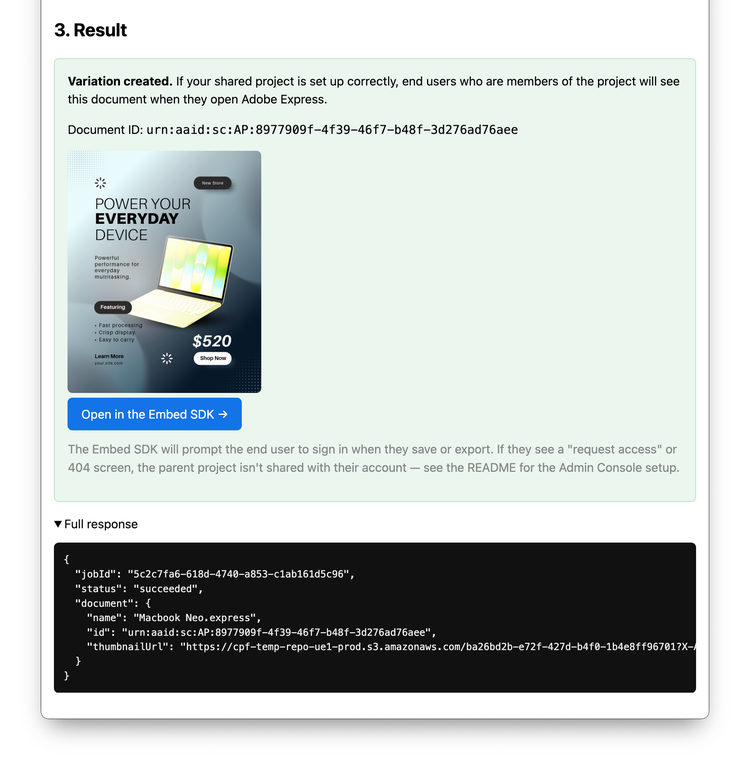

Variation created

The variation is now stored in the user's account. Check the My Stuff > Projects section, select the Project and then the Express API Documents folder to see the variation.

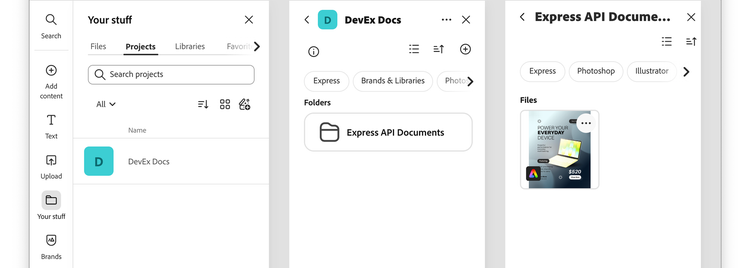

Variation in My Stuff

6. Open the variation with the Adobe Express Embed SDK

After the backend generates the variation, users can immediately customize or export the final result using the Adobe Express editor without leaving your experience thanks to the Embed SDK. This is especially useful in self-service scenarios where business users start from company-approved templates but still need lightweight creative control over the generated variation.

The Embed SDK exposes an Editor Workflow with an edit() method that takes the same documentId (the variation URN returned in step 5) and launches the Full Editor experience in your page.

6.1 Load and initialize the SDK

Load the SDK script, then call CCEverywhere.initialize once with the Embed SDK's Client ID and an appName that matches the Public App Name you set in the Developer Console.

data-variant=info

data-slots=heading, text

Embed SDK and Express API Client IDs

The Embed SDK and Express API rely on different Client IDs. Both are generated when you create credentials in the Developer Console, but the Projects that contain them are independent.
  await import('https://cc-embed.adobe.com/sdk/v4/CCEverywhere.js');

  const hostInfo = {
    clientId: '<CLIENT_ID>',
    appName: 'Embed SDK & Express API integration',
  };

  // lets the user start interacting with the embedded editor; sign-in is only prompted when they save or export.
  const configParams = { loginMode: 'delayed' };

  const { editor } = await window.CCEverywhere.initialize(hostInfo, configParams);

6.2 Open the variation for editing

Pass the variation URN from step 5 as documentId and call editor.edit():

const docConfig = { documentId: '<DOCUMENT_URN>' };
const appConfig = {};       // optional editor configuration
const exportConfig = [];    // optional export targets
const containerConfig = {}; // optional container configuration
editor.edit(docConfig, appConfig, exportConfig);

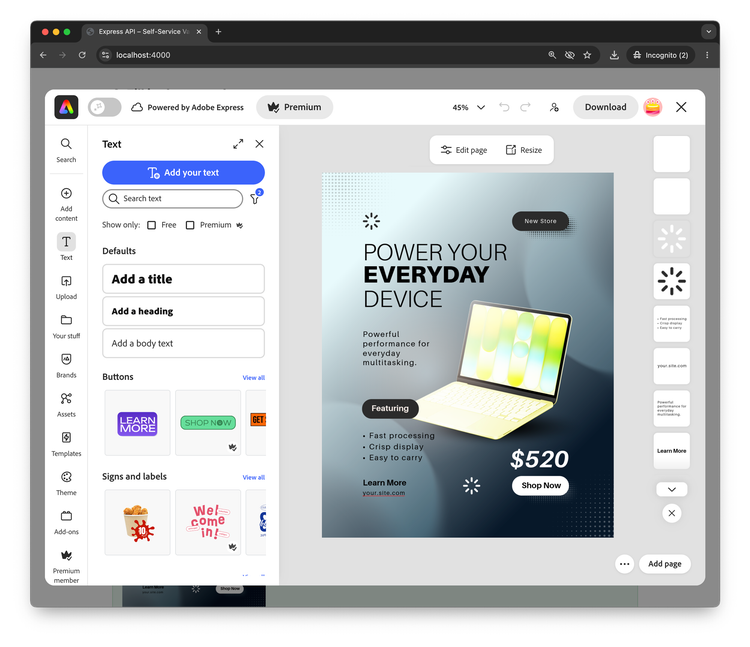

Variation in Embed SDK

For the full surface (appConfig, exportConfig, containerConfig), and other entry points available, please refer to the Adobe Express Embed SDK documentation.

data-variant=info

data-slots=heading, text

Open in Adobe Express

Alternatively, you can open the variation in Adobe Express (in a new Browser tab) by deep-linking to it via its URN: https://express.adobe.com/id/<DOCUMENT_URN>.

Next steps
