Smart Object Workflow

For authentication, API key, and storage setup, see Using these guides.

Example 1: Adding a linked smart object

Add a linked smart object layer, then call generate-manifest to confirm it appears as linked in the manifest.

Placeholders for step 1

Replace these placeholders in the request payload below:

Step 1 — Create composite (add linked smart object)

Endpoint: POST /v2/create-composite

Request payload:

{
    "image": {
        "source": {
            "url": "<SIGNED_INPUT_ASSET_GET_URL>"
        }
    },
    "edits": {
        "layers": [
            {
                "type": "smart_object_layer",
                "name": "Linked Added Smart Object",
                "operation": {
                    "type": "add",
                    "placement": {
                        "type": "top"
                    }
                },
                "smartObject": {
                    "isLinked": true,
                    "smartObjectFile": {
                        "source": {
                            "url": "<SIGNED_SMART_OBJECT_ASSET_GET_URL>"
                        }
                    }
                }
            }
        ]
    },
    "outputs": [
        {
            "destination": {
                "url": "<SIGNED_OUTPUT_POST_URL>"
            },
            "mediaType": "image/vnd.adobe.photoshop"
        }
    ]
}

The generated output is a PSD with a linked smart object layer added on top, as shown in the image below.

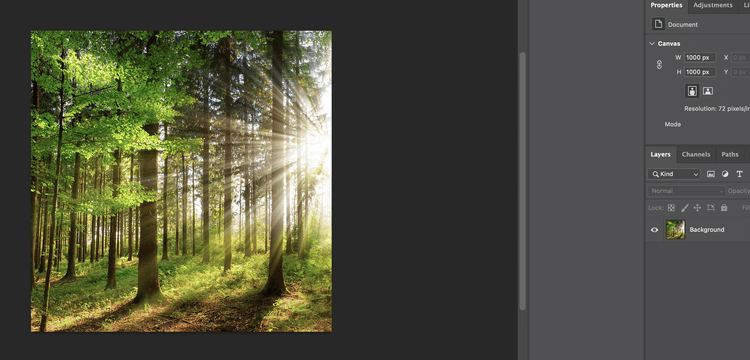

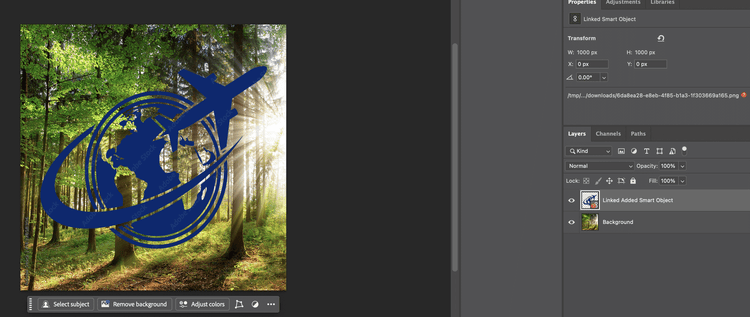

Before: Original PSD. After: PSD with linked smart object layer on top.

Step 2 — Generate manifest

Use the presigned GET URL of the output PSD from Step 1 as image.source.url below. That URL points to the PSD you just created.

Placeholders for step 2

Replace these placeholders in the request payload below:

Endpoint: POST /v2/generate-manifest

Request payload:

{
    "image": {
        "source": {
            "url": "<SIGNED_OUTPUT_PSD_GET_URL>"
        }
    },
    "outputs": [
        {
            "destination": {
                "embedded": "json"
            },
            "mediaType": "application/json"
        }
    ]
}

Use the generated PSD's URL from Step 1 as image.source.url. A call to this API initiates an asynchronous job and returns a response containing a URL. Use the value in the href field to poll for the status of the job and the same response will also contain the JSON manifest.

Step 3 — Result: linked smart object in manifest

Relevant layer snippet from the manifest JSON:

"smartObject": {
    "isSmartObject": true,
    "isLinked": true,
    "isValid": true,
    "smartObjectData": {
        "type": "smartObject",
        "transform": [
            0,
            0,
            1000,
            0,
            1000,
            1000,
            0,
            1000
        ],
        "fileInfo": {
            "relative": "../../df06670e-467a-4880-a697-cfc162f313c3/downloads/c89b3884-3df6-444e-9540-a0c26af33ddc.png",
            "name": "c89b3884-3df6-444e-9540-a0c26af33ddc.png",
            "path": "/tmp/df06670e-467a-4880-a697-cfc162f313c3/downloads/c89b3884-3df6-444e-9540-a0c26af33ddc.png",
            "fileType": "png",
            "linked": true
        }
    }
}

As seen from the manifest snippet above — for linked smart objects, the linked property is true along with the path information to the linked file.

Example 2: Replacing a smart object with a linked file

Edit an existing smart object layer and replace its content with a different linked file. The input PSD must already contain the smart object layer you want to replace. In this example, we use the output PSD from Example 1 and replace its linked smart object with another one.

Placeholders for example 2

Replace these placeholders in the request payload below:

Step 1 — Create composite (replace with a linked smart object)

Endpoint: POST /v2/create-composite

Request payload:

{
    "image": {
        "source": {
            "url": "<SIGNED_INPUT_ASSET_GET_URL>"
        }
    },
    "edits": {
        "layers": [
            {
                "type": "smart_object_layer",
                "name": "<EXISTING_SMART_OBJECT_LAYER_NAME>",
                "operation": {
                    "type": "edit"
                },
                "smartObject": {
                    "isLinked": true,
                    "smartObjectFile": {
                        "source": {
                            "url": "<SIGNED_NEW_SMART_OBJECT_GET_URL>"
                        }
                    }
                }
            }
        ]
    },
    "outputs": [
        {
            "destination": {
                "url": "<SIGNED_OUTPUT_POST_URL>"
            },
            "mediaType": "image/vnd.adobe.photoshop"
        }
    ]
}

The generated output is a PSD with the replaced linked smart object, as shown in the image below.

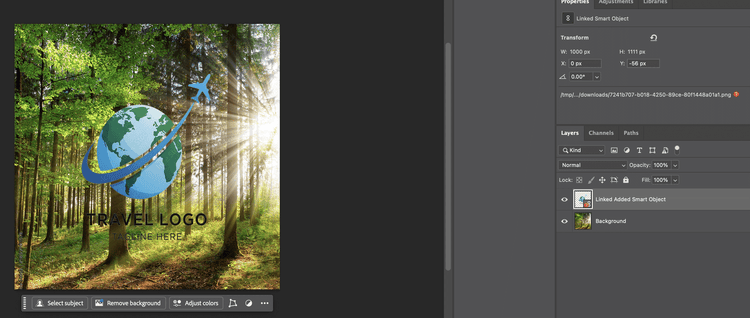

Before: PSD with linked smart object (from Example 1). After: PSD with replaced linked smart object.
