Personalization
You can retrieve personalized content from Adobe personalization solutions, including Adobe Target, Adobe Journey Optimizer, and Offer Decisioning.
You can also get same-page and next-page personalization capabilities through personalization destinations, such as Adobe Target and the custom personalization connection. To learn how to configure Experience Platform for same-page and next-page personalization, see the dedicated guide.
When using the Edge Network API, you must integrate the response provided by the personalization engine with the logic used to render content. Unlike the Web SDK, this API cannot automatically apply content returned by personalization solutions.
Terminology
Before working with Adobe personalization solutions, make sure to understand the following concepts:
- Offer: A marketing message that can have rules associated with it that specify who is eligible to see the offer.
- Decision: Informs the selection of an offer. Previously known as an offer activity.
- Schema: Informs the type of offer returned based on a decision.
- Scope: The scope of the decision.
- In Adobe Target, the scope is equivalent to the
mbox
. Theglobal mbox
is the__view__
scope - For Offer Decisioning, scopes are the Base64-encoded strings of JSON containing the activity and placement IDs that you want the offer decisioning service to use to propose offers.
- In Adobe Target, the scope is equivalent to the
The query
object
Retrieving personalized content requires an explicit request query object for a request example. The query object has the following format:
Copied to your clipboard{"query": {"personalization": {"schemas": ["https://ns.adobe.com/personalization/html-content-item","https://ns.adobe.com/personalization/json-content-item","https://ns.adobe.com/personalization/redirect-item","https://ns.adobe.com/personalization/dom-action"],"decisionScopes": ["alloyStore","siteWide","__view__","eyJhY[...]GMifQ"],"surfaces": ["web://example.html/","web://example.html/#sample-json-content"]}}}
Attribute | Type | Required / Optional | Description |
---|---|---|---|
schemas | String[] | Required for Target personalization. Optional for Offer Decisioning. | List of schemas used in the decision, to select the type of offers returned. |
scopes | String[] | Optional | List of decision scopes. Maximum 30 per request. |
The handle object
The personalized content retrieved from personalization solutions is presented in a personalization:decisions
handle, which has the following format for its payload:
Copied to your clipboard{"type":"personalization:decisions","payload":[{"id":"AT:eyJhY[...]iMCJ9","scope":"__view__","scopeDetails":{"decisionProvider":"TGT","activity":{"id":"131010"},"experience":{"id":"0"},"strategies":[{"algorithmID":"0","trafficType":"0"}]},"items":[{"id":"0","schema":"https://ns.adobe.com/personalization/dom-action","meta":{"offer.name":"Default Content","experience.id":"0","activity.name":"Luma target reporting","activity.id":"131010","experience.name":"Experience A","option.id":"2","offer.id":"0"},"data":{"type":"setHtml","format":"application/vnd.adobe.target.dom-action","content":"Customer Service not chrome","selector":"HTML > BODY > DIV.page-wrapper:eq(0) > FOOTER.page-footer:eq(0) > DIV.footer:eq(0) > DIV.links:eq(0) > DIV.widget:eq(0) > UL.footer:eq(0) > LI.nav:eq(1) > A:nth-of-type(1)","prehidingSelector":"HTML > BODY > DIV:nth-of-type(1) > FOOTER:nth-of-type(1) > DIV:nth-of-type(1) > DIV:nth-of-type(2) > DIV:nth-of-type(1) > UL:nth-of-type(1) > LI:nth-of-type(2) > A:nth-of-type(1)"}}]}]}
Attribute | Type | Description |
---|---|---|
payload.id | String | The decision ID. |
payload.scope | String | The decision scope that resulted in the proposed offers. |
payload.scopeDetails.decisionProvider | String | Set to TGT when using Adobe Target. |
payload.scopeDetails.activity.id | String | The unique ID of the offer activity. |
payload.scopeDetails.experience.id | String | The unique ID of the offer placement. |
items[].id | String | The unique ID of the offer placement. |
items[].data.id | String | The ID of the proposed offer. |
items[].data.schema | String | The schema of the content associated with the proposed offer. |
items[].data.format | String | The format of the content associated with the proposed offer. |
items[].data.language | String | An array of languages associated with the content from the proposed offer. |
items[].data.content | String | Content associated with the proposed offer in the format of a string. |
items[].data.selector | String | HTML selector used to identify the target DOM element for a DOM action offer. |
items[].data.prehidingSelector | String | HTML selector used to identify the DOM element to be hidden while handling a DOM action offer. |
items[].data.deliveryUrl | String | Image content associated with the proposed offer in the format of a URL. |
items[].data.characteristics | String | Characteristics associated with the proposed offer in the format of a JSON object. |
Sample API call
Copied to your clipboardcurl -X POST "https://edge.adobedc.net/ee/v2/interact?datastreamId={DATASTREAM_ID}" \-H "Content-Type: application/json" \-d '{"event": {"xdm": {"identityMap": {"email": [{"id": "user@example.com","primary": true}]},"eventType": "web.webpagedetails.pageViews","web": {"webPageDetails": {"URL": "https://alloystore.dev/","name": "home-demo-Home Page"}},"timestamp": "YYYY-08-09T14:09:20.859Z"}},"query": {"personalization": {"schemas": ["https://ns.adobe.com/personalization/html-content-item","https://ns.adobe.com/personalization/json-content-item","https://ns.adobe.com/personalization/redirect-item","https://ns.adobe.com/personalization/dom-action"],"decisionScopes": ["__view__","eyJhY[...]GMifQ"]}}}'
Copied to your clipboard{"requestId": "da20d11d-adac-458c-91ac-15bf4e420a15","handle": [{"payload": [{"id": "AT:eyJ[...]CJ9","scope": "__view__","scopeDetails": {"decisionProvider": "TGT","activity": {"id": "131010"},"experience": {"id": "0"},"strategies": [{"algorithmID": "0","trafficType": "0"}]},"items": [{"id": "0","schema": "https://ns.adobe.com/personalization/dom-action","meta": {"offer.name": "Default Content","experience.id": "0","activity.name": "Luma target reporting","activity.id": "131010","experience.name": "Experience A","option.id": "2","offer.id": "0"},"data": {"type": "setHtml","format": "application/vnd.adobe.target.dom-action","content": "Customer Service not chrome","selector": "HTML > BODY > DIV.page-wrapper:eq(0) > FOOTER.page-footer:eq(0) > DIV.footer:eq(0) > DIV.links:eq(0) > DIV.widget:eq(0) > UL.footer:eq(0) > LI.nav:eq(1) > A:nth-of-type(1)","prehidingSelector": "HTML > BODY > DIV:nth-of-type(1) > FOOTER:nth-of-type(1) > DIV:nth-of-type(1) > DIV:nth-of-type(2) > DIV:nth-of-type(1) > UL:nth-of-type(1) > LI:nth-of-type(2) > A:nth-of-type(1)"}}]}],"type": "personalization:decisions"}]}
Request parameters
Parameter | Type | Required | Description |
---|---|---|---|
configId | String | Yes | The datastream ID. |
requestId | String | No | Provide an external request tracing ID. If none is provided, the Edge Network will generate one for you and return it back in the response body / headers. |
Response parameters
Returns a 200 OK
status and one or more Handle
objects, depending on the edge services that are enabled in the datastream configuration.
Notifications
Send notifications when a prefetched content or view has been visited or rendered to the end user. In order for notifications to be fired off for the right scope, make sure to keep track of the corresponding id
for each scope.
Notifications with the right id
for the corresponding scopes are required to be fired in order for reporting to be reflected correctly.
Copied to your clipboardcurl -X POST "https://edge.adobedc.net/ee/v2/collect?datastreamId={DATASTREAM_ID}" \-H "Content-Type: application/json" \-d '{"events": [{"xdm": {"identityMap": {"email": [{"id": "user@example.com","primary": true}]},"eventType": "web.webpagedetails.pageViews","web": {"webPageDetails": {"URL": "https://alloystore.dev/","name": "home-demo-Home Page"}},"timestamp": "YYYY-08-09T14:09:20.859Z","_experience": {"decisioning": {"propositions": [{"id": "AT:eyJ[...]CJ9","scope": "__view__","items": [{"id": "0"}]}]}}}}]}'
Copied to your clipboard{"requestId": "f567a988-4b3c-45a6-9ed8-f283188a445e"}
Request parameters
Parameter | Type | Required | Description |
---|---|---|---|
datastreamId | String | Yes | The ID of the datastream used by the data collection endpoint. |
requestId | String | No | External external request tracing ID. If none is provided, the Edge Network will generate one for you and return it back in the response body / headers. |
silent | Boolean | No | Optional boolean parameter indicating whether the Edge Network should return a 204 No Content response with an empty payload. Critical errors are reported using the corresponding HTTP status code and payload. |
Response parameters
A successful response returns one of the following statuses, and a requestID
if none was provided in the requst.
202 Accepted
when the request was successfully processed;204 No Content
when the request was successfully processed and thesilent
parameter was set totrue
;400 Bad Request
when the request was not properly formed (e.g., the mandatory primary identity was not found).
Offer Decisioning
The Edge Network API can deliver personalized experiences managed in Offer Decisioning to the web channel. It supports a non-visual interface to create, activate, and deliver your activities and personalization experiences.
Prerequisites
Personalization using Offer Decisioning requires the following:
- Access to Adobe Journey Optimizer

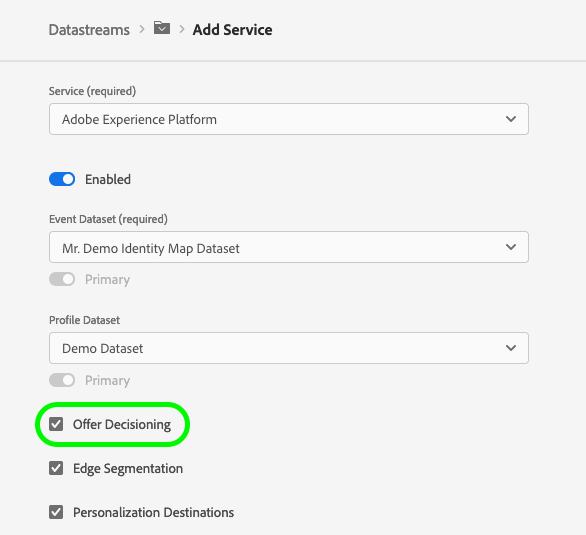

- Offer Decisioning must be enabled in the Datastream settings.
Defining decision scopes
The Offer decision engine uses Adobe Experience Platform data and Real-Time Customer profiles, along with the offer library, to deliver offers to the right customers and channels at the right time.
To learn more about the offer decisioning engine, see the dedicated documentation.
After configuring your datastream, you must define the decision scopes to be used in your personalization campaign.
Decision scopes are the Base64-encoded JSON strings containing the activity and placement IDs that you want the offer decisioning service to use when proposing offers.
Decision scope JSON
Copied to your clipboard{"activityId":"xcore:offer-activity:11cfb1fa93381aca","placementId":"xcore:offer-placement:1175009612b0100c"}
Decision scope Base64-encoded string
Copied to your clipboard"eyJhY3Rpdm[...]EwMGMifQ=="

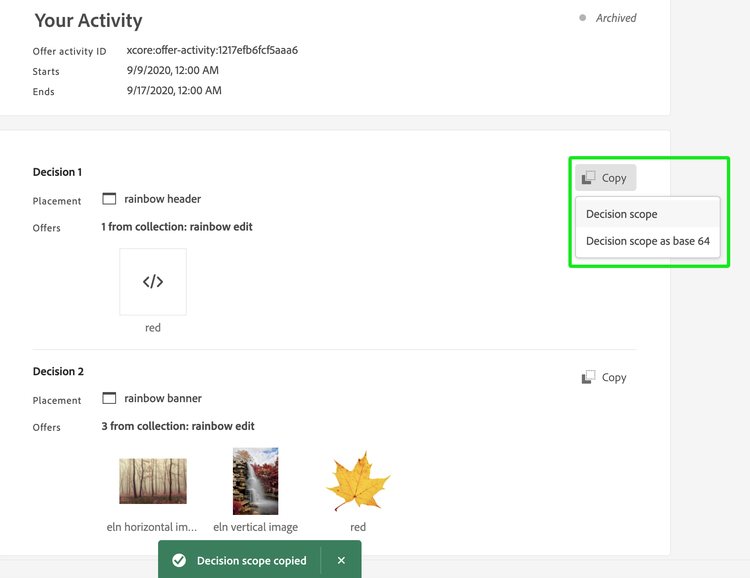

After you have created your offers and collections, define a decision scope. Copy the Base64-encoded decision scope. It is used in the query
object of the API request.
Copied to your clipboard"query":{"personalization":{"decisionScopes":["eyJ4ZG06YW[...]U3ZTdkYiJ9"]}}
Offer Decisioning example
Copied to your clipboardcurl -X POST 'https://edge.adobedc.net/ee/v2/interact?datastreamId={DATASTREAM_ID}' \-H 'Content-Type: application/json' \-d '{"event": {"xdm": {"eventType": "web.webpagedetails.pageViews","identityMap": {"ECID": [{"id": "05907638112924484241029082405297151763","authenticatedState": "ambiguous","primary": true}]},"web": {"webPageDetails": {"URL": "https://alloystore.dev","name": "Home Page"},"webReferrer": {"URL": ""}},"device": {"screenHeight": 1440,"screenWidth": 3440,"screenOrientation": "landscape"},"environment": {"type": "browser","browserDetails": {"viewportWidth": 3440,"viewportHeight": 1440}},"placeContext": {"localTime": "YYYY-03-22T22:45:21.193-06:00","localTimezoneOffset": 360},"timestamp": "YYYY-03-23T04:45:21.193Z","implementationDetails": {"name": "https://ns.adobe.com/experience/alloy/reactor","version": "1.0","environment": "serverapi"}},"data": {"page": {"pageInfo": {"pageName": "Promotions","siteSection": "Home"},"promos": {"heroPromos": "purse,shoes,sunglasses"},"customVariables": {"testGroup": "orange/black theme"},"events": {"homePage": true},"products": [{"productSKU": "abc123","productName": "shirt"}]},"__adobe.target": {"profile.eyeColor": "brown","profile.hairColor": "brown"}}},"query": {"personalization": {"decisionScopes": ["eyJ4ZG06YW[...]U3ZTdkYiJ9"]}}}'
Copied to your clipboard{"requestId": "b375077d-7e1d-4c18-b7d3-e4da0fb4fbc5","handle": [{"payload": [],"type": "personalization:decisions","eventIndex": 0},{"payload": [{"id": "120d5db7-181c-42c5-8653-88b3cd3e1e69","scope": "eyJ4ZG06YW[...]U3ZTdkYiJ9","activity": {"id": "xcore:offer-activity:14efca8941895181","etag": "1"},"placement": {"id": "xcore:offer-placement:12d544ae54e7e7db","etag": "1"},"items": [{"id": "xcore:personalized-offer:14efc848a3577d92","etag": "2","schema": "https://ns.adobe.com/experience/offer-management/content-component-json","data": {"id": "xcore:personalized-offer:14efc848a3577d92","format": "application/json","language": ["en-us"],"content": "{\n\t\"ODEFirstTest\" : \"Personalizaton Content\"\n}","characteristics": {"reporting": "testRequest"}}}]}],"type": "personalization:decisions","eventIndex": 0},{"payload": [{"key": "kndctr_53A16ACB5CC1D3760A495C99_AdobeOrg_identity","value": "CiYwN[...]9Lw==","maxAge": 34128000}],"type": "state:store"}]}
If the visitor qualifies for a personalization activity based on data sent to Offer Decisioning, then the relevant activity content is found under the handle
object, where the type is personalization:decisions
.
Other content is returned under the handle
object as well. Other content types are not relevant to Offer Decisioning personalization. If the visitor qualifies for multiple activities, they are contained in an array.
Property | Description | Example |
---|---|---|
scope | The decision scope associated with the proposed offers that were returned. | "scope": "eyJhY3Rpdm[...]EwMGMifQ==" |
activity.id | The unique ID of the offer activity. | "id": "xcore:offer-activity:11cfb1fa93381aca" |
placement.id | The unique ID of the offer placement. | "id": "xcore:offer-placement:1175009612b0100c" |
items.id | The unique ID of the proposed offer. | "id": "xcore:personalized-offer:124cc332095cfa74" |
schema | The schema of the content associated with the proposed offer. | "schema": "https://ns.adobe.com/experience/offer-management/content-component-html" |
data.id | The unique ID of the proposed offer. | "id": "xcore:personalized-offer:124cc332095cfa74" |
format | The format of the content associated with the proposed offer. | "format": "text/html" |
language | An array of languages associated with the content from the proposed offer. | "language": [ "en-US" ] |
content | Content associated with the proposed offer in the format of a string. | "content": "<p style="color:red;">20% Off on shipping</p>" |
deliveryUrl | Image content associated with the proposed offer in the format of a URL. | "deliveryURL": "https://image.jpeg" |
characteristics | JSON object containing the characteristics associated with the proposed offer. | "characteristics": { "foo": "bar", "foo1": "bar1" } |
