Resize Elements

Adobe Express provides a powerful unified API for resizing elements. The resize() method gives you fine-grained control over how elements change size, whether they maintain aspect ratios, and how visual details like strokes and corners are affected.

Understanding Resize Behavior

The resize() method accepts a ResizeOptions object with three mandatory components:

1. Dimensions: Specify width, height, or both (depending on the behavior).
2. Behavior: Controls aspect ratio handling via ResizeBehavior enumeration.
3. Visual Details: Choose whether to scale strokes, corners detailing, etc.

Resize Behaviors

Defined in the ResizeBehavior enumeration.

• ResizeBehavior.contain: Fits the element entirely within the specified dimensions.
• ResizeBehavior.cover: Ensures the element completely covers the specified area.
• ResizeBehavior.proportional: Maintains the element's aspect ratio.

Visual Details Flag

The avoidScalingVisualDetailsIfPossible flag determines how visual styling is handled:

• true: Preserves stroke widths, corner radii, etc.
• false: Scales all visual properties proportionally with the element.

Proportional Resizing

Proportional resizing maintains the element's aspect ratio while changing its size. Specify either width or height (never both) and the other dimension will adjust automatically.

Example: Resize by Width

Copy
Copied to your clipboard
// sandbox/code.js
import { editor, colorUtils, constants } from "express-document-sdk";

// Create a rectangle
const rect = editor.createRectangle();
rect.width = 200;
rect.height = 100;
rect.translation = { x: 100, y: 100 };
rect.fill = editor.makeColorFill(colorUtils.fromHex("#3498db"));

editor.context.insertionParent.children.append(rect);

// Resize proportionally by width, scaling all visual details
rect.resize({
  width: 300,
  behavior: constants.ResizeBehavior.proportional,
  avoidScalingVisualDetailsIfPossible: false
});

console.log(`New dimensions: ${rect.width} x ${rect.height}`);
// New dimensions: 300 x 150

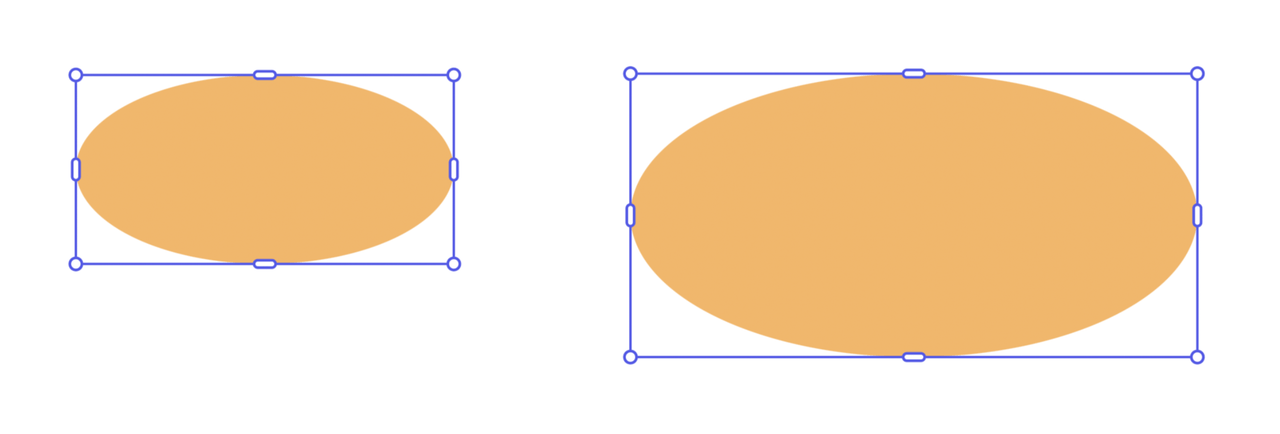

Example: Resize by Height

Copy
Copied to your clipboard
// sandbox/code.js
import { editor, colorUtils, constants } from "express-document-sdk";

const ellipse = editor.createEllipse();
ellipse.rx = 100; // radius x = 100 (width = 200)
ellipse.ry = 50;  // radius y = 50 (height = 100)
ellipse.translation = { x: 150, y: 100 };
ellipse.fill = editor.makeColorFill(colorUtils.fromHex("#F0B76C"));

editor.context.insertionParent.children.append(ellipse);

// Resize proportionally by height, scaling all visual details
ellipse.resize({
  height: 150,
  behavior: constants.ResizeBehavior.proportional,
  avoidScalingVisualDetailsIfPossible: false
});

console.log(`New bounds: ${ellipse.boundsLocal.width} x ${ellipse.boundsLocal.height}`);
// New bounds: 300 x 150

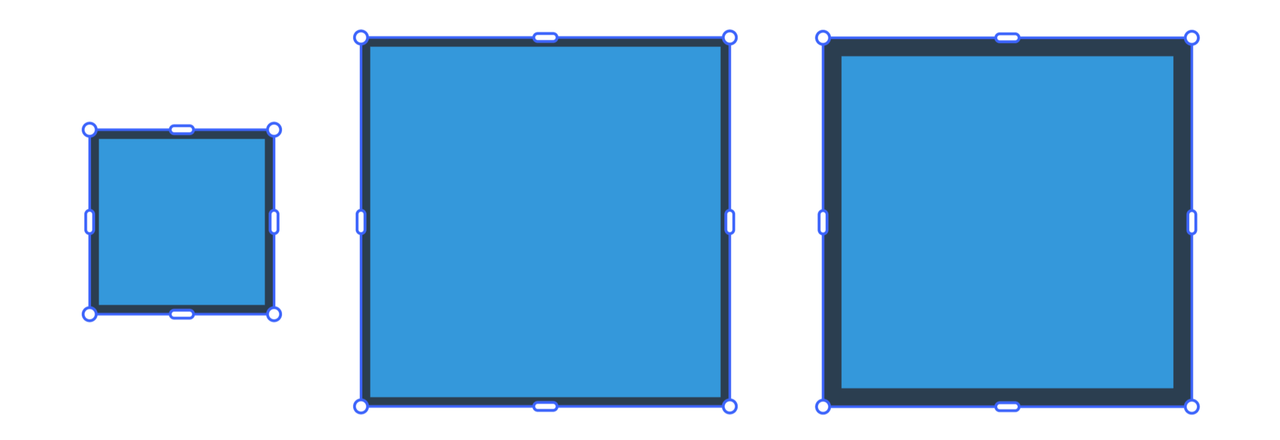

Example: Preserve Visual Details

When avoidScalingVisualDetailsIfPossible is set to true, strokes and other visual details maintain their original size:

Copy
Copied to your clipboard
// sandbox/code.js
import { editor, colorUtils, constants } from "express-document-sdk";

const rect = editor.createRectangle();
rect.width = 100;
rect.height = 100;
rect.translation = { x: 100, y: 100 };
rect.fill = editor.makeColorFill(colorUtils.fromHex("#3498db"));

// Add a 5px stroke
const stroke = editor.makeStroke({
  color: colorUtils.fromHex("#2c3e50"),
  width: 5,
  position: constants.StrokePosition.inside
});
rect.stroke = stroke;

editor.context.insertionParent.children.append(rect);

// Resize proportionally while preserving stroke width
rect.resize({
  width: 200,
  behavior: constants.ResizeBehavior.proportional,
  avoidScalingVisualDetailsIfPossible: true     // preserves stroke width
  // avoidScalingVisualDetailsIfPossible: false // scales stroke width
});

console.log(`Stroke width after resize: ${rect.stroke.width}px`);
// Stroke width after resize: 5px (unchanged)

Contain Behavior

The contain behavior fits an element entirely within specified dimensions, similar to CSS object-fit: contain. Elements with fixed aspect ratios may leave unused space on one axis.

Example: Contain Within Bounds (Shapes)

Copy
Copied to your clipboard
// sandbox/code.js
import { editor, colorUtils, constants } from "express-document-sdk";

const ellipse = editor.createEllipse();
ellipse.rx = 100; // radius x = 100 (width = 200)
ellipse.ry = 50;  // radius y = 50 (height = 100)
ellipse.translation = { x: 150, y: 100 };
ellipse.fill = editor.makeColorFill(colorUtils.fromHex("#F0B76C"));

editor.context.insertionParent.children.append(ellipse);
// Fit within a 150x150 box
ellipse.resize({
  width: 150,
  height: 150,
  behavior: constants.ResizeBehavior.contain,
  avoidScalingVisualDetailsIfPossible: true
});

console.log(`Resized dimensions: ${ellipse.width} x ${ellipse.height}`);
// Resized dimensions: 150 x 150

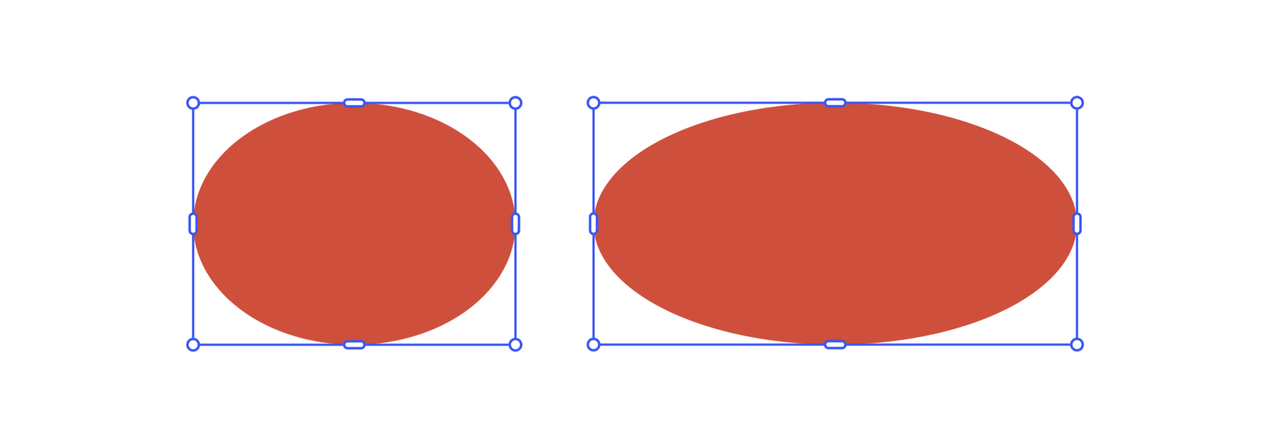

Example: Contain with One Dimension (Shapes)

You can specify only one dimension with contain behavior to adjust that dimension while ideally keeping the other fixed:

Copy
Copied to your clipboard
// sandbox/code.js
import { editor, colorUtils, constants } from "express-document-sdk";

const ellipse = editor.createEllipse();
ellipse.rx = 100;
ellipse.ry = 75;
ellipse.translation = { x: 150, y: 150 };
ellipse.fill = editor.makeColorFill(colorUtils.fromHex("#e74c3c"));

editor.context.insertionParent.children.append(ellipse);

// Adjust width while attempting to preserve height
ellipse.resize({
  width: 300,
  behavior: constants.ResizeBehavior.contain,
  avoidScalingVisualDetailsIfPossible: true
});

console.log(`New bounds: ${ellipse.boundsLocal.width} x ${ellipse.boundsLocal.height}`);

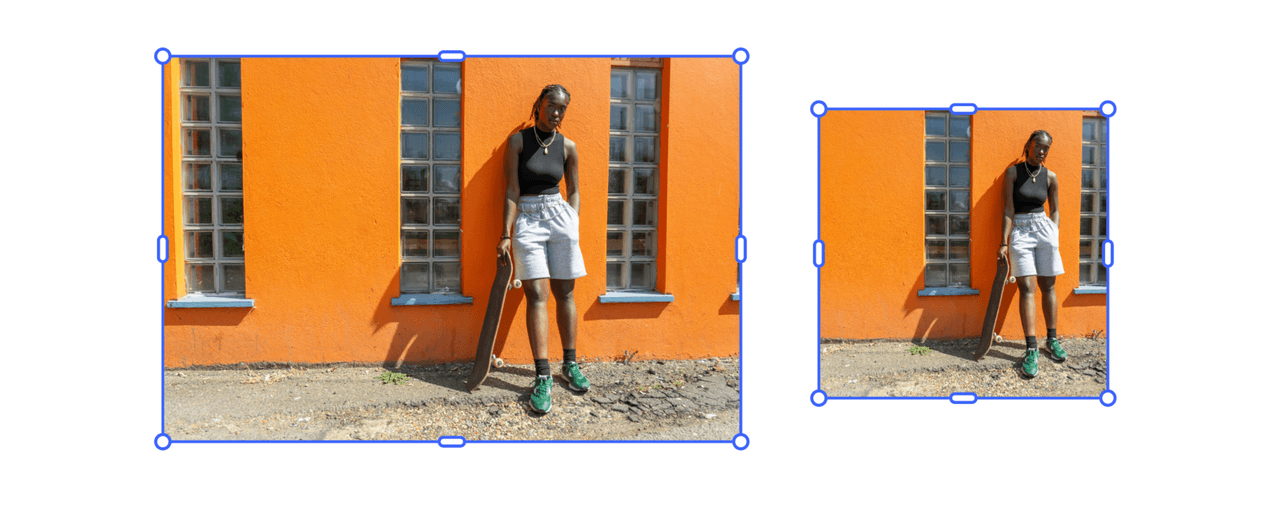

Example: Contain Within Bounds (Media)

Media elements (images, videos) maintain their aspect ratio; cropping may happen when the aspect ratio of the media does not match the aspect ratio of the container.

Copy
Copied to your clipboard
// sandbox/code.js
import { editor, constants } from "express-document-sdk";

// Assuming the user has selected an Image node
const imageNode = editor.context.selection[0];

console.log(
  "Initial dimensions: " +
    imageNode.boundsLocal.width +
    " x " +
    imageNode.boundsLocal.height
);
// Initial dimensions: 300 x 200

imageNode.resize({
  width: 150,
  height: 150,
  behavior: constants.ResizeBehavior.contain,
  avoidScalingVisualDetailsIfPossible: true
});
console.log(
  "Resized dimensions: " +
    imageNode.boundsLocal.width +
    " x " +
    imageNode.boundsLocal.height
);
// Resized dimensions: 150 x 150

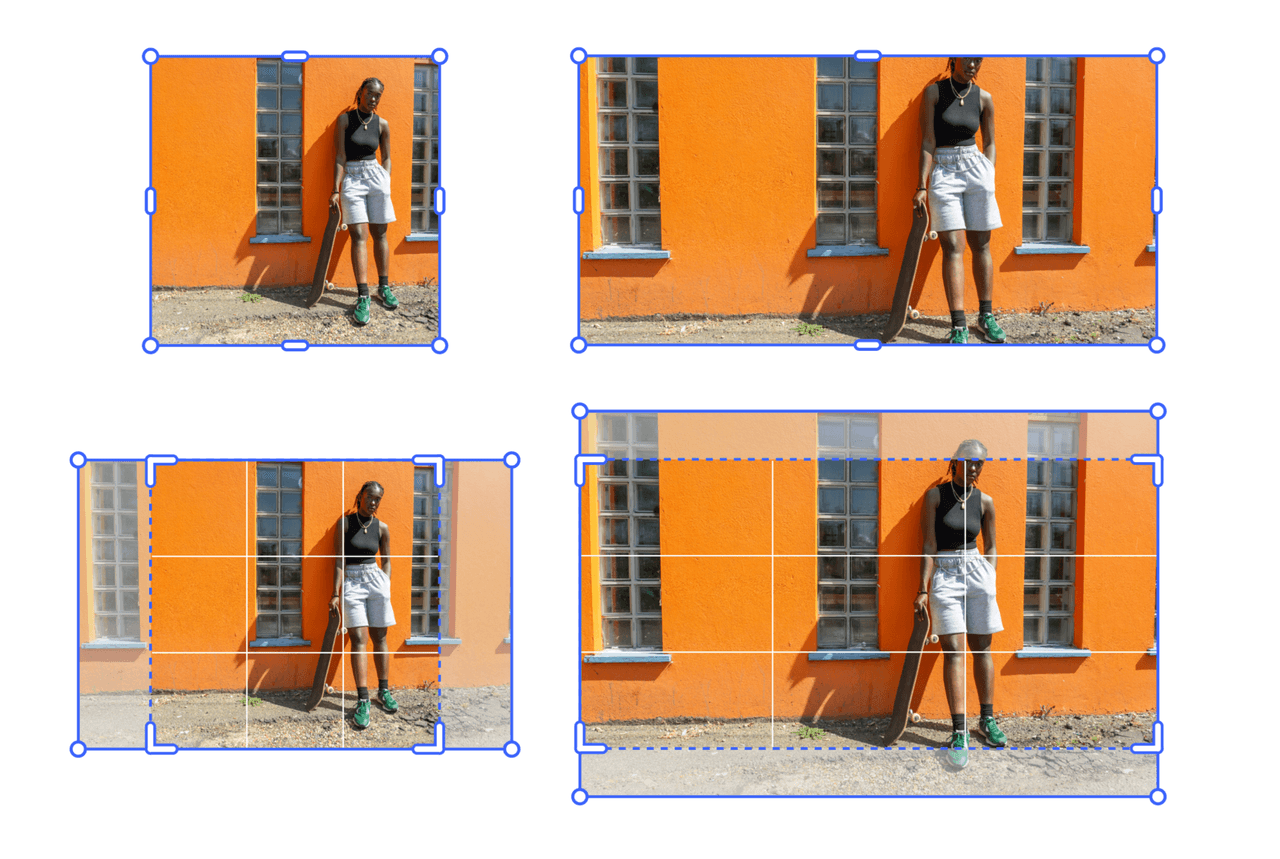

For instance, in the next example we’ll start with the 150x150 image we resized earlier, trying to fit it within a 300x150 box. The results can be counterintuitive, since resize, under the hood, uses a combination of steps to achieve the final dimensions — but it lacks the contextual understanding that Adobe Express has when users interact with the UI. This means that API-based resize calls should always be validated afterward to ensure they produce the expected outcome.

Copy
Copied to your clipboard
// sandbox/code.js
import { editor, constants } from "express-document-sdk";

// Assuming the user has selected an Image node
const imageNode = editor.context.selection[0];

console.log(
  "Initial dimensions: " +
    imageNode.boundsLocal.width +
    " x " +
    imageNode.boundsLocal.height
);
// Initial dimensions: 150 x 150

// Resize to fit within a 300x150 box
imageNode.resize({
  width: 300,
  height: 150,
  behavior: constants.ResizeBehavior.contain,
  avoidScalingVisualDetailsIfPossible: true
});

console.log(
  "Resized dimensions: " +
    imageNode.boundsLocal.width +
    " x " +
    imageNode.boundsLocal.height
);
// Resized dimensions: 300 x 150

Cover Behavior

The cover behavior ensures an element completely covers the specified area, similar to CSS object-fit: cover. Elements with fixed aspect ratios may extend beyond the target bounds on one axis.

Example: Cover an Area

Copy
Copied to your clipboard
// sandbox/code.js
import { editor, colorUtils, constants } from "express-document-sdk";

// Assuming the user has selected an Image node
const imageNode = editor.context.selection[0];

console.log(
  "Initial dimensions: " +
    imageNode.boundsLocal.width +
    " x " +
    imageNode.boundsLocal.height
);
// Initial dimensions: 150 x 100

// Resize to cover a 120x120 area
imageNode.resize({
  width: 120,
  height: 120,
  behavior: constants.ResizeBehavior.cover,
  avoidScalingVisualDetailsIfPossible: true
});

console.log(
  "Covered dimensions: " +
    imageNode.boundsLocal.width +
    " x " +
    imageNode.boundsLocal.height
);
// Covered dimensions: 120 x 120

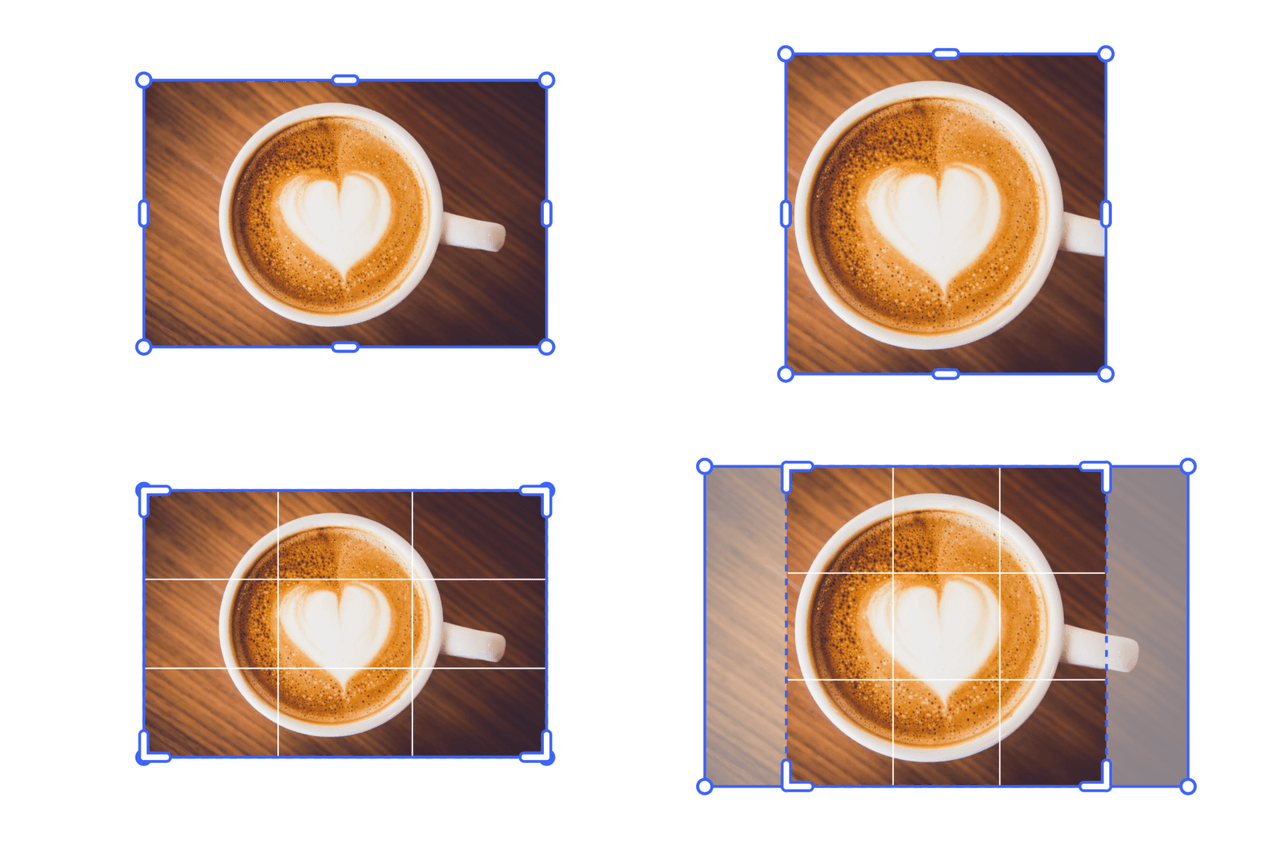

In this example, the image is resized to cover a 120x120 area; the image is enlarged maintaining its aspect ratio, while the crop is adjusted to fit within the bounding box.

Working with Text Elements

Text elements adjust their font size when resized. Both proportional and contain/cover behaviors produce similar results:

Example: Resize Text Proportionally

Copy
Copied to your clipboard
// sandbox/code.js
import { editor, constants } from "express-document-sdk";

const textNode = editor.createText("Hello, World!");

const insertionParent = editor.context.insertionParent;
textNode.setPositionInParent(
  { x: insertionParent.width / 2, y: insertionParent.height / 2 },
  { x: 0, y: 0 }
);

insertionParent.children.append(textNode);

// Resize text proportionally - font size scales accordingly
textNode.resize({
  width: 300,
  behavior: constants.ResizeBehavior.proportional,
  avoidScalingVisualDetailsIfPossible: false
});

Example: Equivalent Resize Behaviors for Text

As we've seen, when resizing text the font size is adjusted to fit within the specified bounds. Different combinations of ResizeBehavior parameters can produce equivalent results, as shown below.

Copy
Copied to your clipboard
// sandbox/code.js
// import { editor } from "express-document-sdk";

// Assuming the user has selected a text frame
const textNode = editor.context.selection[0];

// Both will result in a 200px wide text
textNode.resize({
   width: 200, height: 100,
   behavior: constants.ResizeBehavior.contain,
   avoidScalingVisualDetailsIfPossible: true
})
textNode.resize({
   width: 200,
   behavior: constants.ResizeBehavior.proportional,
   avoidScalingVisualDetailsIfPossible: true
})

// Both will result in a 100px tall text
textNode.resize({
   width: 200, height: 100,
   behavior: constants.ResizeBehavior.cover,
   avoidScalingVisualDetailsIfPossible: true
})
textNode.resize({
   height: 100,
   behavior: constants.ResizeBehavior.proportional,
   avoidScalingVisualDetailsIfPossible: true
})

In the screenshot above, the original text is top-left; top-right, the result of both resize() with contain and proportional behavior (width-only); bottom, the result of both resize() with cover and proportional behavior (height-only).

Working with Pages

Page resizing uses a simpler approach; simply set the width and height properties:

Copy
Copied to your clipboard
// sandbox/code.js
import { editor } from "express-document-sdk";

const page = editor.documentRoot.pages.first;
console.log(`Page dimensions before: ${page.width} x ${page.height}`);

page.width  = 300;
page.height = 300;

console.log(`Page dimensions after: ${page.width} x ${page.height}`);
// Page dimensions before: 400 x 600
// Page dimensions after: 300 x 300

Common Patterns

Resize to Exact Dimensions (Shapes)

For shapes without aspect ratio constraints:

Copy
Copied to your clipboard
rect.resize({
  width: 300,
  height: 200,
  behavior: constants.ResizeBehavior.contain,
  avoidScalingVisualDetailsIfPossible: true
});

Scale Everything Proportionally

To scale an element like a zoom operation:

Copy
Copied to your clipboard
element.resize({
  width: newWidth,
  behavior: constants.ResizeBehavior.proportional,
  avoidScalingVisualDetailsIfPossible: false
});

Maintain Stroke Appearance

To resize while keeping strokes crisp:

Copy
Copied to your clipboard
element.resize({
  width: newWidth,
  height: newHeight,
  behavior: constants.ResizeBehavior.contain,
  avoidScalingVisualDetailsIfPossible: true
});

Thumbnail Generation

To create thumbnails that fit within bounds:

Copy
Copied to your clipboard
image.resize({
  width: 150,
  height: 150,
  behavior: constants.ResizeBehavior.contain,
  avoidScalingVisualDetailsIfPossible: true
});

Migration from Deprecated APIs

If you're updating code that uses the old (experimental) resize/rescale methods, here are the conversions:

Copy
Copied to your clipboard
// OLD:
element.rescaleProportionalToWidth(300);

// NEW:
element.resize({
  width: 300,
  behavior: constants.ResizeBehavior.proportional,
  avoidScalingVisualDetailsIfPossible: false
});

// OLD:
element.rescaleProportionalToHeight(200);

// NEW:
element.resize({
  height: 200,
  behavior: constants.ResizeBehavior.proportional,
  avoidScalingVisualDetailsIfPossible: false
});

// OLD:
element.resizeToFitWithin(300, 200);

// NEW:
element.resize({
  width: 300,
  height: 200,
  behavior: constants.ResizeBehavior.contain,
  avoidScalingVisualDetailsIfPossible: true
});

// OLD:
element.resizeToCover(300, 200);

// NEW:
element.resize({
  width: 300,
  height: 200,
  behavior: constants.ResizeBehavior.cover,
  avoidScalingVisualDetailsIfPossible: true
});

FAQs

Q: How do I resize an element?

A: Use node.resize() with options specifying width/height, behavior, and visual detail preferences.

Q: How do I resize proportionally by width?

A: Call node.resize({ width, behavior: ResizeBehavior.proportional, avoidScalingVisualDetailsIfPossible }) to maintain aspect ratio.

Q: What's the difference between contain and cover behavior?

A: Contain fits the element within bounds; cover ensures the element completely covers the specified area.

Q: What does avoidScalingVisualDetailsIfPossible do?

A: When true, tries to preserve stroke widths, corner radii, and font sizes at their original values.

Q: Can I resize with only one dimension?

A: Yes, use proportional behavior (which requires only one dimension) or contain behavior with just width or height specified.

Q: How do I resize pages?

A: Set page.width and page.height properties directly on the PageNode.

Last updated 1/15/2026

Was this helpful?

Yes

No
