Partner Connector Registration

  1. Overview
  2. Glossary
  3. Partner Registration Process: High Level Overview
  4. Partner Onboarding: The Complete Workflow
  5. Build a Connector and Start Using Events and APIs
  6. Globalization Content Service Reference

Overview

The Globalization Content Service is a collection of services that let you extend and integrate localization workflows within Adobe apps and services. This document prepares localization partners to integrate Globalization Content Service into their environments.

From registering an organization, to setting projects, and enabling end-to-end localization workflows that includes sharing, retrieving, localizing, previewing assets, Globalization Content Service APIs let you perform all localization tasks while staying within the Adobe ecosphere.

Glossary

In this guide, the following terms will be used.

Glossary TermDefinition
Org
An enterprise that's using Adobe products and services for globalization workflows.
IMS Token
An Identity Management System (IMS) token for the user in an organization that allows them to be authenticated by Adobe. These users can then use the services and products to which the org is entitled.
User
The end user in the Org who triggers the localization workflow. The user can trigger a task for localization, preview and approve a localized task.
Partner
Localization partner that the Org wants to work with. Partner might have an offline selection with Adobe. Once the contracts are signed, partner is authorized into the Globalization Content Service through the Adobe I/O.
Authentication
The process of validating the IMS token and the IMS client id to verify if it has access to the Globalization Content Service.
Project
A project file is a list of unique properties that are used for managing the translation tasks. For example, a project can include the details of content system, locales, and providers.
Task
A translation task is a group of translation assets which is being sent for translation as a unit. A task is sent to the partner in a XLIFF format for translation.
Event
An event is a notification on an action required at your end. Adobe partners can subscribe to Globalization Content Service events and get notifications when new assets are available for translation.
Webhook
Webhook is an Adobe I/O event. Your application can sign up to be notified whenever certain events occur. For example, when a user uploads an asset, an event is generated, which can be recorded by a webhook.
Journaling
Journaling, in contrast to webhooks, is a pull model of consuming events, whereas webhooks are a push model. In journaling your application will issue a series of API calls to pull batches of one or more events from the journal.
Complete asset
Complete Asset is an action taken by a partner service after manual translation has been completed. It starts a workflow to convert the translated Xliff into the localized asset in the source format and returns it to the content system.
Normalization
Normalization is the process of converting an Adobe Asset into translation information in a XLIFF format.

Partner Registration Process: High Level Overview

If your firm offers localization service, you may want to register with Adobe Globalization Content Service to provide your offerings to all Adobe users. Any enterprise that needs localization for content generated with Adobe tools can trigger a localization workflow from within Adobe products.

By registering with Adobe Globalization Content Service, you can reach out to new customers and avail deeper more integrated, optimized localization workflows for better planning, increased leveraging, and optimized communication. Also, you save significant time and effort in leveraging, previewing, and normalizing content from Adobe assets.

Interested to be a localization partner listed in the Globalization Content Service partner directory. Read on.

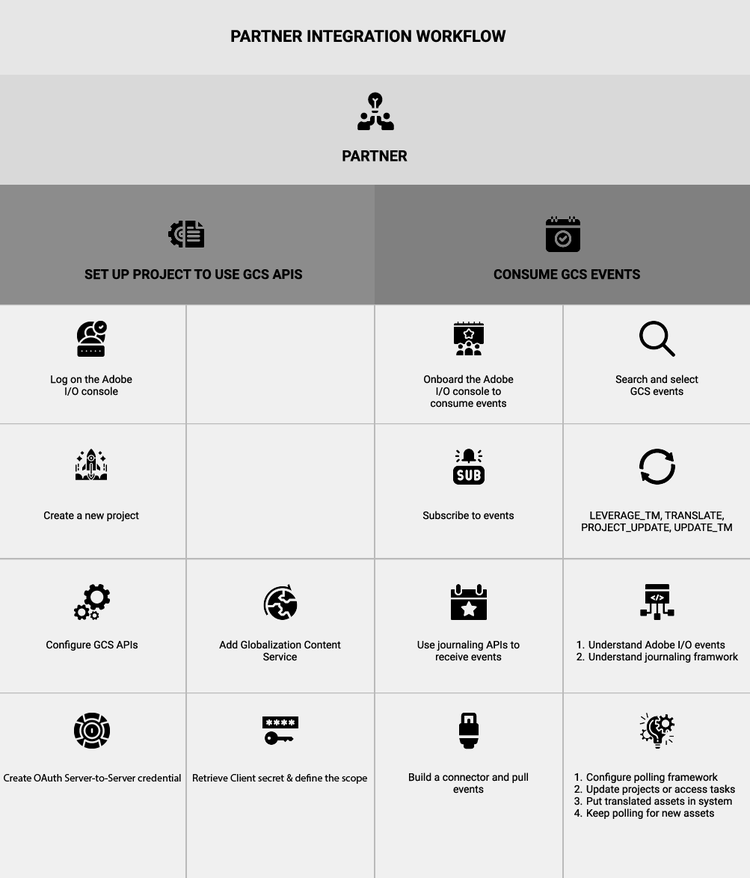

The following workflow diagram describes the steps in the partner registration process.

Partner Integration Workflow

  1. Log on the Adobe I/O Console: Create an account and log in Adobe I/O console. Once verified, you can access the products and services based on the permissions granted to you.
  2. Subscribe to APIs: You can subscribe to the Adobe I/O Globalization Content Service APIs to manage projects, tasks, and assets.
  3. Subscribe to events: Using Adobe I/O journaling APIs, subscribe to events and get near real-time communication. Even if you have thousands of tasks needing localization every week, the event journal will help you get info as soon as tasks are being triggered at the product end. Based on task information received in events, retrieve assets, localize them, preview quality, and send final translated assets back to the product through the Adobe I/O Globalization Content Service APIs.
  4. Create an OAuth Server-to-Server credential: Add the new credential to your project to begin using the new credential to generate access tokens and update your application.

Partner Onboarding: The Complete Workflow

Here's your guide to onboarding on the Adobe I/O console and accessing the Globalization Content Service APIs.

Login

  1. Log in to your Adobe I/O console account. Browse to the site https://www.adobe.io/ in your favourite browser.

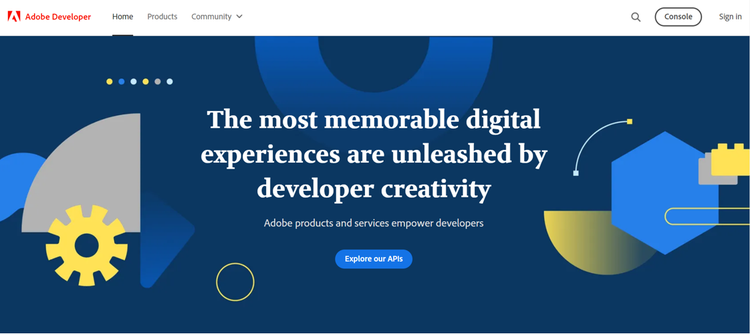

    Adobe IO Home

  2. Click Console.

  3. Login using the IMS credentials you have received from the Globalization Content Service team.

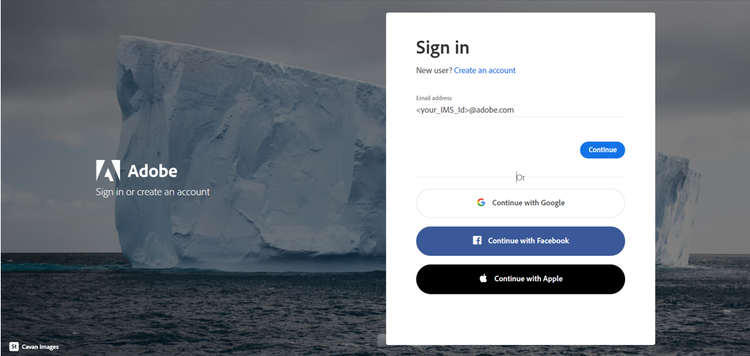

    Adobe I/O Login

Create a Project and Configure Globalization Content Service APIs

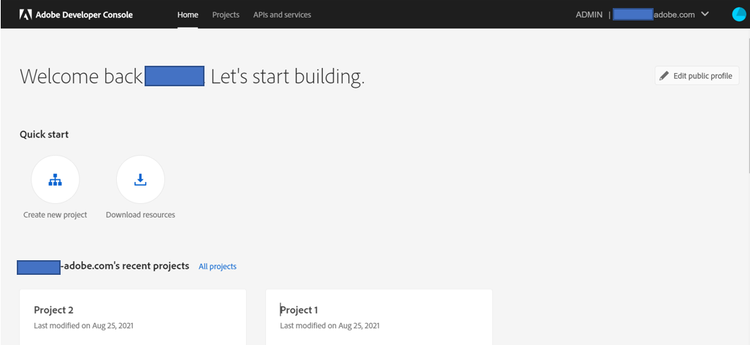

  1. Click Create new project.

    Create New Project

  2. Click Add API to associate APIs in your empty project.

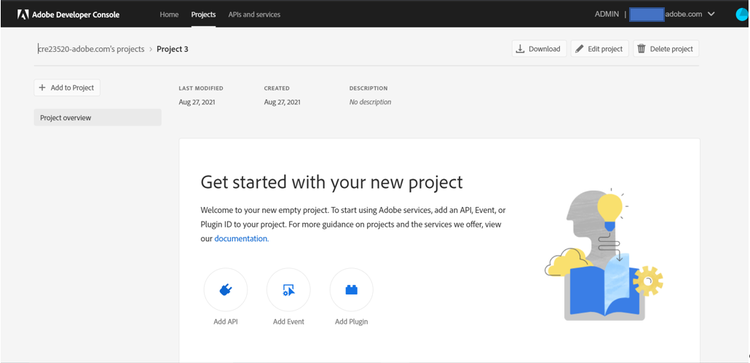

    Click API

  3. Click Adobe Services to access Globalization Content Service APIs.

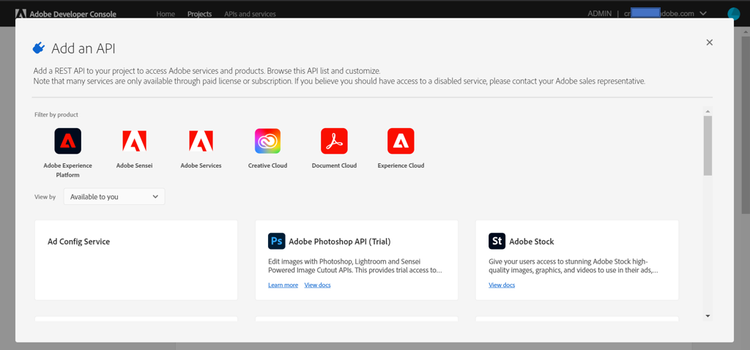

    Add An API

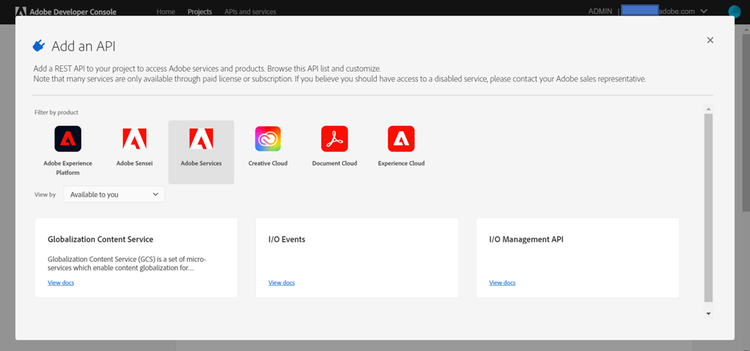

  4. Click Globalization Content Service.

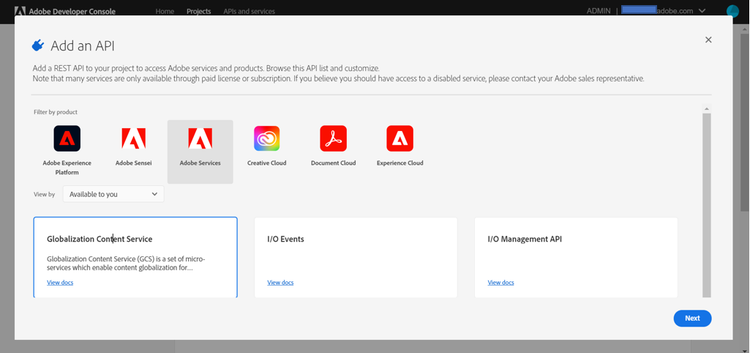

    Globalization Content Service

  5. Click Next.

    ss Globalization Content Service 1

  6. Enable API integration and select OAuth Server-to-Server.

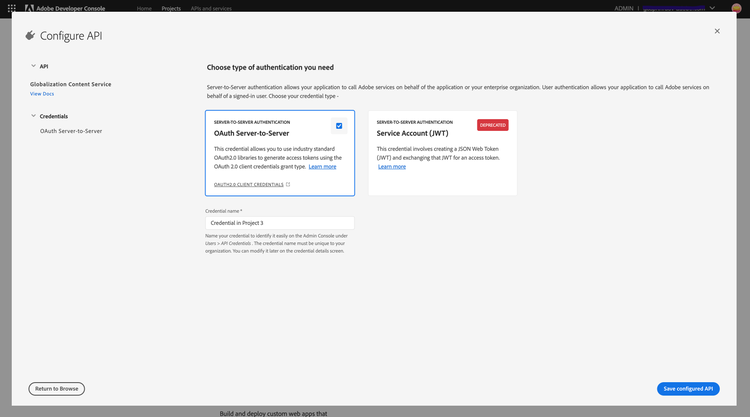

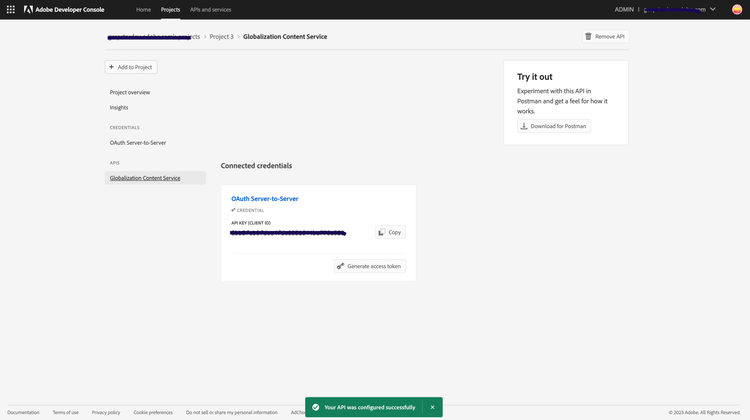

    Configure API Configure API confirmation

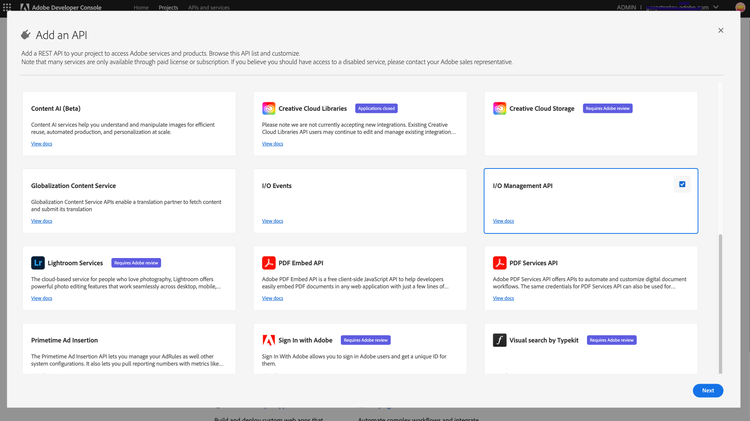

  7. Similar to the previous step, also add "I/O Management APIs" to your project.

    ss add to project

  8. Click Next & Add OAuth Server-to-Server authentication, then save configured API.

    ss io mgmt apis

  9. Generate OAuth Server-to-Server access token by clicking on to the CREDENTIALS section [ Redacted ]

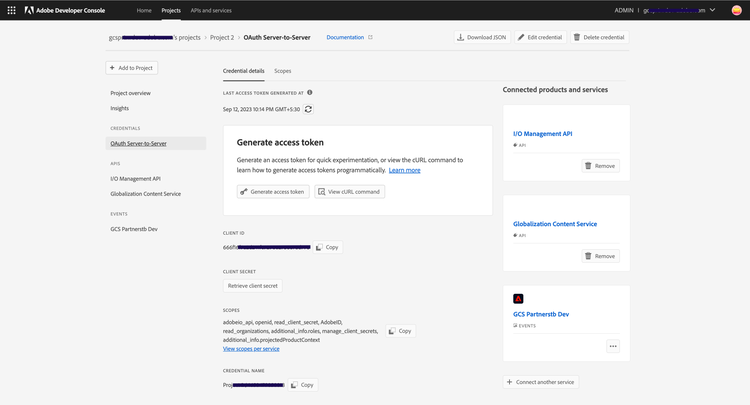

    Create A OAuth Server-to-Server

    OAuth Server-to-Server credentials rely on the OAuth 2.0 client credentials grant. Therefore, you can use industry-standard OAuth 2.0 libraries to implement access token generation in your application. While OAuth Server-to-Server credentials do not use expiring certificates, they still allow client secret rotation through the UI and API.

    This credential does not use a public certificate and private key pair to generate access tokens. As an application developer, you do not have to periodically rotate the public certificates and private key pairs when they expire. Also, the credential setup process is greatly simplified, and you do not have to download and save the private key on your machine.

    Lastly, while the new OAuth Server-to-Server credentials do not use expiring certificates, they still allow client secret rotation through the UI and API.

    For more information please browse to the site https://developer.adobe.com/developer-console/docs/guides/authentication/ServerToServerAuthentication/

  10. Scroll down the screen and add to retrieve the client ID and client secret along with other information about the account.

    Generated OAuth Server-to-Server Credential

  11. The OAuth Server-to-Server Credential is generated. Feel free to copy the Generated OAuth or Sample Curl command.

Onboard on to Adobe I/O Console to Consume Events

  1. In the same project created above, we shall now add the events to be consumed.

  2. Click on +Add to Project..

  3. Click on Add Event.

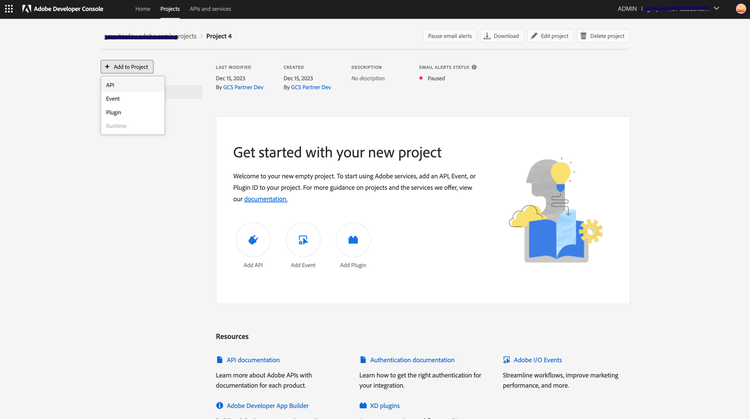

    Get started with your new project

  4. Click on the Experience Platform.

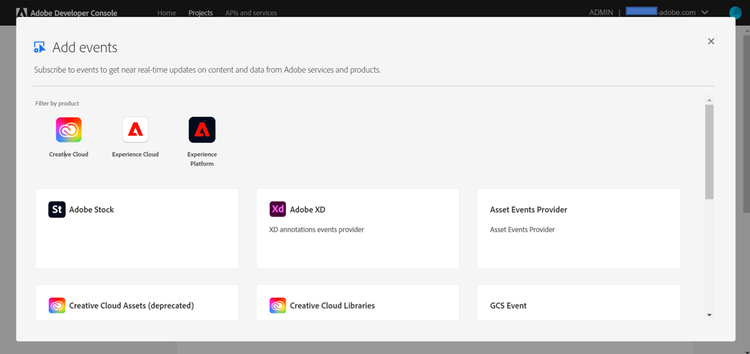

    Add Events

  5. Select the Globalization Content Service Event and click Next.

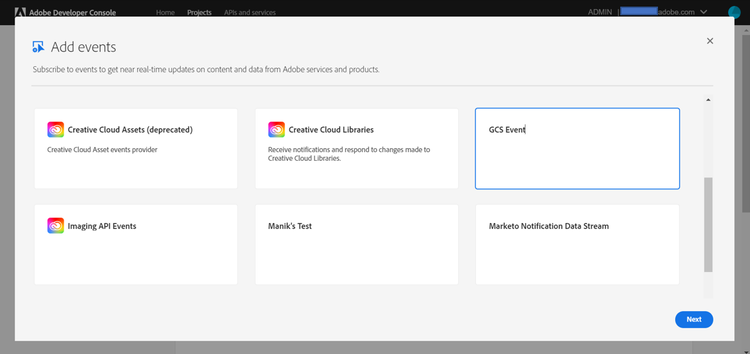

    Add Globalization Content Service Events

  6. The Configure event registration screen shows two events that you can subscribe.

    1. TRANSLATE: Used to trigger an event when a task is sent for localization.
    2. RE TRANSLATE: Used to trigger an event when asset is rejected sent back for localization.

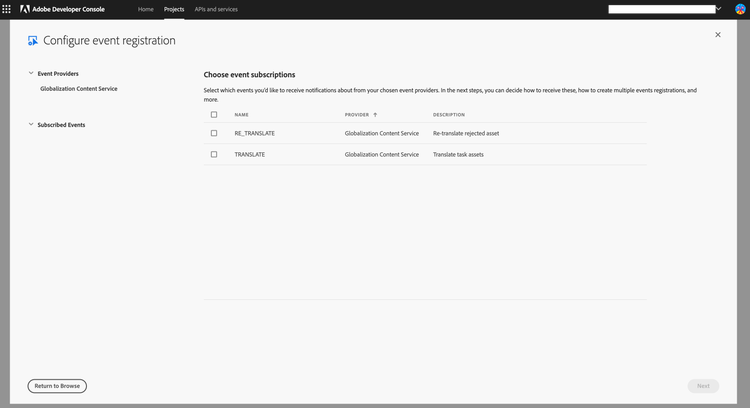

    Configure events

  7. Select the events you want to subscribe to and press Next.

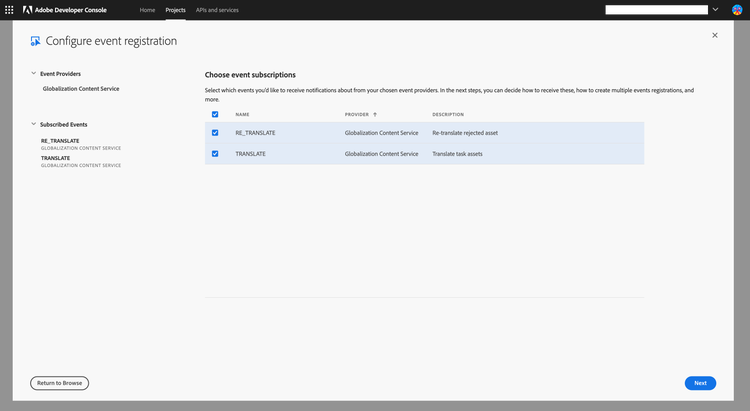

    Select event

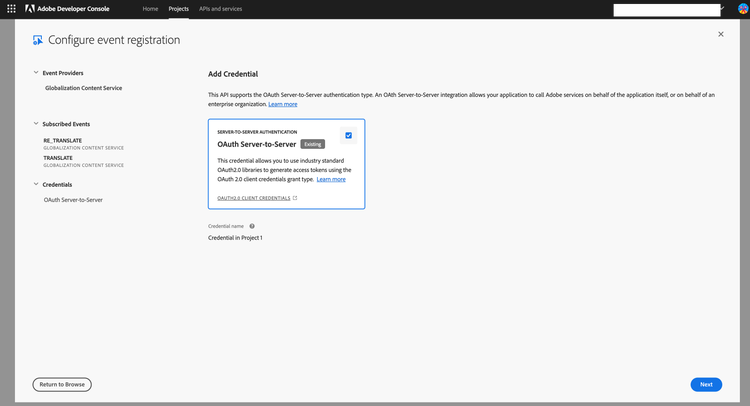

  8. You can choose the existing OAuth Server-to-Server for authentication and select Next. Proceed to add OAuth

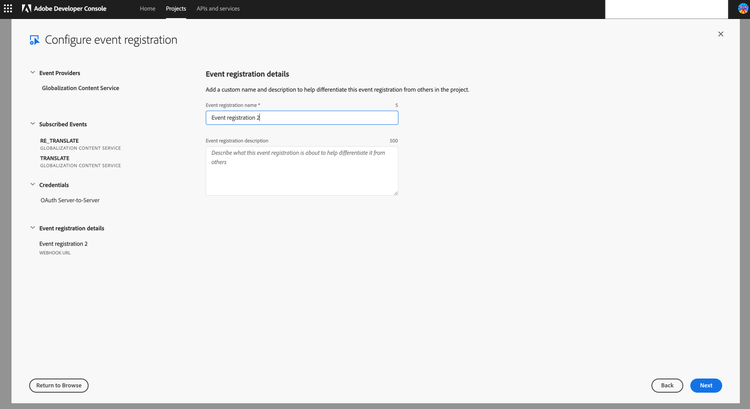

  9. The Event registration details form is displayed. Fill in the event details. You can change Event registration name and write a short description in the Event registration description box.

    Event registration details

  10. Notice that Journaling is selected in How to receive events section. Adobe's journaling APIs work as a ledger recording all events for a specified time. Developers like you can create your own configuration to access the Adobe Journaling APIs and access events.

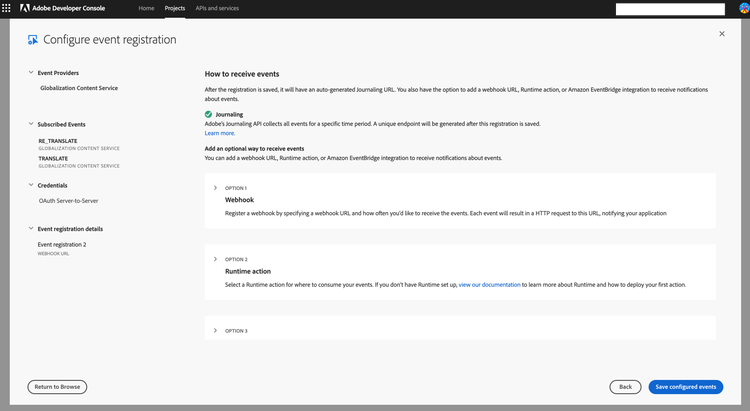

    Event registration details - journaling selected

  11. Select Save Configured events.

    You get a message, "Your webhook is created successfully".

    Next, you see a summary screen where your journaling end point is confirmed.

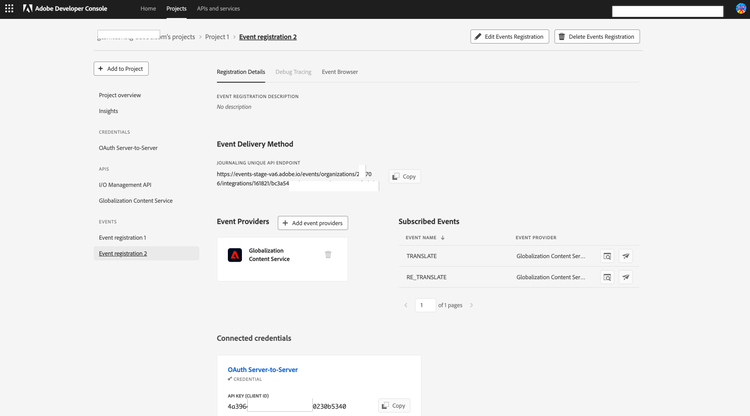

    Summary screen

    You can copy this end point and use at your end.

The endpoint has the following URL structure:

Copied to your clipboard
https://<events_on_ADOBE_io_path>/events/organizations/<unique_number>/integrations/<unique_number>/<unique_number>

Build a Connector and Start Using Events and APIs

You have completed basic on-boarding preparation for Globalization Content Service. You can now build a connector at your end that will poll the Adobe I/O console indefinitely to pull events. Use the Adobe I/O Journaling APIs to consume and process events in bulk based on your need.

Journaling APIs

The Adobe I/O Events Journaling API allows enterprise integration to consume and process events in bulk based on their own cadence. Every enterprise integration that is registered for events is enabled for journaling by default.

The journaling system functions as a ledger, storing all events. New entries (events) are added to the ledger, and the ledger continues to grow.

The enterprise that has registered for journaling receives near-real-time event notification. To gain access to the most recent events, the company can set up a continuous polling system. The journaling call functions similarly to a pull call. The first call retrieves events from the beginning of the serial number to the end of the last available data string. The next pull call can begin at the endpoint of the previous call and retrieve newer events. When iterated, the journaling process retrieves all events at the predefined pull frequency.

Bookmark these two pages for understanding how to use Adobe I/O events, Webhooks & journaling APIs

We recommend that you thoroughly research the Journaling APIs and create the connector that is best suited to your needs.

Sample Connector

Here is a sample Journaling connector to help you understand the polling concepts. Some key parameters are highlighted and some data is redacted (XX). Note that you are free to create your connector in any way to achieve desired results.

Copied to your clipboard
package com.adobe.ws.consumer.resource;


import java.io.IOException;
import org.apache.http.Consts;
import org.apache.http.Header;
import org.apache.http.HeaderElement;
import org.apache.http.HttpEntity;
import org.apache.http.HttpHeaders;
import org.apache.http.HttpStatus;
import org.apache.http.NameValuePair;
import org.apache.http.client.entity.EntityBuilder;
import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.entity.ContentType;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClientBuilder;
import org.apache.http.message.BasicNameValuePair;
import org.apache.http.util.EntityUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.util.StringUtils;
import com.fasterxml.jackson.databind.JsonNode;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.fasterxml.jackson.databind.node.ObjectNode;


public class SampleConsumer extends Thread {
  private static Logger = LoggerFactory.getLogger(SampleConsumer.class);
  private static final String KEY_BEARER = "Bearer ";
  private static final String KEY_X_API_KEY = "x-api-key";
  private static final String KEY_X_IMS_ORG_ID = "x-ims-org-id";
  private static final String KEY_LINK = "link";
  private static final String KEY_EVENTS = "events";
  private static final String KEY_EVENT = "event";
  private static final String KEY_BODY = "body";
  private static final String KEY_EVENT_CODE = "eventCode";
  private static final String KEY_CLIENT_ID = "client_id";
  private static final String KEY_CLIENT_SECRET = "client_secret";
  private static final String KEY_ACCESS_TOKEN = "access_token";
  private static final String SCOPE = "scope";
  private static final String GRANT_TYPE = "grant_type";
  private static final String KEY_REL = "rel";
  private static final String VAL_NEXT = "next";
  private static final String LEVERAGE_TM = "LEVERAGE_TM";
  private static final String UPDATE_TM = "UPDATE_TM";
  private static final String TRANSLATE = "TRANSLATE";
  private static final String PROJECT_UPDATE = "PROJECT_UPDATE";
  private static final String KEY_RETRY_AFTER = "retry-after";
  static String eventBaseUrl = "https://events-stage-va6.adobe.io/events/";
  static String eventFetchUrl =
      "organizations/XXXXX/integrations/XXXXX/864cXXXXXXXXXXXXXXXX080c?limit=1&latest=true";
  static String eventNextUrl =
      "organizations/XXXXX/integrations/XXXXX/864cc8d5-XXXXXXXXXXXXXXX0c?since=";
  static String eventClientId = "4bc0eXXXXXXXXXXXXXXX657a1";
  static String eventClientSecret = "<client_secret>";
  static String eventImsOrgId = "<your_id>@AdobeOrg";
  static String eventAccessToken = "SampleAccessToken";
  static int eventFetchInterval = 1000;
  static  String scopeValue = "adobeio_api,openid,read_client_secret,AdobeID,read_organizations,additional_info.roles,manage_client_secrets,additional_info.projectedProductContext";
  static  String grantType = "client_credentials";
  private static CloseableHttpClient imsClient = HttpClientBuilder.create().build();
  private CloseableHttpClient ioEventClient;
  private static ObjectMapper mapper = new ObjectMapper();


  public void run() {
    String ioEventUrl;
    String nextUrl = null;
    int count = 0;
    while (true) {
      if (StringUtils.isEmpty(nextUrl)) {
        ioEventUrl = eventBaseUrl + eventFetchUrl;
      } else {
        ioEventUrl = eventBaseUrl + nextUrl;
      }
      if (count % 1000 == 0) {
        logger.debug("Calling url = {}", ioEventUrl);
        count = 0;
      }
      count++;
      HttpGet httpGet = new HttpGet(ioEventUrl);
      httpGet.addHeader(HttpHeaders.AUTHORIZATION, KEY_BEARER + eventImsOrgId);
      httpGet.addHeader(KEY_X_API_KEY, eventClientId);
      httpGet.addHeader(KEY_X_IMS_ORG_ID, eventImsOrgId);
      Header[] linkHeaders = null;
      try (CloseableHttpResponse response = ioEventClient.execute(httpGet)) {
        int statusCode = response.getStatusLine().getStatusCode();
        linkHeaders = response.getHeaders(KEY_LINK);
        if (statusCode == HttpStatus.SC_OK) {
          HttpEntity entity = response.getEntity();
          if (entity != null) {
            String responseStr = EntityUtils.toString(entity);
            ObjectNode responseNode = mapper.readValue(responseStr, ObjectNode.class);
            logger.info(responseStr);
            JsonNode gcsMsgNode = responseNode.get(KEY_EVENTS).get(0).get(KEY_EVENT).get(KEY_BODY);
            String eventCode = gcsMsgNode.get(KEY_EVENT_CODE).asText();
            String gcsMsg = mapper.writeValueAsString(gcsMsgNode);
            logger.info("EventCode: {}, Message consumed:{}", eventCode, gcsMsg);
            if (TRANSLATE.equalsIgnoreCase(eventCode)) {
              // Call translation api to make the task available to vendor
            } else if (RE_TRANSLATE.equalsIgnoreCase(eventCode)) {
              // Call re-translation api to make the task available to vendor
            }
            nextUrl = getNextUrl(linkHeaders, nextUrl);
          }
        } else if (statusCode == HttpStatus.SC_NO_CONTENT) {
          Header retryHeader = response.getFirstHeader(KEY_RETRY_AFTER);
          if (retryHeader != null) {
            Thread.sleep(Long.parseLong(retryHeader.getValue()));
          }
          nextUrl = getNextUrl(linkHeaders, nextUrl);
        } else if (statusCode == HttpStatus.SC_UNAUTHORIZED) {
          eventAccessToken = getAccessToken(eventClientId, eventClientSecret);
          logger.debug("Access Token for event generated again successfully");
        } else {
          logger.error("{} \t {}", EntityUtils.toString(response.getEntity()),
              response.getStatusLine().getStatusCode());
        }
        Thread.sleep(eventFetchInterval);
      } catch (Exception e) {
        logger.error(e.getMessage(), e);
        nextUrl = getNextUrl(linkHeaders, nextUrl);
      }
    }


  }


  public static String getAccessToken(String clientId, String clientSecret)
      throws IOException {
    HttpPost httpPost = new HttpPost("https://ims-na1-stg1.adobelogin.com/ims/token/v3");
    httpPost.addHeader(HttpHeaders.CONTENT_TYPE, "application/x-www-form-urlencoded");
    HttpEntity requestEntity = EntityBuilder.create()
        .setContentType(ContentType.APPLICATION_FORM_URLENCODED.withCharset(Consts.UTF_8))
        .setParameters(
            new BasicNameValuePair(KEY_CLIENT_ID, clientId),
            new BasicNameValuePair(SCOPE, scopeValue),
            new BasicNameValuePair(KEY_CLIENT_SECRET, clientSecret),
            new BasicNameValuePair(GRANT_TYPE, grantType)
            )
        .build();
    httpPost.setEntity(requestEntity);
    try (CloseableHttpResponse response = imsClient.execute(httpPost)) {
      if (response.getStatusLine().getStatusCode() == 200) {
        HttpEntity responseEntity = response.getEntity();
        if (responseEntity != null) {
          String responseStr = EntityUtils.toString(response.getEntity());
          ObjectNode responseNode = mapper.readValue(responseStr, ObjectNode.class);
          return responseNode.get(KEY_ACCESS_TOKEN).asText();
        } else {
          throw new IOException("Empty response entity");
        }
      } else {
        throw new IOException(EntityUtils.toString(response.getEntity()));
      }
    }
  }


  private String getNextUrl(Header[] headers, String currentUrl) {
    for (Header : headers) {
      HeaderElement firstElement = header.getElements()[0];
      NameValuePair pair = firstElement.getParameterByName(KEY_REL);
      if (pair != null && VAL_NEXT.equals(pair.getValue())) {
        return eventNextUrl + firstElement.getValue().replace(">", "");
      }
    }
    return currentUrl;
  }
}

The key parameters in the code above are as follows:

Calling the Journaling APIFetching events with Journaling API
1. eventClientSecret: The Client_Secret key in the access token.
2. eventAccessToken: The access token that you will use to access Journaling APIs.
3. eventIMSOrgId: The IMS Org ID against which your org is authenticated into the Adobe I/O console.
1. eventBaseUrl: The URL end point for calling the events. Eg, "https://events-stage-va6.adobe.io/events/"
2. eventFetchUrl: The journaling end point that you get when you onboard on to Adobe I/O.
3. eventFetchInterval: Define the interval to fetch the next event.

Note: To understand how you can use Adobe I/O events to build your own connector that calls the journaling APIs, see Adobe I/O Events Journaling API.

Based on your operation, you can get the following response types.

  1. 200 OK: Successful operation and the list of events are added in the response body. To see a typical event, click here.

    Now use Get Asset API to fetch assets. Go ahead and localize them. Next, update the assets with Put Asset API.

  2. 204 No Content: No event is returned. You might have already reached the end of the journal. You will get a 200 OK response in a subsequent poll provided a new event is added in the journal at the client's end.

Globalization Content Service Reference

Event

A typical event with event code TRANSLATE will have the following information.

Copied to your clipboard
 {
     "eventCode": "TRANSLATE",
     "tenantId": "906E3A095D....30A495FD6@AdobeOrg_AJO_prod",
     "orgId": "906E3A095....230A495FD6@AdobeOrg",
     "projectId": "HT-Test1",
     "taskId": "HT_240717_1",
     "sourceLocale": "en-US",
     "translationProviderOrgId": "988120836....DE0A495C5D@AdobeOrg",
     "targetLocale": "ja-JP",
     "url": "https://dummy-url-1.adobe.com"
    }

A typical event with event code RE_TRANSLATE will have the following information.

Copied to your clipboard
{
 "eventCode": "RE_TRANSLATE",
 "tenantId": "745F37C35E4B....49421B@AdobeOrg_AJO_prod",
 "orgId": "745F37C35E4B....49421B@AdobeOrg",
 "projectId": "7b8ed7e5-b25c-4694-90e3-92eaab8b76f4",
 "taskId": "HT_9f1954ac-c56c-489c-83b8-3e656a9b73e5",
 "sourceLocale": "en-US",
 "translationProviderOrgId": "5BD819C5....00A494114@AdobeOrg",
 "targetLocale": "fr-FR",
 "assetName": "email_body_from_ajo.html",
 "assetUrl": https://gcsstorage1.blob.core.windows.net/gcsdev1/745F37C35E4B....49421B@AdobeOrg_AJO_prod/7b8ed7e5-b25c-4....3D&se=2024-05-03T23%3A49%3A13Z&sv=2019-02-02&sp=r&sr=b
}

You can configure the following:

  1. Define the event code: Trigger an event when the following action occurs:

    1. Translate: Send an asset for localization
    2. Re-Translate: Reject an asset locale and send it back for localization.

  2. Specify the Tenant Id: The unique ID of the tenant within a customer org initiating localization.

  3. Specify the Organization Id: The unique ID of the customer's org.

  4. Define the project id and task id.

  5. Set the source locale and target locale

  6. assetName is the name of the rejected asset.

  7. assetUrl is the individual URL of the rejected asset with reviewer's comments.

  8. translation provider ID is the org id of the provider.

Sample Acess Token

A sample access_token response from IMS is displayed below.

Copied to your clipboard
{
    "access_token": "eyJhbGciOiJSUzI1NiIsIng1dSI6Imltc19uYTEtc3RnMS1rZXktYXQtMS5jZXIiLCJraWQiOiJpbXNfbmExLXN0ZzEta2V5LWF0LTEiLCJpdHQiOiJhdCJ9............-QcXfM9yYRzsBm9y8Zw91RbvieNU1MqxkYbCS-Lxx1YwvN73L7nrLR8_yZ5_2MKK_fm9VjhmViQHgsQ",
    "token_type": "bearer",
    "expires_in": 86399
}

Where do I find more information?

Follow these guides to work effectively with the Globalization Content Service:

  • Get an overview of the Globalization Content Service: Follow this guide.
  • Use Globalization Content Service APIs for partners: Follow this guide to find information about APIs available for partners.
Vikas Chauhan
Last updated 8/31/2023
Was this helpful?

Community

Support

Adobe Developer

  • Privacy
  • Terms of Use
  • Do not sell or share my personal information
  • AdChoices
Copyright © 2024 Adobe. All rights reserved.
