Row pattern (table)

The "row pattern" (also referred to as table light and mini grid) is used in the Admin interface wherever the User is expected to want to input tabular data. This pattern allows the user to add as many rows of data as they desire. "Light tables" are used when the User needs to add/edit a relatively small amount of items (rows).

The pattern supports following actions:

Add new row
Remove row
Rearrange/drag the rows
Edit fields in a row
Pagination (for 20 > more rows)

The pattern does not support:

Filtering, sorting, searching the table
Adding, removing, rearranging of columns

Anatomy of a Row Pattern

May include any of the following elements:

Table Body
Table heading
Row
Text in the row
Form elements inside the row
Drag handle
"Add row" button
"Remove row" icon
Pagination (for more than 20 rows)

All these elements are optional, depending on the functions needed.

Behavior and Interaction

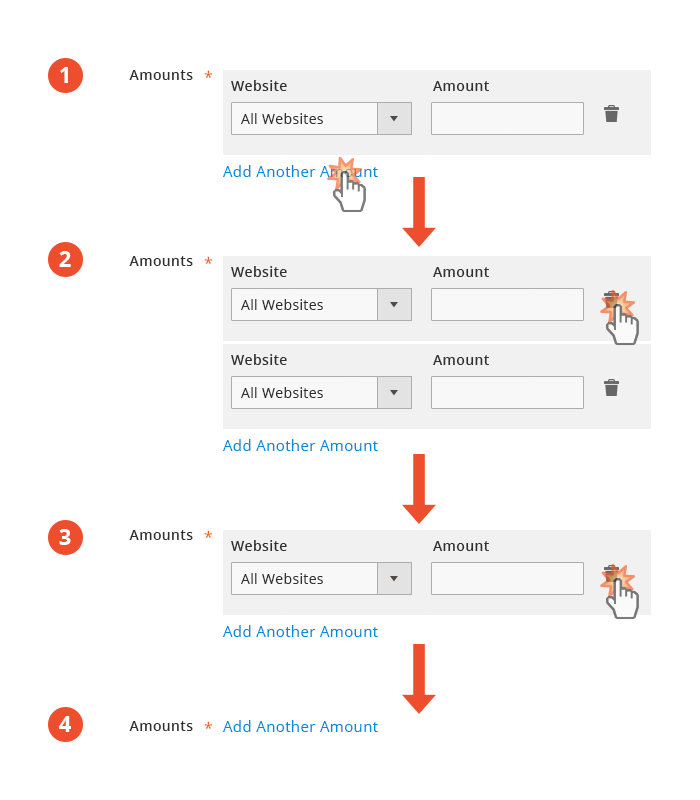

The Row Pattern, by default, will display one row to indicate to the User that data input is available (or required). A link beneath this initial input row will allow the User to add an additional row if desired.

Each row will have a delete control on the far right, often represented by a "trash can" icon. This will allow the User to remove any unwanted rows, along with any data that has been input into them (prior to saving the form).

The delete control CAN allow the user to remove all rows, even the initial row displayed upon page load.

The "Add" link however should always be present to allow the user to add a row, even in the event of deleting all rows.

behavior

Pagination

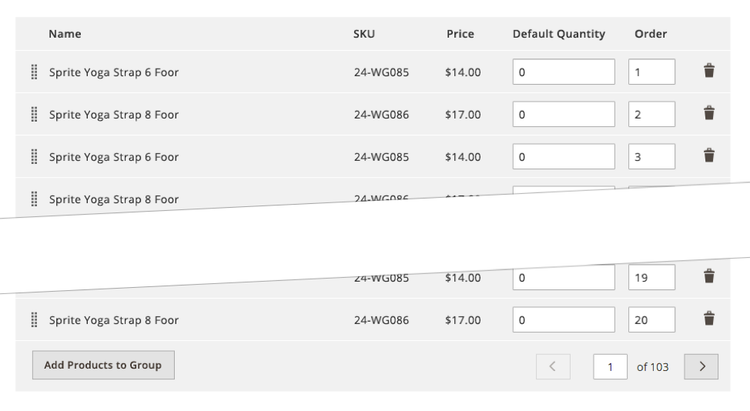

For better performance, the Row Pattern pagination should be enabled automatically whenever 20 (or more) rows are present. Once pagination is enabled an "Order" column should be appended to allow the user to rearrange the rows.

pagination

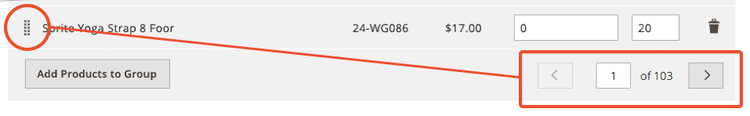

Once pagination is enabled an "Order" column should be appended to allow the user to rearrange the rows.

drag

Examples

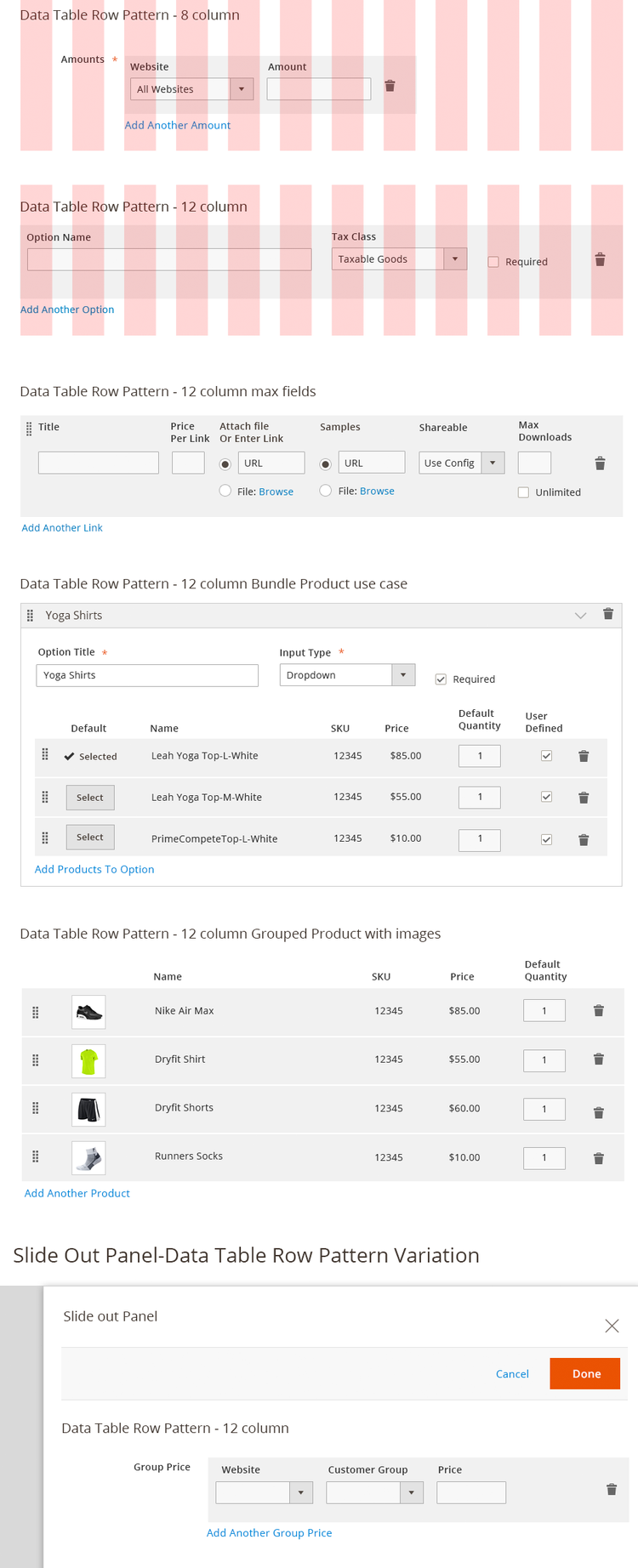

Typically the Row Pattern will span either 8 or 12 columns for the page grid, depending on the layout of the page or panel on which it appears. The Row Pattern should accommodate all typical form elements as are necessary, but discretion should be used to insure the elements within the row are easy to read and interact with and do not become to cramped within the space.

row examples
