Rich Text Editor Badges (DEPRECATED)

Note: This feature has been deprecated due to the planned change of the underlying Rich Text Editor which will come with a new extensibility API.

A badge is a non-editable block inside RTE that could be styled differently and may have a custom behavior. At this point, the only custom behavior is that badges are non-editable and could be only removed as a whole item. A badge could be added using the following API:

rte: {
  getBadges: () => [
    {
      id: "variable",
      prefix: "!",
      suffix: "!",
      backgroundColor: "#D6F1FF",
      textColor: "#54719B"
    }
  ]
}

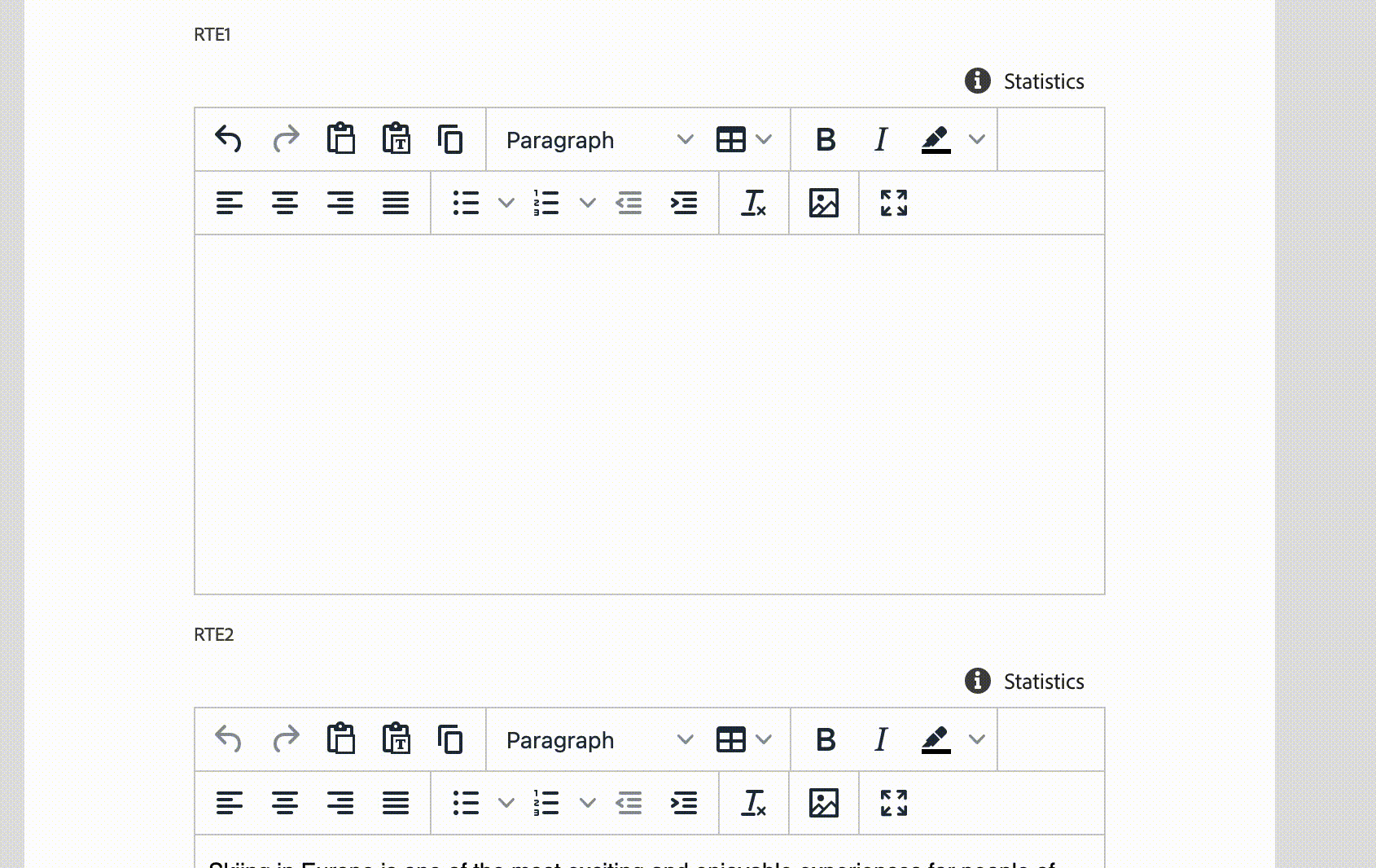

Where, prefix and suffix symbols define a badge boundaries in the text/html, backgroundColor and textColor define badge styling. Example:

API Reference

Extension API

Field
Type
Required
Description
id
string
✔️
Must be unique across all extensions. Consider adding a vendor prefix to this field.
prefix
char
✔️
Badge starting character
suffix
char
✔️
Badge ending character
backgroundColor
string
✔️
HEX or text CSS color code for the background
textColor
string
✔️
HEX or text CSS color code for the text

Instructions API

Widget window MAY call a connection.host.rte.applyInstructions method and provide RTE instruction to execute:

Instruction
Value
Description
replaceContent
string
Replaces current editor content with a content provided in value property
insertContent
string
Inserts a content provided in value property in current carret position
