Compile LESS with Grunt

The topic describes how to use the Grunt JavaScript task runner to compile .less files.

Prerequisites

• Make sure that you set your application to the developer or default mode. The default mode sets the Less compilation mode to Server-side Less compilation.
• Install and configure Grunt.

Track changes using Grunt

The following shows which Grunt tasks to use for debugging:

• After you switch the compilation mode from client-side to server-side, run the exec command.
• After you customize the content of any .less file, except the root source files, run the less task and reload the page.
• After you customize the root source files or move the files included to the root files, run the exec command and reload the page.
• After you run php bin/magento setup:upgrade, run exec command.
• After you run the exec command, run the clear command to clear the cache, then run the watch command. Running the commands in this order will ensure that any custom jQuery attributes like product sliders, banners, etc are loaded correctly.

If you have LiveReload installed, run the grunt watch command, and the flow is even simpler:

• After you customize the content of any .less file, changes are applied and the page reloads automatically. No additional changes
• After you customize the root source files or move the files included to the root files, run the clean and exec commands, which reloads the page in the browser.

CSS source maps

When using Grunt for styles preprocessing, you can enable the CSS source maps generation in your browser. It will make the theme styles debugging easier.

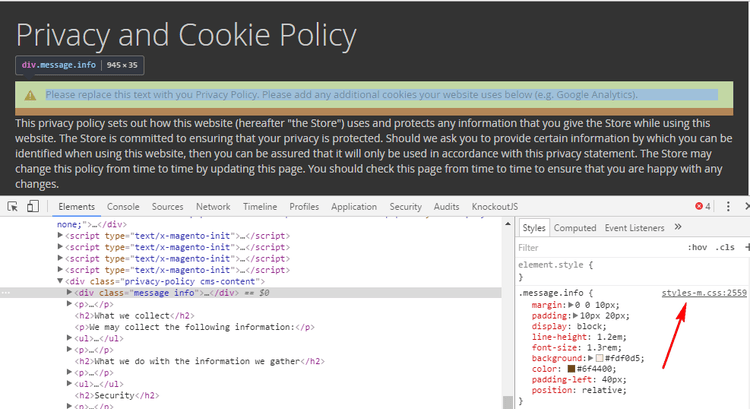

For each theme, the application compiles all theme .less files into two CSS files: styles-m.css and styles-l.css. So when you debug a theme, your browser only sees styles-m.css and it might be difficult to define which .css or .less file requires corrections. For example:

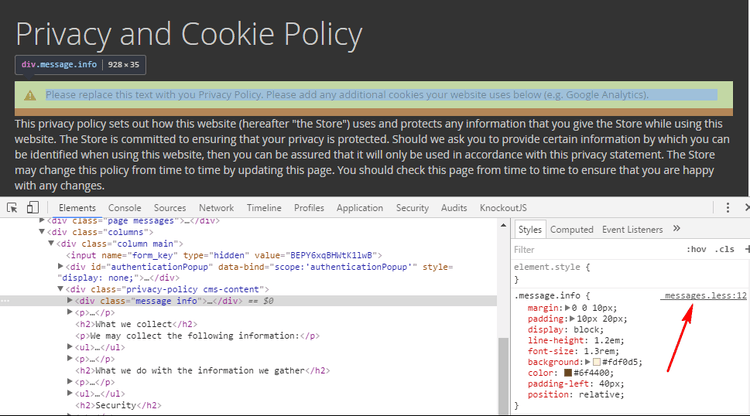

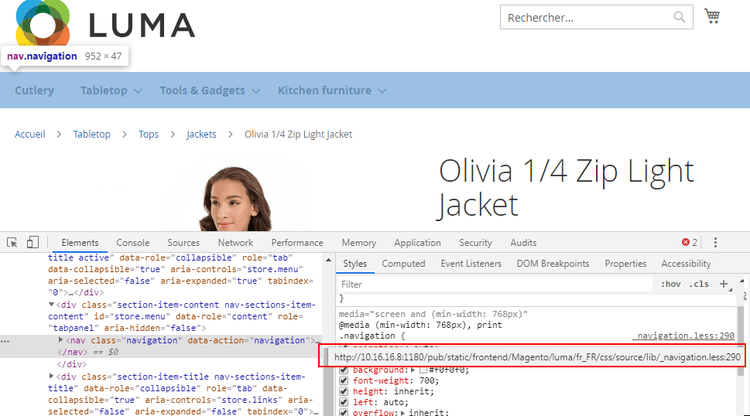

CSS source maps solve this issue. They help to find the .less file, where the style is specified. For example:

CSS source maps are generated automatically when you compile CSS for your theme using the grunt less: <theme> command. To use them, you need to enable the display of source maps in your browser. For example, in Chrome, you would open the Developer Tools, go to the Settings panel, select Preferences, then check the Enable CSS source maps checkbox.

The application has a base set of variables that define commonly used aspects of a theme; such as colors, fonts, style of page titles, and so on.

The <magento-root>/lib/web/css/source/lib/variables directory contains LESS files that define values assigned to variables for many of the common elements.

To change or override any of these variables, simply create a file in <theme-dir>/web/css/source/_theme.less For example:

Copy
@navigation__background: @secondary__color__light;
@font-family__sans-serif: 'Helvetica Neue', Helvetica, Arial, sans-serif;
Copied to your clipboard
@navigation__background: @secondary__color__light;
@font-family__sans-serif: 'Helvetica Neue', Helvetica, Arial, sans-serif;

Last updated 12/11/2023
