Thanks to Atwix for contributing this topic!

Custom form validation

This tutorial shows you how to create custom form validations, using the mage/validation library, before submitting it to the server. This allows the customer to enforce data validation rules before submission, which improves the user experience and user interface accessibility.

Initiating validation

There are several ways to initiate form validation as described in Initializing JavaScript topic.

Using the `data-mage-init` attribute

<form id="my-form" data-mage-init='{"validation": {}}'>
    ...
</form>
Copied to your clipboard
<form id="my-form" data-mage-init='{"validation": {}}'>
    ...
</form>

Using the `text/x-magento-init` script type tag

<script type="text/x-magento-init">
    {
        "#my-form": {
            "validation": {}
        }
    }
</script>
Copied to your clipboard
<script type="text/x-magento-init">
    {
        "#my-form": {
            "validation": {}
        }
    }
</script>

Form validation rules

All available validation rules may be found in validation/rules.js.

Additionally, you may also use any available jQuery validation rules.

Defining validation rules

There are couple of ways to define validation rules for a form field.

As a `data-validate` attribute

<input id="field-1" ... data-validate='{"required":true}'/>
Copied to your clipboard
<input id="field-1" ... data-validate='{"required":true}'/>

As a `data-validate` attribute with arguments

<input id="field-1" ... data-validate='{"required":true, "minlength":10}'/>
Copied to your clipboard
<input id="field-1" ... data-validate='{"required":true, "minlength":10}'/>

As an attribute

<input id="field-1" ... required="true"/>
Copied to your clipboard
<input id="field-1" ... required="true"/>

As an attribute with arguments

<input id="field-1" ... required="true" minlength="15"/>
Copied to your clipboard
<input id="field-1" ... required="true" minlength="15"/>

As a class name

<input id="field-1" ... class="input-text required-entry"/>
Copied to your clipboard
<input id="field-1" ... class="input-text required-entry"/>

As a class name with arguments

<input id="field-1" ... class="input-text required-entry" minlength="15"/>
Copied to your clipboard
<input id="field-1" ... class="input-text required-entry" minlength="15"/>

Using `data-mage-init`

<form ... data-mage-init='{"validation": {"rules": {"field-1": {"required":true}}}}'>
    ...
</form>
Copied to your clipboard
<form ... data-mage-init='{"validation": {"rules": {"field-1": {"required":true}}}}'>
    ...
</form>

Using `data-mage-init` with arguments

<form ... data-mage-init='{"validation": {"rules": {"field-1": {"required":true, "minlength":20}}}}'>
    ...
</form>
Copied to your clipboard
<form ... data-mage-init='{"validation": {"rules": {"field-1": {"required":true, "minlength":20}}}}'>
    ...
</form>

Examples

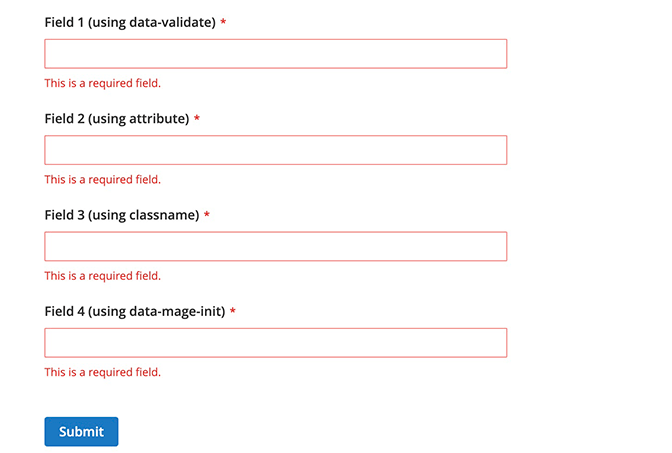

Adding the validation for a form

Here are examples of all available ways of validating the form fields.

<form class="form" id="my-form" method="post" data-mage-init='{"validation":{"rules": {"field-4": {"required":true}}}}'>
    <fieldset class="fieldset">
        <div class="field name required">
            <label class="label" for="field-1"><span>Field 1 (using data-validate)</span></label>
            <div class="control">
                <input name="field-1" id="field-1" title="Field 1" value=""  class="input-text" type="text" data-validate='{"required":true, "url": true}'/>
            </div>
        </div>
        <div class="field name required">
            <label class="label" for="field-2"><span>Field 2 (using attribute)</span></label>
            <div class="control">
                <input name="field-2" id="field-2" title="Field 2" value="" class="input-text" type="text" required="true"/>
            </div>
        </div>
        <div class="field name required">
            <label class="label" for="field-3"><span>Field 3 (using classname)</span></label>
            <div class="control">
                <input name="field-3" id="field-3" title="Field 3" value="" type="text" class="input-text required-entry"/>
            </div>
        </div>
        <div class="field name required">
            <label class="label" for="field-4"><span>Field 4 (using data-mage-init)</span></label>
            <div class="control">
                <input name="field-4" id="field-4" title="Field 4" value="" class="input-text" type="text"/>
            </div>
        </div>
    </fieldset>
    <div class="actions-toolbar">
        <div class="primary">
            <button type="submit" title="Submit" class="action submit primary">
                <span>Submit</span>
            </button>
        </div>
    </div>
</form>
Copied to your clipboard
<form class="form" id="my-form" method="post" data-mage-init='{"validation":{"rules": {"field-4": {"required":true}}}}'>
    <fieldset class="fieldset">
        <div class="field name required">
            <label class="label" for="field-1"><span>Field 1 (using data-validate)</span></label>
            <div class="control">
                <input name="field-1" id="field-1" title="Field 1" value=""  class="input-text" type="text" data-validate='{"required":true, "url": true}'/>
            </div>
        </div>
        <div class="field name required">
            <label class="label" for="field-2"><span>Field 2 (using attribute)</span></label>
            <div class="control">
                <input name="field-2" id="field-2" title="Field 2" value="" class="input-text" type="text" required="true"/>
            </div>
        </div>
        <div class="field name required">
            <label class="label" for="field-3"><span>Field 3 (using classname)</span></label>
            <div class="control">
                <input name="field-3" id="field-3" title="Field 3" value="" type="text" class="input-text required-entry"/>
            </div>
        </div>
        <div class="field name required">
            <label class="label" for="field-4"><span>Field 4 (using data-mage-init)</span></label>
            <div class="control">
                <input name="field-4" id="field-4" title="Field 4" value="" class="input-text" type="text"/>
            </div>
        </div>
    </fieldset>
    <div class="actions-toolbar">
        <div class="primary">
            <button type="submit" title="Submit" class="action submit primary">
                <span>Submit</span>
            </button>
        </div>
    </div>
</form>
