Extend another appearance

Out of the box, Page Builder provides a variety of interactive CSS styling options for your content types. For example, Page Builder's Heading content type provides options for setting heading types (h1 through h6), text alignments, border properties, margins, and paddings. It also lets users apply one or more static CSS classes by entering them into a text input field.

But what if you want to give users even more styling options? For example, maybe you want to add Heading color options. Or Heading text-style options. This topic shows you how to use the attribute, style, and css configuration options to style the elements in your content types.

Understanding the big picture

Before we dive into the details of using different configuration options, let's take a moment to understand the role of the configurations within a Page Builder content type. The following diagram shows how the configuration options for the Heading content type connect or map the inputs from the Heading form to the bindings in the Heading templates and finally to the rendered output in the DOM:

Understanding the big picture

  1. Heading Form (pagebuilder_heading_form.xml). This form inherits from the pagebuilder_base_form.xml, which provides most of the input fields for the Heading. The Heading form itself provides input fields selecting an appearance, entering the heading_text, and selecting a heading_type (h1 to h6). The text to the left of each field specifies which form the field comes from, the heading_form or the base_form.

  2. Heading Configuration (heading.xml). The main purpose of all content type configuration files is to provide the data mapping between the form fields and the HTML templates. Configurations map to fields with matching names.

  3. Heading Template (master.html, preview.html). Template Knockout bindings map to configurations using their element naming hierarchies.

  4. Heading Rendered in DOM. Page Builder renders the template bindings to the DOM. The <attribute> configurations are rendered as custom attributes for the element. The <style> configurations are rendered as inline styles on the element. The <css> configuration is rendered as a class attribute for the element. And the <html> configuration renders the text for the element.

You may not understand all the details right away, but we hope that by providing the whole story up front, it will help you start putting the pieces together as you work your way through this topic and play with the companion example module.

Install the example module

To help you get started and follow along, we created an example module you can clone and install from commerce-docs/PageBuilderStylingOptions. The instructions for installing the module are provided from the README file on the repo.

For this example module, we chose to extend the Heading content type by adding three new Heading fields: Heading Colors, Heading Styles, and Heading Opacity, as shown here:

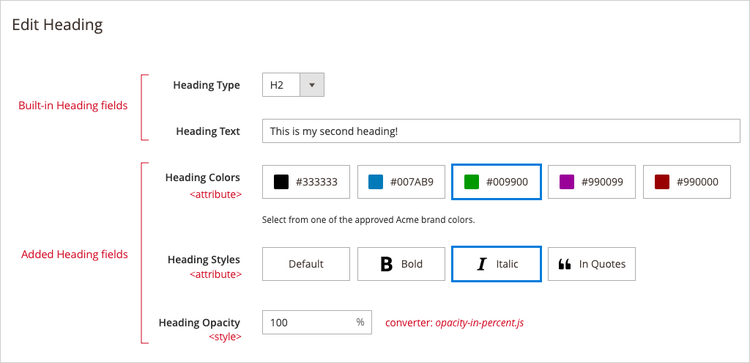

Add an appearance

Extended Heading form with color, text style, and opacity options

The example module provides all the code used here to describe how to style elements using <attribute> and <style> nodes. It also shows the use of a custom converter for our opacity style to ensure that users can enter the opacity as a percentage.

Steps overview

An overview of the steps for styling content type elements is shown here, followed by the detailed instructions for each step:

Style content types using attributes

Step 1: Add form fields for user input

First, you need to add fields to your content type's form so that users have a way of selecting or entering styling options. In our Heading extension, we add three new fields:

  • heading_color for selecting a color for the Heading text

  • heading_style for selecting text styles

  • heading_opacity for entering an opacity for the Heading text

The UI component form for these fields looks like this:

Copied to your clipboard
<?xml version="1.0" encoding="UTF-8"?>
<form xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_Ui:etc/ui_configuration.xsd">
    <fieldset name="general">
        <field name="heading_color" sortOrder="25" formElement="select" component="Magento_PageBuilder/js/form/element/visual-select">
            <argument name="data" xsi:type="array">
                <item name="config" xsi:type="array">
                    <item name="default" xsi:type="string">brand-black</item>
                </item>
            </argument>
            <settings>
                <dataType>text</dataType>
                <label translate="true">Heading Colors</label>
                <elementTmpl>Magento_PageBuilder/form/element/visual-select</elementTmpl>
                <notice translate="true">Select from one of the approved Acme brand colors.</notice>
            </settings>
            <formElements>
                <select>
                    <settings>
                        <options class="BrandColorSource"/>
                    </settings>
                </select>
            </formElements>
        </field>
        <field name="heading_style" sortOrder="26" formElement="select" component="Magento_PageBuilder/js/form/element/visual-select">
            <argument name="data" xsi:type="array">
                <item name="config" xsi:type="array">
                    <item name="default" xsi:type="string">style-default</item>
                </item>
            </argument>
            <settings>
                <dataType>text</dataType>
                <label translate="true">Heading Styles</label>
                <elementTmpl>Magento_PageBuilder/form/element/visual-select</elementTmpl>
            </settings>
            <formElements>
                <select>
                    <settings>
                        <options class="TextStyleSource"/>
                    </settings>
                </select>
            </formElements>
        </field>
        <field name="heading_opacity" sortOrder="27" formElement="input">
            <argument name="data" xsi:type="array">
                <item name="config" xsi:type="array">
                    <item name="default" xsi:type="string">100</item>
                </item>
            </argument>
            <settings>
                <label translate="true">Heading Opacity</label>
                <additionalClasses>
                    <class name="admin__field-small">true</class>
                </additionalClasses>
                <addAfter translate="true">%</addAfter>
                <validation>
                    <rule name="validate-number" xsi:type="boolean">true</rule>
                    <rule name="greater-than-equals-to" xsi:type="number">0</rule>
                    <rule name="less-than-equals-to" xsi:type="number">100</rule>
                </validation>
            </settings>
        </field>
    </fieldset>
</form>

New fields to extend the Heading form

The names of these fields, heading_color, heading_style, and heading_opacity are particularly important. They are the same names you must assign to their corresponding <attribute> and <style> nodes for the <element> in your configuration file. We'll do that next.

Step 2: Add element configuration options

Adding <attribute> and <style> nodes to an <element> configuration is how you add custom attributes and inline styles to the DOM, respectively. Both <attributes> and <style> nodes have a name property and a source property.

The name properties of these nodes must match the corresponding field's name in the form. Using the same names (between config and field) is what allows Page Builder to map the field's input values to the template's output values.

The source property for <attribute> nodes defines the name of the custom attribute added to the element's DOM so you can use it for targeting the element with your attribute-based CSS classes (step 4).

The source property for <style> nodes specifies the CSS property (in snake_case) added to the element's style attribute in the DOM.

In our extended Heading configuration, we added two <attribute> nodes and one <style> node, with names corresponding to the previously defined Heading form fields: heading_color, heading_style, and heading_opacity:

Copied to your clipboard
<!-- heading.xml config extension -->


<?xml version="1.0"?>
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_PageBuilder:etc/content_type.xsd">
     <type name="heading">
        <appearances>
            <appearance name="default">
                <elements>
                    <element name="main">
                        <attribute name="heading_color" source="data-heading-color"/>
                        <attribute name="heading_style" source="data-heading-style"/>
                        <style name="heading_opacity" source="opacity"/>
                    </element>
                </elements>
            </appearance>
        </appearances>
    </type>
</config>

NewConfiguration attributes for the Heading element

In this example, the source values for the nodes (data-heading-color, data-heading-style, and opacity) renders in the DOM for the Heading's main element (which is h2 by default), as shown here:

Copied to your clipboard
<h2 data-content-type="heading"
    data-appearance="default"
    data-heading-color="brand-green"
    data-heading-style="style-italic"
    data-element="main"
    style="...; opacity: 1;">
    My Heading Text
</h2>

The values shown for these attributes and inline-style properties are set by the user from the form fields. In this example, the user selected brand-green from the heading_color field, style-italic from the heading_style field, and entered 100 (in percent) in the heading_opacity field (converted to the decimal form you see here using a custom converter you will find in the example).

But before Page Builder can render the attributes and styles to the DOM as shown, we need to add the necessary Knockout bindings to our HTML templates.

Step 3: Add template Knockout bindings

In our example module, we are using the Heading's native master.html and preview.html templates, which already have all the Knockout bindings needed to render our new <attribute> and <style> configurations to the DOM. But its critical that you understand what these bindings are and what they do. Because without them, Page Builder renders nothing to the screen.

To render our configuration options in the DOM (as described in step 2), we must ensure that Knockout bindings are in our HTML templates. The three Knockout bindings for the <attribute>, <style>, and <css> configuration nodes are attr, ko-style, and css, respectively:

Copied to your clipboard
<h2 attr="data.main.attributes" ko-style="data.main.style" css="data.main.css"...></h2>

For all three Knockout bindings, data.main references the main element in the configuration file (heading.xml). The other binding references are as follows:

  • For the attr binding, the attributes property references the collection of <attribute> nodes defined for the main element.

  • For the ko-style binding, the style property references the collection of <style> nodes defined for the main element.

  • For the css binding, the css property references the <css> node defined for the main element.

You need to add these Knockout bindings to the Heading's master.html template (as well as the preview.html template), as shown here:

Copied to your clipboard
<!-- Heading master.html -->


<h1 if="data.main.heading_type() == 'h1'" attr="data.main.attributes" ko-style="data.main.style" css="data.main.css" html="data.main.html"></h1>
<h2 if="data.main.heading_type() == 'h2'" attr="data.main.attributes" ko-style="data.main.style" css="data.main.css" html="data.main.html"></h2>
<h3 if="data.main.heading_type() == 'h3'" attr="data.main.attributes" ko-style="data.main.style" css="data.main.css" html="data.main.html"></h3>
<h4 if="data.main.heading_type() == 'h4'" attr="data.main.attributes" ko-style="data.main.style" css="data.main.css" html="data.main.html"></h4>
<h5 if="data.main.heading_type() == 'h5'" attr="data.main.attributes" ko-style="data.main.style" css="data.main.css" html="data.main.html"></h5>
<h6 if="data.main.heading_type() == 'h6'" attr="data.main.attributes" ko-style="data.main.style" css="data.main.css" html="data.main.html"></h6>

Knockout bindings for the Heading's data.main config elements

With these bindings in place, Page Builder will render them to the DOM, using the values from the form fields (as noted in step 2), to look something like this:

Copied to your clipboard
<h2 data-content-type="heading"
    data-appearance="default"
    data-heading-color="brand-green"
    data-heading-style="style-italic"
    data-element="main"
    style="...; opacity: 1;">
    My Heading Text
</h2>

After you understand how Page Builder writes attributes and their user-selected values to the DOM, you can target the content type's main element (<h2> in this example) using attribute-based CSS classes from our _default.less files. We'll do this next.

Step 4: Add CSS classes

To target our DOM output, we want to use attribute-based CSS classes in our _default.less files for both the adminhtml and frontend, as shown here (from our module's adminhtml area):

Copied to your clipboard
/*-- adminhtml _default.less attribute-based classes */
/*-- the frontend  _default.less is the same, but without the .pagebuilder-stage wrapper */


& when (@media-common = true) {
    // Heading Colors
    .pagebuilder-stage {
        [data-heading-color='brand-black'] {
            color: #333333;
        }
        [data-heading-color='brand-blue'] {
            color: #007ab9;
        }
        [data-heading-color='brand-green'] {
            color: #009900;
        }
        [data-heading-color='brand-red'] {
            color: #990000;
        }
        [data-heading-color='brand-purple'] {
            color: #990099;
        }
    }
    // Heading Styles
    [data-heading-style='style-default'] {
        font-weight: normal;
        font-style: normal;
    }
    [data-heading-style='style-bold'] {
        font-weight: bold;
    }
    [data-heading-style='style-italic'] {
        font-style: italic;
    }
    [data-heading-style='style-quotes'] {
        &:before {
            content: '\201C';
        }
        &:after {
            content: '\201D';
        }
    }
}

Attribute-based CSS classes

To provide end users with styling options in the Admin UI's form fields, we can add a variety of different CSS properties for each available value. This makes it easy to target and style your content type elements in both small and large ways, depending on your use cases.

Discussion

Page Builder provides three configuration options for styling the elements in your content types. You can:

  • Use <attribute> nodes to style content-type elements with attribute-based CSS classes.

  • Use <style> nodes to style content-type elements with specific CSS properties.

  • Use <css> nodes to style content-type elements with one or more static CSS classes chosen by the end user.

You can add the <attribute> and <style> nodes many times to a content-type element. But you can add the <css> node only once per element. Refer to Understanding the <css> node for more information.

To aid in our discussion of these configuration nodes and how to use them, we will refer to the element configuration from heading.xml (PageBuilder/view/adminhtml/pagebuilder/content_type/heading.xml):

Copied to your clipboard
<!-- snippet from heading.xml -->


<element name="main">
    <style name="text_align" source="text_align"/>
    <style name="border" source="border_style" converter="Magento_PageBuilder/js/converter/style/border-style"/>
    <style name="border_color" source="border_color"/>
    <style name="border_width" source="border_width" converter="Magento_PageBuilder/js/converter/style/border-width"/>
    <style name="border_radius" source="border_radius" converter="Magento_PageBuilder/js/converter/style/remove-px"/>
    <style name="display" source="display" converter="Magento_PageBuilder/js/converter/style/display" preview_converter="Magento_PageBuilder/js/converter/style/preview/display"/>
    <style name="margins" storage_key="margins_and_padding" reader="Magento_PageBuilder/js/property/margins" converter="Magento_PageBuilder/js/converter/style/margins"/>
    <style name="padding" storage_key="margins_and_padding" reader="Magento_PageBuilder/js/property/paddings" converter="Magento_PageBuilder/js/converter/style/paddings"/>
    <attribute name="name" source="data-content-type"/>
    <attribute name="appearance" source="data-appearance"/>
    <tag name="heading_type"/>
    <html name="heading_text" converter="Magento_PageBuilder/js/converter/html/tag-escaper"/>
    <css name="css_classes"/>
</element>

Understanding and using style nodes

By configuring <elements> with <style> nodes, you can provide end users with a form field that changes a specific CSS property, such as we did with opacity.

In the heading.xml config example, the <style> nodes map to the same-named fields defined in the pagebuilder_base_form.xml. This form gives users the fields needed to change each of the CSS properties specified. When rendered to the DOM, Page Builder adds these <style>-defined properties (and their user-entered values) to the inline style attribute of the main DOM element, <h1> to <h6> depending on the Heading Type selected from the Heading's form.

For example, if a user selected a value for each of the styles defined in the heading.xml config, the inline style attribute in the storefront DOM would list the property:values for all the <style> nodes defined, as shown here:

Copied to your clipboard
<h2 data-content-type="heading"
    data-element="main"
    style="text-align: left;
           border-style: solid;
           border-color: rgb(240, 240, 240);
           border-width: 1px;
           border-radius: 3px;
           margin: 5px;
           padding: 2px;">
    My Heading Text
</h2>

Each <style> node defined for the element's configuration gets added to the DOM as another CSS property in the element's style attribute. In the example module for this topic, we added <style name="heading_opacity" source="opacity"/> to the heading.xml config. So when Page Builder renders the extended Heading content type in the DOM, it adds opacity to the existing list of CSS properties in the style attribute:

Copied to your clipboard
<h2 data-content-type="heading"
    data-element="main"
    style="text-align: left;
           border-style: solid;
           border-color: rgb(240, 240, 240);
           border-width: 1px;
           border-radius: 3px;
           margin: 5px;
           padding: 2px;
           opacity: 1;">
    My Heading Text
</h2>

Deciding to use attribute or style configurations

As mentioned, adding an <attribute> node to an element configuration gives you a way to provide end users with a form field that can use CSS classes, allowing you to change several CSS properties at once. This can be more powerful that using <style> configurations that can only change single CSS properties. But depending on your use case, you may not need to use <attribute> configurations.

Using <attribute> or <style> configurations is transparent to end users. But for you, the developer, the choice really depends on how much you need to change the element. If the user option needs to change the element significantly, you may want to use an <attribute> so you can apply CSS classes to the element. And if the user option is focused on making a simple property change to the element, you can use a <style> configuration.

Understanding the css node

The <css> config node is a bit different from the <attribute> and <style> nodes. The <css> node wasn't designed to be added to an element more than once like the other two nodes. Instead, it was designed to capture multiple CSS classes from a single form field and render those classes to the DOM within the class attribute. For this reason, it is currently not possible to add CSS classes to an element's class attribute from other form fields.

Out of the box, Page Builder maps the <css> config node (for each content type) to the css_classes input field from the pagebuilder_base_form.xml. For example, if you were to enter two CSS classes into this field within the Heading form, Page Builder would add the class attribute to the Heading's main element (<h2>) and populate it with the CSS classes entered, as shown on the first line here:

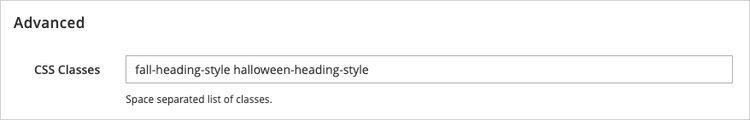

CSS Classes input field

Copied to your clipboard
<h2 class="fall-heading-style halloween-heading-style"
    data-content-type="heading"
    data-appearance="default"
    data-heading-color="brand-blue"
    data-heading-style="style-default"
    data-element="main"
    style="text-align: left; border-style: solid; border-color: rgb(240, 240, 240); border-width: 1px; border-radius: 3px; margin: 5px; padding: 2px; opacity: 1;">
    My Heading Text
</h2>

As mentioned, you can override the <css> node to map it to a different field name and/or type. You just can't use it more than once per element.

Regardless of the limitation, you can still use the <css> node to provide creative styling options for a content type. For example, if a merchant has a set of standard CSS classes they use during the year for holidays, you could map the <css> node to a select field that allows end users to choose from sets of merchant-approved classes with descriptive names, like Halloween styling, Christmas styling, and so on.

Final thoughts

Knowing how to create new content styling options by connecting form inputs to template outputs is one of the most important skills to have as a Page Builder developer. And knowing how to make those connections using <attribute>, <style>, and <css> configurations will give you a variety of powerful and flexible content styling options to offer your end users. So get creative and have fun!
