Add viewports

By default, Page Builder defines four responsive breakpoints, but only uses two of them for viewports: desktop and mobile. The other two breakpoints are tablet and mobile-small. This topic shows you how to add viewport previews to these breakpoints and customize them as needed.

Add viewports illustration

Example available. An example for adding additional viewports is available for viewing and installing from: https://github.com/commerce-docs/pagebuilder-theme. This example uses an Admin theme, which is typically a best practice for production releases. But during development, you might find that using a module helps simplify your daily workflow. Especially if you're starting from scratch. Then you can even use the PB Modules CLI to create a starting module.

Steps for adding viewports

Create an Admin theme or Create a module. Of course you can skip this step if you already have either one.
Add a view.xml file. Use this file to define your configuration data for the additional viewports.
Add viewport configuration data.
Add viewport CSS classes. Create these classes to change the stage width for a selected viewport.
Add viewport button images. Create SVG images for your viewport buttons.

Step 1: Create or add to an existing Admin theme

To create and apply an Admin theme, follow the instructions described here:

Your Admin theme and its required module should have directories set up as shown in the diagram:

Viewport icons

Step 2: Add a `view.xml` file

Copy the view.xml file from Page Builder (Magento/PageBuilder/etc/view.xml) and add it to your theme's etc directory. Before we continue, let's cleanup the view.xml file.

First, delete everything except the tablet and mobile-small breakpoints. When you finish, your view.xml file should look like this:

<?xml version="1.0"?>
<view>
    <vars module="Magento_PageBuilder">
        <var name="breakpoints">
            <var name="tablet">
                <var name="conditions">
                    <var name="max-width">1024px</var>
                    <var name="min-width">768px</var>
                </var>
                <var name="options">
                    <var name="products">
                        <var name="default">
                            <var name="slidesToShow">4</var>
                        </var>
                        <var name="continuous">
                            <var name="slidesToShow">3</var>
                        </var>
                    </var>
                </var>
            </var>
            <var name="mobile-small">
                <var name="conditions">
                    <var name="max-width">640px</var>
                </var>
                <var name="options">
                    <var name="products">
                        <var name="default">
                            <var name="slidesToShow">2</var>
                        </var>
                        <var name="continuous">
                            <var name="slidesToShow">1</var>
                        </var>
                    </var>
                </var>
            </var>
        </var>
    </vars>
</view>
Copied to your clipboard
<?xml version="1.0"?>
<view>
    <vars module="Magento_PageBuilder">
        <var name="breakpoints">
            <var name="tablet">
                <var name="conditions">
                    <var name="max-width">1024px</var>
                    <var name="min-width">768px</var>
                </var>
                <var name="options">
                    <var name="products">
                        <var name="default">
                            <var name="slidesToShow">4</var>
                        </var>
                        <var name="continuous">
                            <var name="slidesToShow">3</var>
                        </var>
                    </var>
                </var>
            </var>
            <var name="mobile-small">
                <var name="conditions">
                    <var name="max-width">640px</var>
                </var>
                <var name="options">
                    <var name="products">
                        <var name="default">
                            <var name="slidesToShow">2</var>
                        </var>
                        <var name="continuous">
                            <var name="slidesToShow">1</var>
                        </var>
                    </var>
                </var>
            </var>
        </var>
    </vars>
</view>

What's left at this point is the options element that provides breakpoint custom data to the Products content type.

Products uses this data in its widget.js file to make the slick carousel responsive. You will use this data in the Use breakpoints topic. But not here. So delete the breakpoint data. When you finish, your view.xml file should look like this:

<?xml version="1.0"?>
<view>
    <vars module="Magento_PageBuilder">
        <var name="breakpoints">
            <var name="tablet">
            </var>
            <var name="mobile-small">
            </var>
        </var>
    </vars>
</view>
Copied to your clipboard
<?xml version="1.0"?>
<view>
    <vars module="Magento_PageBuilder">
        <var name="breakpoints">
            <var name="tablet">
            </var>
            <var name="mobile-small">
            </var>
        </var>
    </vars>
</view>

Now we can add our viewport configurations without distraction.

Step 3: Add viewport configuration data

In our example, we added the following viewport data to the table and mobile-small breakpoints:

<?xml version="1.0"?>
<view>
    <vars module="Magento_PageBuilder">
        <var name="breakpoints">
            <var name="tablet">
                <var name="label">Tablet</var>
                <var name="stage">true</var>
                <var name="class">mobile-switcher</var>
                <var name="icon">PageBuilder_Breakpoints::css/images/switcher/switcher-tablet.svg</var>
                <var name="media">only screen and (max-width: 1024px)</var>
            </var>
            <var name="mobile-small">
                <var name="label">Mobile Small</var>
                <var name="stage">true</var>
                <var name="class">mobile-small-switcher</var>
                <var name="icon">PageBuilder_Breakpoints::css/images/switcher/switcher-mobile.svg</var>
                <var name="media">only screen and (max-width: 640px)</var>
            </var>
        </var>
    </vars>
</view>
Copied to your clipboard
<?xml version="1.0"?>
<view>
    <vars module="Magento_PageBuilder">
        <var name="breakpoints">
            <var name="tablet">
                <var name="label">Tablet</var>
                <var name="stage">true</var>
                <var name="class">mobile-switcher</var>
                <var name="icon">PageBuilder_Breakpoints::css/images/switcher/switcher-tablet.svg</var>
                <var name="media">only screen and (max-width: 1024px)</var>
            </var>
            <var name="mobile-small">
                <var name="label">Mobile Small</var>
                <var name="stage">true</var>
                <var name="class">mobile-small-switcher</var>
                <var name="icon">PageBuilder_Breakpoints::css/images/switcher/switcher-mobile.svg</var>
                <var name="media">only screen and (max-width: 640px)</var>
            </var>
        </var>
    </vars>
</view>

Details for these viewport elements are in the Viewport configurations section, but let's quickly summarize them:

label — for adding the viewport name to the tooltip.
stage — for adding or removing the viewport from the stage.
class — for adding an optional CSS class for the button (not the stage width).
icon — for adding an icon to the button.
media — for adding a media query used to show viewport properties on the frontend.

At this point, if you save your view.xml file, clear your cache (bin/magento cache:clean), and do a hard reload of your browser, you should see two additional buttons (with broken images) in the Page Builder's stage header:

Viewport icons

The buttons don't have icons because we haven't added them yet. But they have tooltips that show the viewport names you added to the label node. And you can even click them to trigger stage events. But there's nothing to process yet.

So let's add a button icon and CSS for the stage width to make the button look good and actually do something.

Step 4: Add viewport button icons

Page Builder uses SVG images for its existing viewport button icons. And while you can use other image formats (like .png), we recommend using SVG icons that match Page Builder's existing icons.

For this exercise, you can download the switcher-tablet.svg and switcher-mobile-small.svg images from our example repo.

After downloading, add the files to your theme or module's web/css/images/switcher/ directory to match the URLs we set for our viewport icon nodes in view.xml.

Now you can reload the CMS page, open Page Builder, and hopefully see your new viewport buttons with icons:

Viewport icons

Creating your own icons

If you want to create your own icons, use the following guidelines to help you match Page Builder's icons as closely as possible:

Icon height: 18px
Icon width: 20px, or narrower as needed.
Icon background: transparent
Icon fill: #fff

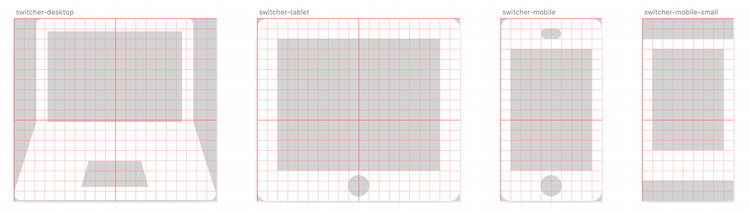

Shown below are the basic pixel dimensions and styles for our button icons.

Viewport icons

Pro Tip: Make sure you give all your custom icons a height of 18px, even when they are smaller like the switcher-mobile-small.svg. This common height ensures that your icons will align nicely in the stage header alongside Page Builder's existing icons.

Step 5: Add viewport CSS classes

Page Builder uses CSS classes to change the stage width for the selected viewport. So when you add a viewport configuration to a breakpoint, you need to add a .less file to your module or theme, like the _viewport-stage-widths.less file from from our example.

This is the part of our viewport framework where convention dominates configuration. You might remember a viewport node called class (from Step 3 above). And you might assume that the class node is for the CSS class that sets the stage width for your viewport. But this is not the case.

You must name your CSS classes according to the following convention:

<breakpoint-name>-viewport
Copied to your clipboard
<breakpoint-name>-viewport

Where <breakpoint-name> is the name of the breakpoint in view.xml, such as mobile-tiny. So our new viewport class names must be:

.tablet-viewport
.mobile-small-viewport

Every time a user clicks a viewport button, Page Builder applies a .<breakpoint>-viewport class to the stage. If this class exists (with the right nesting of selectors), the stage width changes to match. If not, nothing happens.

In our theme example, we define our viewport CSS classes in our _viewport-stage-widths.less file as follows:

.tablet-viewport {
    &.pagebuilder-stage-wrapper {
        &.stage-content-snapshot,
        &.stage-full-screen {
            .pagebuilder-stage {
                .pagebuilder-canvas {
                    left: 50%;
                    transform: translateX(-50%);
                    width: 1024px;
                }
            }
        }
    }
}

.mobile-small-viewport {
    &.pagebuilder-stage-wrapper {
        &.stage-content-snapshot,
        &.stage-full-screen {
            .pagebuilder-stage {
                .pagebuilder-canvas {
                    left: 50%;
                    transform: translateX(-50%);
                    width: 640px;
                }
            }
        }
    }
}
Copied to your clipboard
.tablet-viewport {
    &.pagebuilder-stage-wrapper {
        &.stage-content-snapshot,
        &.stage-full-screen {
            .pagebuilder-stage {
                .pagebuilder-canvas {
                    left: 50%;
                    transform: translateX(-50%);
                    width: 1024px;
                }
            }
        }
    }
}

.mobile-small-viewport {
    &.pagebuilder-stage-wrapper {
        &.stage-content-snapshot,
        &.stage-full-screen {
            .pagebuilder-stage {
                .pagebuilder-canvas {
                    left: 50%;
                    transform: translateX(-50%);
                    width: 640px;
                }
            }
        }
    }
}

The width values set here should match the max-width values configured for the media nodes in view.xml. If they don't, the end user will see a stage preview that differs from what customers see on the storefront.

Now if you save your .less file, transpile it, and reload of your browser, you should see the stage canvas changes widths to match the widths set in your viewport classes.

Summary

In this topic you learned how to add more viewports to Page Builder's stage so that end users can preview how their content will look a different widths on the storefront. To learn more about how to use these viewports to customize your content types, see How to use viewports.
