Create and manage grouped products tutorial

A grouped product consists of simple standalone products that are presented as a group. A group can contain variations of a single product or a collection of products that are to be sold together.

This tutorial describes how you can use the Adobe Commerce REST API to create and manage grouped products.

Before you begin#

• Install a Commerce instance with sample data. The sample data defines a functional store, called Luma, that sells fitness clothing and accessories.

• Install a REST client. You can use any REST client to send calls to Commerce. Postman is recommended.

• Obtain an admin authorization token. All calls in this tutorial require administrator privileges. See Generate the admin token for more information.

Other resources#

• REST Tutorials provides additional information about completing any Commerce REST tutorial.

1. Create an empty grouped product#

The first step is to create the grouped product container. In the next step, we'll add individual products to the grouped product.

Endpoint#

POST V1/products

Payload#

The attribute_set_id: 11 line corresponds to gear. The value of 4 for the visibility attribute indicates the product will be displayed on the storefront and can be searched.

    {
       "product":{
          "sku":"new-grouped",
          "name":"New Grouped Product",
          "attribute_set_id":11,
          "type_id":"grouped",
          "visibility":4
       }
    }
CopyCopied to your clipboard
1    {
2       "product":{
3          "sku":"new-grouped",
4          "name":"New Grouped Product",
5          "attribute_set_id":11,
6          "type_id":"grouped",
7          "visibility":4
8       }
9    }

Response#

{
    "id": 2053,
    "sku": "new-grouped",
    "name": "New Grouped Product",
    "attribute_set_id": 11,
    "status": 1,
    "visibility": 4,
    "type_id": "grouped",
    "created_at": "2019-08-15 17:51:13",
    "updated_at": "2019-08-15 17:51:13",
    "extension_attributes": {
        "website_ids": [
            1
        ],
        "stock_item": {
            "item_id": 2053,
            "product_id": 2053,
            "stock_id": 1,
            "qty": 0,
            "is_in_stock": false,
            "is_qty_decimal": false,
            "show_default_notification_message": false,
            "use_config_min_qty": true,
            "min_qty": 0,
            "use_config_min_sale_qty": 1,
            "min_sale_qty": 1,
            "use_config_max_sale_qty": true,
            "max_sale_qty": 10000,
            "use_config_backorders": true,
            "backorders": 0,
            "use_config_notify_stock_qty": true,
            "notify_stock_qty": 1,
            "use_config_qty_increments": true,
            "qty_increments": 0,
            "use_config_enable_qty_inc": true,
            "enable_qty_increments": false,
            "use_config_manage_stock": true,
            "manage_stock": true,
            "low_stock_date": null,
            "is_decimal_divided": false,
            "stock_status_changed_auto": 0
        }
    },
    "product_links": [],
    "options": [],
    "media_gallery_entries": [],
    "tier_prices": [],
    "custom_attributes": [
        {
            "attribute_code": "options_container",
            "value": "container2"
        },
        {
            "attribute_code": "url_key",
            "value": "new-grouped-product"
        },
        {
            "attribute_code": "required_options",
            "value": "0"
        },
        {
            "attribute_code": "has_options",
            "value": "0"
        },
        {
            "attribute_code": "category_ids",
            "value": []
        }
    ]
}
CopyCopied to your clipboard
1{
2    "id": 2053,
3    "sku": "new-grouped",
4    "name": "New Grouped Product",
5    "attribute_set_id": 11,
6    "status": 1,
7    "visibility": 4,
8    "type_id": "grouped",
9    "created_at": "2019-08-15 17:51:13",
10    "updated_at": "2019-08-15 17:51:13",
11    "extension_attributes": {
12        "website_ids": [
13            1
14        ],
15        "stock_item": {
16            "item_id": 2053,
17            "product_id": 2053,
18            "stock_id": 1,
19            "qty": 0,
20            "is_in_stock": false,
21            "is_qty_decimal": false,
22            "show_default_notification_message": false,
23            "use_config_min_qty": true,
24            "min_qty": 0,
25            "use_config_min_sale_qty": 1,
26            "min_sale_qty": 1,
27            "use_config_max_sale_qty": true,
28            "max_sale_qty": 10000,
29            "use_config_backorders": true,
30            "backorders": 0,
31            "use_config_notify_stock_qty": true,
32            "notify_stock_qty": 1,
33            "use_config_qty_increments": true,
34            "qty_increments": 0,
35            "use_config_enable_qty_inc": true,
36            "enable_qty_increments": false,
37            "use_config_manage_stock": true,
38            "manage_stock": true,
39            "low_stock_date": null,
40            "is_decimal_divided": false,
41            "stock_status_changed_auto": 0
42        }
43    },
44    "product_links": [],
45    "options": [],
46    "media_gallery_entries": [],
47    "tier_prices": [],
48    "custom_attributes": [
49        {
50            "attribute_code": "options_container",
51            "value": "container2"
52        },
53        {
54            "attribute_code": "url_key",
55            "value": "new-grouped-product"
56        },
57        {
58            "attribute_code": "required_options",
59            "value": "0"
60        },
61        {
62            "attribute_code": "has_options",
63            "value": "0"
64        },
65        {
66            "attribute_code": "category_ids",
67            "value": []
68        }
69    ]
70}

2. Populate the grouped product with simple products#

Now that we have created a grouped product, we need to add simple items to it. In this example, we add three types of backpacks.

Endpoint#

POST V1/products/new-grouped/links

Payload#

    {
       "items":[
          {
             "sku":"new-grouped",
             "link_type":"associated",
             "linked_product_sku":"24-WB01",
             "linked_product_type":"simple",
             "position":1,
             "extension_attributes":{
                "qty":1
             }
          },
          {
             "sku":"new-grouped",
             "link_type":"associated",
             "linked_product_sku":"24-WB02",
             "linked_product_type":"simple",
             "position":2,
             "extension_attributes":{
                "qty":1
             }
          },
          {
             "sku":"new-grouped",
             "link_type":"associated",
             "linked_product_sku":"24-WB05",
             "linked_product_type":"simple",
             "position":3,
             "extension_attributes":{
                "qty":1
             }
          }
       ]
    }
CopyCopied to your clipboard
1    {
2       "items":[
3          {
4             "sku":"new-grouped",
5             "link_type":"associated",
6             "linked_product_sku":"24-WB01",
7             "linked_product_type":"simple",
8             "position":1,
9             "extension_attributes":{
10                "qty":1
11             }
12          },
13          {
14             "sku":"new-grouped",
15             "link_type":"associated",
16             "linked_product_sku":"24-WB02",
17             "linked_product_type":"simple",
18             "position":2,
19             "extension_attributes":{
20                "qty":1
21             }
22          },
23          {
24             "sku":"new-grouped",
25             "link_type":"associated",
26             "linked_product_sku":"24-WB05",
27             "linked_product_type":"simple",
28             "position":3,
29             "extension_attributes":{
30                "qty":1
31             }
32          }
33       ]
34    }

Response#

true

3. Add another simple product to the grouped product#

This step uses the PUT /V1/products/new-grouped/links endpoint to add an item to the grouped product.

Endpoint#

PUT /V1/products/new-grouped/links

Payload#

    {
       "entity":{
          "sku":"new-grouped",
          "link_type":"associated",
          "linked_product_sku":"24-UG01",
          "linked_product_type":"simple",
          "position":4,
          "extension_attributes":{
             "qty":1
          }
       }
    }
CopyCopied to your clipboard
1    {
2       "entity":{
3          "sku":"new-grouped",
4          "link_type":"associated",
5          "linked_product_sku":"24-UG01",
6          "linked_product_type":"simple",
7          "position":4,
8          "extension_attributes":{
9             "qty":1
10          }
11       }
12    }

Response#

true

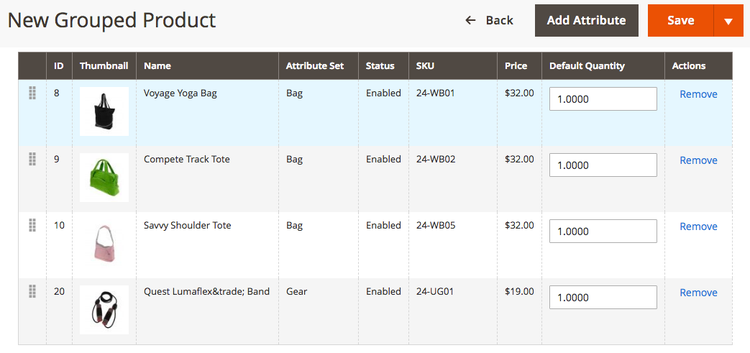

Verify the steps#

1. Log into the Admin.

2. Select Catalog > Products.

3. Click on the New Grouped Product grouped product and expand the Grouped Products section.



Add a grouped product to a cart#

Customers can now add this grouped products to their carts, as shown below.

Refer to the Order processing tutorial for more information about how to add items to a cart with REST.

Endpoint#

POST /V1/carts/mine/items

Payload#

{
 "cartItem": {
   "sku": "new-grouped",
   "qty": 1,
   "quote_id": "3"
   }
}
CopyCopied to your clipboard
1{
2 "cartItem": {
3   "sku": "new-grouped",
4   "qty": 1,
5   "quote_id": "3"
6   }
7}

Response#

{
   "item_id": 5,
   "sku": "24-WB01",
   "qty": 1,
   "name": "Voyage Yoga Bag",
   "price": 32,
   "product_type": "grouped",
   "quote_id": "3"
}
CopyCopied to your clipboard
1{
2   "item_id": 5,
3   "sku": "24-WB01",
4   "qty": 1,
5   "name": "Voyage Yoga Bag",
6   "price": 32,
7   "product_type": "grouped",
8   "quote_id": "3"
9}
