Document changes

Let's add some details to the InDesign document

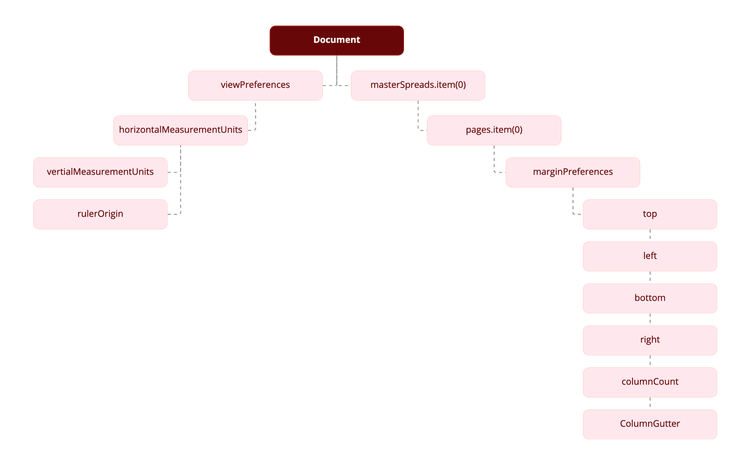

We'll create a new document, set page margins, and define and apply master pages. The following figure shows a block diagram that represents the objects we'll work with.

InDesign object model

The objects in the object model generally correspond to the names of controls in the user interface, as shown in the following diagram:

InDesign object model

Copied to your clipboard
const { app } = require("indesign");
let myDocument = app.documents.add();

Setting up measurement units and master spread margins

The following script fragment shows how to create a new document and set the margins of the first master spread.

Copied to your clipboard
//Set the measurement units and ruler origin.
const { MeasurementUnits, RulerOrigin } =  require("indesign");
myDocument.viewPreferences.horizontalMeasurementUnits = MeasurementUnits.points;
myDocument.viewPreferences.verticalMeasurementUnits = MeasurementUnits.points;
myDocument.viewPreferences.rulerOrigin = RulerOrigin.pageOrigin;

//Get a reference to the first master spread.
let myMasterSpread = myDocument.masterSpreads.item(0);

//Get a reference to the margin preferences of the first page in the master spread.
let myMarginPreferences = myMasterSpread.pages.item(0).marginPreferences;

//Now set up the page margins and columns.
myMarginPreferences.left = 84;
myMarginPreferences.top = 70;
myMarginPreferences.right = 70;
myMarginPreferences.bottom = 78;
myMarginPreferences.columnCount = 3;
myMarginPreferences.columnGutter = 14;

//Page margins and columns for the right-hand page.
let myMarginPreferences = myMasterSpread.pages.item(1).marginPreferences;
myMarginPreferences.left = 84;
myMarginPreferences.top = 70;
myMarginPreferences.right = 70;
myMarginPreferences.bottom = 78;
myMarginPreferences.columnCount = 3;
myMarginPreferences.columnGutter = 14;

Adding a baseline grid

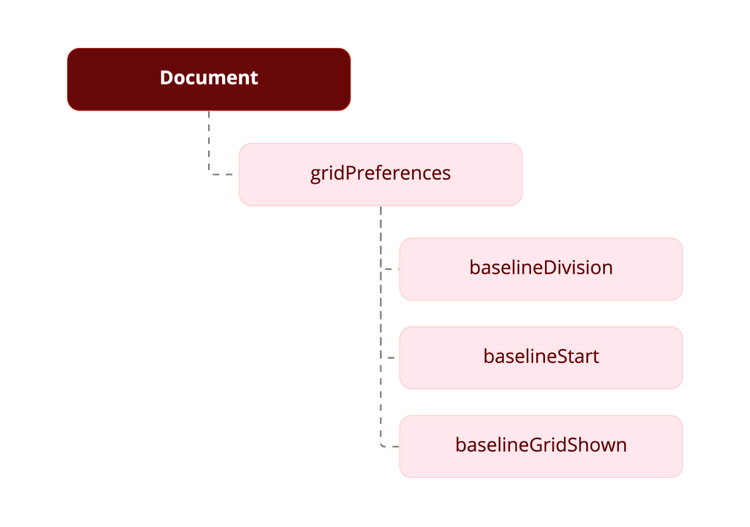

Now that we have a master spread set up, we will add a baseline grid. Here is a block diagram that shows the relationship between the objects we'll be working with:

InDesign object model

Copied to your clipboard
let myGridPreferences = myDocument.gridPreferences;
myGridPreferences.baselineDivision = 14;
myGridPreferences.baselineStart = 70;
myGridPreferences.baselineGridShown = true;

Adding master page items

Next, we add two text frames to the master pages. These frames will contain the auto-page-number special character and be positioned at the bottom of the page.

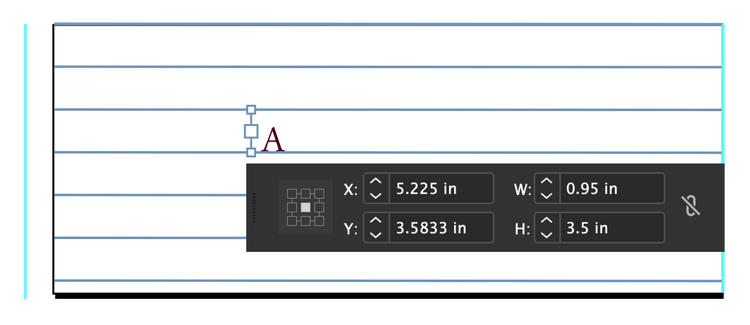

In the "Hello World" example, we created a text frame and specified its position and size using the geometric bounds property-an array containing the top, left, bottom, and right coordinates for the frame. The coordinates correspond to the corners of the frame, just as they would appear in the Control panel. The geometric bounds are: top = 728, left = 70, bottom = 742, and right = 528, as shown in the following two figures:

InDesign object model

Copied to your clipboard
const { FirstBaseline, SpecialCharacters, Justification } =  require("indesign");
let myMasterSpread = myDocument.masterSpreads.item(0);
let myLeftPage = myMasterSpread.pages.item(0);
let myRightPage = myMasterSpread.pages.item(1);
let myLeftFooter = myLeftPage.textFrames.add();
myLeftFooter.geometricBounds = [63, 3, 66, 9];
myLeftFooter.textFramePreferences.firstBaselineOffset = FirstBaseline.leadingOffset;
myLeftFooter.contents = SpecialCharacters.autoPageNumber;
myLeftFooter.parentStory.characters.item(0).pointSize = 11;
myLeftFooter.parentStory.characters.item(0).leading = 14;
let myRightFooter = myRightPage.textFrames.add();
myRightFooter.geometricBounds = [63, 92, 66, 99];
myRightFooter.textFramePreferences.firstBaselineOffset = FirstBaseline.leadingOffset;
myRightFooter.contents = SpecialCharacters.autoPageNumber;
myRightFooter.parentStory.characters.item(0).pointSize = 11;
myRightFooter.parentStory.characters.item(0).leading = 14;
myRightFooter.parentStory.characters.item(0).justification = Justification.rightAlign;

Adding master text frames

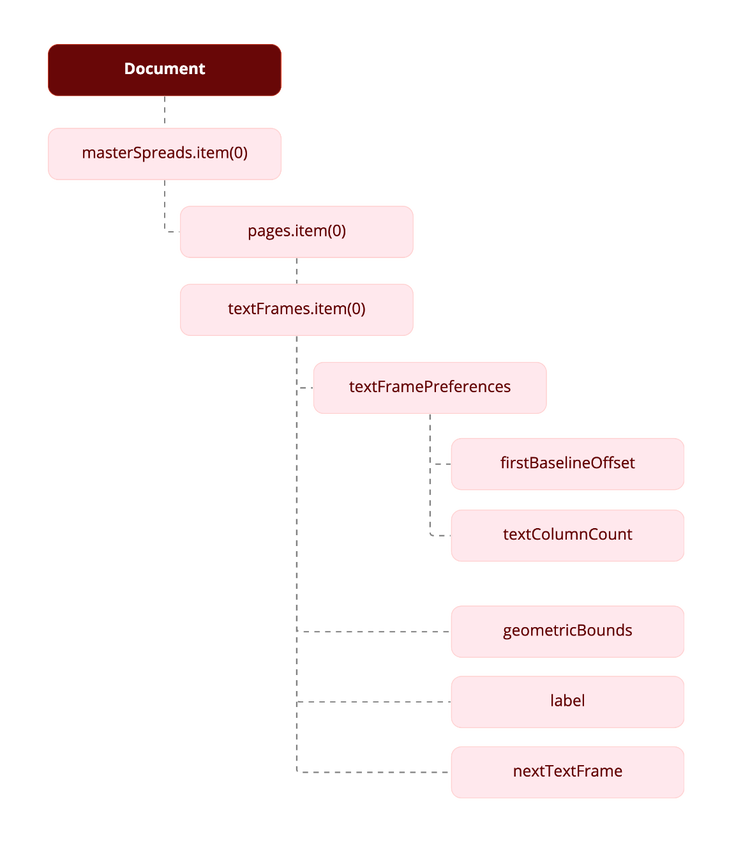

Next, we add master text frames. The following block diagram shows the objects and properties we'll be working with:

InDesign object model

Copied to your clipboard
const { FirstBaseline } =  require("indesign");
let myLeftPage = myMasterSpread.pages.item(0);
let myRightPage = myMasterSpread.pages.item(1);
let myLeftTextFrame = myLeftPage.textFrames.add();
myLeftTextFrame.geometricBounds = [3, 3, 25, 43];
myLeftTextFrame.textFramePreferences.firstBaselineOffset = FirstBaseline.leadingOffset;
myLeftTextFrame.textFramePreferences.textColumnCount = 3;
myLeftTextFrame.textFramePreferences.textColumnGutter = 14;
//Add a label to make the frame easier to find later on.
myLeftTextFrame.label = "BodyTextFrame";
let myRightTextFrame = myRightPage.textFrames.add();
myRightTextFrame.geometricBounds = [3, 54, 25, 91];
myRightTextFrame.textFramePreferences.firstBaselineOffset = FirstBaseline.leadingOffset;
myRightTextFrame.textFramePreferences.textColumnCount = 3;
myRightTextFrame.textFramePreferences.textColumnGutter = 14;
//Add a label to make the frame easier to find later on.
myRightTextFrame.label = "BodyTextFrame";
//Link the two frames using the nextTextFrame property.
myLeftTextFrame.nextTextFrame = myRightTextFrame;

Overriding master page items and adding text

Next, we override one of the master text frames we created and add text.

Copied to your clipboard
let myTextFrame = myDocument.masterSpreads.item(0).pages.item(1).textFrames.item(0).override(myDocument.pages.item(0));
//Add text by setting the contents of an insertion point to a string.
//In JavaScript, "\r" is a return character.
myTextFrame.insertionPoints.item(0).contents = "Headline!\r";

Adding and applying a paragraph style

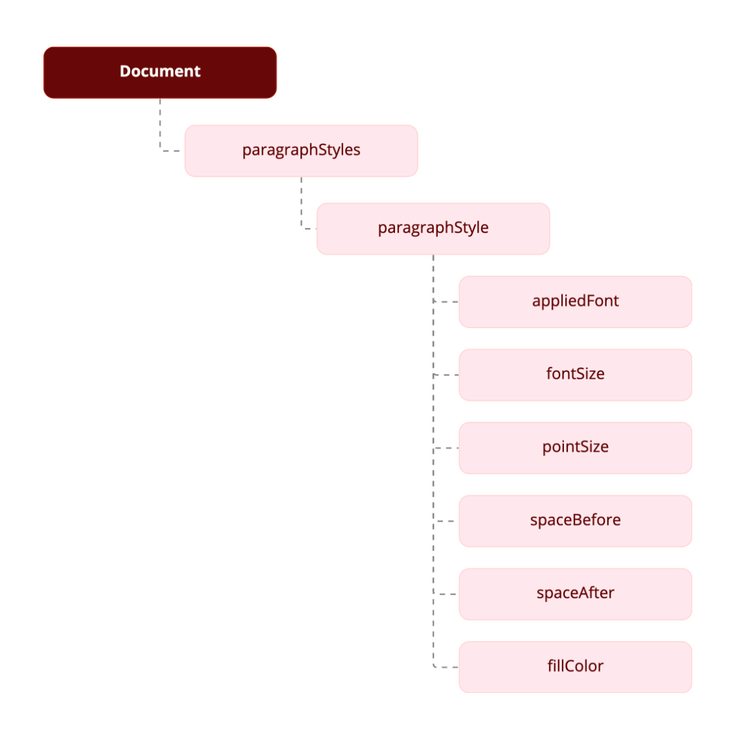

Our headline looks plain, so we will format it in a paragraph style. To do that, we must create the paragraph style. The following diagram shows the objects and properties we will work with:

InDesign object model

Copied to your clipboard
const { ColorModel } =  require("indesign");
//First, check to see if the paragraph style already exists.
let myParagraphStyle = myDocument.paragraphStyles.item("Heading 1");
try {
    let myName = myParagraphStyle.name;
}
catch (myError){
    //The paragraph style did not exist, so create it.
    myParagraphStyle = myDocument.paragraphStyles.add({name:"Heading 1"});
}
//We'll need to create a color. Check to see if the color already exists.
let myColor = myDocument.colors.item("Red");
try {
    myName = myColor.name;
}
catch (myError){
    //The color did not exist, so create it.
    myColor = myDocument.colors.add({name:"Red", model:ColorModel.process,
    colorValue:[0,100,100,0]});
}
//Now set the formatting of the paragraph style.
myParagraphStyle.appliedFont = "Arial";
myParagraphStyle.fontStyle = "Bold";
myParagraphStyle.pointSize = 24;
myParagraphStyle.spaceAfter = 24;
myParagraphStyle.spaceBefore = 24;
myParagraphStyle.fillColor = myDocument.colors.item("Red");
//Apply the style to the paragraph.
myDocument.pages.item(0).textFrames.item(0).paragraphs.item(0).applyParagraphStyle(
myParagraphStyle, true);
//You could also use:
//myDocument.pages.item(0).textFrames.item(0).paragraphs.item(0).appliedParagraphStyle = myParagraphStyle;

Placing a text file

Next, we import a text file. We add the text after the headline in the first text frame on the first page. The script displays a dialog box that you can use to select the text file to import.

Copied to your clipboard
//Display a standard open file dialog box to select a text file.
let myTextFile = <File Path of txt file>
 //Example : let myTextFile = "C://IDS/myText.txt";
 //If a text file was selected, and if you didn't press Cancel,
//place the text file at the first insertion point after the headline.
if((myTextFile != "")&&(myTextFile != null)){
    myTextFrame.insertionPoints.item(-1).place(myTextFile);
}

Place a graphic

Placing a graphic is like importing a text file. Again, the script displays a dialog box that you can use to select the graphic to place. When we place the graphic, InDesign returns a reference to the graphic itself rather than to the frame containing the graphic. To get a reference to the frame, use the parent property of the graphic. Once we have that reference, we can apply an object style to the frame.

Copied to your clipboard
const { FitOptions, TextWrapModes } =  require("indesign");
//Display a standard open file dialog box to select a graphic file.
 let myGraphicFile = <File Path of graphic file>
//Example : let myGraphicFile = "C://IDS/myImage.PNG";
 //If a graphic file was selected, and if you didn't press Cancel,
//place the graphic file on the page.
if((myGraphicFile != "")&&(myGraphicFile != null)){
    let myGraphic = myDocument.pages.item(0).place(myGraphicFile);
    //Since you can place multiple graphics at once, the place method
    //returns an array. To get the graphic you placed, get the first
    //item in the array (JavaScript arrays start with item 0).
    myGraphic = myGraphic[0];
    //Create an object style to apply to the graphic frame.
    let myObjectStyle = myDocument.objectStyles.item("GraphicFrame");
    try {
        let myName = myObjectStyle.name;
    }
    catch (myError){
        //The object style did not exist, so create it.
        myObjectStyle = myDocument.objectStyles.add({name:"GraphicFrame"});
    }
    myObjectStyle.enableStroke = true;
    myObjectStyle.strokeWeight = 3;
    myObjectStyle.strokeType = myDocument.strokeStyles.item("Solid");
    myObjectStyle.strokeColor = myDocument.colors.item("Red");
    //The frame containing the graphic is the parent of the graphic.
    let myFrame = myGraphic.parent;
    myFrame.applyObjectStyle(myObjectStyle, true);
    //Resize the frame to a specific size.
    myFrame.geometricBounds = [0,0,144,144];
    //Fit the graphic to the frame proportionally.
    myFrame.fit(FitOptions.proportionally);
    //Next, fit frame to the resized graphic.
    myFrame.fit(FitOptions.frameToContent);
    let myBounds = myFrame.geometricBounds;
    let myGraphicWidth = myBounds[3]-myBounds[1];
    //Move the graphic frame.
    let myPageWidth = myDocument.documentPreferences.pageWidth;
    let myTopMargin = myDocument.pages.item(0).marginPreferences.top;
    myFrame.move([myPageWidth-myGraphicWidth, myTopMargin]);
    //Apply a text wrap to the graphic frame.
    myFrame.textWrapPreferences.textWrapMode = TextWrapModes.BOUNDING_BOX_TEXT_WRAP;
    myFrame.textWrapPreferences.textWrapOffset = [24, 12, 24, 12];
}
