AEM Product Picker for Universal Editor

This extension for Universal Editor integrates Adobe Commerce data into your project, allowing users to select or remove product data directly within the editor.

Functionality Overview:

  • Replaces the standard UI for any field type component in the properties rail with a new component UI.
  • The new component features a list of selected products and includes a button to open the catalog for adding new products or removing selected ones.
  • Clicking the button lets users navigate through categories, select products from any category, or use search functionality to find specific products.
  • Users can sort selected products using drag and drop within the properties rail.
  • Utilizes components from Adobe React Spectrum.

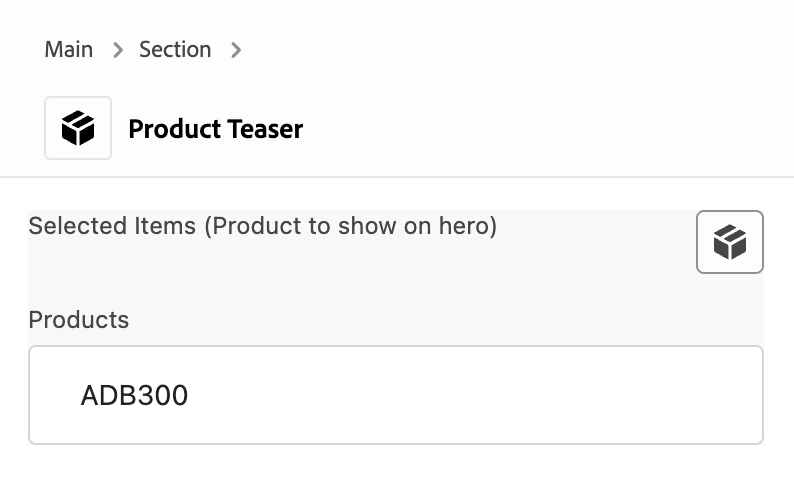

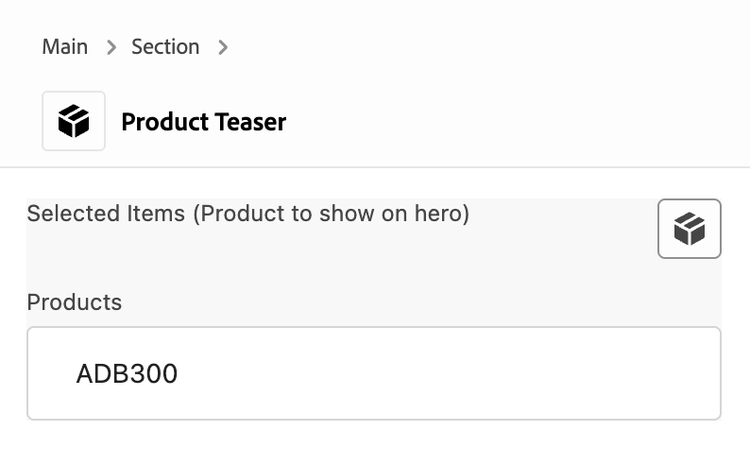

Overview - Right Panel

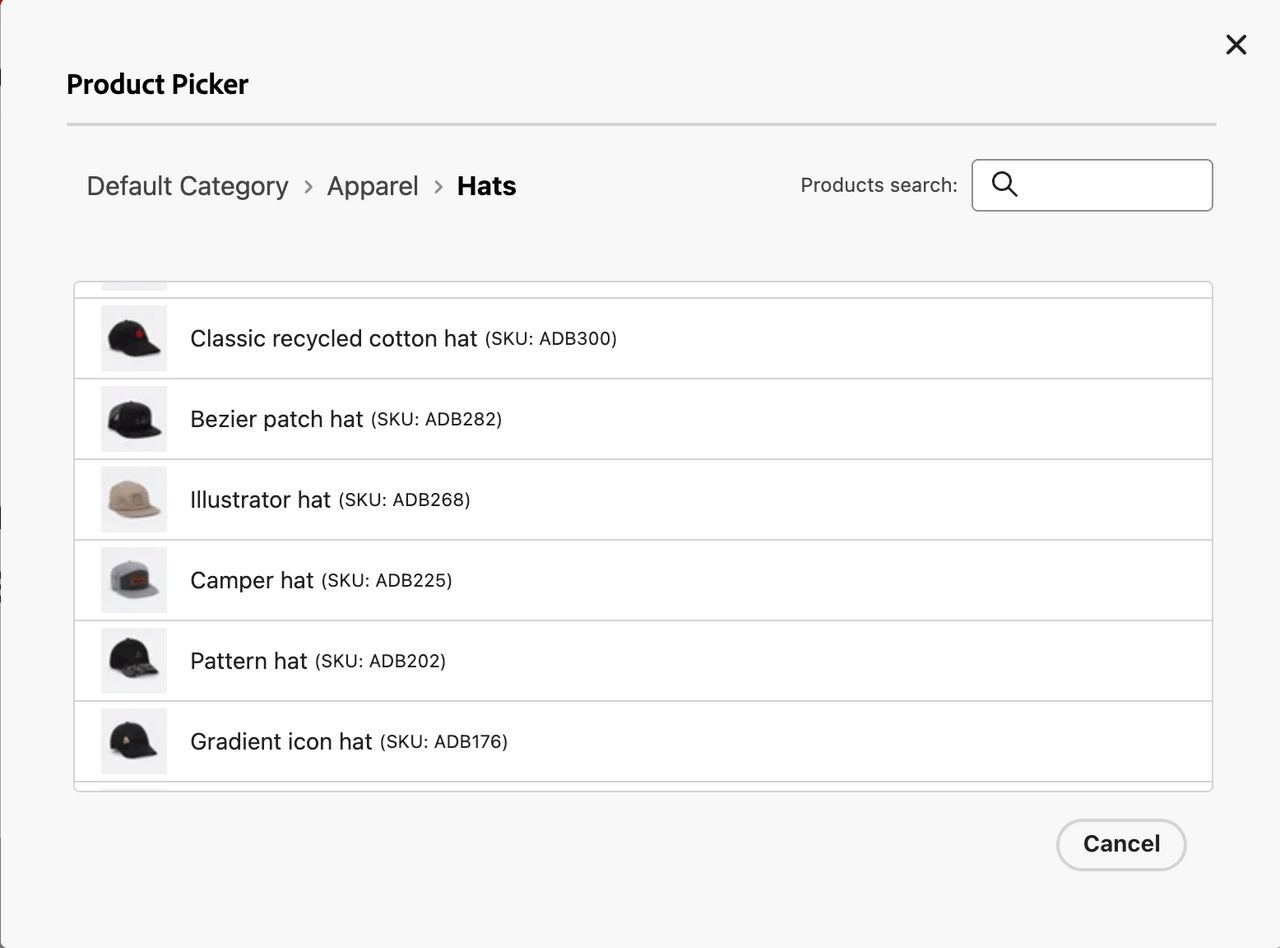

Overview - Modal

Configuration via Extension Manager

To access Extension Manager and understand the basic principles of working with extensions, refer to Extension Manager in AEM Sites.

At this moment, the extension supports two ways to configure Commerce instances: using a configuration file of the Commerce instance or specifying a direct GraphQL endpoint.

Configuration using Adobe Commerce configuration File

This file contains all the necessary information for making requests to the Adobe Commerce instance, including the GraphQL entry point, Store-View-Code, Customer-Group, and more for each environment (e.g., DEV, STAGE).

An example configuration file can be found at: example of configs.json.

Parameters you can currently specify in the Extension Manager for using this approach:

FieldRequiredDefaultDescription
commerce-configs
✔️
The URL where the configuration for the Adobe Commerce instance is located. This may not necessarily be the same instance as Adobe Commerce. An example is provided above.
commerce-env
prod
Specifies the environment section in the configuration file, such as dev, stage, or prod. This parameter helps identify which environment settings are being used.
component-type
✔️
product_picker
Specifies the type of component to be replaced with the Product Picker widget, such as text or product_list.
selection-mode
multiple
single/multiple. This value allows you to specify whether to allow selecting a single product or multiple products. Changing the mode from multiple to single will not affect the current selection.

Configuration using Adobe Commerce configuration File

Direct GraphQL entry point

In some cases, you may not have a configuration file for Adobe Commerce. Instead, you might use a "facade" in the form of a GraphQL entry point for Adobe Commerce (e.g., using an API Mesh).

In this case, you can still use the Product Picker, but there are some limitations:

  • Your GraphQL schema must be identical to the GraphQL schema for the Adobe Commerce catalog.
  • No additional HTTP headers will be passed to the instance. Instead, you must ensure that your GraphQL setup is configured for the specific website or store view (as per Adobe Commerce terminology).

Parameters you can specify when using a direct GraphQL entry point:

FieldRequiredDefaultDescription
сommerce-endpoint
✔️
The URL entry point for sending requests, e.g., http://<commerce-server>/graphql.
сommerce-root-category-id
2
You can specify a specific category for your root category. With Adobe Commerce configuration (the first described method), this is done directly in the configuration file.
component-type
✔️
product_picker
Specifies the type of component to be replaced with the Product Picker widget, such as text or product_list.
selection-mode
multiple
single/multiple. This value allows you to specify whether to allow selecting a single product or multiple products. Changing the mode from multiple to single will not affect the current selection.

Direct GraphQL entry point

Local setup

For demonstration or testing of custom features, it is also possible to specify the values of the variables described above locally:

  • You can define the variables described above in the file https://github.com/adobe/aem-uix-examples/tree/main/universal-editor-product-picker/src/universal-editor-ui-1/web-src/src/components/useConfig.js.
  • The component type you want to override is specified in the file https://github.com/adobe/aem-uix-examples/tree/main/universal-editor-product-picker/src/universal-editor-ui-1/web-src/src/components/ExtensionRegistration.js. These settings are separated because the extension registration process only requires the component type for overriding, not the full configuration.
  • To add custom HTTP headers to requests sent to Adobe Commerce (or your proxy), you can modify the file https://github.com/adobe/aem-uix-examples/tree/main/universal-editor-product-picker/src/universal-editor-ui-1/actions/host.js.
  • To output debug messages for the UIX SDK during extension registration, you can set the debug: true parameter.

An alternative method for specifying configuration variables, if more appropriate, is to add the values as a serialized array in the .env file:

Copied to your clipboard
CATALOG_SERVICE_CONFIG="{"commerce-endpoint":"http://<commerce-server>/graphql"}"

Support

For any feature requests, use-case validation, or bug reports, feel free to email us at uix@adobe.com.
