Action Bar

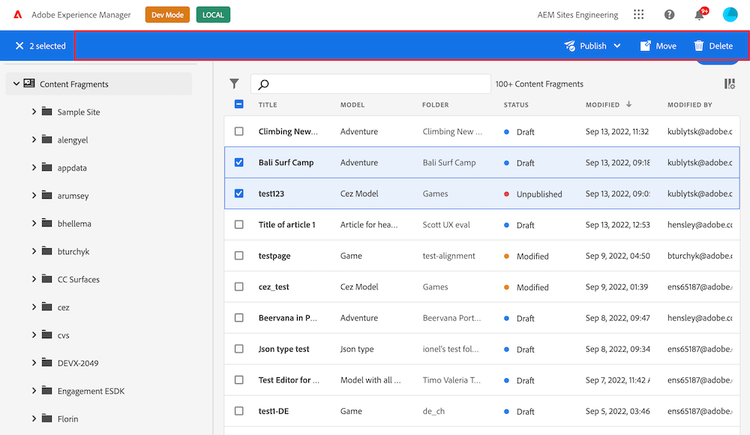

The Action Bar is an area above the content fragment list in the Content Fragments Console that displays action items that can be executed on selected content fragments. These actions may include editing, deleting, exporting, cloning, or publishing content fragments, and the Action Bar appears over the Header Menu when one or multiple content fragments are selected.

Action Bar

Action bar can be customized via methods defined in actionBar namespace.

You have the ability to:

create multiple buttons from single extension;
implement drop-down menu buttons;
use any icon from React Spectrum;
delete default or added by extension buttons;

Custom button with callback

import { register } from "@adobe/uix-guest";

// ...

const guestConnection = await register({
    id: "my.company.extension-with-action-bar-button",
    methods: {
        actionBar: {
            getButtons() {
                return [
                    {
                        id: "my.company.export-button",
                        label: "Export",
                        icon: 'Export',
                        onClick: (selections) => {
                            console.log('Export button has been pressed', selections);
                        },
                    },
                ];
            },
        },
    },
});
Copied to your clipboard
import { register } from "@adobe/uix-guest";

// ...

const guestConnection = await register({
    id: "my.company.extension-with-action-bar-button",
    methods: {
        actionBar: {
            getButtons() {
                return [
                    {
                        id: "my.company.export-button",
                        label: "Export",
                        icon: 'Export',
                        onClick: (selections) => {
                            console.log('Export button has been pressed', selections);
                        },
                    },
                ];
            },
        },
    },
});

The callback is invoked when user clicks on the button and receives list of content fragments selected in the list.

import { register } from "@adobe/uix-guest";

// ...

const guestConnection = await register({
    id: "my.company.extension-with-action-bar-button",
    methods: {
        actionBar: {
            getButtons() {
                return [
                    {
                        id: "my.company.export-button",
                        label: "Export",
                        icon: 'Export',
                        subItems: [
                            {
                                id: 'xml',
                                label: 'XML',
                                onClick: (selections) => {
                                    console.log('Export in XML button has been pressed.', selections);
                                    // ...
                                },
                            },
                            {
                                id: 'csv',
                                label: 'CSV',
                                onClick: (selections) => {
                                    console.log('Export in CSV button has been pressed.', selections);
                                    // ...
                                },
                            },
                        ],
                    },
                ];
            },
        },
    },
});
Copied to your clipboard
import { register } from "@adobe/uix-guest";

// ...

const guestConnection = await register({
    id: "my.company.extension-with-action-bar-button",
    methods: {
        actionBar: {
            getButtons() {
                return [
                    {
                        id: "my.company.export-button",
                        label: "Export",
                        icon: 'Export',
                        subItems: [
                            {
                                id: 'xml',
                                label: 'XML',
                                onClick: (selections) => {
                                    console.log('Export in XML button has been pressed.', selections);
                                    // ...
                                },
                            },
                            {
                                id: 'csv',
                                label: 'CSV',
                                onClick: (selections) => {
                                    console.log('Export in CSV button has been pressed.', selections);
                                    // ...
                                },
                            },
                        ],
                    },
                ];
            },
        },
    },
});

The callback is invoked when user clicks on the button and receives list of content fragments selected in the list.

Delete button

import { register } from "@adobe/uix-guest";

// ...

const guestConnection = await register({
    id: "my.company.extension-with-action-bar-button",
    methods: {
        actionBar: {
            deleteButtons() {
                return [
                    {
                        //The "id" property is the "data-id" property of html button element.
                        id: "my.company.export-button"
                    },
                ];
            },
        },
    },
});
Copied to your clipboard
import { register } from "@adobe/uix-guest";

// ...

const guestConnection = await register({
    id: "my.company.extension-with-action-bar-button",
    methods: {
        actionBar: {
            deleteButtons() {
                return [
                    {
                        //The "id" property is the "data-id" property of html button element.
                        id: "my.company.export-button"
                    },
                ];
            },
        },
    },
});

API Reference

Button API

Field	Type	Required	Description
id	`string`	✔️	Must be unique across all extensions. Consider adding a vendor prefix to this field
label	`string`	✔️	Button label that will be visible on UI
icon	`string`		Name of a React-Spectrum workflow icon
subItems	`array`		A list with sub menu items
onClick	`callback(selections): void`	✔️	A callback for a button `onClick` event. Receives list of content fragments selected in the list

Field	Type	Required	Description
id	`string`	✔️	Must be unique across the current button sub menu
label	`string`	✔️	Button label that will be visible on UI
icon	`string`		Name of a React-Spectrum workflow icon
onClick	`callback(selections): void`	✔️	A callback for a button `onClick` event. Receives list of content fragments selected in the list

Delete button API

Field	Type	Required	Description
id	`string`	✔️	"id" is a "data-id" attribute of the button (please use browser developer console to find actual value).

Get List of selected Fragments

You can access data about the currently selected Content Fragments using the host.fragmentSelections.getSelections() method in an extension.

Examples:

Buttons conditional rendering

Content Fragment Admin invokes the getButtons method each time a user changes the content fragments selection. Therefore, you can dynamically return different sets of buttons based on the data that has changed on the page. For example:

import { register } from "@adobe/uix-guest";

// ...

const guestConnection = await register({
    id: "my.company.extension-with-action-bar-button",
    methods: {
        actionBar: {
            async getButtons() {
                const selections = await guestConnection?.host?.fragmentSelections?.getSelections?.() || [];
                const defaultButtons = [
                    {
                        id: "default_btn",
                        label: "Default Button",
                        onClick(selections) {}
                    }
                ]

                if (selections.length > 1 ) {
                    return [
                        ...defaultButtons,
                        {
                            id: "two_and_more_selected",
                            label: "Ext two and more selected",
                        }
                    ]
                }

                return [
                    ...defaultButtons,
                    {
                        id: "one_or_less_selected",
                        label: "Ext one or less selected",
                    }
                ]
            },
        },
    },
});
Copied to your clipboard
import { register } from "@adobe/uix-guest";

// ...

const guestConnection = await register({
    id: "my.company.extension-with-action-bar-button",
    methods: {
        actionBar: {
            async getButtons() {
                const selections = await guestConnection?.host?.fragmentSelections?.getSelections?.() || [];
                const defaultButtons = [
                    {
                        id: "default_btn",
                        label: "Default Button",
                        onClick(selections) {}
                    }
                ]

                if (selections.length > 1 ) {
                    return [
                        ...defaultButtons,
                        {
                            id: "two_and_more_selected",
                            label: "Ext two and more selected",
                        }
                    ]
                }

                return [
                    ...defaultButtons,
                    {
                        id: "one_or_less_selected",
                        label: "Ext one or less selected",
                    }
                ]
            },
        },
    },
});

The defaultButtons constant contains the buttons that will be rendered every time, regardless of the condition. On the line const selections = await guestConnection?.host?.fragmentSelections?.getSelections?.() || []; we get information about the current list of selected content fragments.

Based on the quantity of selected content fragments, we render different sets of buttons.

In case if selected more then one content fragment (selections.length > 1) the default buttons and button with id "two_and_more_selected" will be rendered In case if selected just one content fragment the default button and button with id "one_or_less_selected" will be rendered

This technique allows for building complex logic behind the button rendering.
