Navigation

These guidelines provide clarity on the different entry points a plugin can have. An entry point is how users access your plugin, users can access a plugin through the menu bar or a keyboard shortcut.

  • Entry points
  • Menu architecture - Top menu and Submenu items
  • Keyboard shortcuts


## Entry Points

Menu bar#

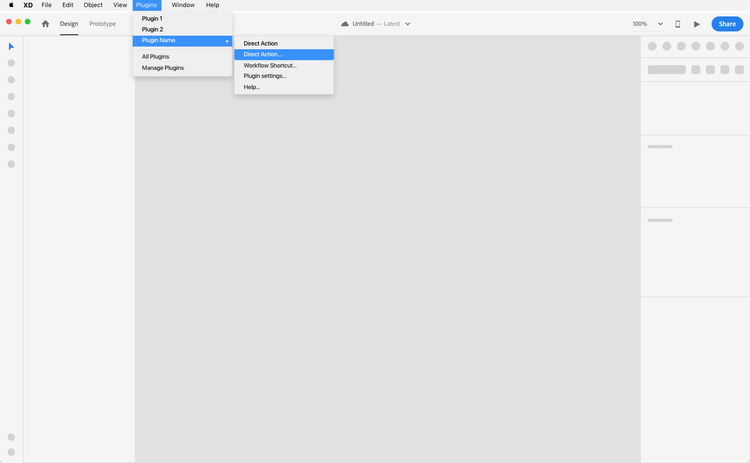

Menu example in XD

Plugin Launch pad#

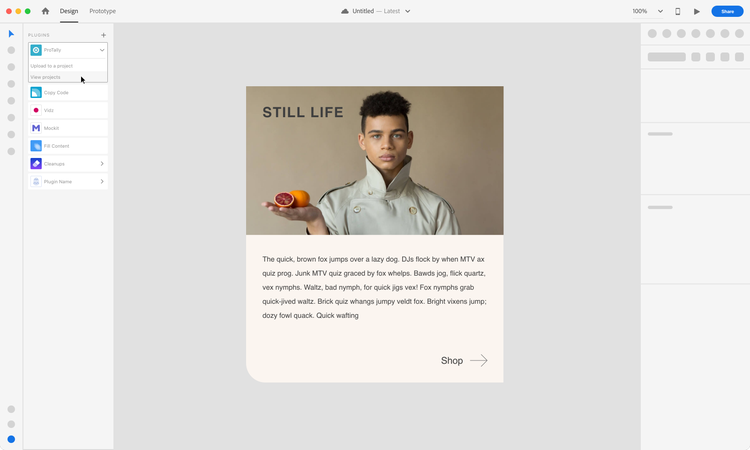

Panel launch pad example in XD


Menu architecture - Top menu and Submenu items#

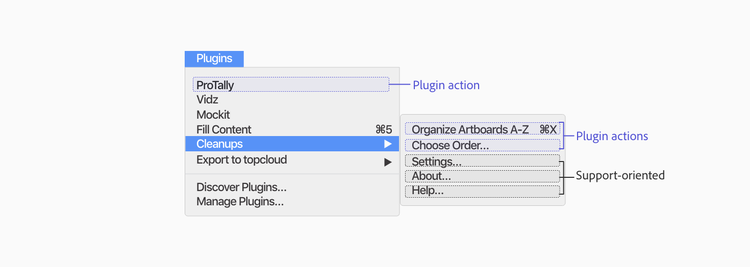

Menu requirements

UX Requirements#

Plugin actions
Executes a plugin action or open modal.

Best practices#

Support-oriented items
Provide help links, about tutorials or global settings.

Settings
If the plugin handles default preferences then consider having “plugin settings” as part of the submenu. (ex: export options, spacing rules)

About
Users can refer back to onboarding materials such as tutorials and guides on how to use the plugin.

Help
Provide the user with an external link to help documentation or an email through the submenu.

Don't
Don’t add multiple actions for one plugin as top-level items.

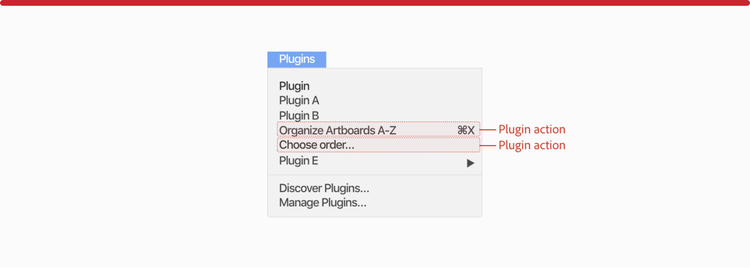

Don't add multiple actions for one plugin at a top level

Top Menu#

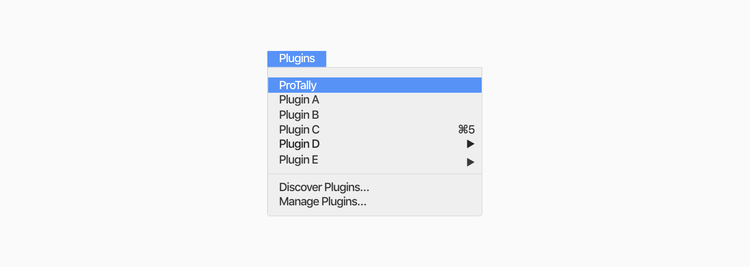

Top menu example in the menu bar

Use Case
If your plugin has one action or workflow shortcut then the action will be the top menu item.

Plugin Label
A. Long label names will truncate B. The top menu label is the plugin name C. Limit the use of emoji’s as part of the label

Submenu items#

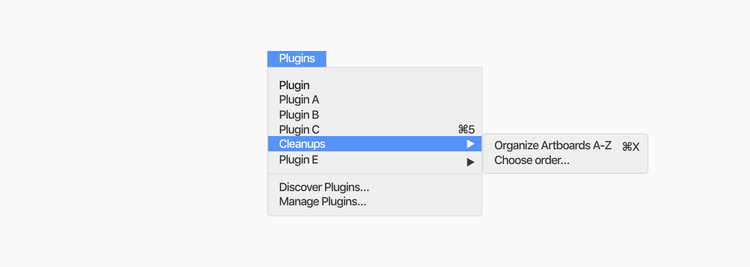

Submenu example in the menu bar

Use Cases
if your plugin needs to handle multiple actions or workflow shortcuts then they will render as a submenu.

Plugin Label
A. If the plugin has a single submenu item then it will be shown as a Top Menu item B. Long label names will truncate C. Top menu label is the plugin name D. Submenu labels - action labels should have a descriptive name (i.e: Copy CSS) E. When a plugin needs further user action in order to continue, then at the end of the submenu label should use “…” F. Limit the use of emoji’s as part of the label


Keyboard shortcuts#

If you are considering having a shortcut for your plugin, make sure to keep these guidelines in mind.

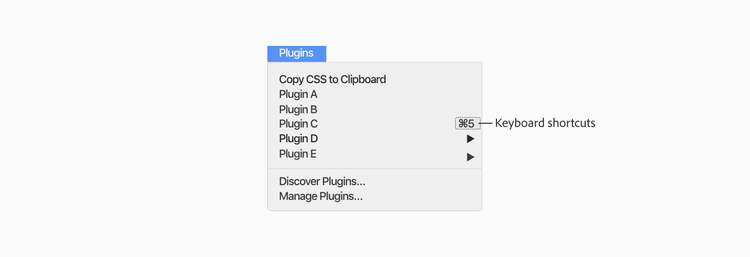

Keyboard shortcut example in the menu

Best practices#

If the user has another plugin with the same shortcut already installed, the new installed plugins shouldn’t expect to have that same shortcut.

  • Can use a combination of “Shift” “Alt/Option” and “Control”

  • Keyboard shortcuts are used by power users

  • A keyboard shortcut can be used as an entry point but account for possible shortcut collisions
