Configure Xdebug

Xdebug is an extension for debugging your PHP code.

Cloud Docker for Commerce provides a separate container to handle Xdebug requests in the Docker environment. Use this container to enable Xdebug and debug PHP code in your Docker environment without affecting your Adobe Commerce on cloud infrastructure project configuration. The following explains how to configure Xdebug and PhpStorm to debug in your local Docker environment.

If you use Microsoft Windows, take the following steps before continuing:

1. Open Settings from the Docker menu or Docker Dashboard.
2. Select the Expose daemon on tcp://localhost:2375 without TLS checkbox.
3. Wait for the settings to apply.

Enable Xdebug

1. To enable Xdebug for your Docker environment, generate the Docker Compose configuration file in developer mode with the --with-xdebug option and any other required options, for example.

   Copy
   ./vendor/bin/ece-docker build:compose --mode="developer" --sync-engine="mutagen" --with-xdebug
   Copied to your clipboard
   ./vendor/bin/ece-docker build:compose --mode="developer" --sync-engine="mutagen" --with-xdebug

   This command adds the Xdebug configuration to your docker-compose.yml file.

   Copy
    fpm_xdebug:
      hostname: fpm_xdebug.magento2.docker
      image: 'magento/magento-cloud-docker-php:7.4-fpm-1.3.2'
      extends: generic
      volumes:
        - '.:/app:ro,delegated'
        - 'magento-vendor:/app/vendor:ro,delegated'
        - 'magento-generated:/app/generated:ro,delegated'
        - 'magento-var:/app/var:rw,delegated'
        - 'magento-app-etc:/app/app/etc:rw,delegated'
        - 'magento-pub-media:/app/pub/media:rw,delegated'
        - 'magento-pub-static:/app/pub/static:rw,delegated'
        - '.docker/mnt:/mnt:rw,delegated'
      environment:
        - 'PHP_EXTENSIONS=bcmath bz2 calendar exif gd gettext intl mysqli pcntl pdo_mysql soap sockets sysvmsg sysvsem sysvshm opcache zip xsl sodium xdebug'
      networks:
        magento:
          aliases:
            - fpm_xdebug.magento2.docker
      depends_on:
        db:
          condition: service_started
   Copied to your clipboard
    fpm_xdebug:
      hostname: fpm_xdebug.magento2.docker
      image: 'magento/magento-cloud-docker-php:7.4-fpm-1.3.2'
      extends: generic
      volumes:
        - '.:/app:ro,delegated'
        - 'magento-vendor:/app/vendor:ro,delegated'
        - 'magento-generated:/app/generated:ro,delegated'
        - 'magento-var:/app/var:rw,delegated'
        - 'magento-app-etc:/app/app/etc:rw,delegated'
        - 'magento-pub-media:/app/pub/media:rw,delegated'
        - 'magento-pub-static:/app/pub/static:rw,delegated'
        - '.docker/mnt:/mnt:rw,delegated'
      environment:
        - 'PHP_EXTENSIONS=bcmath bz2 calendar exif gd gettext intl mysqli pcntl pdo_mysql soap sockets sysvmsg sysvsem sysvshm opcache zip xsl sodium xdebug'
      networks:
        magento:
          aliases:
            - fpm_xdebug.magento2.docker
      depends_on:
        db:
          condition: service_started

2. Follow the steps to launch the Docker environment in Developer mode.

   The default Docker environment configuration sets the following Xdebug configuration variables:

   Copy
   PHP_IDE_CONFIG=serverName=magento_cloud_docker
   XDEBUG_CONFIG=remote_host=host.docker.internal
   Copied to your clipboard
   PHP_IDE_CONFIG=serverName=magento_cloud_docker
   XDEBUG_CONFIG=remote_host=host.docker.internal

3. Change any Xdebug configuration using the XDEBUG_CONFIG option. For example, to change the xdebug.remote_port option:

   Copy
   XDEBUG_CONFIG='client_host=host.docker.internal client_port=9002'
   Copied to your clipboard
   XDEBUG_CONFIG='client_host=host.docker.internal client_port=9002'

   On Linux systems, use the following command instead:

   Copy
   XDEBUG_CONFIG=client_host=host.docker.internal client_port=9002
   Copied to your clipboard
   XDEBUG_CONFIG=client_host=host.docker.internal client_port=9002

To configure PhpStorm to work with Xdebug:

1. In your PhpStorm project, open the settings panel.

   • macOS X—Select PhpStorm > Preferences.
   • Windows/Linux—Select File > Settings.

2. In the Settings panel, expand and locate the PHP > Servers section.

3. Click the + to add a PHP Remote Debug server configuration. The project name is in grey at the top.

4. Configure the following settings for the new server configuration:

   • Name—Enter the name used for the serverName option from PHP_IDE_CONFIG value. By default, MCD uses this value: serverName=magento_cloud_docker
   • Host—Enter localhost.
   • Port—Enter 80.
   • Debugger—Select Xdebug.

5. Select Use path mappings. In the File/Directory pane, the root of the project for the serverName displays.

6. In the Absolute path on the server column, click Edit and add a value to the MAGENTO_ROOT option. The default value is: /app

7. Change the Xdebug port to 9001 in the PHP > Debug > Xdebug > Debug Port panel.

8. Click Apply.

Use Xdebug

The following steps describe debugging web requests and CLI commands.

To debug web requests:

1. In your PhpStorm project, click Start listening in the top navigation bar.

2. Add breakpoints in the pub/index.php file.

3. Install the debug extension in the browser, and then click Debug to enable.

4. In the browser, open the https://localhost URL.

5. When PhpStorm recognizes the Xdebug connection, you can begin debugging web requests.

You can debug any Adobe Commerce command or PHP script using the following steps.

To debug CLI commands:

1. In your PhpStorm project, open the Build, Execution, Deployment > Docker panel, and then click + to add a Docker server and update the following settings:

   • Name—Enter a name for the server, for example Docker Cloud.
   • Connect to Docker daemon with—
     • Windows—Select TCP socket and update Engine Api Url with tcp://localhost:2375.
     • macOS X—Select Docker for Mac. [default]

2. In the PHP > Cli Interpreter panel, click [...].

3. Click [+] to add and configure a new Cli Interpreter from your Docker image. Update the following settings:

   • Name—Enter a name for the new interpreter, such as Magento cloud docker cli
   • Remote—Select Docker
     • Server—Select Docker Cloud from the previous step.
     • Image name—Select magento/magento-cloud-docker-php:7.x-cli
   • Additional > Debugger extension:
     • Windows—Enter xdebug
     • macOS X/Linux—Enter xdebug.so
   • Click Refresh to verify that the interpreter and Xdebug extension are configured properly.

4. Click Save.

5. Open the Run/Debug Configuration window and add a PHP script with the following settings:

   • Name—Enter bin/magento
   • Configuration > File—Select the path to the bin/magento file in your local environment.

6. Add breakpoints in the bin/magento file and the debug PHP script created in the previous step.

Using Xdebug Helper

You can install and use the Xdebug Helper Chrome extension to debug your PhP code from the browser.

To use Xdebug Helper with Chrome:

1. Install the Xdebug Helper extension from the Chrome store.

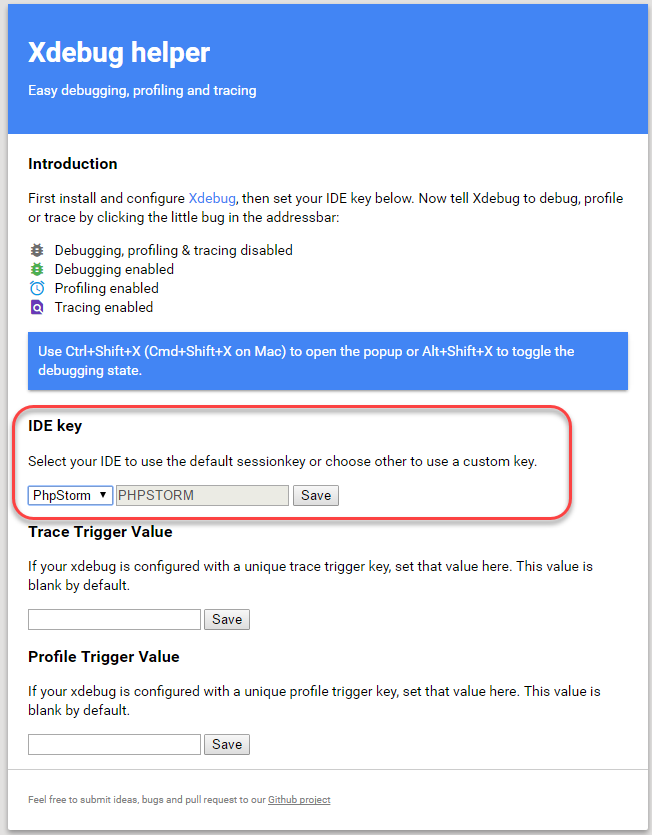

2. Enable the extension in Chrome as shown in the following figure.



3. In Chrome, click the debug icon in the Chrome toolbar.



4. From the Xdebug helper menu, click Options.

5. From the IDE Key list, select PhpStorm.

6. Click Save.
