Debugging code in App Builder project

Use the local environment to simulate and troubleshoot your Adobe I/O App Builder code before deploying.

data-variant=info

data-slots=text

Debugging web actions with Adobe Commerce as a Cloud Service or a deployed instance is not supported. They can only be simulated locally.

Prerequisites

Set require-adobe-auth: false and web: 'yes' in the app-config.yaml file when debugging runtime actions.

Configure the debugger

To debug your Adobe I/O App Builder project in Visual Studio Code (VS Code), set up a launch configuration. This allows you to run and debug your app directly from VS Code, making it easier to inspect code, set breakpoints, and view logs.

Create a .vscode folder in the root of your project if one does not already exist. Inside this folder, create or edit the launch.json file.
Copy and paste the recommended content from debugging with VS Code.
Save your changes.

This configuration sets up the VS Code debugger to work with Adobe I/O App Builder projects.

Enable source maps

In the root folder of your project, create a webpack-config.js file with the following content:

module.exports = {
    devtool: 'inline-source-map'
  }

Rebuild the project

Use the following command to rebuild your project to apply the changes.

aio app build

Start debugging

To start debugging your action code:

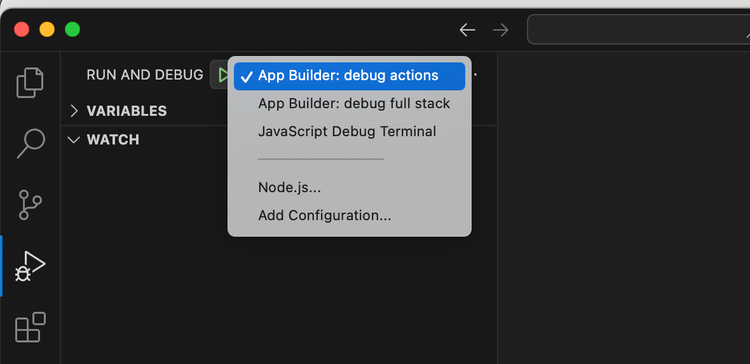

In VS Code, on the Run and Debug tab, select the launch configuration you created in "Configure the debugger". This will allow you to run your app in debug mode.

Click the Run button or press F5 to start the debugger. This starts the app using the aio app dev command. Output similar to the following is displayed in the terminal:

Debugger attached.
Building the app...
To view your local application:
  -> https://localhost:9080
To view your deployed application in the Experience Cloud shell:
  -> https://experience.adobe.com/?devMode=true#/custom-apps/?localDevUrl=https://localhost:9080

Your actions:
web actions:
  -> https://https://localhost:9080/api/v1/web/{your-project-name}/{name-of-your-action}

non-web actions:

press CTRL+C to terminate the dev environment
2025-05-22T06:41:55.969Z [watcher] info: watching action files at...

Invoke an action with a sample payload

Now that your local debugger is running, you can test your web action by sending a request to the local endpoint. Use tools like Postman or any other API client to send a POST request to the listed URL, such as https://localhost:9080/api/v1/web/{your-project-name}/{name-of-your-action}, with the sample JSON payload.

{
    "specversion": "1.0",
    "id": "23f76cef-9f14-44b1-bbd0-29995789c98e",
    "source": "urn:uuid:fb58963f-d2e7-4ab4-83da-b6ff15b8ebc0",
    "type": "com.adobe.commerce.observer.catalog_product_save_commit_after",
    "datacontenttype": "application/json",
    "time": "2025-07-17T15:48:42.436Z",
    "eventid": "b0f2b088-5490-4d16-9ce9-0cb1fb3e5ed0",
    "event_id": "b0f2b088-5490-4d16-9ce9-0cb1fb3e5ed0",
    "recipient_client_id": "ca7b36f23be94dcb9d2ebb97f0276e3f",
    "recipientclientid": "ca7b36f23be94dcb9d2ebb97f0276e3f",
    "data": {
        "key": "31a86bbd-e51d-4b58-9f5a-34ec8df263c9",
        "value": {
            "sku": "eventtest1",
            "name": "eventtest r",
            "created_at": "2025-06-20 15:32:20",
            "updated_at": "2025-07-17 15:48:41",
            "stock_data": {
                "qty": "65"
            },
            "price": "32444.000000"
        },
        "source": "<eventprovider>.Stage",
        "_metadata": {
            "commerceEdition": "Adobe Commerce",
            "commerceVersion": "1.0.0-beta",
            "eventsClientVersion": "1.12.1",
            "storeId": "0",
            "websiteId": "0",
            "storeGroupId": "0"
        }
    }
}

The request should trigger the web action and hit the breakpoint you set earlier in your code, allowing you to inspect the incoming payload and debug the action logic.

Test using curl

You can also test your web action using curl from the command line. Use the following command, replacing the URL with your local endpoint:

curl --insecure --request POST \
  --url https://localhost:9080/api/v1/web/<your-project-name>/{name-of-your-action}} \
  --header 'Content-Type: application/json' \
  --header 'User-Agent: insomnia/10.1.1-adobe' \
  --data '{"specversion":"1.0","id":"23f76cef-9f14-44b1-bbd0-29995789c98e","source":"urn:uuid:fb58963f-d2e7-4ab4-83da-b6ff15b8ebc0","type":"com.adobe.commerce.observer.catalog_product_save_commit_after","datacontenttype":"application/json","time":"2025-07-17T15:48:42.436Z","eventid":"b0f2b088-5490-4d16-9ce9-0cb1fb3e5ed0","event_id":"b0f2b088-5490-4d16-9ce9-0cb1fb3e5ed0","recipient_client_id":"ca7b36f23be94dcb9d2ebb97f0276e3f","recipientclientid":"ca7b36f23be94dcb9d2ebb97f0276e3f","data":{"key":"31a86bbd-e51d-4b58-9f5a-34ec8df263c9","value":{"sku":"eventtest1","name":"eventtest r","created_at":"2025-06-20 15:32:20","updated_at":"2025-07-17 15:48:41","stock_data":{"qty":"65"},"price":"32444.000000"},"source":"eventprovider","_metadata":{"commerceEdition":"Adobe Commerce","commerceVersion":"1.0.0-beta","eventsClientVersion":"1.12.1","storeId":"0","websiteId":"0","storeGroupId":"0"}}}'

Tips For app development

These tips will help you streamline development and improve reliability while building event-driven applications using Adobe App Builder.

Redeploy changes

If you've made changes to the action code, run the below commands:
```
aio app build
```
If you have multiple actions in your project and want to deploy only a specific action you modified, run the following command to rebuild and redeploy only the specified action.
```
aio app deploy --action=testevent
```

Debugging action failures

When an App Builder action fails, you can debug it using either the Debug Tracer in Developer Console or the CLI activation commands.

Using a debug tracer (UI)

You can use the Debug Tracer in the Adobe Developer Console to quickly identify issues with your action code.

Open the project in Adobe Developer Console.
Go to the Debug Tracer tab.
Trigger your action (e.g., aio app deploy or aio runtime action invoke <namespace>/<package>/<actionName>).

If the action fails, Debug Tracer shows:

The Activation ID (unique execution ID)
The Error response from the runtime (e.g., application error, server error, 401 unauthorized, 403 forbidden, etc.)
Any logger.info / logger.error messages the code emitted

Example Debug tracer error:

application error
{
"error": "server error"
}

You can copy the Activation ID directly from Debug Tracer to investigate further using the CLI.

Using the CLI

To get more details, activation commands can be used.

aio rt activation list

Datetime        Status    Kind      Version    Activation ID
─────────────── ───────── ───────── ───────── ────────────────────────────────
08/13 20:32:24  app error sequence  0.0.1     7d2470aa1bc84bc6a470aa1bc85bc67c journalevent/eventjournal

The last column shows the Activation ID.

To get logs explicitly:

aio rt activation logs <ACTIVATION_ID>

data-variant=info

data-slots=text

Start with Debug Tracer for quick troubleshooting.
If you need more details (like raw JSON response, timing, annotations, logs), switch to the CLI with the Activation ID.

Interpreting event delivery logs in Adobe I/O Events

When an event is triggered and delivered through Adobe I/O Events, you can inspect the delivery status using the Debug Tracer in the Adobe Developer Console. The delivery record contains the following fields:

DELIVERY TIME (UTC): Timestamp when the event delivery was attempted.
EVENT CODE: Unique identifier representing the event type triggered
EVENT PROVIDER: Name of the configured provider in Adobe Commerce
RESPONSE CODE: HTTP response code returned by the Runtime action.

Use the Adobe I/O Events Tracing Guide to interpret these response codes and troubleshoot event delivery issues.
