Accordion widget

The accordion widget is an extension of the tabs widget.

Accordions are generally used to break content into multiple sections that can be swapped to save space.

The accordion widget source is lib/web/mage/accordion.js.

Initialize the accordion widget

Initialize accordion in JS components

Initialize accordion with data-* attributes specified

Generally the accordion widget is instantiated like following:

Copy
$("#element").accordion();
Copied to your clipboard
$("#element").accordion();

Where:

• #element is the selector of the element for accordion is initialized.

• #element has children with the following attributes specified:

  • data-role="title"
  • data-role="content"

Optionally, you can specify the following:

• If you want the trigger to be different from the title, add the data-role="content" attribute for the element
• To have the content updated using Ajax, add the data-ajax="true" attribute for the element containing the URL for request.

Accordions support arbitrary markup, but the following requirements should be kept:

1. Titles and contents are specified in the same order in DOM: first title, then contents.
2. The header, trigger and content are specified, either by adding the data-* attributes for the corresponding children elements or by specifying these elements with selectors as options.

Mark-up examples:

Copy
<div id="element">
    <div data-role="collapsible">
        <div data-role="trigger">
            <span>Title 1</span>
        </div>
    </div>
    <div data-role="content">Content 1</div>

    <div data-role="collapsible">
        <div data-role="trigger">
            <span>Title 2</span>
        </div>
    </div>
    <div data-role="content">Content 2</div>

    <div data-role="collapsible">
        <div data-role="trigger">
            <span>Title 3</span>
        </div>
    </div>
    <div data-role="content">Content 3</div>
</div>

<script>
    require([
        'jquery',
        'accordion'], function ($) {
        $("#element").accordion();
    });
</script>
Copied to your clipboard
<div id="element">
    <div data-role="collapsible">
        <div data-role="trigger">
            <span>Title 1</span>
        </div>
    </div>
    <div data-role="content">Content 1</div>

    <div data-role="collapsible">
        <div data-role="trigger">
            <span>Title 2</span>
        </div>
    </div>
    <div data-role="content">Content 2</div>

    <div data-role="collapsible">
        <div data-role="trigger">
            <span>Title 3</span>
        </div>
    </div>
    <div data-role="content">Content 3</div>
</div>

<script>
    require([
        'jquery',
        'accordion'], function ($) {
        $("#element").accordion();
    });
</script>

Initialize accordion with option

You can specify the header, content, trigger as options when you initialize the widget. For example:

Copy
$("#element").accordion({
    header : "#title-1",
    content : "#content-1",
    trigger : "#trigger-1",
    ajaxUrlElement: "a"
 });
Copied to your clipboard
$("#element").accordion({
    header : "#title-1",
    content : "#content-1",
    trigger : "#trigger-1",
    ajaxUrlElement: "a"
 });

Initialize accordion in a template

The accordion widget can be initialized using the data-mage-init attribute or <script> element, as described in JavaScript initialization.

Option

Accordion options coincide with tabs options and include the additional custom options.

active

Defines which tab is active when the widget gets instantiated.

Type: Array, String

Default value: [0]

Example of the accordion initialization with the active option specified:

Copy
$("#element").accordion({ active: "0 1" });
$("#element").accordion({ active: [0,1] });
Copied to your clipboard
$("#element").accordion({ active: "0 1" });
$("#element").accordion({ active: [0,1] });

multipleCollapsible

Defines if multiple panels can be expanded at the same time.

Type: Boolean

Default value: false

Example of the accordion initialization with the multipleCollapsible option specified:

Copy
$("#element").accordion({ multipleCollapsible: false });
Copied to your clipboard
$("#element").accordion({ multipleCollapsible: false });

Get or set the multipleCollapsible option, after initialization:

Copy
//getter
var multipleCollapsible = $("#element").accordion("option", "multipleCollapsible");

//setter
$("#element").tabs("option", "multipleCollapsible", false);
Copied to your clipboard
//getter
var multipleCollapsible = $("#element").accordion("option", "multipleCollapsible");

//setter
$("#element").tabs("option", "multipleCollapsible", false);

openOnFocus

For keyboard navigation defines if the accordion expands when the title gets in focus.

Type: Boolean

Default value: false

Methods

Accordion widget options and keyboard interaction mostly coincide with the tabs widget methods.

activate(index)

Activate a tab with the specified index.

Type: Number, Array.

If no index is passed, all panels are activated.

Code examples:

Copy
$( "#element" ).accordion("activate");
$( "#element" ).accordion("activate", 1);
$( "#element" ).accordion("activate", [0,1]);
Copied to your clipboard
$( "#element" ).accordion("activate");
$( "#element" ).accordion("activate", 1);
$( "#element" ).accordion("activate", [0,1]);

deactivate(index)

Deactivate a tab with the specified index.

Type: Number, Array.

If no index is passed, all panels are deactivated.

Code examples:

Copy
$( "#element" ).accordion("deactivate");
$( "#element" ).accordion("deactivate", 1);
$( "#element" ).accordion("deactivate", [0,1]);
Copied to your clipboard
$( "#element" ).accordion("deactivate");
$( "#element" ).accordion("deactivate", 1);
$( "#element" ).accordion("deactivate", [0,1]);

Events

The accordion widget subscribes to the same events as the Tabs widget:

beforeOpen callback

Called before the content is opened.

Example of adding a callback to beforeOpen events:

Copy
$("#element").on("beforeOpen", function () {
    // do something before opening the content
});
Copied to your clipboard
$("#element").on("beforeOpen", function () {
    // do something before opening the content
});

dimensionsChanged

Called after content is opened or closed.

Example of adding a callback to dimensionsChanged events:

Copy
$("#element").on("dimensionsChanged", function (event, data) {
    var opened = data.opened;

    if (opened) {
        // do something when the content is opened
        return;
    }
    // do something when the content is closed
});
Copied to your clipboard
$("#element").on("dimensionsChanged", function (event, data) {
    var opened = data.opened;

    if (opened) {
        // do something when the content is opened
        return;
    }
    // do something when the content is closed
});

Code sample

The following example shows how to initialize the accordion widget and pass options during the initialization.

Copy
<div id="accordion" data-mage-init='{
        "accordion":{
            "active": [1, 2],
            "collapsible": true,
            "openedState": "active",
            "multipleCollapsible": true
        }}'>
    <div data-role="collapsible">
        <div data-role="trigger">
            <h4>Title 1</h4>
        </div>
    </div>
    <div data-role="content">Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s</div>

    <div data-role="collapsible">
        <div data-role="trigger">
            <h4>Title 2</h4>
        </div>
    </div>
    <div data-role="content"> It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.</div>

    <div data-role="collapsible">
        <div data-role="trigger">
            <h4>Title 3</h4>
        </div>
    </div>
    <div data-role="content">Contrary to popular belief, Lorem Ipsum is not simply random text. It has roots in a piece of classical Latin literature from 45 BC, making it over 2000 years old.</div>
</div>
Copied to your clipboard
<div id="accordion" data-mage-init='{
        "accordion":{
            "active": [1, 2],
            "collapsible": true,
            "openedState": "active",
            "multipleCollapsible": true
        }}'>
    <div data-role="collapsible">
        <div data-role="trigger">
            <h4>Title 1</h4>
        </div>
    </div>
    <div data-role="content">Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s</div>

    <div data-role="collapsible">
        <div data-role="trigger">
            <h4>Title 2</h4>
        </div>
    </div>
    <div data-role="content"> It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.</div>

    <div data-role="collapsible">
        <div data-role="trigger">
            <h4>Title 3</h4>
        </div>
    </div>
    <div data-role="content">Contrary to popular belief, Lorem Ipsum is not simply random text. It has roots in a piece of classical Latin literature from 45 BC, making it over 2000 years old.</div>
</div>

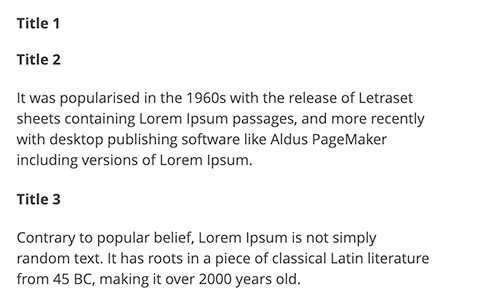

Result

The result is three sections with separate swapped content.

Last updated 9/11/2023
