RowBuilder widget
The RowBuilder widget allows you to build a container with rows.
The RowBuilder widget can be used only on the frontend area.
The RowBuilder widget source is lib/web/mage/row-builder.js.
Initialize
For information about how to initialize a widget in a JS component or .phtml template, see the Initialize JavaScript topic.
The RowBuilder widget is instantiated with:
Copied to your clipboard$("#row-builder").rowBuilder({"rowTemplate":"#row-template","rowContainer":"#row-container","rowParentElem":"<div></div>","remEventSelector":"a","btnRemoveSelector":".action.remove","maxRows":"5"});``
Where:
#row-builderis the selector of the element which will be the RowBuilder.
The following example shows a PHTML file using the script:
Copied to your clipboard<script>require(['jquery','rowBuilder'], function ($) {'use strict';$("#row-builder").rowBuilder({"rowTemplate":"#row-template","rowContainer":"#row-container","rowParentElem":"<div></div>","remEventSelector":"a","btnRemoveSelector":".action.remove","maxRows":"5"});});</script>
The following example shows a PHTML file using the script with some data for a couple of fields:
Copied to your clipboard<div class="row-builder-example"><div id="max-rows-message" style="display: none;" class="message notice limit" role="alert"><span>Number of rows exceeded.</span></div><button type="button" id="add-row-button" class="action add"><span>Add Item</span></button><div id="row-container"></div></div><script id="row-template" type="text/x-magento-template"><div><div class="field name required"><label for="field1-name<%- data._index_ %>" class="label"><span>Item <%- data._index_ %> Field</span></label><div class="control"><input name="field1[name][<%- data._index_ %>]" type="text" title="<?= $block->escapeHtmlAttr(__('Name')) ?>" class="input-text"id="field1-name<%- data._index_ %>"/></div></div><div class="field name required"><label for="field2-name<%- data._index_ %>" class="label"><span>Item <%- data._index_ %> Field</span></label><div class="control"><input name="field2[name][<%- data._index_ %>]" type="text" title="<?= $block->escapeHtmlAttr(__('Name')) ?>" class="input-text"id="field2-name<%- data._index_ %>"/></div></div><div class="field name required"><label for="field3-name<%- data._index_ %>" class="label"><span>Item <%- data._index_ %> Field</span></label><div class="control"><input name="field3[name][<%- data._index_ %>]" type="text" title="<?= $block->escapeHtmlAttr(__('Name')) ?>" class="input-text"id="field3-name<%- data._index_ %>"/></div></div><div class="actions-toolbar"><div class="secondary"><a href="#" id="btn-remove<%- data._index_ %>" class="action remove"title="Remove Item"><span>Remove Item</span></a></div></div></div></script><script>require(['jquery','rowBuilder'], function ($) {'use strict';var data = {formData: [["field1-name1", "field2-name1", "field3-name1"],["field1-name2", "field2-name2", "field3-name2"],["field1-name3", "field2-name3", "field3-name3"],["field1-name4", "field2-name4", "field3-name4"],],templateFields: ["field1-name", "field2-name", "field3-name"]};$(".row-builder-package-manager").rowBuilder({"rowTemplate": "#row-template","rowContainer": "#row-container","rowParentElem": "<div></div>","remEventSelector": "a","btnRemoveSelector": ".action.remove","formDataPost": data});});</script>
This is provided during widget instantiation. For example:
Copied to your clipboardformDataPost : {"formData": ["field1-name1", "field2-name1", "field3-name1"], "templateFields":['field1-name','field2-name','field3-name']]}
"formData"is the multi-dimensional array of form field values : [['a','b'],['c','b']] received from the server and encoded"templateFields"are the input fields in the template with index suffixed after the field name. For example,field1-name{index},field2-name{index},field3-name{index}
Options
rowTemplate
The row template selector.
Type: String
Default value: '#template-registrant'
rowContainer
The row container selector.
Type: String
Default value: '#registrant-container'
rowIndex
Row index used by the template rows.
Type: Integer
Default value: 0
rowCount
Row count.
Type: Integer
Default value: 0
rowParentElem
Row parent element.
Type: String
Default value: '<li></li>'
rowContainerClass
Row container class.
Type: String
Default value: 'fields'
addRowBtn
The add row button selector.
Type: String
Default value: '#add-registrant-button'
btnRemoveIdPrefix
ID prefix of a remove button.
Type: String
Default value: 'btn-remove'
btnRemoveSelector
The remove button selector.
Type: String
Default value: '.btn-remove'
rowIdPrefix
ID prefix of a row element.
Type: String
Default value: 'row'
additionalRowClass
The additional row class name which is added after the main class name.
Type: String
Default value: 'add-row'
addEventSelector
Default selectors for adding elements to a template.
Type: String
Default value: 'button'
remEventSelector
Default selectors for removing markup elements from a template.
Type: String
Default value: 'a'
hideFirstRowAddSeparator
This option specifies if the remove link and additional row class are removed for the first row.
Type: Boolean
Default value: true
maxRows
Max number of rows.
Type: Integer
Default value: 1000
maxRowsMsg
The message selector of an element which appears when the max number of rows has been exceeded.
Type: String
Default value: #max-registrant-message
Code sample

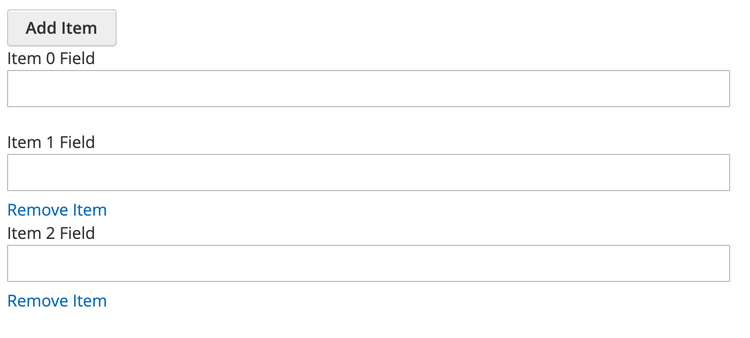

This example shows the row builder container, which adds a new row when you click the Add Item button and removes a row when you click the Remove Item button.
Copied to your clipboard<script id="row-template" type="text/x-magento-template"><div><div class="field name required"><label for="field-name<%- data._index_ %>" class="label"><span>Item <%- data._index_ %> Field</span></label><div class="control"><input name="field[name][<%- data._index_ %>]" type="text" title="<?= $block->escapeHtmlAttr(__('Name')) ?>" class="input-text"id="field-name<%- data._index_ %>"/></div></div><div class="actions-toolbar"><div class="secondary"><a href="#" id="btn-remove<%- data._index_ %>" class="action remove"title="Remove Item"><span>Remove Item</span></a></div></div></div></script><div class="row-builder-example"data-mage-init='{"rowBuilder":{"rowTemplate":"#row-template","rowContainer":"#row-container","rowParentElem":"<div></div>","remEventSelector":"a","btnRemoveSelector":".action.remove","maxRows":"5","maxRowsMsg":"#max-rows-message","addRowBtn":"#add-row-button","additionalRowClass":"additional"}}'><div id="max-rows-message" style="display: none;" class="message notice limit" role="alert"><span>Number of rows exceeded.</span></div><button type="button" id="add-row-button" class="action add"><span>Add Item</span></button><div id="row-container"></div></div>

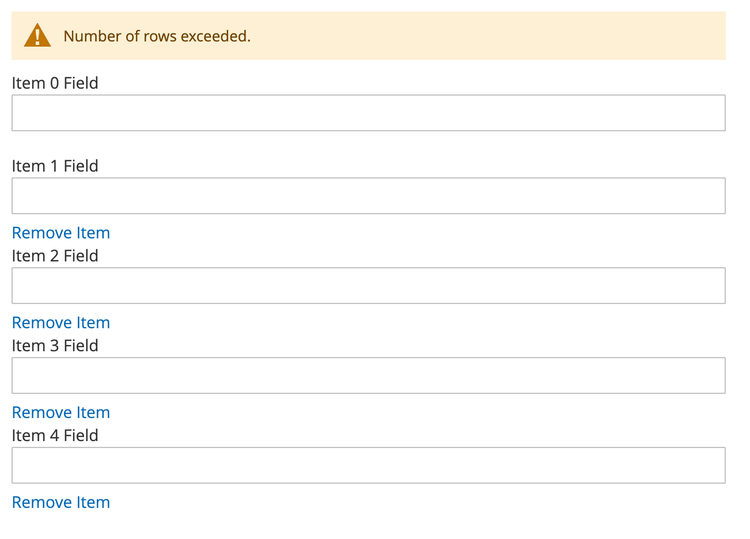

Result
As a result, we see the RowBuilder widget example with 5 rows as max.
