Checkbox component

The Checkbox component implements a form field that is an HTML <input type="checkbox"> element. It can also be displayed as a "toggle" handler or a radio button element.

Options

Option

Description

Type

Default

checked

Initial checkbox state (selected or cleared). If false, the checkbox is cleared. If true, the checkbox is selected.

Boolean

false

component

The path to the component’s .js file in terms of RequireJS.

String

Magento_Ui/js/form/element/single-checkbox

label

Label to be displayed in the field.

String

''

multiple

Renders multiple elements.

Boolean

false

prefer

The input type of the element to be rendered. Can be either radio button, checkbox, or toggle key. Changing this value also changes the elementTmpl, originally defined in the parent (abstract) component.

String (radio | checkbox | toggle)

checkbox

template

The path to the component’s .html template.

String

ui/form/field

templates

Paths to templates for all possible types of input elements. The exact template to be used for rendering is defined by the prefer property.

Object

{radio: 'ui/form/components/single/radio', checkbox: 'ui/form/components/single/checkbox', toggle: 'ui/form/components/single/switcher'}

valueMap

Convert the component's value to the expected type. For example, you can set to convert '0' to 'false', this would look like following: <br />{'0': false}

Object

{}

Source files

Extends Abstract:

Examples

Integration (toggle element)

This is an example of how to integrate the Checkbox component with the Form component:

<form>
    <fieldset>
        <field name="myCheckbox" formElement="checkbox">
            <settings>
                <label translate="true">Enabled</label>
                <tooltip>
                    <description translate="true">This is my checkbox's description</description>
                </tooltip>
            </settings>
            <formElements>
                <checkbox>
                    <settings>
                        <prefer>toggle</prefer>
                        <valueMap>
                            <map name="false" xsi:type="boolean">false</map>
                            <map name="true" xsi:type="boolean">true</map>
                        </valueMap>
                    </settings>
                </checkbox>
            </formElements>
        </field>
    </fieldset>
</form>

Result

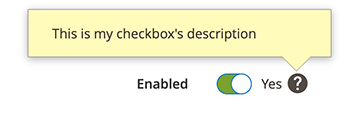

Checkbox Toggle UiComponent

Integration (checkbox element)

This is an example of how to integrate the Checkbox component with the Form component:

<form>
    <fieldset>
        <field name="myCheckbox" formElement="checkbox">
            <settings>
                <label translate="true">Checkbox</label>
                <tooltip>
                    <description translate="true">This is my checkbox's description</description>
                </tooltip>
            </settings>
            <formElements>
                <checkbox>
                    <settings>
                        <prefer>checkbox</prefer>
                        <valueMap>
                            <map name="false" xsi:type="boolean">false</map>
                            <map name="true" xsi:type="boolean">true</map>
                        </valueMap>
                    </settings>
                </checkbox>
            </formElements>
        </field>
    </fieldset>
</form>

Result

Checkbox UiComponent

Integration (radio element)

This is an example of how to integrate the Checkbox component with the Form component:

<form>
    <fieldset>
        <field name="myRadio" formElement="checkbox">
            <settings>
                <label translate="true">Radio</label>
                <tooltip>
                    <description translate="true">This is my radio's description</description>
                </tooltip>
            </settings>
            <formElements>
                <checkbox>
                    <settings>
                        <prefer>radio</prefer>
                        <valueMap>
                            <map name="false" xsi:type="boolean">false</map>
                            <map name="true" xsi:type="boolean">true</map>
                        </valueMap>
                    </settings>
                </checkbox>
            </formElements>
        </field>
    </fieldset>
</form>

Result

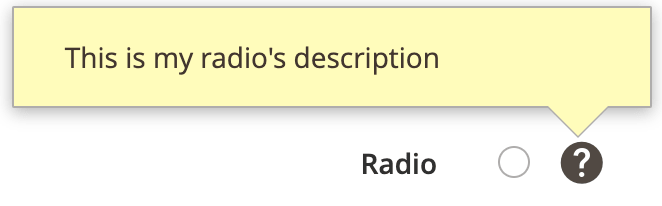

Checkbox Radio UiComponent
