Checkboxset component

The Checkboxset component implements a group of <input type="checkbox"> or <input type="radio"> selection elements.

Options

Option
Description
Type
Default
class
Path to the PHP class responsible for the backend implementation of the component.
String
Magento\Ui\Component\Form\Element\CheckboxSet
component
The path to the component’s .js file in terms of RequireJS.
String
'Magento_Ui/js/form/element/checkbox-set'
multiple
Set the input type in the UI: true for checkbox, false for radio button.
Boolean
true
options
The array of the options to be displayed in the list for selection.
Array
[]
template
The path to the component’s .html template.
String
'ui/form/element/checkbox-set'

Source files

Extends Abstract:

Examples

Integration

This is an example of how to integrate the Checkboxset component with the Form component:

<form>
    ...
    <fieldset>
        ...
        <checkboxset name="checkboxset_example">
            <argument name="data" xsi:type="array">
                <item name="config" xsi:type="array">
                    <item name="additionalInfo" xsi:type="string">Additional information</item>
                </item>
            </argument>
            <settings>
                <label translate="true">Checkboxset Component Example</label>
                <options>
                    <option name="0" xsi:type="array">
                        <item name="value" xsi:type="number">1</item>
                        <item name="label" xsi:type="string" translate="true">Option #1</item>
                    </option>
                    <option name="1" xsi:type="array">
                        <item name="value" xsi:type="number">2</item>
                        <item name="label" xsi:type="string" translate="true">Option #2</item>
                    </option>
                    <option name="2" xsi:type="array">
                        <item name="value" xsi:type="number">3</item>
                        <item name="label" xsi:type="string" translate="true">Option #3</item>
                    </option>
                </options>
            </settings>
        </checkboxset>
    </fieldset>
</form>

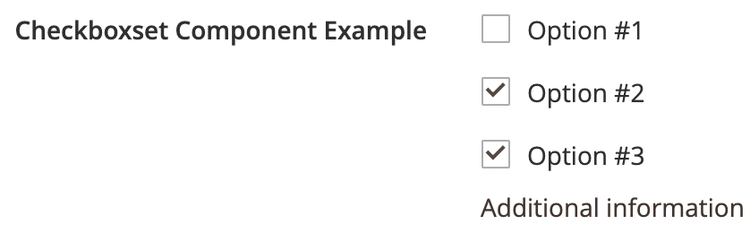

Result

Checkboxset Component Example
