Columns component

The Columns component is a collection of columns. It renders the <table> element and displays the records of the Listing component in this table.

Options

Option
Description
Type
Default
component
The path to the component's .js file.
String
Magento_Ui/js/grid/listing
displayMode
Initial display mode.
String
'grid'
displayModes
List of available display modes.
{[name: string]: [DisplayMode](#displaymode-interface)}
{grid: {value: 'grid',label: 'Grid',template: '${ $.template }'},list: {value: 'list',label: 'List',template: '${ $.listTemplate }'}}
dndConfig
Configuration of the DragAndDrop component.
Object
Specified in the DragAndDrop component configuration.
stickyTmpl
Path to the .html template used for the Toolbar component when it receives a fixed position.
String
ui/grid/sticky/listing
template
Path to the component's .html template.
String
ui/grid/listing
editorConfig
Configuration of the InlineEditing component.
Object
Specified in the InlineEditing component configuration.
viewSwitcherTmpl
Path to the .html template for rendering the list of available display modes. By default this list is not displayed.
String
ui/grid/view-switcher
componentType
The type of component.
String
columns
resizeConfig
Configurations of Resize component.
Object
{name: '${ $.name }_resize',columnsProvider: '${ $.name }',component: 'Magento_Ui/js/grid/resize',enabled: false}

DisplayMode interface

Option
Description
Type
Required
label
Label for the list of available modes.
String
Optional
template
Path to the .html template used to render listing in the selected mode.
String
Optional
value
Mode's identifier.
String
Optional

Source files

Extends uiCollection:

Examples

Integration (grid)

This is an example of how the Columns component integrates with the Listing component:

<listing>
    ...
    <columns name="columns_example">
        <column name="column1" sortOrder="10">
            <settings>
                <filter>text</filter>
                <dataType>text</dataType>
                <label translate="true">Column 1</label>
                <default>1</default>
            </settings>
        </column>
        <column name="column2" sortOrder="13">
            <settings>
                <filter>text</filter>
                <dataType>text</dataType>
                <label translate="true">Column 2</label>
                <default>2</default>
            </settings>
        </column>
        <column name="column3" sortOrder="14">
            <settings>
                <filter>text</filter>
                <dataType>text</dataType>
                <label translate="true">Column 3</label>
                <default>3</default>
            </settings>
        </column>
        <column name="column4" sortOrder="15">
            <settings>
                <filter>text</filter>
                <dataType>text</dataType>
                <label translate="true">Column 4</label>
                <default>4</default>
            </settings>
        </column>
    </columns>
    ...
</listing>

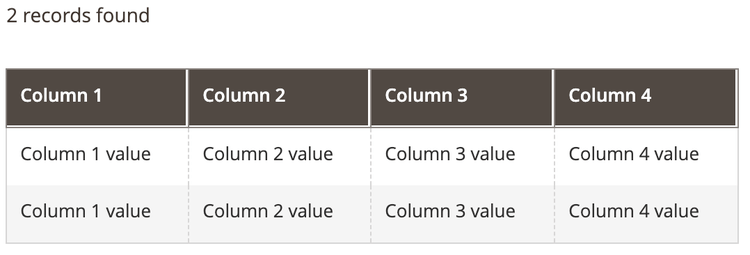

Result

Columns Component Example

Integration (list)

This is an example of how the Columns component with the list display mode integrates with the Listing component:

<listing>
    ...
    <columns name="columns_list_example">
        <settings>
            <displayMode>list</displayMode>
        </settings>
        <column name="column1" sortOrder="10">
            <settings>
                <filter>text</filter>
                <dataType>text</dataType>
                <label translate="true">Column 1</label>
                <default>1</default>
            </settings>
        </column>
        <column name="column2" sortOrder="13">
            <settings>
                <filter>text</filter>
                <dataType>text</dataType>
                <label translate="true">Column 2</label>
                <default>2</default>
            </settings>
        </column>
        <column name="column3" sortOrder="14">
            <settings>
                <filter>text</filter>
                <dataType>text</dataType>
                <label translate="true">Column 3</label>
                <default>3</default>
            </settings>
        </column>
        <column name="column4" sortOrder="15">
            <settings>
                <filter>text</filter>
                <dataType>text</dataType>
                <label translate="true">Column 4</label>
                <default>4</default>
            </settings>
        </column>
    </columns>
    ...
</listing>

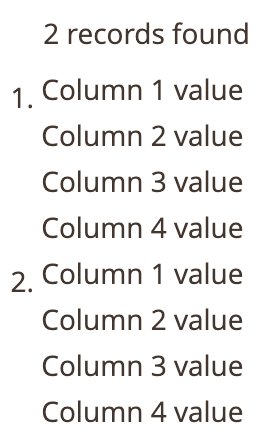

Result

Columns List Component Example
