Filters component

The Filters component renders UI controls for filtering and applies filtering. Must be a child of the Listing component.

See the Admin Design Pattern Library (Filters) topic for information about the UI design patterns that can be implemented using Filters component.

Options

Option
Description
Type
Default Value
component
The path to the component's .js file in terms of RequireJS.
String
''
chipsConfig
Configuration passed to the FiltersChips component.
Object
{ name: '${ $.name }_chips', provider: '${ $.chipsConfig.name }', component: 'Magento_Ui/js/grid/filters/chips'}
statefull
Defines a list of component properties whose values are automatically saved in the configured storage if they change. key is the property's name and the value defines whether its saved.
Object
{applied: true}
stickyTmpl
Additional .html template that displays filters when the Toolbar component gets a fixed position.
String
ui/grid/sticky/filters
template
Path to the component's .html template.
String
ui/grid/filters/filters
templates.filters
Describes basic filter types. This definitions are used to dynamically create filter elements based on the filter field specified in the corresponding column. For example, if a column's filter property contains the text value, then a Filter component instance with a definition for the text type will be created.
Object
Contains definitions of the text, select,dateRange and textRange filter types.

Source files

Extends uiCollection:

Examples

Add a new filterable customer attribute

To add a new customer attribute to the customer grid and make it filterable, follow these steps:

  1. Create view/adminhtml/ui_component/customer_listing.xml to add a column component.
  2. Create the column component PHP class which extends Magento\Ui\Component\Listing\Columns\Column.
  3. Create etc/indexer.xml to add the attribute to the customer_grid index and define it as filterable.
  4. Set is_used_in_grid to true for the attribute.

Integration

This example integrates the Filters component with the Listing component:

<listing>
    ...
    <listingToolbar>
        <!-- integrates the Filters component -->
        <filters name="listing_filters" />
    </listingToolbar>
    <!-- add columns -->
    <columns name="columns_example">
        <column name="column1" sortOrder="10">
            <settings>
                <filter>text</filter>
                <dataType>text</dataType>
                <label translate="true">Column 1</label>
                <default>1</default>
            </settings>
        </column>
        <column name="column2" sortOrder="13">
            <settings>
                <filter>text</filter>
                <dataType>text</dataType>
                <label translate="true">Column 2</label>
                <default>2</default>
            </settings>
        </column>
    </columns>
</listing>

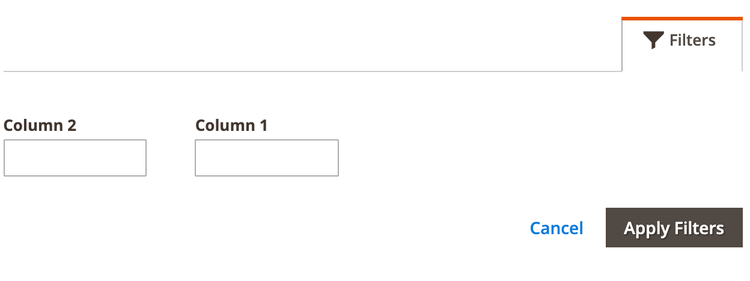

Result

Filters Component example
