Multiselect component

The Multiselect component provides the interface for a list or a data set. Multiselect allows selecting multiple items.

Options

Option	Description	Type	Default
`component`	The path to the component’s `.js` file in terms of RequireJS.	String	`'Magento_Ui/js/form/element/multiselect'`
`elementTmpl`	The path to the .html template of the particular field type (multiselect).	String	`'ui/form/element/multiselect'`
`size`	The number of options that are displayed in the multiselect UI.	Number	`6`
`template`	The path to the general field `.html` template.	String	`'ui/form/field'`

Source files

Extends Select

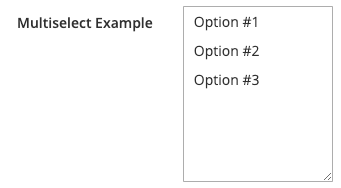

Example

<form>
    ...
    <fieldset>
        ...
        <field name="multiselect_example" formElement="multiselect">
            <settings>
                <dataType>text</dataType>
                <label translate="true">Multiselect Example</label>
                <dataScope>multiselect_example</dataScope>
            </settings>
            <formElements>
                <multiselect>
                    <settings>
                        <options>
                            <option name="1" xsi:type="array">
                                <item name="value" xsi:type="string">1</item>
                                <item name="label" xsi:type="string">Option #1</item>
                            </option>
                            <option name="2" xsi:type="array">
                                <item name="value" xsi:type="string">2</item>
                                <item name="label" xsi:type="string">Option #2</item>
                            </option>
                            <option name="3" xsi:type="array">
                                <item name="value" xsi:type="string">3</item>
                                <item name="label" xsi:type="string">Option #3</item>
                            </option>
                        </options>
                    </settings>
                </multiselect>
            </formElements>
        </field>
        ...
    </fieldset>
    ...
</form>
Copied to your clipboard
<form>
    ...
    <fieldset>
        ...
        <field name="multiselect_example" formElement="multiselect">
            <settings>
                <dataType>text</dataType>
                <label translate="true">Multiselect Example</label>
                <dataScope>multiselect_example</dataScope>
            </settings>
            <formElements>
                <multiselect>
                    <settings>
                        <options>
                            <option name="1" xsi:type="array">
                                <item name="value" xsi:type="string">1</item>
                                <item name="label" xsi:type="string">Option #1</item>
                            </option>
                            <option name="2" xsi:type="array">
                                <item name="value" xsi:type="string">2</item>
                                <item name="label" xsi:type="string">Option #2</item>
                            </option>
                            <option name="3" xsi:type="array">
                                <item name="value" xsi:type="string">3</item>
                                <item name="label" xsi:type="string">Option #3</item>
                            </option>
                        </options>
                    </settings>
                </multiselect>
            </formElements>
        </field>
        ...
    </fieldset>
    ...
</form>
