Debug UI components

This article describes how to define what UI components are used on a particular page, their JavaScript components and what data they use.

To define the UI components used on a page, you can use browser built-in developer tools, or install additionally a plugin, for example Knockoutjs context debugger for Google Chrome.

Knockout.js plugin

To install the knockout debugging plugin for Google Chrome, take the following steps:

Open your Google Chrome browser.
Expand Google Chrome options drop-down (hamburger in upper right).
Select Settings.
In left pane, select Extensions.
Scroll to end of the page and click Get more extensions link.
In the Search field write Knockoutjs context debugger and press the Enter key.
In the result, find the extension named Knockoutjs context debugger (usually the first result), and click Add to Chrome.

To define the UI component using the plugin:

Open the required page in Chrome.
Point to the required element on the page, right-click and select Inspect. The developer tools panel opens.
In the right column of the panel, click the Knockout context tab. The tab displays the name and the configuration of the UI component instance.

A simple example:

Launch Admin.
Navigate to Products > Catalog and click Add Product. The product creation page opens.
Right-click on the Product Name field and click Inspect. Go to the Knockout context tab. Here you can see the full context of the field, where you can find JS component file, component name, etc.

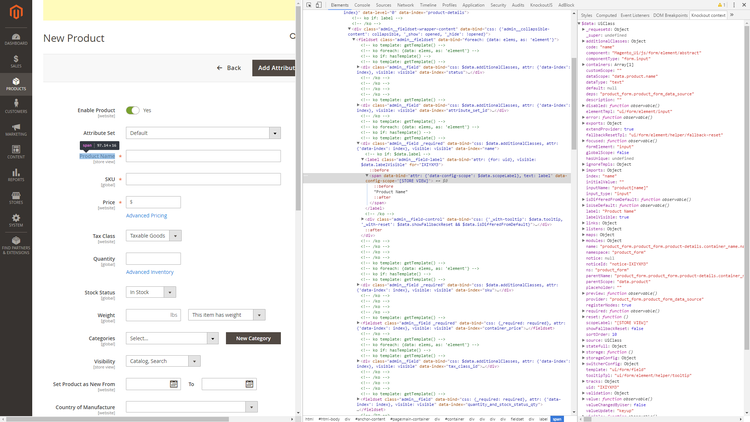

Image Example

Pure Knockout

To retrieve the context within markup, you can also use the instance of Knockout:

At first we need to get a Knockout instance from the browser console. To do so, use the RequireJS ID knockout.

var ko = require('knockout');
Copied to your clipboard
var ko = require('knockout');

Now we have Knockout instance in the ko variable. We can use it to get a context of any DOM element.

var context = ko.contextFor($0);
Copied to your clipboard
var context = ko.contextFor($0);

, where $0 is a special variable in browser console. It contains a link to a DOM element that is last inspected.

For example:

// Admin > Products > Catalog > Add Product
// Inspect "Product Name"
var fieldName = ko.contextFor($0).$data;

console.log(fieldName.name); // product_form.product_form.product-details.container_name.name
Copied to your clipboard
// Admin > Products > Catalog > Add Product
// Inspect "Product Name"
var fieldName = ko.contextFor($0).$data;

console.log(fieldName.name); // product_form.product_form.product-details.container_name.name

Chrome DevTools

All modern browsers support "debugging" – a special UI in developer tools that makes finding and fixing errors much easier.

Sources panel UI

[DevTools] provides a lot of different tools for different tasks, but the Sources panel is where you debug JavaScript.

Open the required page in Chrome.
Turn on developer tools with F12 (Windows, Linux) or Cmd+Opt+I (Mac).
Click the Sources tab.

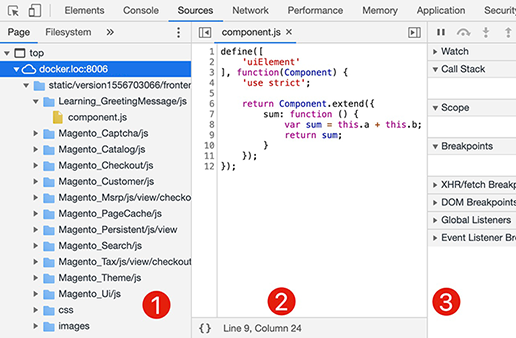

Sources Panel

In the previous image, we can see three zones:

The Resources zone lists all the files as HTML, JavaScript, CSS.
The Source zone shows the source code of any selected file.
The Information and control zone is for debugging.

Breakpoints

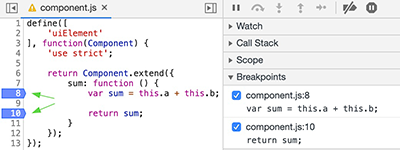

A breakpoint is a line of code where the debugger will automatically pause the JavaScript execution process. To set a breakpoint, right click on the code line number (as shown in the next image).

Breakpoints

You can always find a list of breakpoints in the right panel, which is useful when you have many breakpoints in various files.

Right-clicking on the line number allows you to create a conditional breakpoint, which triggers only when the given expression is truthy. That's helpful when you need to stop only for certain function parameters.

Execution trace

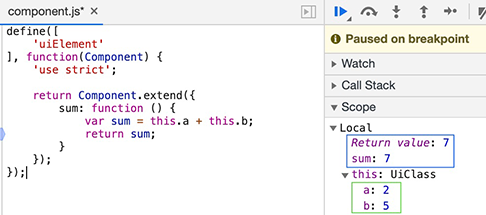

After setting the breakpoint, refresh the page. Now, let's explore the script tracing. As you can see in the next image, the script execution paused on the given breakpoint.

Execution Trace

As result, you can see the input parameter values and what the function returns. Moreover, we're also able to change the function's values on the fly.

Invoking DevTools

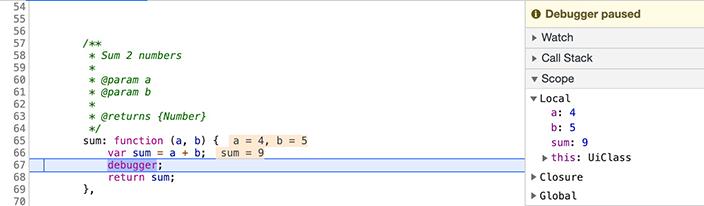

To use DevTools you can follow the previously described steps, or you can use the debugger keyword in your JavaScript code to invoke the browser's DevTools.

function sum(a, b) {
    var sum = a + b;
    debugger;
    return sum;
}
Copied to your clipboard
function sum(a, b) {
    var sum = a + b;
    debugger;
    return sum;
}
