Customize the design

Learn how to customize (add, delete, change) the configuration options available in the Admin. These options define the various aspects of storefront design.

The location of your customizations appears here:

  • Adobe Commerce and Magento Open Source 2.1.0 and later: Options set under CONTENT > Design > Configuration

Environment and technologies

  • Adobe Commerce
  • Adobe Commerce on cloud infrastrucrure
  • Magento Open Source

Prerequisites

  • Adobe Commerce or Magento Open Source installed
  • Credentials or access to Admin

Steps

On a default Adobe Commerce or Magento Open Source installation, when you navigate to CONTENT > Design > Configuration in Admin, the first page that opens displays a grid with the available configuration scopes and assigned themes. It looks like following:

Design Configuration

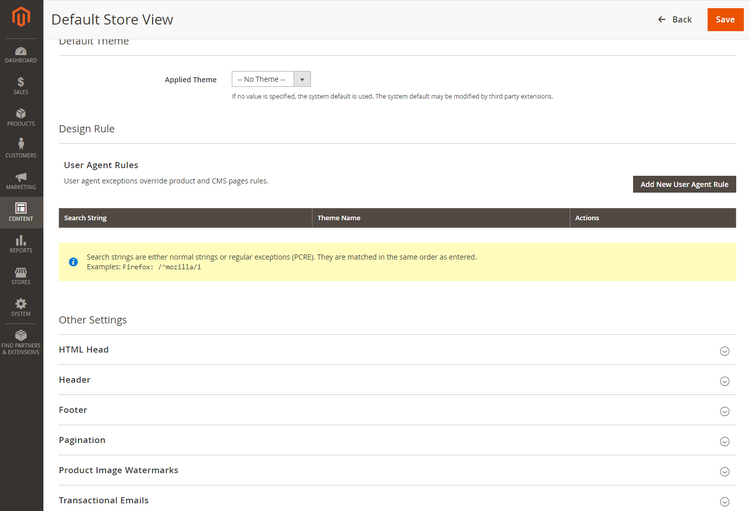

When you click Edit in any of the scope records, the page with available design options is displayed. For example, the default set of design options for the store view level is the following:

Default Store View

Both the grid and the configuration form are implemented using UI components.

To change the grid view, you must customize the grid configuration by adding a custom design_config_listing.xml file to your module.

To change the available design settings, you must customize the grid configuration by adding your custom design_config_form.xml file in your module. If you add a new field, you must also declare it in the di.xml file.

Customize the grid

The grid containing the configuration scopes is implemented using the grid UI component.

To customize the grid view, take the following steps:

  1. In the <your_module_dir>/view/adminhtml/ui_component directory, add the empty design_config_listing.xml file.

  2. In the design_config_listing.xml file, create an element to which to add your customizations. For example, if you want to rename the column displaying the selected theme, your grid configuration must contain the following:

Copied to your clipboard
   <?xml version="1.0" encoding="UTF-8"?>


   <listing xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_Ui:etc/ui_configuration.xsd">
       <columns name="design_config_columns">
           <column name="theme_theme_id">
               <argument name="data" xsi:type="array">
                   <item name="config" xsi:type="array">
                       <item name="label" xsi:type="string" translate="true">%New theme column name%</item>
                   </item>
               </argument>
           </column>
       </columns>
   </listing>

Your design_config_listing.xml file is merged with the same files from the other modules, so there is no need to copy their contents. You only need to define changes. Even if you want to customize the existing entities, you only need to mention those options for which the values are customized.

For reference, view the grid configuration files of the modules:

  • <Magento_Backend_module_dir>/view/adminhtml/ui_component/design_config_listing.xml
  • <Magento_Theme_module_dir>/view/adminhtml/ui_component/design_config_listing.xml

If you add a certain field as an additional grid column, you must also set the field's use_in_grid property in the field's meta data in the di.xml file.

Customize the design options

These sections detail how to customize form configuration and field metadata.

Customize the form configuration

The design configuration form is implemented using the form UI component.

To customize the form view, take the following steps:

  1. Create an empty design_config_form.xml file in the <your_module_dir>/view/adminhtml/ui_component/ directory.

  2. Add content similar to the following:

Copied to your clipboard
   <form xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_Ui:etc/ui_configuration.xsd">




       <fieldset name="%fieldset_name%">
           <argument name="data" xsi:type="array">
               <item name="config" xsi:type="array">
                   <item name="label" xsi:type="string" translate="true">%Fieldset Label as displayed in UI%</item>
                   <item name="sortOrder" xsi:type="number">%order for displaying%</item>
               </item>
           </argument>
           <!--Field sets can be nested -->
           <fieldset name="%nested_fieldset_name%">
               <argument name="data" xsi:type="array">
                   <item name="config" xsi:type="array">
                       <item name="label" xsi:type="string" translate="true">%Nested fieldset Label as displayed in UI%</item>
                       <item name="collapsible" xsi:type="boolean">true</item>
                       <!-- Nesting level, the value should correspond to the actual nesting level in the config xml file. For the top field set level = 0 -->
                       <item name="level" xsi:type="number">%level of nesting%</item>
                   </item>
               </argument>
               <field name="%field_name%">
                   <argument name="data" xsi:type="array">
                       <item name="config" xsi:type="array">
                           <item name="%field_option1%" xsi:type="%option_type%">%value%</item>
                           <item name="%field_option2%" xsi:type="%option_type%">%value%</item>
   ....
                       </item>
                   </argument>
               </field>
           </fieldset>
       </fieldset>
   </form>

Your custom fields and field sets will be available for all configuration scopes (website, store, and store view).

Your design_config_form.xml file is merged with the same files from the other modules, so there is no need to copy their contents You only need to add your customizations.

To customize an existing entity, declare only those options; the values of which are customized. Do not copy its entire configuration.

For example, if you only want to rename the Other Settings field set, your form configuration must contain the following:

Copied to your clipboard
<?xml version="1.0" encoding="UTF-8"?>


<form xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_Ui:etc/ui_configuration.xsd">


    <fieldset name="other_settings">
        <argument name="data" xsi:type="array">
            <item name="config" xsi:type="array">
                <item name="label" xsi:type="string" translate="true">Other Settings</item>


            </item>
        </argument>
    </fieldset>
</form>

To delete an existing field, or field set, in your design_config_form.xml file, use the following syntax:

Copied to your clipboard
...
    <fieldset name="%fieldset_name%">
        <argument name="data" xsi:type="array">
            <item name="disabled" xsi:type="boolean">true</item>
        </argument>
    </fieldset>
...

For reference, view the form configuration files of these modules:

  • <Magento_Backend_module_dir>/view/adminhtml/ui_component/design_config_form.xml
  • <Magento_Catalog_module_dir>/view/adminhtml/ui_component/design_config_form.xml
  • <Magento_Email_module_dir>/view/adminhtml/ui_component/design_config_form.xml
  • <Magento_Swatches_module_dir>/view/adminhtml/ui_component/design_config_form.xml
  • <Magento_Theme_module_dir>/view/adminhtml/ui_component/design_config_form.xml

Add fields' metadata

If in the design configuration form you add new fields, <your_module_dir>/etc/di.xml, you must specify their parent field sets and the path in the database. You can also declare the backend model used for processing the field values. If you do not specify any model, the default Magento\Framework\App\Config\Value model is used.

The field declaration in a di.xml file looks like the following:

Copied to your clipboard
...
<type name="Magento\Theme\Model\Design\Config\MetadataProvider">
    <arguments>
        <argument name="metadata" xsi:type="array">
                <!-- field name as described in configuration -->
                <item name="%field name%" xsi:type="array">
                    <!-- the path to the field in system configuration storage in DB-->
                    <item name="path" xsi:type="string">%path in system config%</item>
                    <!-- the name of field set for current field, as described in form configuration -->
                    <item name="fieldset" xsi:type="string">%parent_fieldset%</item>
                    <!-- The php model used for field value processing -->
                    <item name="backend_model" xsi:type="string">%Backend\Model\For\\Field\Processing%</item>
                    <!-- Define whether the field value is displayed in the Design Configuration grid -->
                    <item name="use_in_grid" xsi:type="boolean">true|false</>
                    <item name="base_url" xsi:type="array">
                        <item name="type" xsi:type="string"></item>
                        <item name="scope_info" xsi:type="string"></item>
                        <item name="value" xsi:type="string"></item>
                    </item>
                </item>
        </argument>
    </arguments>
</type>
...

Example of a field declaration:

Copied to your clipboard
<type name="Magento\Theme\Model\Design\Config\MetadataProvider">
    <arguments>
        <argument name="metadata" xsi:type="array">
                <item name="head_shortcut_icon" xsi:type="array">
                    <item name="path" xsi:type="string">design/head/shortcut_icon</item>
                    <item name="fieldset" xsi:type="string">head</item>
                    <item name="backend_model" xsi:type="string">Magento\Config\Model\Config\Backend\Image\Favicon</item>
                    <item name="base_url" xsi:type="array">
                        <item name="type" xsi:type="string">media</item>
                        <item name="scope_info" xsi:type="string">1</item>
                        <item name="value" xsi:type="string">favicon</item>
                    </item>
                </item>
        </argument>
    </arguments>
</type>

For more examples and reference, view the di.xml files of these modules:

  • <Magento_Backend_module_dir>/etc/di.xml
  • <Magento_Catalog_module_dir>/etc/di.xml
  • <Magento_Email_module_dir>/etc/di.xml
  • <Magento_Swatches_module_dir>/etc/di.xml
  • <Magento_Theme_module_dir>/etc/di.xml

Accessing the options values in backend models

The design configuration option values are stored in the core_config_data table in the database, similar to the values of System Configuration options, and can be accessed using the \Magento\Framework\App\ConfigInterface mechanism.
